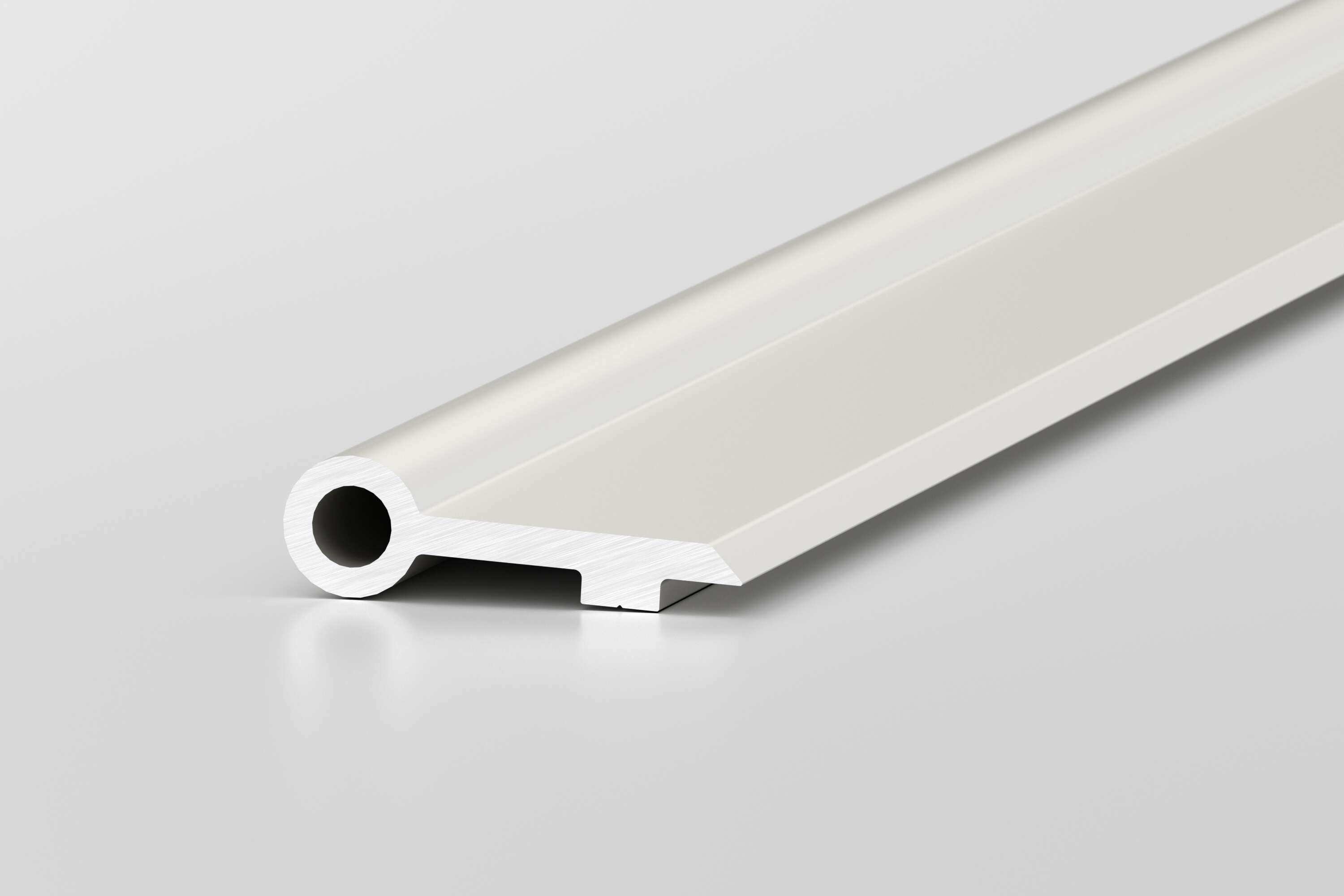

Hinge Leaf Profile

Selected variant
Hinge Leaf Profile V 8 z light, natural (0.0.454.54)
Hinge Leaf Profile V 8 z light, natural
0.0.454.54
Show all
* Mandatory information
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Properties

Lineline 8
ESD-safeNo
Weightm = 0.73 kg/m
MaterialAl, anodized
Colournatural

Description

Customised hinge strip on a lid that covers the entire gap between the door and fixed door frame.
Pin Set D6 makes the fitting of all Hinges Al light child’s play!

Assembly Instructions

The Hinge Leaf Profiles can be given a drilled hole or countersink for screw fastening. The correct position of the hole is identified by a marking notch on the rear of the hinge.

Variants

Sort by

Hinge Leaf Profile 8 e light, natural

Hinge Leaf Profile 8 e light, natural
Line:  8Connection type:  Surface / profileConnection type:  OutsideWidth:  40 mmUsable length:  36.2
Hinge Leaf Profile 8 e 80 light, natural

Hinge Leaf Profile 8 e 80 light, natural
Line:  8Connection type:  Profile / profileConnection type:  OutsideWidth:  80 mmUsable length:  76.2
Hinge Leaf Profile V 8 z light, natural

Hinge Leaf Profile V 8 z light, natural
Line:  8Connection type:  Profile / profileConnection type:  InsideWidth:  40 mmUsable length:  39.7
Hinge Leaf Profile V 8 e light, natural

Hinge Leaf Profile V 8 e light, natural
Line:  8Connection type:  Profile / profileConnection type:  OutsideWidth:  40 mmUsable length:  36.2
Hinge Leaf Profile V 8 z 18 light, natural

Hinge Leaf Profile V 8 z 18 light, natural
Line:  8Connection type:  Profile / profileConnection type:  InsideWidth:  30 mmUsable length:  25.5
Hinge Leaf Profile 6 e light, natural

Hinge Leaf Profile 6 e light, natural
Line:  6Connection type:  Surface / profileConnection type:  OutsideWidth:  30 mmUsable length:  27.2
Hinge Leaf Profile 6 e 60 light, natural

Hinge Leaf Profile 6 e 60 light, natural
Line:  6Connection type:  Profile / profileConnection type:  OutsideWidth:  60 mmUsable length:  57.5
Hinge Leaf Profile V 6 e light, natural

Hinge Leaf Profile V 6 e light, natural
Line:  6Connection type:  Profile / profileConnection type:  OutsideWidth:  30 mmUsable length:  27.2
Hinge Leaf Profile V 6 z light, natural

Hinge Leaf Profile V 6 z light, natural
Line:  6Connection type:  Profile / profileConnection type:  InsideWidth:  30 mmUsable length:  34.5
Hinge Leaf Profile V 10 z light, natural

Hinge Leaf Profile V 10 z light, natural
Line:  10Connection type:  Profile / profileConnection type:  InsideWidth:  50 mmUsable length:  52.5

Downloads

CAD Data

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 11.0
23360190
UNSPSC 7.0
31162403
UNSPSC 9.0
31162403
eCl@ss 8.0
23360101
eCl@ss 7.1
23360101
eCl@ss 4.1
35020106
eCl@ss 5.0
35020190
eCl@ss 5.1
35020190
eCl@ss 6.0.1
23360101
eCl@ss 4.0
35020106
Customs tariff number
76042100
