Angle Bracket Set

Selected variant
Angle Bracket Set 8 80x80x80 (0.0.719.27)
Angle Bracket Set 8 80x80x80
0.0.719.27
Show all
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

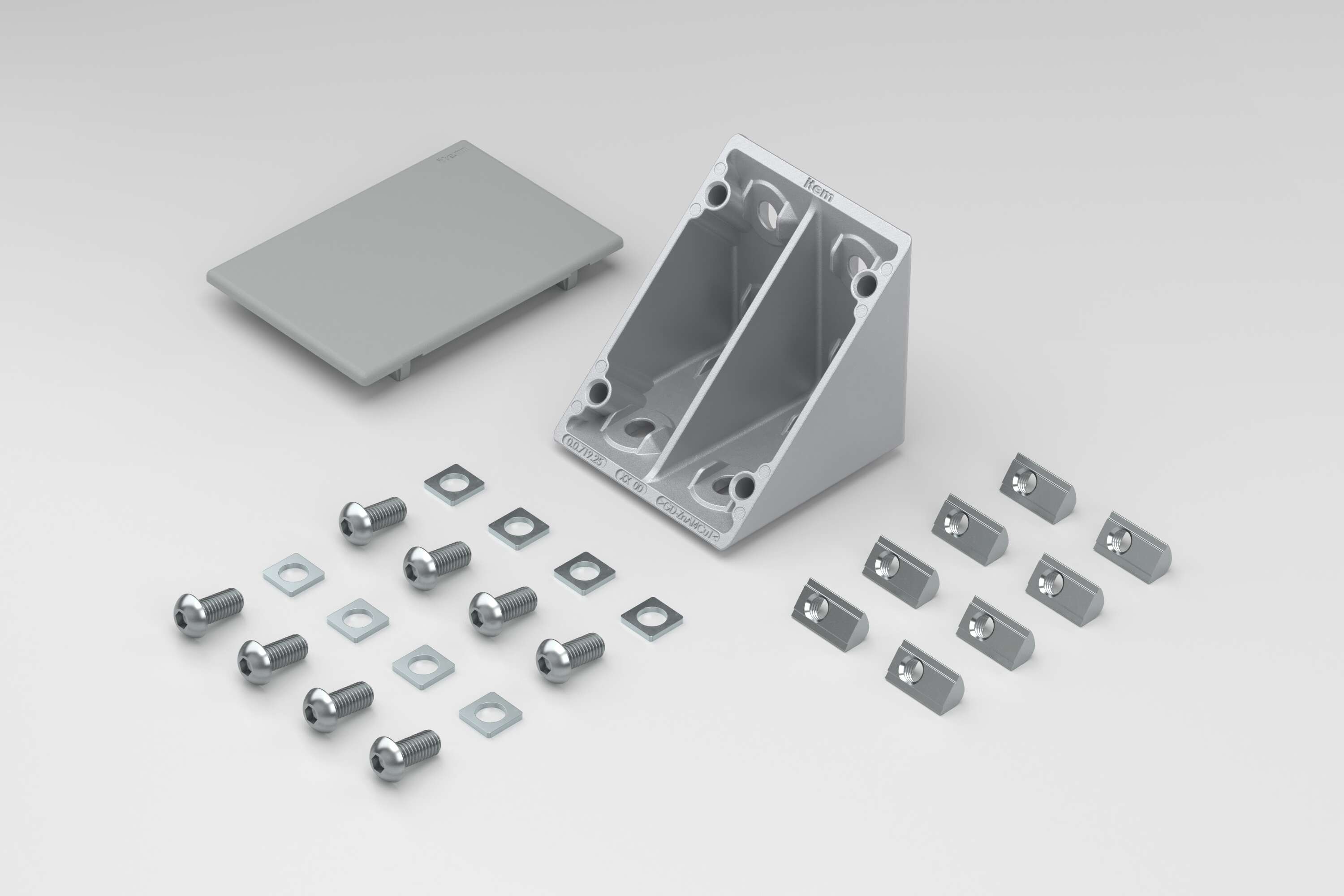

Scope of Delivery

1 Angle Bracket 8 80x80x80, die-cast zinc, white aluminium, similar to RAL 9006
1 Angle Bracket Cap 8 80x80x80, PA-GF, grey, similar to RAL 7042
8 Button-Head Screws ISO 7380-M8x18, St, bright zinc-pl.
8 T-Slot Nuts V 8 St M8, bright zinc-plated
8 Washers 2x13.9x13.9, St, bright zinc-plated

Properties

Article number0.0.719.27
Lineline 8
ESD-safeNo
Weightm = 725 g
Delivery unit1 set

Description

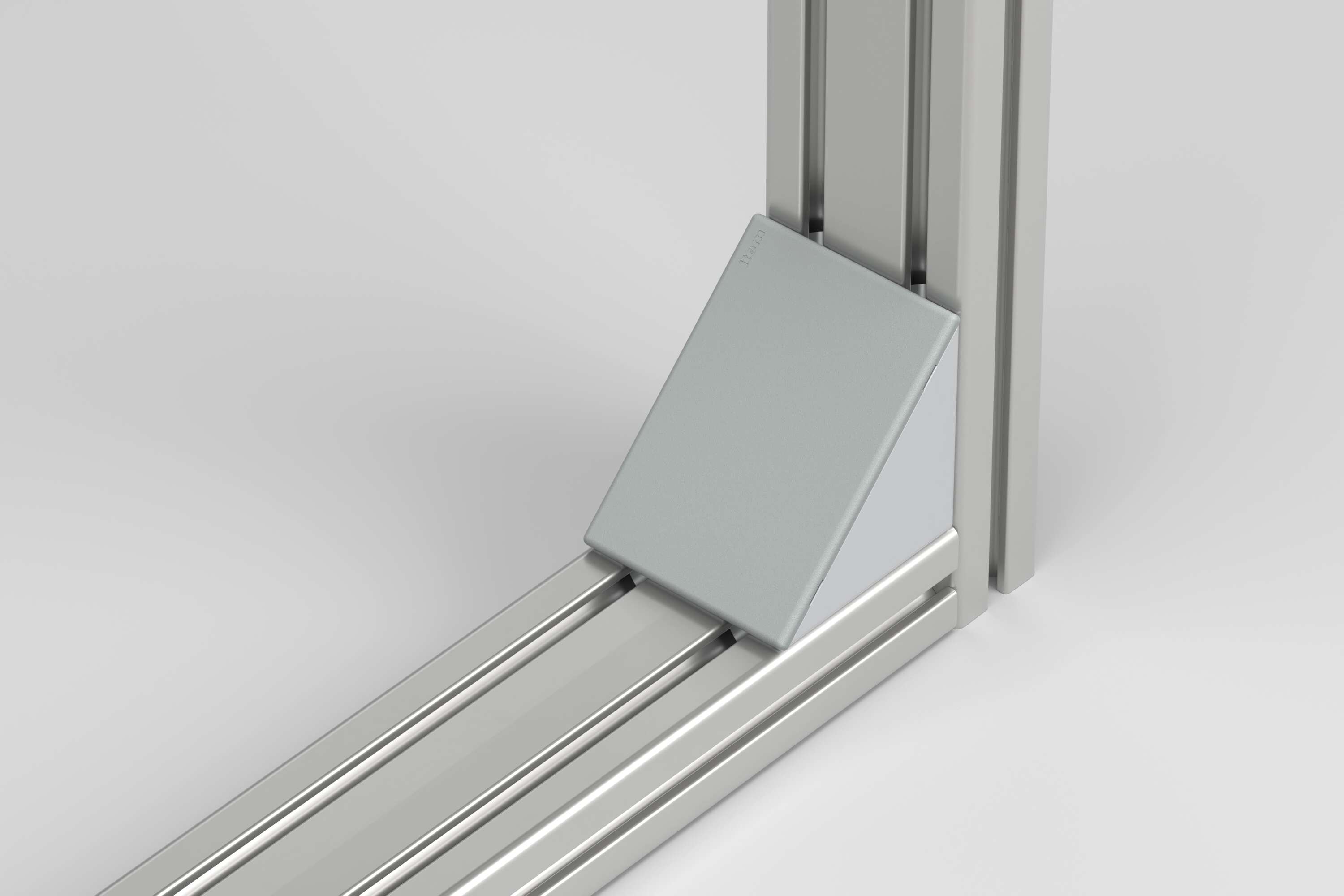

Angle Bracket Set 8 80x80x80 creates a friction-based connection between profiles that does not require any machining work. The torsion-resistant angle bracket can be used to add extra reinforcement to profile connections or to fasten a range of components to profiles.
When used to reinforce the joints of large profiles or conduits, several Angle Brackets can be used in parallel.
Note: Ensure the maximum permissible tensile load on the Profile Groove is not exceeded!
For Angle Brackets of Lines 6, 8 and 12, special square washers are used to improve the application of the clamping force.
F < 2,000 N ^ F x l < 150 Nm
The load-carrying capacity is to be checked to ensure both conditions are met.

Variants

Sort by

Winkelsatz 5 20x20

Winkelsatz 5 20x20

0.0.425.02
Baureihe:  5Außenmaß:  20x20Breite:  20 mmMaterial:  Zinkdruckguss (GD-Zn)Farbe:  Aluminium natur Aluminium natur
Winkelsatz 5 40x40

Winkelsatz 5 40x40

0.0.425.05
Baureihe:  5Außenmaß:  40x40Breite:  20 mmMaterial:  Zinkdruckguss (GD-Zn)Farbe:  Aluminium natur Aluminium natur
Winkelsatz 6 30x30

Winkelsatz 6 30x30

0.0.419.67
Baureihe:  6Außenmaß:  30x30Breite:  30 mmMaterial:  Zinkdruckguss (GD-Zn)Farbe:  Aluminium natur Aluminium natur
Winkelsatz 6 60x60

Winkelsatz 6 60x60

0.0.419.68
Baureihe:  6Außenmaß:  60x60Breite:  30 mmMaterial:  Zinkdruckguss (GD-Zn)Farbe:  Aluminium natur Aluminium natur
Winkelsatz 8 40x40 mit schwarzer Abdeckkappe

Winkelsatz 8 40x40 mit schwarzer Abdeckkappe

0.0.411.15
Baureihe:  8Außenmaß:  40x40Breite:  40 mmMaterial:  Zinkdruckguss (GD-Zn)Farbe:  Aluminium natur Aluminium natur
Winkelsatz 8 40x40 mit grauer Abdeckkappe

Winkelsatz 8 40x40 mit grauer Abdeckkappe

0.0.670.11
Baureihe:  8Außenmaß:  40x40Breite:  40 mmMaterial:  Zinkdruckguss (GD-Zn)Farbe:  Aluminium natur Aluminium natur
Winkelsatz 8 40x40 PA

Winkelsatz 8 40x40 PA

0.0.647.03
Baureihe:  8Außenmaß:  40x40Breite:  40 mmMaterial:  Kunststoff (PA)Farbe:  schwarz schwarz
Winkelsatz 8 80x80 mit schwarzer Abdeckkappe

Winkelsatz 8 80x80 mit schwarzer Abdeckkappe

0.0.411.32
Baureihe:  8Außenmaß:  80x80Breite:  40 mmMaterial:  Zinkdruckguss (GD-Zn)Farbe:  Aluminium natur Aluminium natur
Winkelsatz 8 80x80 mit grauer Abdeckkappe

Winkelsatz 8 80x80 mit grauer Abdeckkappe

0.0.670.12
Baureihe:  8Außenmaß:  80x80Breite:  40 mmMaterial:  Zinkdruckguss (GD-Zn)Farbe:  Aluminium natur Aluminium natur
Winkelsatz 8 80x80 PA

Winkelsatz 8 80x80 PA

0.0.647.05
Baureihe:  8Außenmaß:  80x80Breite:  40 mmMaterial:  Kunststoff (PA)Farbe:  schwarz schwarz
Winkelsatz 8 80x80x80

Winkelsatz 8 80x80x80

0.0.719.27
Baureihe:  8Außenmaß:  80x80Breite:  80 mmMaterial:  Zinkdruckguss (GD-Zn)Farbe:  Aluminium natur Aluminium natur
Winkelsatz 8 160x80

Winkelsatz 8 160x80

0.0.436.24
Baureihe:  8Außenmaß:  160x80Breite:  40 mmMaterial:  Zinkdruckguss (GD-Zn)Farbe:  Aluminium natur Aluminium natur
Winkelsatz X 8 40x40

Winkelsatz X 8 40x40

0.0.601.62
Baureihe:  XAußenmaß:  40x40Breite:  40 mmMaterial:  Zinkdruckguss (GD-Zn)Farbe:  Aluminium natur Aluminium natur
Winkelsatz X 8 80x80

Winkelsatz X 8 80x80

0.0.601.61
Baureihe:  XAußenmaß:  80x80Breite:  40 mmMaterial:  Zinkdruckguss (GD-Zn)Farbe:  Aluminium natur Aluminium natur
Winkelsatz 10 50x50

Winkelsatz 10 50x50

0.0.625.23
Baureihe:  10Außenmaß:  50x50Breite:  50 mmMaterial:  Zinkdruckguss (GD-Zn)Farbe:  Aluminium natur Aluminium natur
Winkelsatz 10 100x100

Winkelsatz 10 100x100

0.0.625.26
Baureihe:  10Außenmaß:  100x100Breite:  50 mmMaterial:  Zinkdruckguss (GD-Zn)Farbe:  Aluminium natur Aluminium natur
Winkelsatz 12 60x60

Winkelsatz 12 60x60

0.0.003.53
Baureihe:  12Außenmaß:  60x60Breite:  60 mmMaterial:  Zinkdruckguss (GD-Zn)Farbe:  Aluminium natur Aluminium natur
Winkelsatz 12 120x120

Winkelsatz 12 120x120

0.0.003.54
Baureihe:  12Außenmaß:  120x120Breite:  60 mmMaterial:  Zinkdruckguss (GD-Zn)Farbe:  Aluminium natur Aluminium natur
