Cap 8 24x20 D30 ESD, black similar to RAL 9005

0.0.722.62


Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
Components with this symbol meet the requirements of IEC 61340-5-1 and are therefore suitable for use in EPAs (electrostatic protected areas). By complying with the further stipulations of this standard you can use these products to create a safe environment for handling electronic components.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

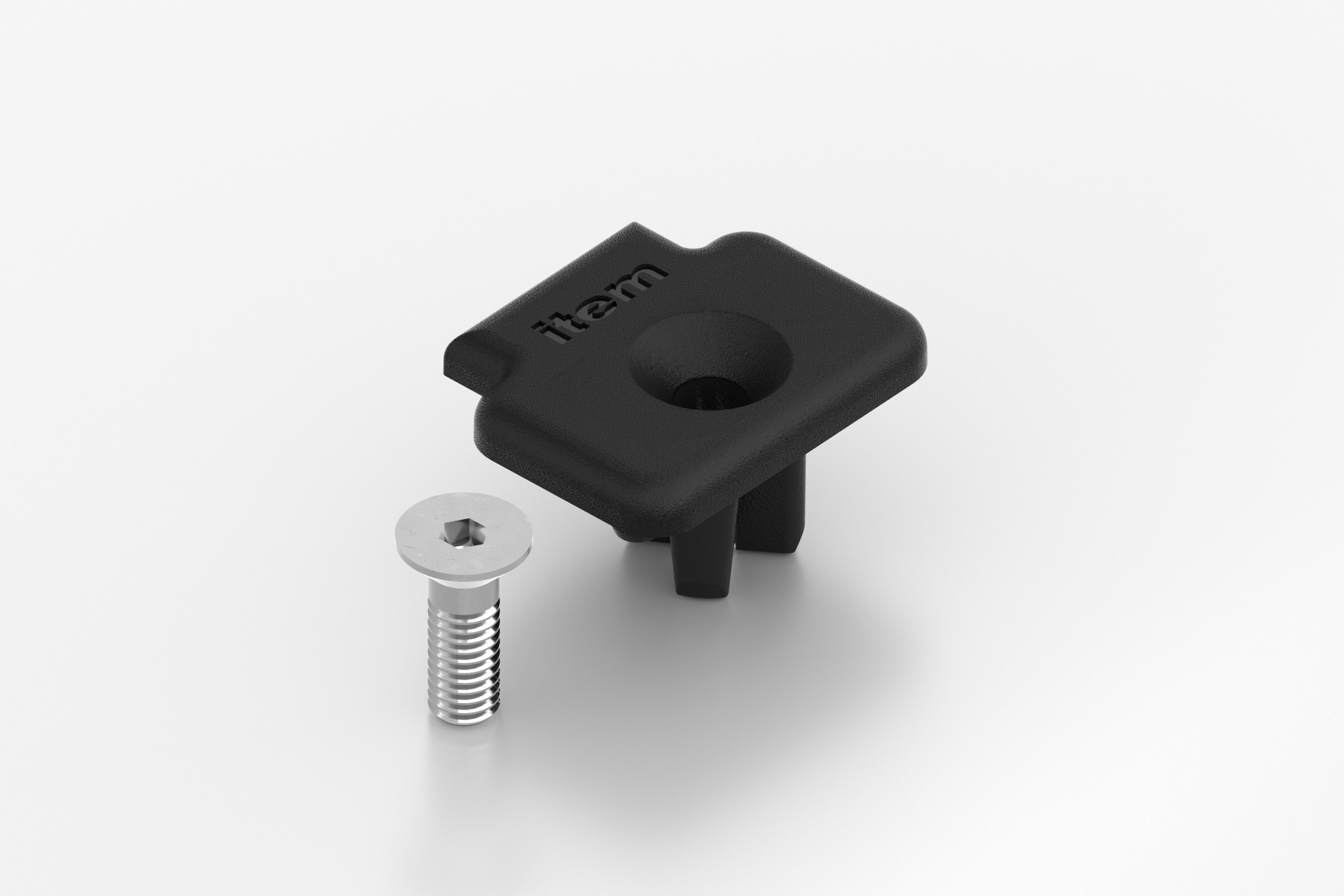

Scope of Delivery

1 single-piece Cap 8 24x20 D30 ESD, PA
1 Countersunk Screw DIN 7991 M4x12, St, bright zinc-plated

Properties

Article number0.0.722.62
Lineline 8
ESD-safeYes
Weightm = 3 g
Delivery unit1 set
Colourblack similar to RAL 9005

Description

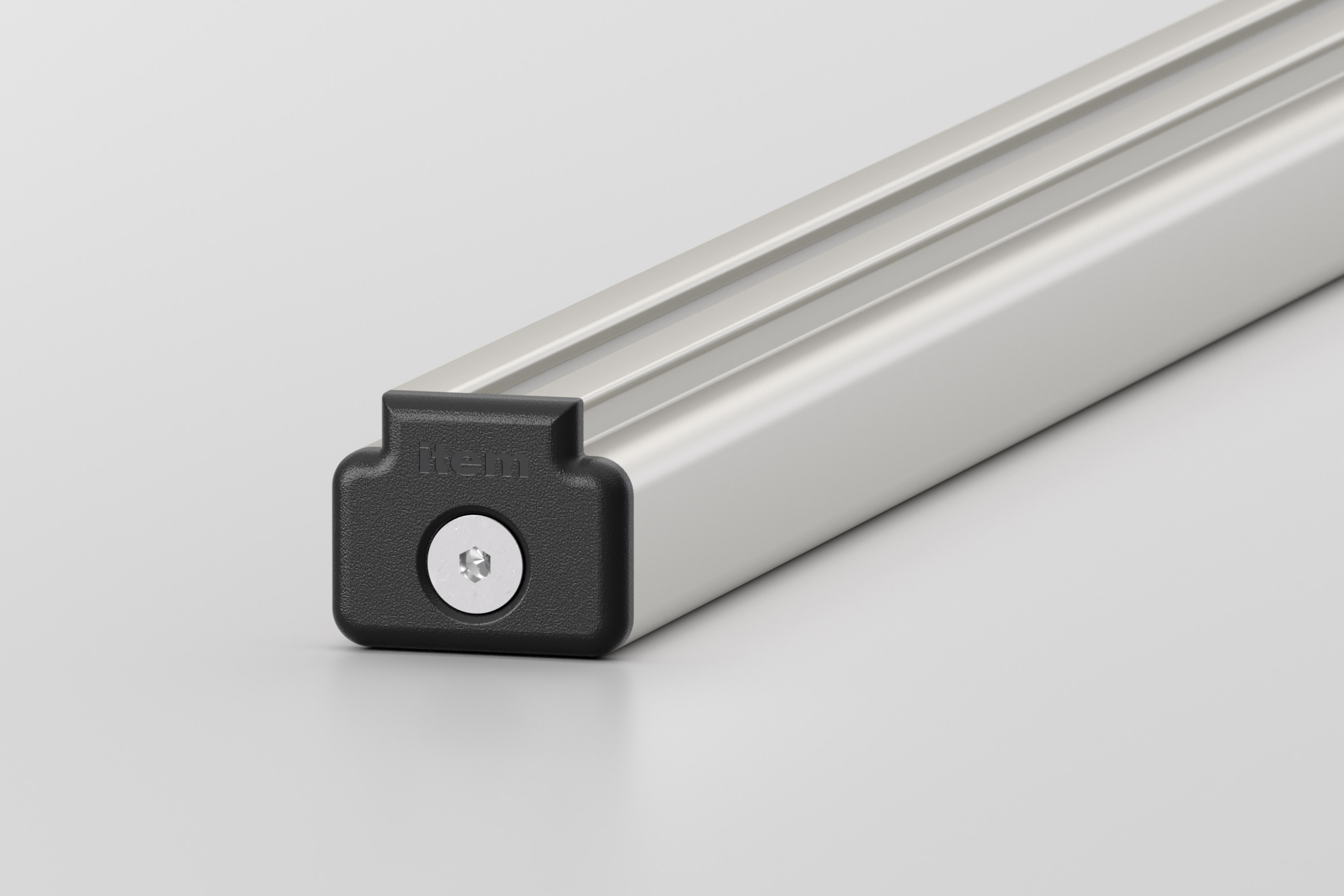

Cap 8 24x20 D30 ESD safely covers over the cut edges of a Profile 8 24x20 D30 (0.0.720.44). When the screw is tightened, the clamping geometry creates a secure hold in the Line 8 profile groove, even under exposure to vibrations, impacts and temperature changes.

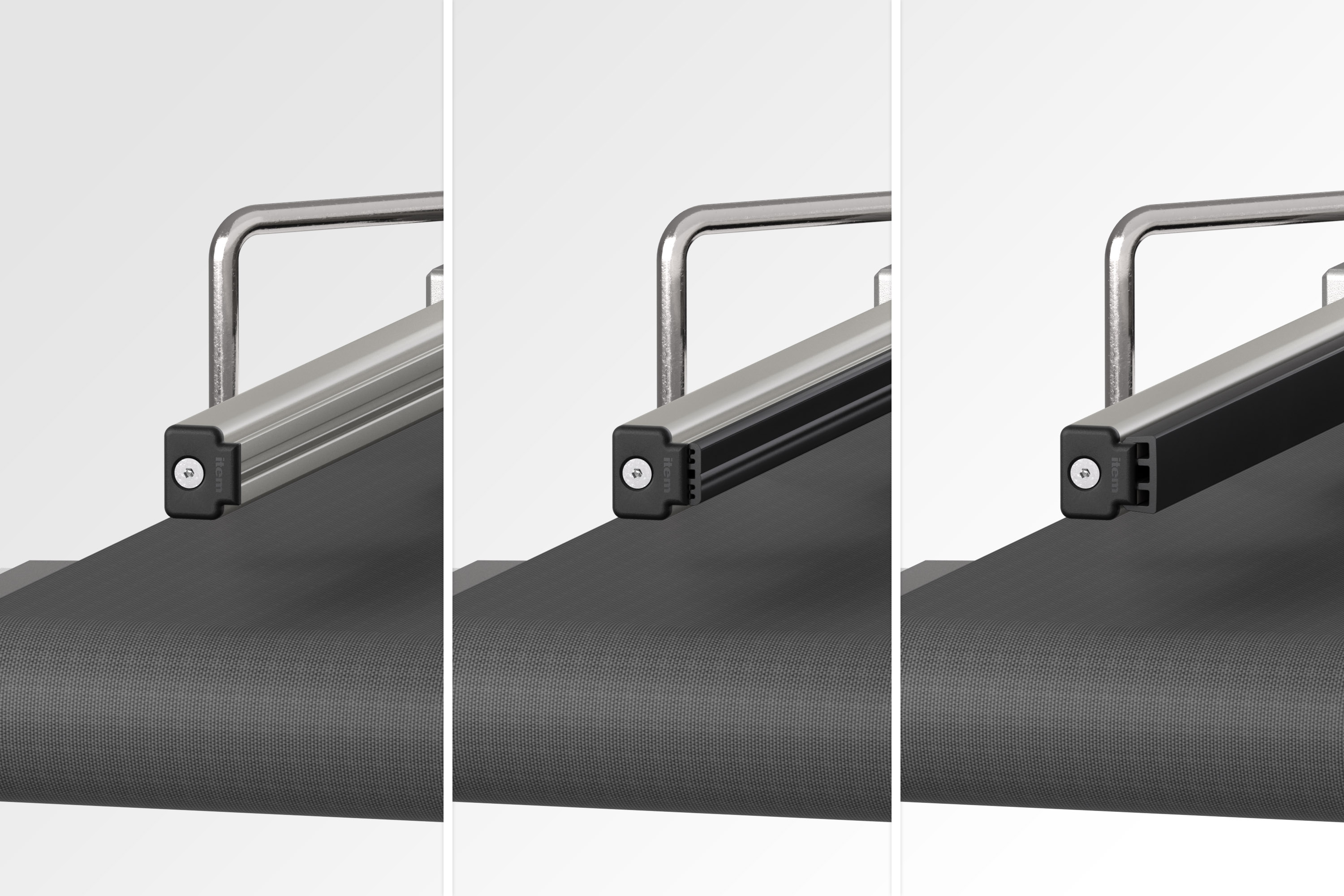

Cap 8 24x20 D30 ESD complements railing system 8 D8. The end faces of the railing profile are safely sealed. At the same time, the ESD-safe Cap also ensures that the Slide Strip on a railing does not move out of place during use.
Profile 8 24x20 D30 can be fitted with various Slide Strips so that goods can be moved around gently and safely. Cap 8 24x20 D30 ESD is compatible with all designs.

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 8.0
23369290
eCl@ss 11.0
23360292
eCl@ss 4.0
22041441
eCl@ss 4.1
22041441
eCl@ss 5.1
37070517
eCl@ss 5.0
37070517
UNSPSC 9.0
31141501
eCl@ss 6.0.1
23369290
UNSPSC 7.0
31141501
eCl@ss 7.1
23369290
Customs tariff number
39235090
