Door Profile 8 80x40

Selected variant

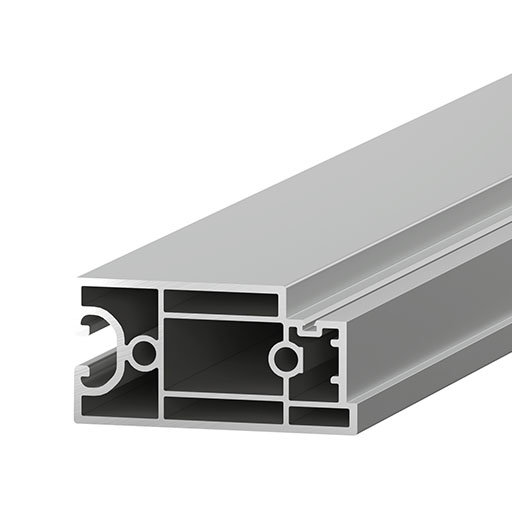

Door Profile 8 80x40, natural (0.0.727.48)
Door Profile 8 80x40, natural
0.0.727.48
Show all
* Mandatory information
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
Components with this symbol meet the requirements of IEC 61340-5-1 and are therefore suitable for use in EPAs (electrostatic protected areas). By complying with the further stipulations of this standard you can use these products to create a safe environment for handling electronic components.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Properties

Article number0.0.727.48
Lineline 8
ESD-safeYes
Weightm = 2,373 kg/m
Delivery unitcut-off max. 6000 mm
MaterialAl, anodized
Colournatural

Description

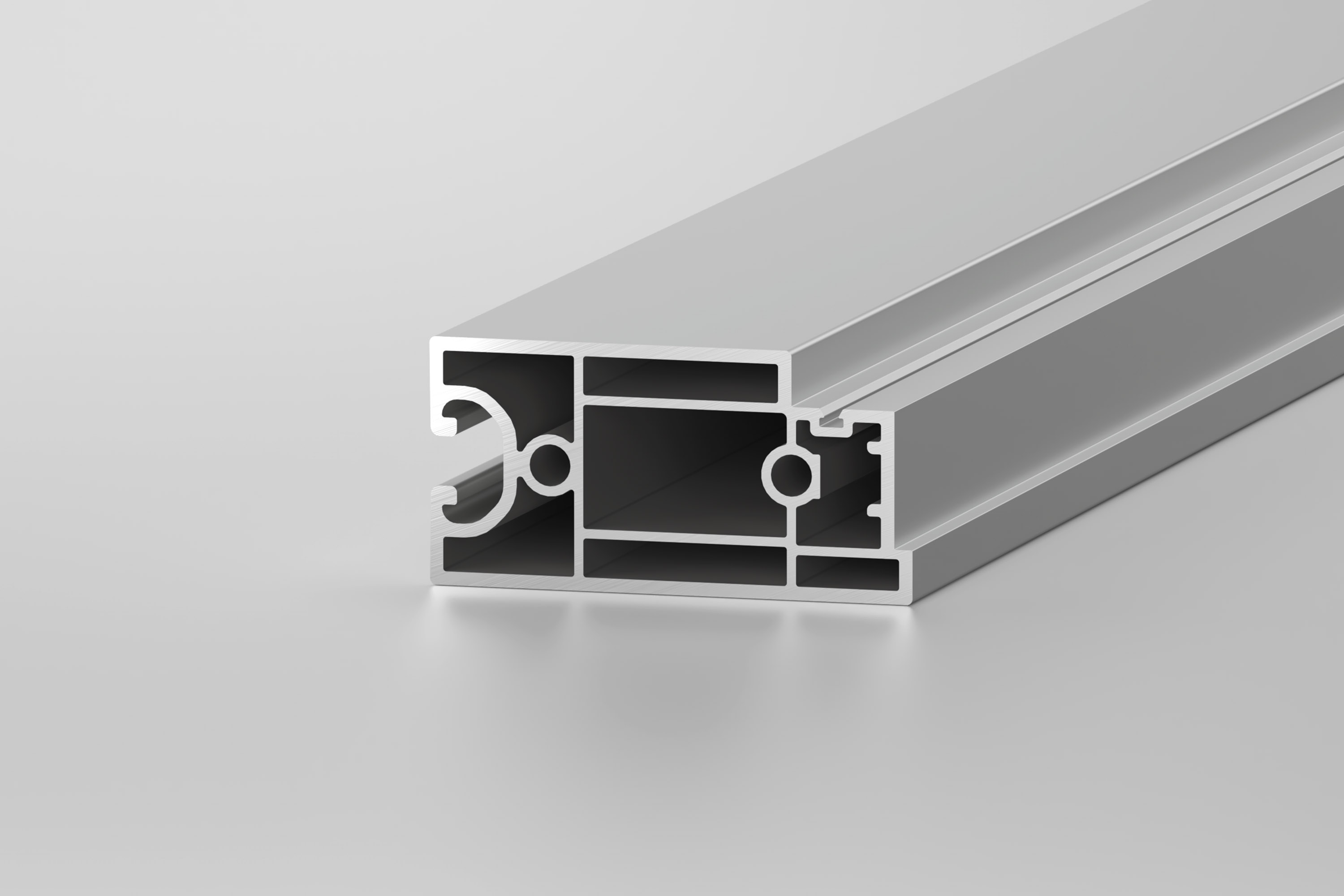

Door Profile 8 80x40 forms the inside of an inactive door leaf. It acts as a stop for the active leaf of the Double Access Door.
The strike plate for the lock on the Access Door can also be integrated into the weight-optimised profile, as can Flush Bolt 40 (0.0.728.27), which is used to lock and unlock the inactive door leaf. Frame Profile Seal 10x4.8 (0.0.709.96) ensures the door has an all-round seal.
The end faces are sealed using Door Profile Cap Set 8, Inactive Leaf (0.0.727.54).

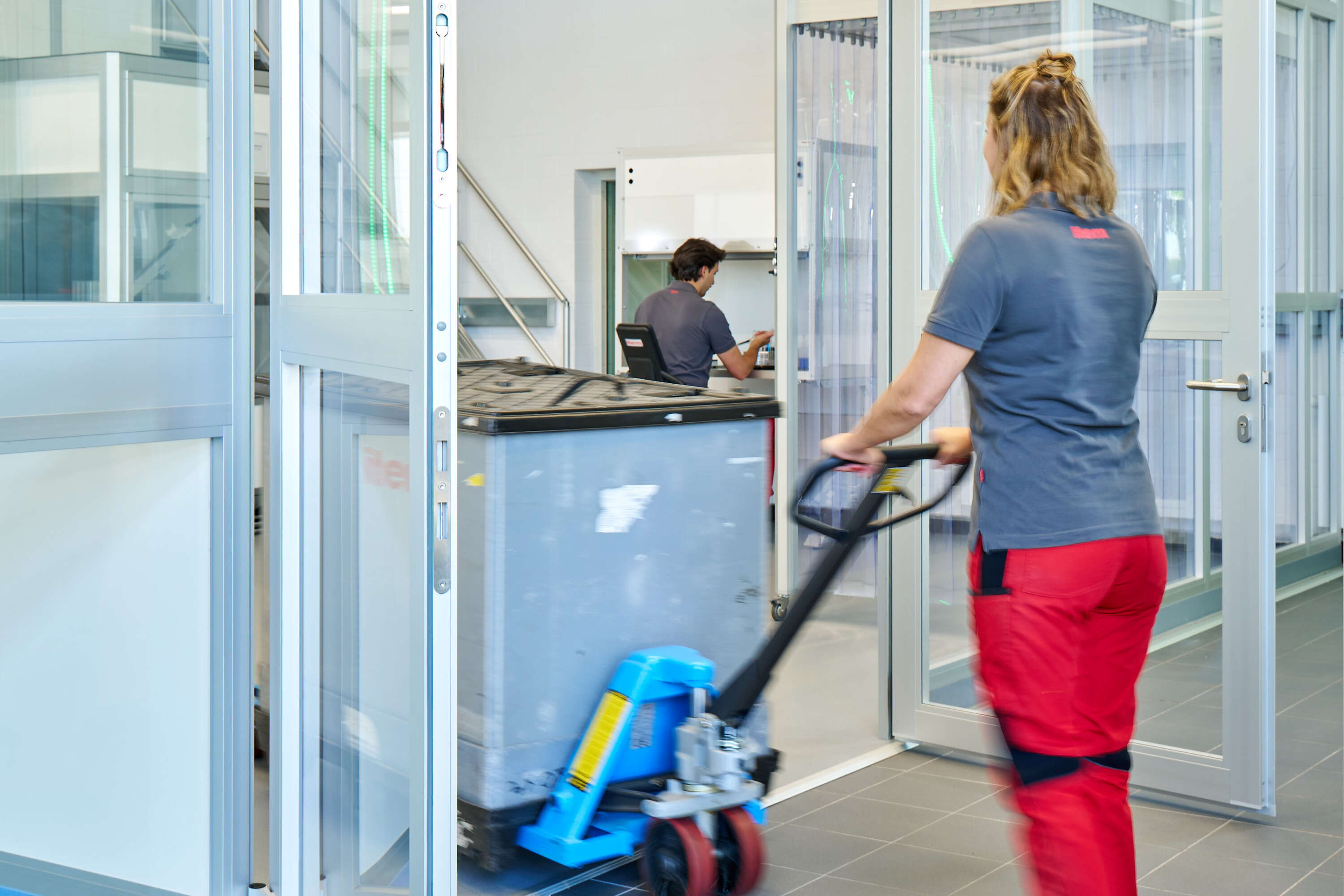

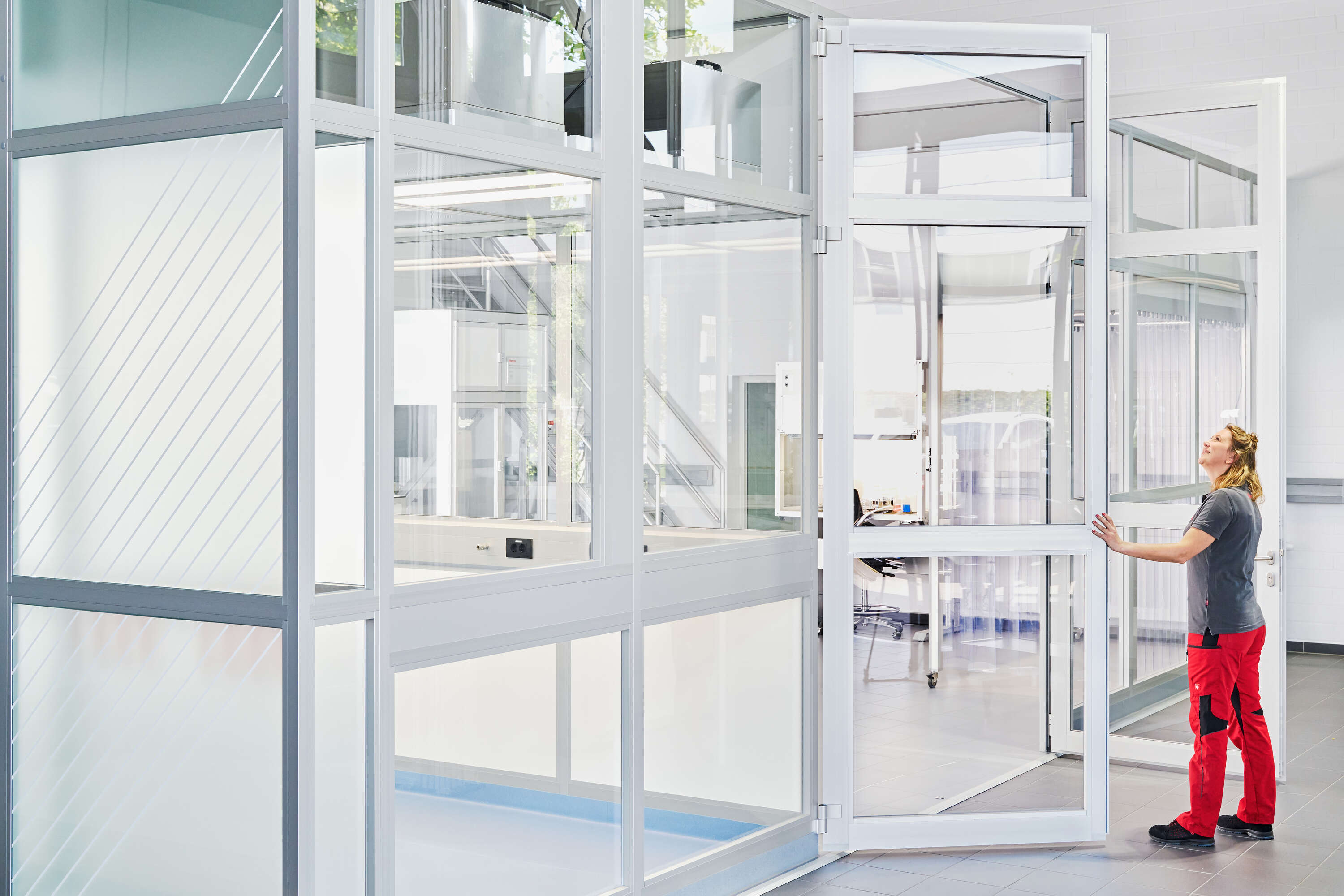

A Double Access Door consists of an item Access Door 8 and a lockable inactive door leaf. Together, these elements create lockable access points that are large enough to allow the movement of particularly tall structures or wide objects.
The Double Access Door can also be opened and closed from both sides and features an all-round seal. The door can be integrated into a frame made of Line 8 profiles with ease.
item Double Access Door 8 is based on components that have been carefully coordinated to produce highly functional door solutions.

Variants

Sort by

Door Profile 8 80x40, natural

Door Profile 8 80x40, natural

0.0.727.48
Delivery unit:  Cut-offLength:  20 ... 6000
Door Profile 8 80x40, natural

Door Profile 8 80x40, natural

0.0.727.36
Delivery unit:  PieceLength:  6000

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 8.0
23360101
eCl@ss 7.1
23360101
eCl@ss 11.0
23360101
eCl@ss 4.1
35020106
eCl@ss 5.0
35020190
eCl@ss 5.1
35020190
eCl@ss 6.0.1
23360101
eCl@ss 4.0
35020106
UNSPSC 9.0
30102306
UNSPSC 7.0
30102306
Customs tariff number
83024150
