Door Profile Cap Set 8, Inactive Leaf

0.0.727.54

Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

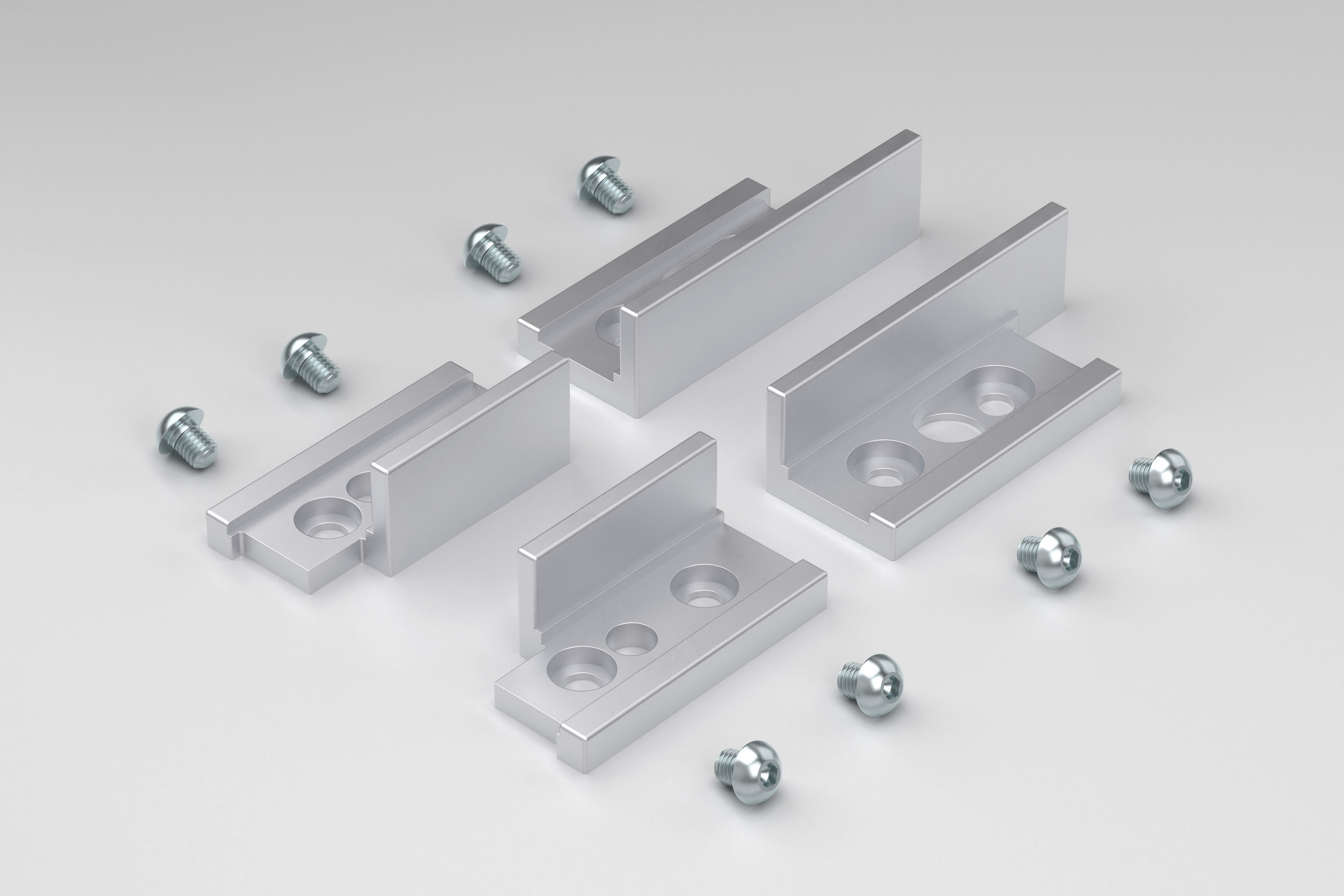

Scope of Delivery

1 Door Profile 8 80x40 Cap - A
1 Door Profile 8 80x40 Cap - B
1 Door Profile 8 103x40 Cap - A
1 Door Profile 8 103x40 Cap - B
8 Button-Head Screws ISO 7380-M8x10, St, bright zinc-plated

Properties

Article number0.0.727.54
Lineline 8
ESD-safeNo
Weightm = 392 g
Delivery unit1 set

Description

Door Profile Cap Set 8, Inactive Leaf, seals off Door Profile 8 80x40 (0.0.727.36) at the end face. The caps are screwed into the core bores and form the corners of the door.

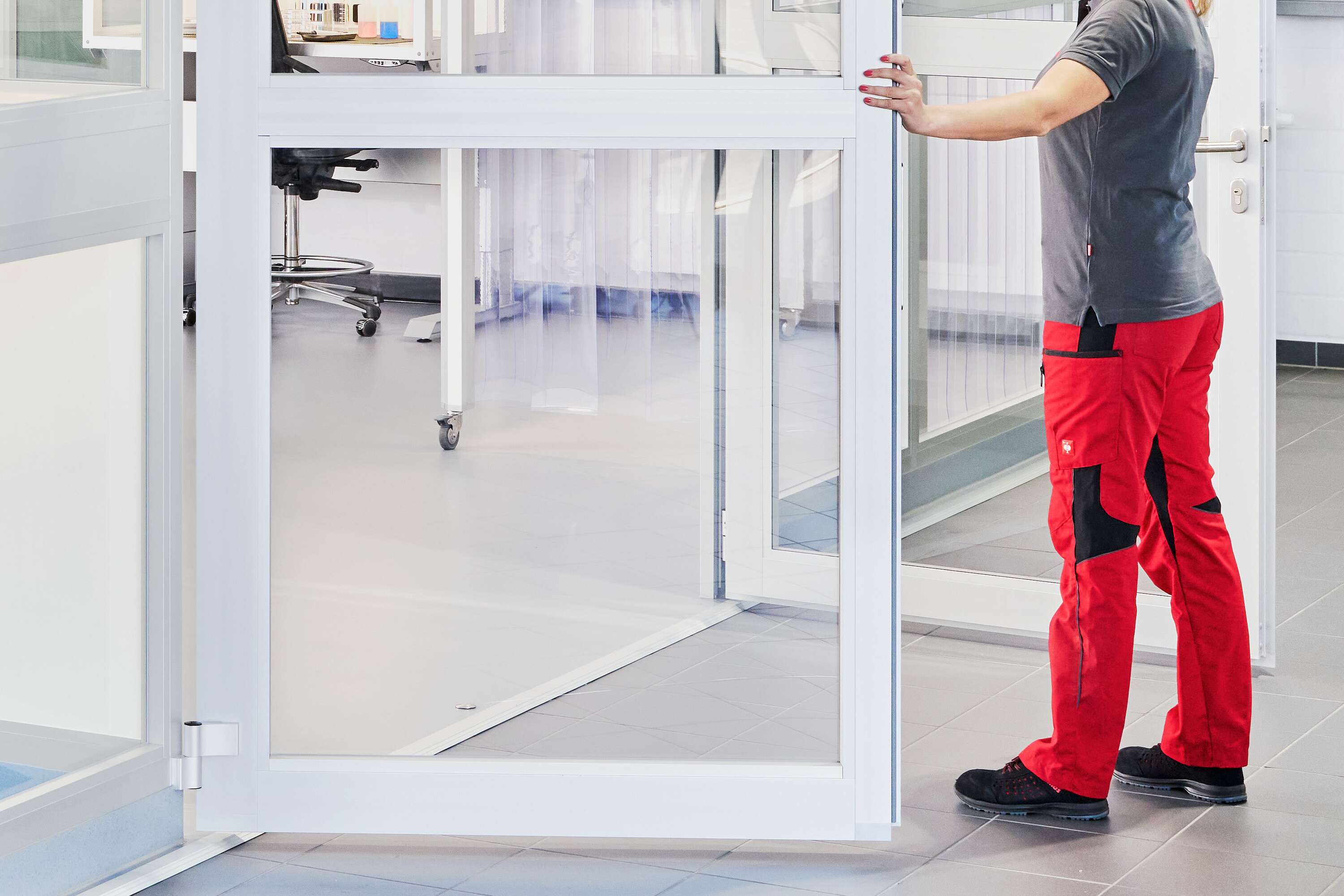

A Double Access Door consists of an item Access Door 8 and a lockable inactive door leaf. Together, these elements create lockable access points that are large enough to allow the movement of particularly tall structures or wide objects.
The Double Access Door can also be opened and closed from both sides and features an all-round seal. The door can be integrated into a frame made of Line 8 profiles with ease.
item Double Access Door 8 is based on components that have been carefully coordinated to produce highly functional door solutions.

Downloads

CAD Data

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 8.0
23219290
eCl@ss 5.0
23210890
eCl@ss 5.1
23210890
eCl@ss 6.0.1
23219090
eCl@ss 7.1
23219090
eCl@ss 11.0
23219090
UNSPSC 9.0
31141501
UNSPSC 7.0
31141501
Customs tariff number
83024150
