Guide Rails z

Selected variant

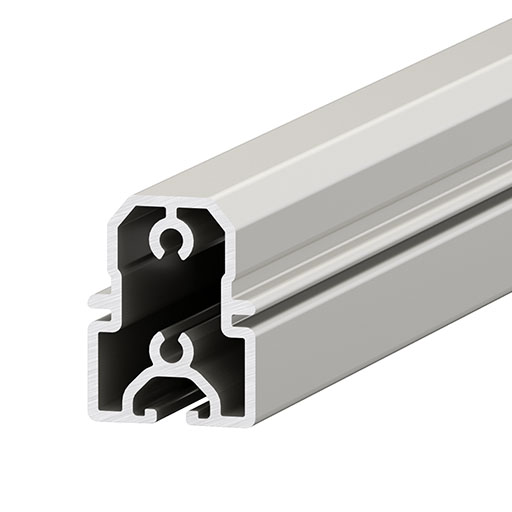

Guide Rail 6 36x26-47, natural (0.0.719.30)
Guide Rail 6 36x26-47, natural
0.0.719.30
Show all
* Mandatory information
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
Components with this symbol meet the requirements of IEC 61340-5-1 and are therefore suitable for use in EPAs (electrostatic protected areas). By complying with the further stipulations of this standard you can use these products to create a safe environment for handling electronic components.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Properties

Article number0.0.719.30
LineLine D30
ESD-safeYes
Cross-sectional areaA = 4,9 cm2
Moment of Inertia, torsionalIt = 6,5 cm4
Moment of Inertia, x-axisIx = 6,08 cm4
Moment of Inertia, y-axisIy = 10,96 cm4
Weightm = 1,23 kg/m
Delivery unitcut-off max. 6000 mm
MaterialAl, anodized
Permissible groove extraction forceF = 500 N
Colournatural
Resistance Moment, x-axisWx = 3,44 cm3
Resistance Moment, y-axisWy = 5,09 cm3

Description

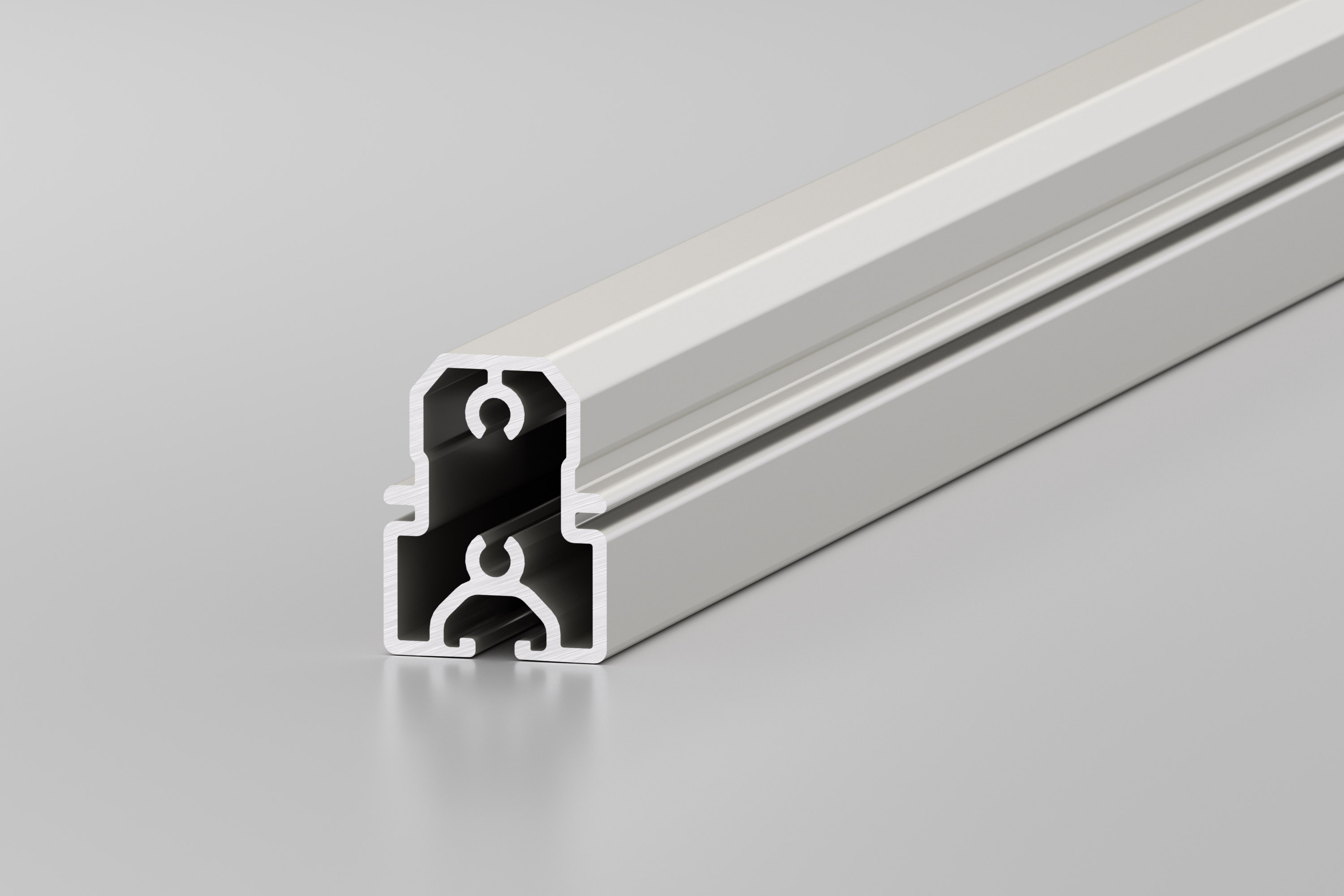

Guide Rail 6 36x26-47 uses the groove in the base of R-KLT small load carriers, as outlined in Recommendation 4500 of the German Association of the Automotive Industry (VDA), to securely guide these containers. The Guide Rail can be used instead of a railing, either separately to, or in conjunction with, a roller conveyor.
This container guidance system is fitted to a frame using Roller Conveyor St Fastening Brackets D30 (0.0.642.47). Thanks to the two installation heights for the Guide Rails, it is possible to create different clearances between the roller conveyor and container. Sensors and other accessories can be fastened to the Line 6 groove.
Cap 36x26-47 ESD (0.0.719.33) makes it easier to feed in the R-KLT small load carriers.
When using Guide Rail 6 36x26-47, roller conveyors don’t require any side guidance. This means that a system can be used for R-KLT small load carriers in various widths without having to convert the frame. For example, a roller conveyor carpet with appropriately positioned Guide Rails can be used to move two 300-mm-wide R-KLT containers or one 600-mm-wide R-KLT container along the same track.

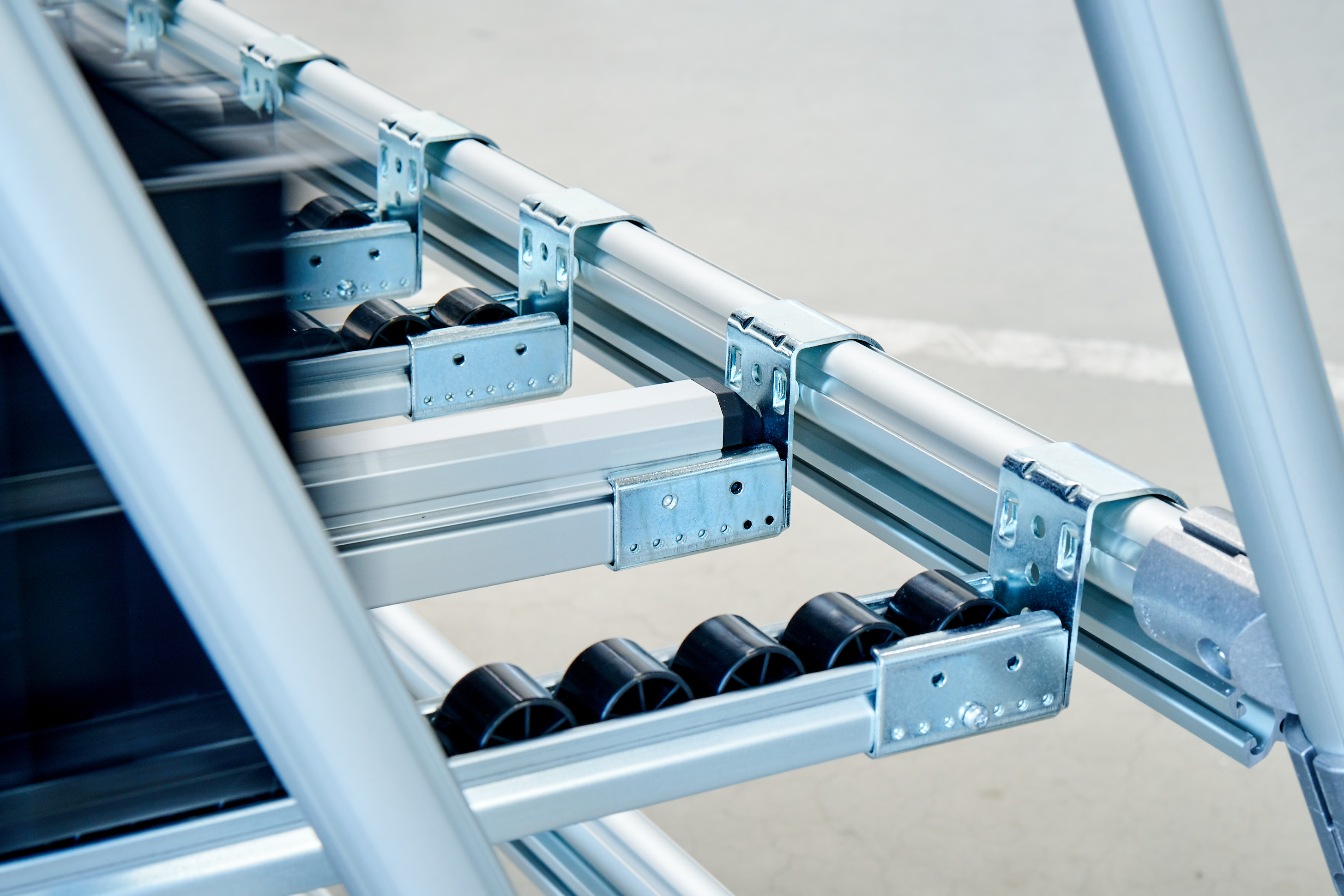

Guide Rail 6 36x26-47 can be installed in Roller Conveyor St Fastening Bracket D30 (0.0.642.47) at two different heights. When installed at the lower height, R-KLT containers that have a groove in their stepped base will be guided at the side, with their base resting on a roller conveyor.
When installed at the higher height, R-KLT containers will rest on the Guide Rail and not make contact with the roller conveyor. In this arrangement, containers are held securely in place for picking operations, after which they can be pushed from this static position onto a roller conveyor.

Variants

Sort by

Guide Rail 6 36x26-47, natural

Guide Rail 6 36x26-47, natural

0.0.719.30
Line:  6Delivery unit:  Cut-offLength:  20 ... 6000Model:  No sidesMaterial:  Al, anodized
Guide Rail 6 36x26-47, natural

Guide Rail 6 36x26-47, natural

0.0.719.31
Line:  6Delivery unit:  PieceLength:  3000 Model:  No sidesMaterial:  Al, anodized
Guide Rail 6 36x26-47, natural

Guide Rail 6 36x26-47, natural

0.0.719.29
Line:  6Delivery unit:  PieceLength:  6000 Model:  No sidesMaterial:  Al, anodized
Roller Conveyor St Guide Rail, grey similar to RAL 7042

Roller Conveyor St Guide Rail, grey similar to RAL 7042

0.0.639.45
Line:  LPSDelivery unit:  Cut-offLength:  20 ... 4500Model:  No sidesMaterial:  Plastic (PVC)
Roller Conveyor St Guide Rail z, grey similar to RAL 7042

Roller Conveyor St Guide Rail z, grey similar to RAL 7042

0.0.639.05
Line:  LPSDelivery unit:  PieceLength:  4500 Model:  No sidesMaterial:  Plastic (PVC)
Roller Conveyor St Guide Rail, black similar to RAL 9005

Roller Conveyor St Guide Rail, black similar to RAL 9005

0.0.641.81
Line:  LPSDelivery unit:  Cut-offLength:  20 ... 4500Model:  No sidesMaterial:  Plastic (ABS)
Roller Conveyor St Guide Rail z ESD, black similar to RAL 9005

Roller Conveyor St Guide Rail z ESD, black similar to RAL 9005

0.0.641.78
Line:  LPSDelivery unit:  PieceLength:  4500 Model:  No sidesMaterial:  Plastic (ABS)

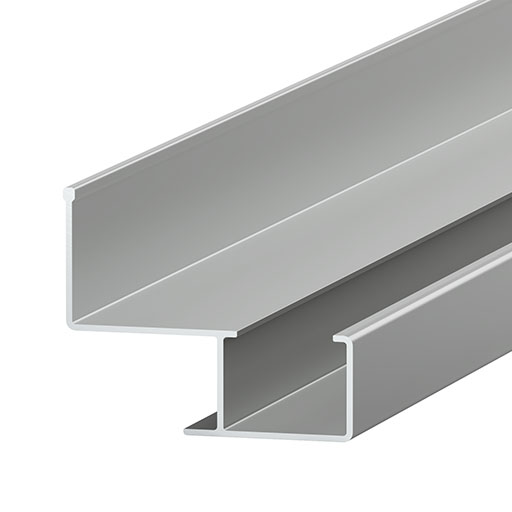

Guide Rail z Al, natural

Guide Rail z Al, natural

0.0.685.45
Line:  LPSDelivery unit:  Cut-offLength:  20 ... 6000Model:  Both sidesMaterial:  Aluminium (natural)
Guide Rail z Al, natural

Guide Rail z Al, natural

0.0.685.44
Line:  LPSDelivery unit:  PieceLength:  6000 Model:  Both sidesMaterial:  Aluminium (natural)

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 8.0
36120407
eCl@ss 11.0
36120407
eCl@ss 7.1
36120407
eCl@ss 6.0.1
36120490
eCl@ss 4.0
36121505
eCl@ss 4.1
36121505
UNSPSC 9.0
24101709
eCl@ss 5.0
36129190
eCl@ss 5.1
36129190
UNSPSC 7.0
24101709
Customs tariff number
76042100
