Hook D30/D4-60

0.0.655.91

Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
Components with this symbol meet the requirements of IEC 61340-5-1 and are therefore suitable for use in EPAs (electrostatic protected areas). By complying with the further stipulations of this standard you can use these products to create a safe environment for handling electronic components.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Properties

Article number0.0.655.91
LineLine D30
ESD-safeYes
Weightm = 19 g
Delivery unit1 pce.
MaterialSt, stainless
Max. load-carrying capacityF = 150 N

Description

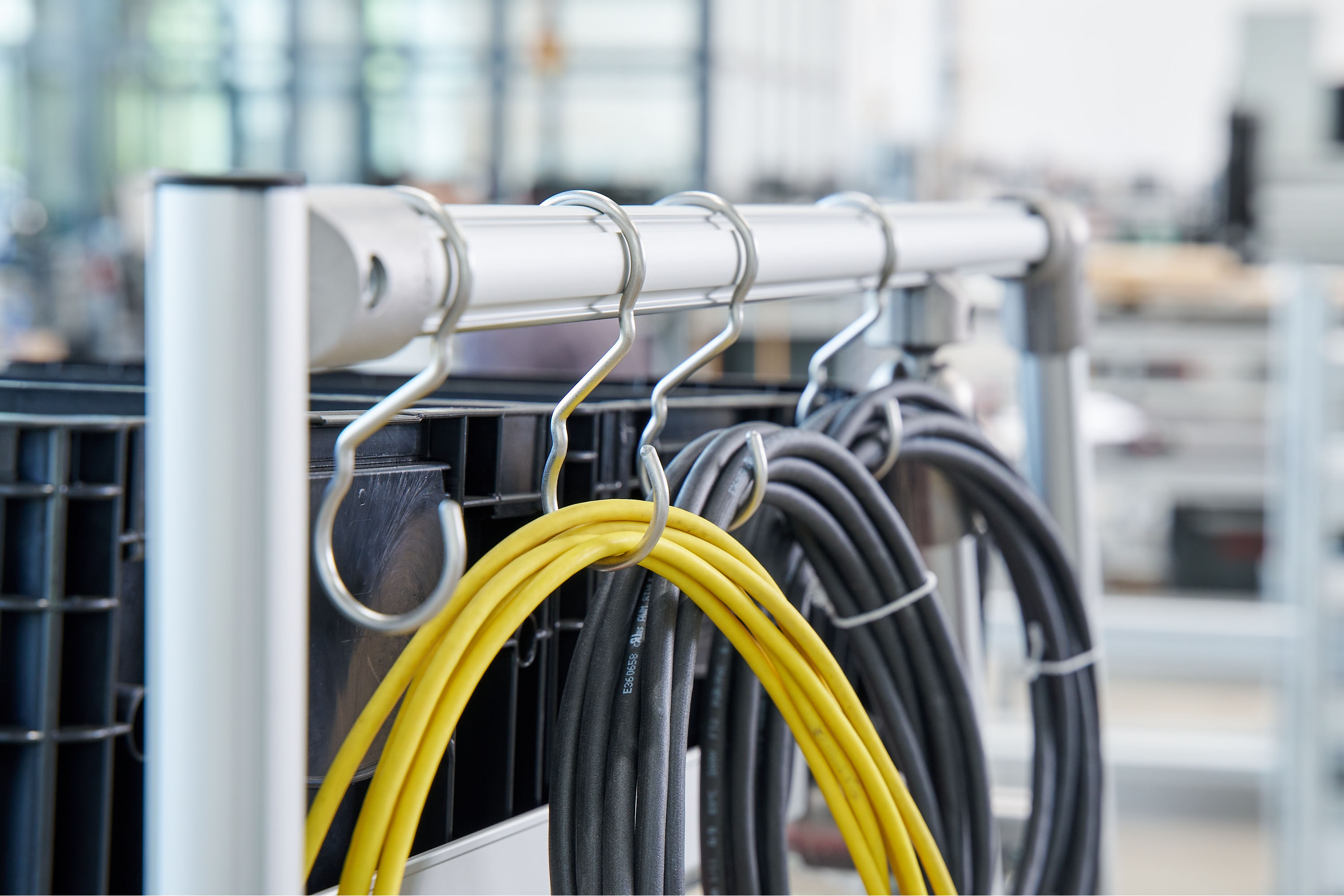

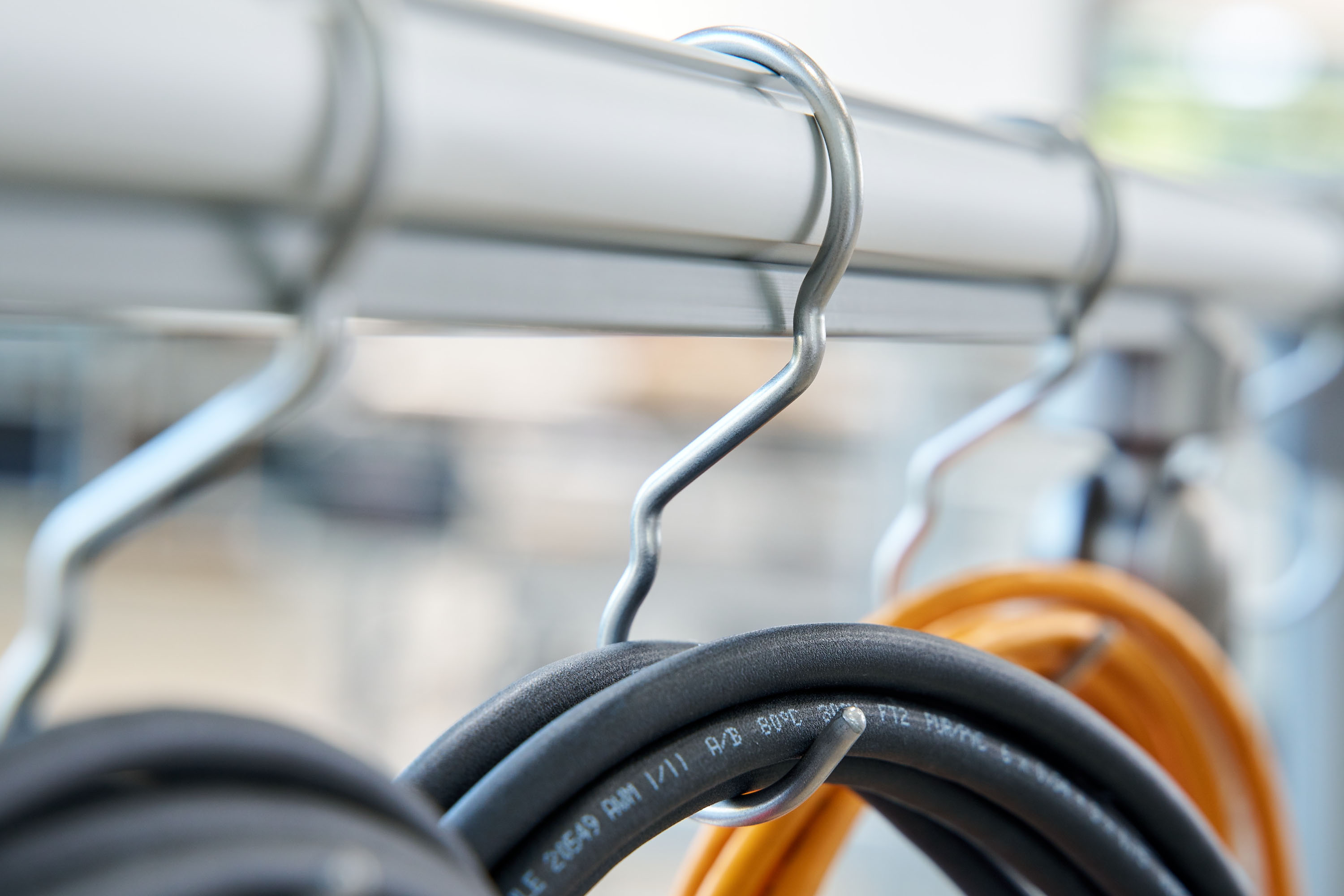

Hook D30/D4-60 can be used to hang cables, transport bags and other objects on a (Profile) Tube D30.

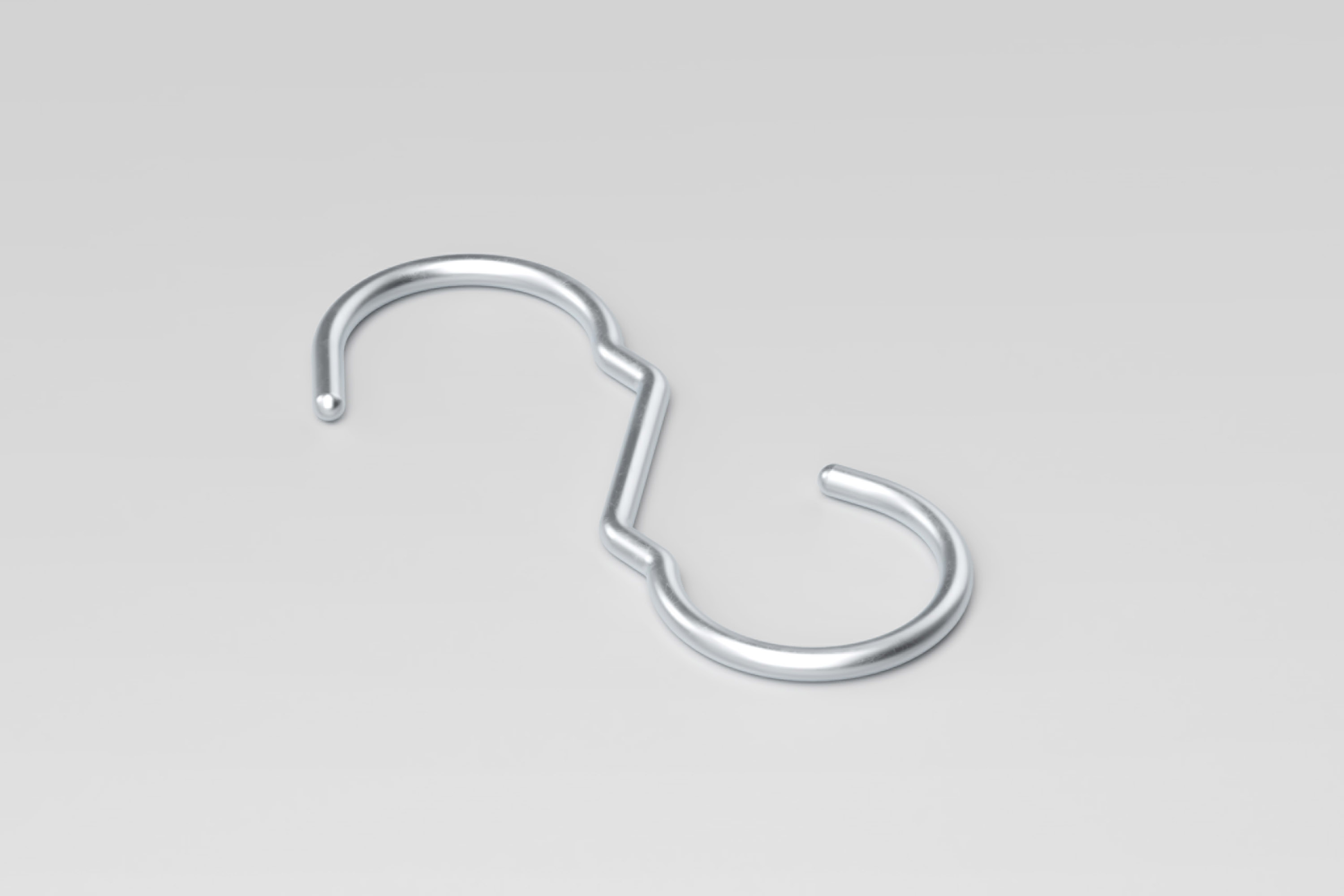

It has two open, hook-shaped ends, with one wider than the other. Depending on which way round the hook is used, it can either be simply hung in position or secured against falling off. For a secure fitting, either slide the hook onto the end of the (Profile) Tube or fit it by pressing and twisting it into place.
Note: The load limits of adjacent components must be taken into account.
Rocking can be minimised on Hook D30/D4-60 by clipping a Slide Strip D30 into place on the underside of the Profile Tube.
The hook has been specially shaped so that, when it is fitted to a Profile Tube by its narrower end, it will sit against the slide strip. This reduces the range of motion to a minimum, which is particularly helpful when hanging goods up in order to move them around. When products are being hung up or removed, the slide strip stabilises the hook so it can’t twist away.

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 8.0
23360290
UNSPSC 9.0
56111905
UNSPSC 7.0
56111905
eCl@ss 11.0
23360290
eCl@ss 4.1
22041424
eCl@ss 5.1
23250311
eCl@ss 6.0.1
23250311
eCl@ss 5.0
23250311
eCl@ss 4.0
22041424
eCl@ss 7.1
23360290
Customs tariff number
83025000
