Parallel Fastener D30-60 with Clamp Lever (0.0.692.28)
Parallel Fastener D30-60 with Clamp Lever
0.0.692.28
Show all
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Scope of Delivery

2 parallel fastener halves D30-60, die-cast Al, natural
1 Clamp Lever Pi 50 M6x32
1 Spacer sleeve D9.5/6.4-12, St, bright zinc-plated
1 Hexagon nut DIN 934 M6-I8I, St, bright zinc-plated

Properties

Article number0.0.692.28
LineLine D30
ESD-safeNo
Weightm = 118 g
Delivery unit1 pce.
Status on deliveryPreassembled

Description

Continuous improvement made easy! Fasteners with Clamp Lever are ideal for making quick adjustments to assemblies and attaching or removing (Profile) Tubes. They make it easier to create test structures and implement ergonomic adjustments on work benches.

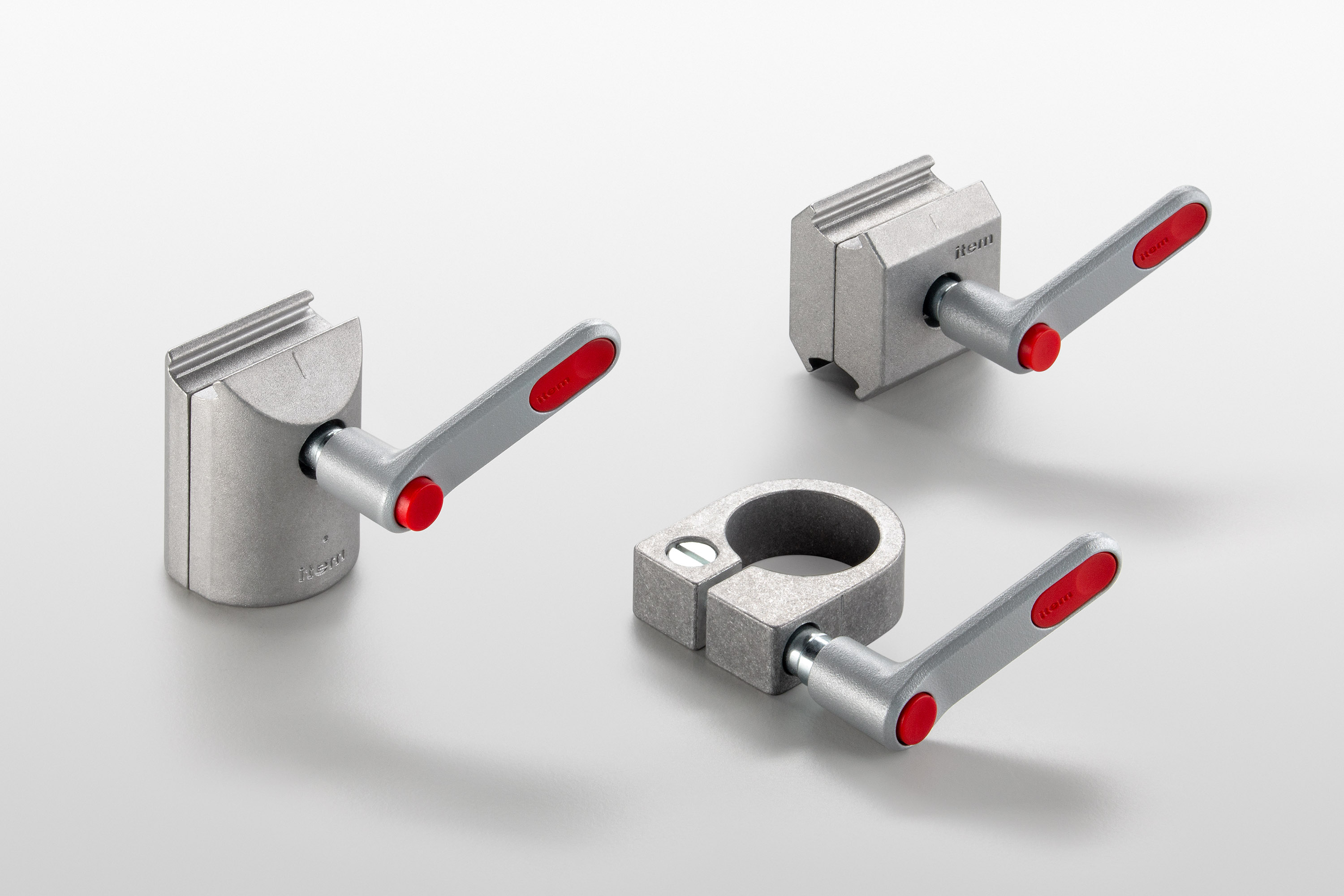

Two quickly adjustable Fasteners are available – Fastener D30 with Clamp Lever and Parallel Fastener D30-60 with Clamp Lever.
Locking Ring D30 with Clamp Lever acts as a quickly adjustable stop on all (Profile) Tubes D30, making it easy to modify the stroke of Karakuri/LCA applications by moving the stops for item Plain Bearings. Weights can also be fixed in place or released with a flick of the wrist.
Clamp Levers boast the ergonomic, easy-to-grip shape of the design award-winning Pi range of operating elements. As the grip can be disconnected by pressing the button, it can be rotated into the desired position even if space is tight.
Fasteners with Clamp Lever can also serve as assembly aids by marking out fastener positions. When fasteners need to be repeatedly repositioned, Parallel Fastener with Clamp Lever can easily be fitted alongside them to mark their original positions.

Variants

Sort by

Parallelverbinder D30

Parallelverbinder D30

0.0.629.94
Profilabstand:  18.5 mmKlemmhebel:  XESD-sicher:  ✓
Parallelverbinder D30-60

Parallelverbinder D30-60

0.0.682.21
Profilabstand:  30 mmKlemmhebel:  XESD-sicher:  ✓
Parallelverbinder D30-60 mit Klemmhebel

Parallelverbinder D30-60 mit Klemmhebel

0.0.692.28
Profilabstand:  30 mmKlemmhebel:  ✓ESD-sicher:  X
