Profile 8 80x40 D30

Selected variant
Profile 8 80x40 1N D30 light, natural (0.0.729.71)
Profile 8 80x40 1N D30 light, natural
0.0.729.71
Show all
* Mandatory information
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
Components with this symbol meet the requirements of IEC 61340-5-1 and are therefore suitable for use in EPAs (electrostatic protected areas). By complying with the further stipulations of this standard you can use these products to create a safe environment for handling electronic components.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Properties

Article number0.0.729.71
LineLine D30
Lineline 8
ESD-safeYes
Cross-sectional areaA = 11,58 cm2
Moment of Inertia, torsionalIt = 3,81 cm4
Moment of Inertia, x-axisIx = 17,06 cm4
Moment of Inertia, y-axisIy = 72,27 cm4
Weightm = 3,138 kg/m
Delivery unitcut-off max. 6000 mm
MaterialAl, anodized
Permissible groove extraction forceF = 2500 N
Colournatural
Resistance Moment, x-axisWx = 8,53 cm3
Resistance Moment, y-axisWy = 18,37 cm3

Description

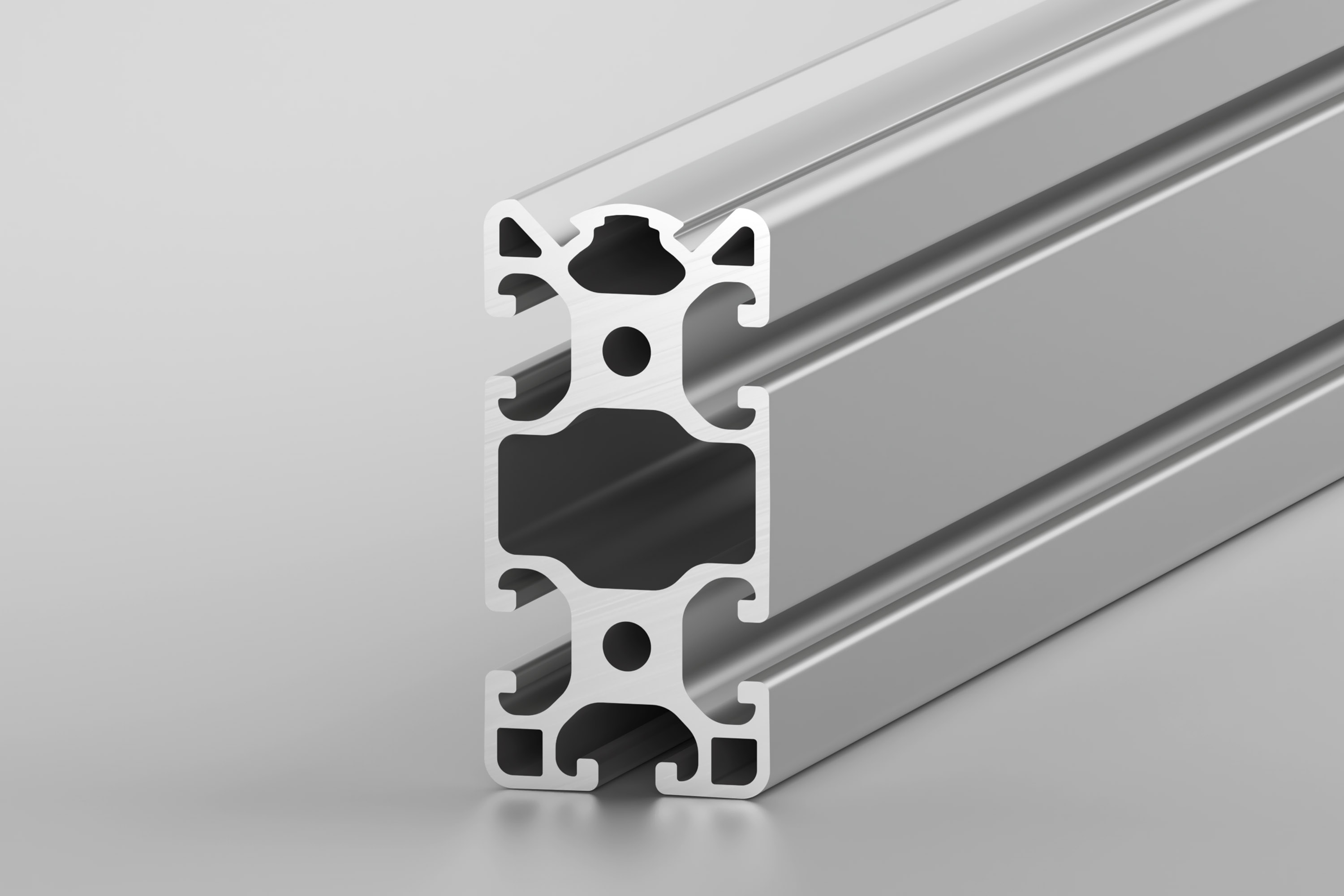

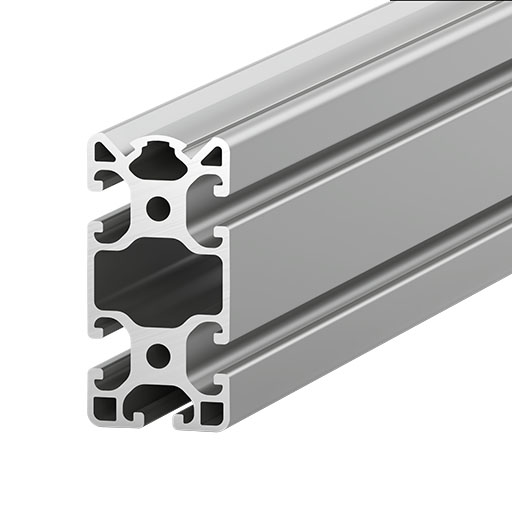

Profile 8 80x40 1N D30 light is a universal construction profile made of high-quality anodized aluminium in the modular dimension of Line 8 that also has a Line D30 profile flank. This means you can now use Fasteners D30 to connect (Profile) Tubes D30 directly to a frame made of rectangular Line 8 profiles – with no need to use adapters.
This weight-reduced aluminium profile in the light design variant from item features five open Line 8 profile grooves. The profile contour of the Lean Production Building Kit System fits flush with the top.

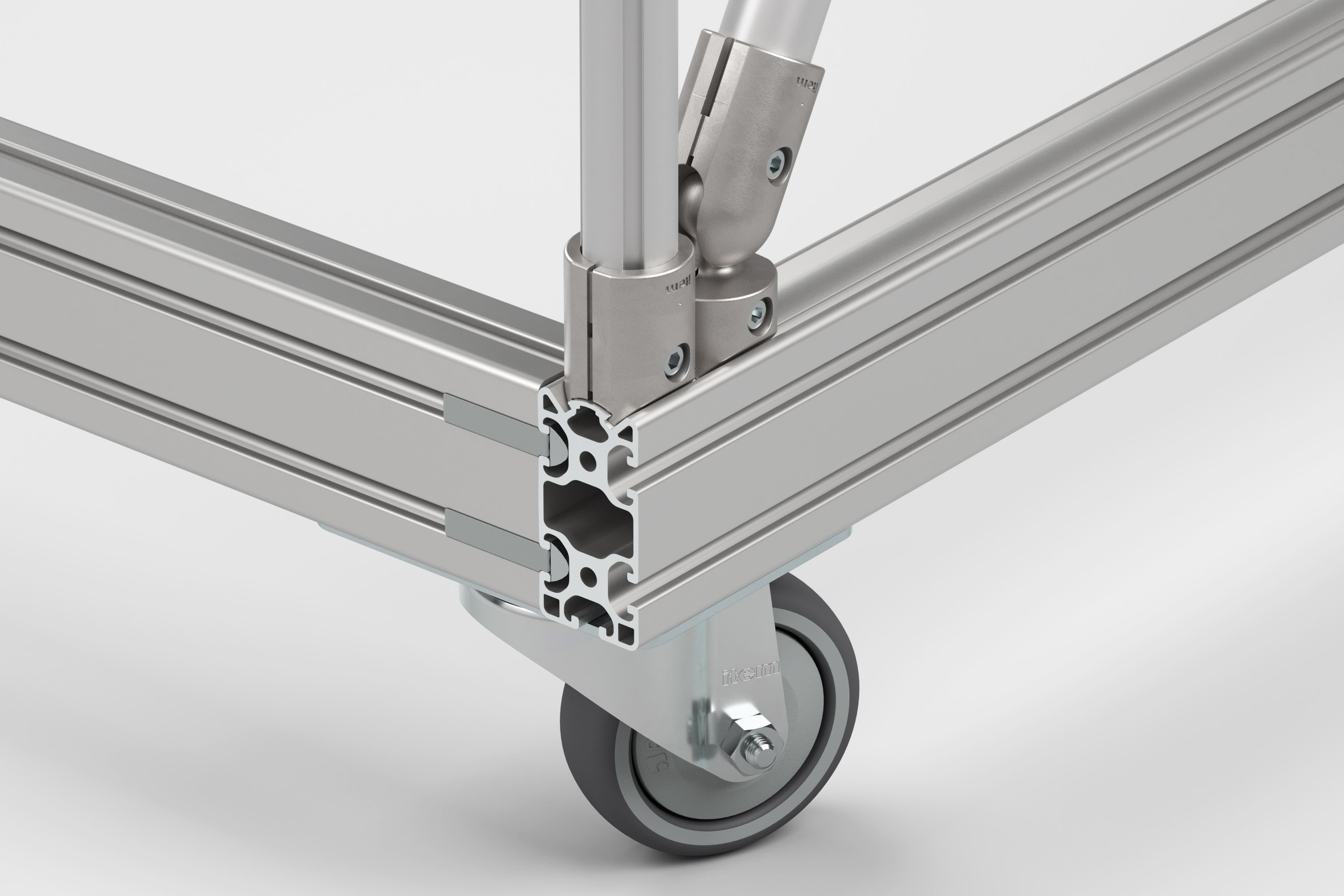

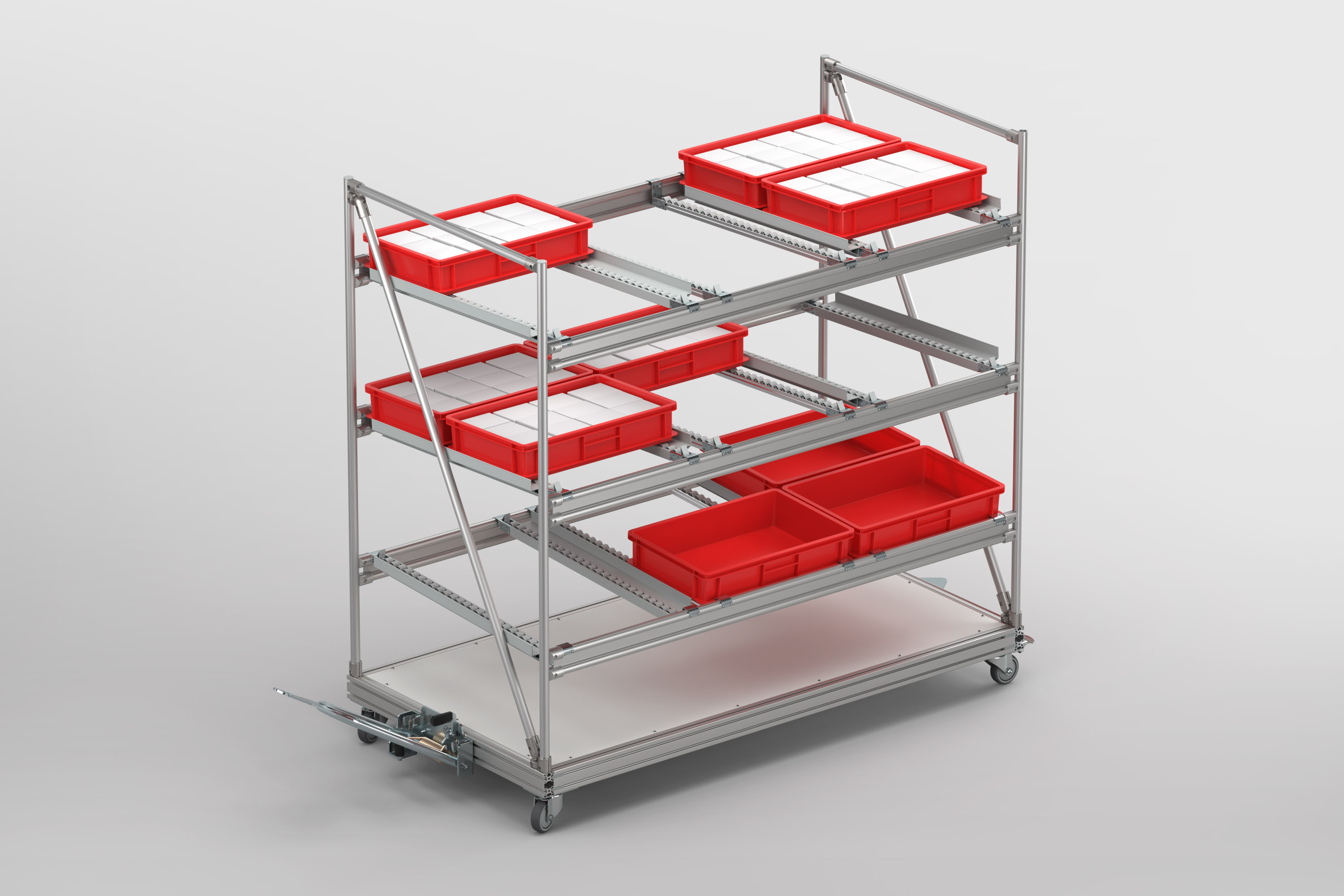

Torsion-resistant Profile 8 80x40 1N D30 light is suitable for building the load-carrying frames of transport trolleys, mobile racks and Base Carts for use with mobile industrial robots. Its geometry makes it easier to create a direct attachment to superstructures and Top Modules made from Profile Tubes D30.
Various aluminium profiles are available as solutions for combining elements of the Lean Production Building Kit System and Line 8 in profile frames – Profile Tube 8 D30 (0.0.663.94), Profile 8 40x40 1N D30 light (0.0.725.24) and Profile 80x40 D30 (0.0.729.71).
