Profile WFC 8 40x40

Selected variant
Profile WFC 8 40x40, natural (0.0.724.59)
Profile WFC 8 40x40, natural
0.0.724.59
Show all
* Mandatory information
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Properties

Article number0.0.724.59
Lineline 8
ESD-safeNo
Cross-sectional areaA = 9,21 cm2
Moment of Inertia, x-axisIx = 14,07 cm4
Moment of Inertia, y-axisIy = 14,07 cm4
Weightm = 1,2 kg/m
Delivery unitcut-off max. 6000 mm
MaterialWood-PE composite
Permissible groove extraction forceF = 750 N
Colournatural
Resistance Moment, x-axisWx = 7,04 cm3
Resistance Moment, y-axisWy = 7,04 cm3

Description

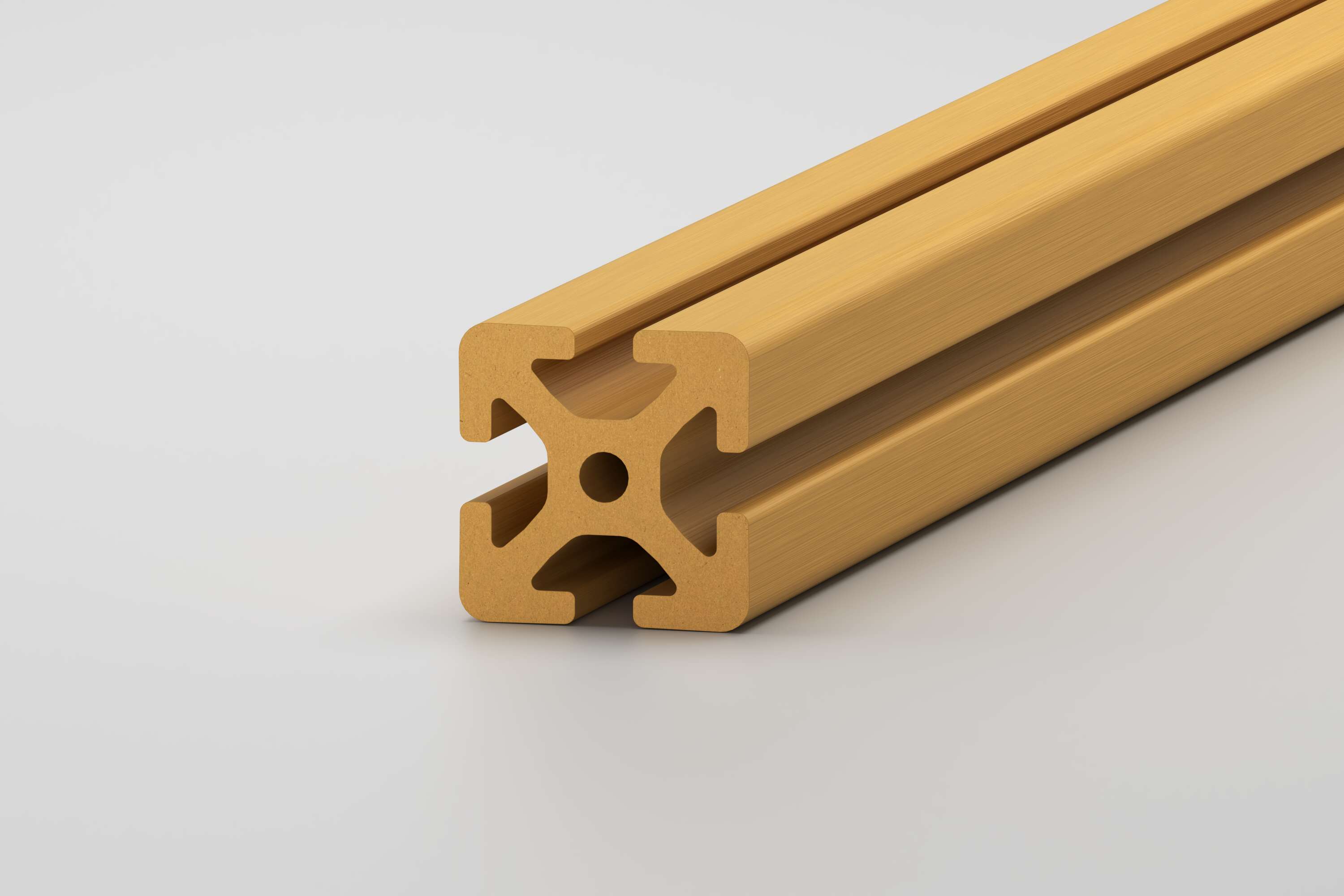

Profile WFC 8 40x40 is a universal construction profile made of an environmentally friendly material in the modular dimension of Line 8.
This especially lightweight profile features four open Line 8 profile grooves. This makes it compatible with fasteners and accessories in the item Building Kit System.
item Profiles WFC 8 (WFC = wood fibre composite) are made up of 75 percent wood fibres that are sourced as a waste product from the saw cutting industry (PEFC certified) and 25 percent recycled PE. They are extremely easy to machine, moisture resistant, electrically insulating and neutral to electromagnetic waves.

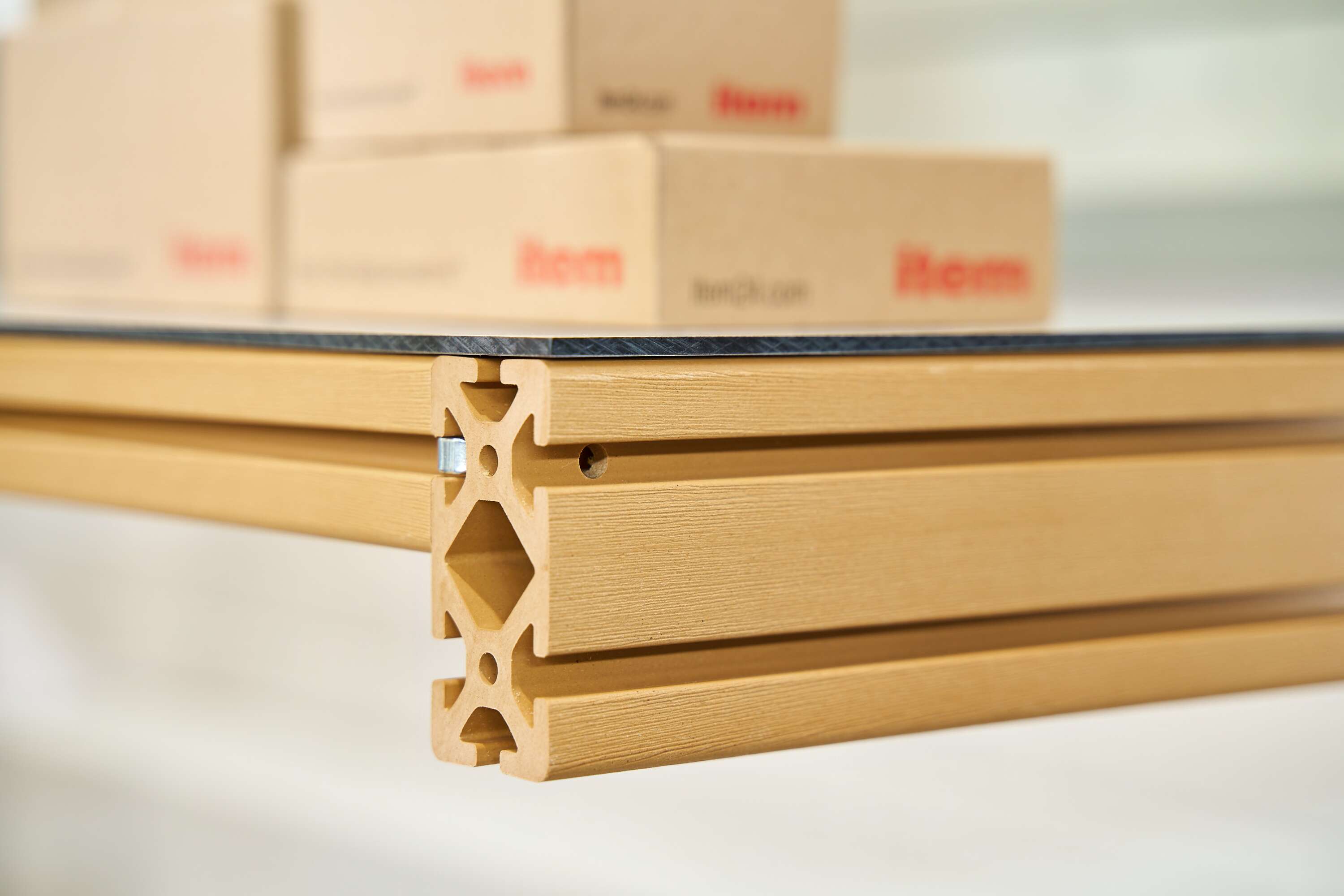

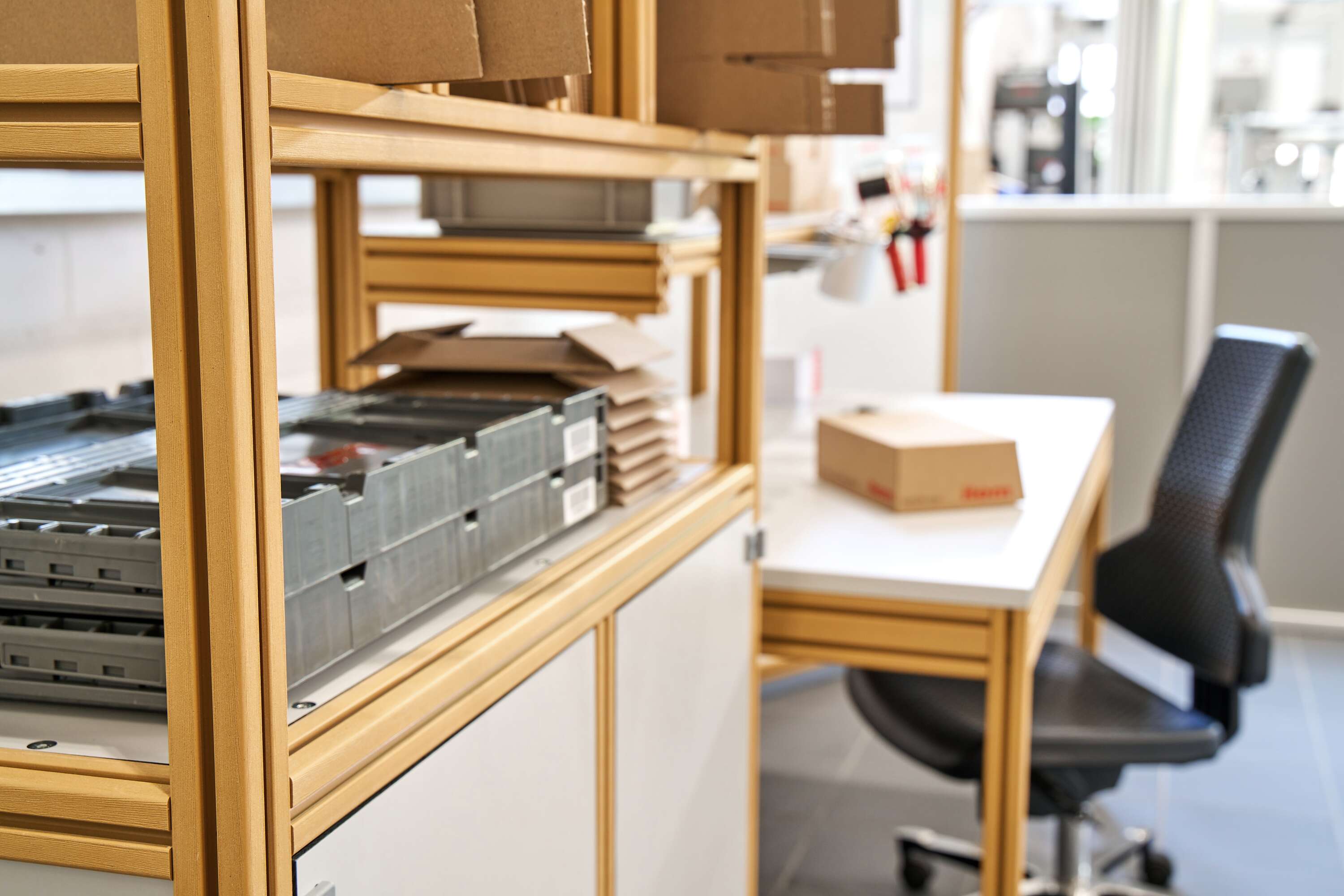

The lightweight profiles are simply sawed to length like wood. Saw-cut edges do not need to be deburred, threads do not need to be tapped separately. This ensures you can build lightweight equipment and fixtures such as racks, tables and partitions directly on site without needing any special tools.
WFC profiles combine the advantages of a standardised profile featuring Line 8 grooves with an innovative material that satisfies the most stringent requirements for a circular economy. item takes back off-cuts and profiles that are no longer needed from customers across Germany at no cost. At the end of its useful life, the material can be fully reprocessed and used to manufacture new profiles.
Profiles WFC 8 are sustainable throughout their entire service life and beyond and have a small carbon footprint. That is why they are certified as cradle-to-cradle products by Cradle to Cradle Products Innovation Institute B.V.

Assembly Instructions

Profiles WFC 8 are connected together using Standard-Fastening Set KH or Angle Bracket Sets 8 PA. The Line 8 groove also means that hinges and other accessories from the item Building Kit System can be used with these profiles.
When using accessories, it is essential to take into account load limits.

Variants

Sort by

Profil WFC 8 40x40, přírodní odstín

Profil WFC 8 40x40, přírodní odstín

0.0.724.59
Dodací jednotka:  PřířezDélka:  20 ... 6000

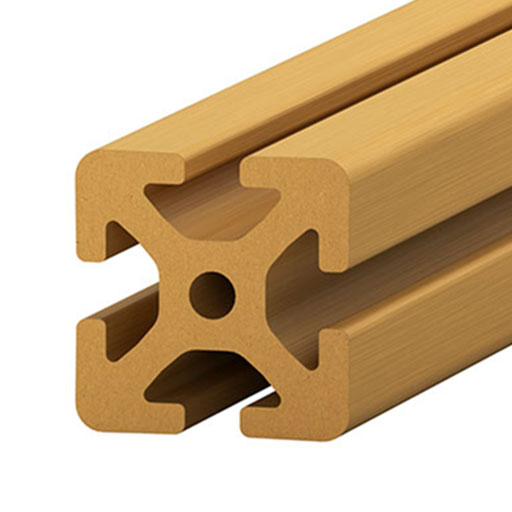

Profil WFC 8 40x40, přírodní odstín

Profil WFC 8 40x40, přírodní odstín

0.0.724.58
Dodací jednotka:  KusDélka:  6000

Load Calculation

Deflection calculator

Force application

Length is required

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 8.0
23360101
eCl@ss 7.1
23360101
eCl@ss 11.0
23360101
eCl@ss 4.1
35020106
eCl@ss 5.0
35020190
eCl@ss 5.1
35020190
eCl@ss 6.0.1
23360101
eCl@ss 4.0
35020106
UNSPSC 9.0
30102306
UNSPSC 7.0
30102306
Customs tariff number
39169090
