Quick Coupler 8

0.0.731.92

Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Scope of Delivery

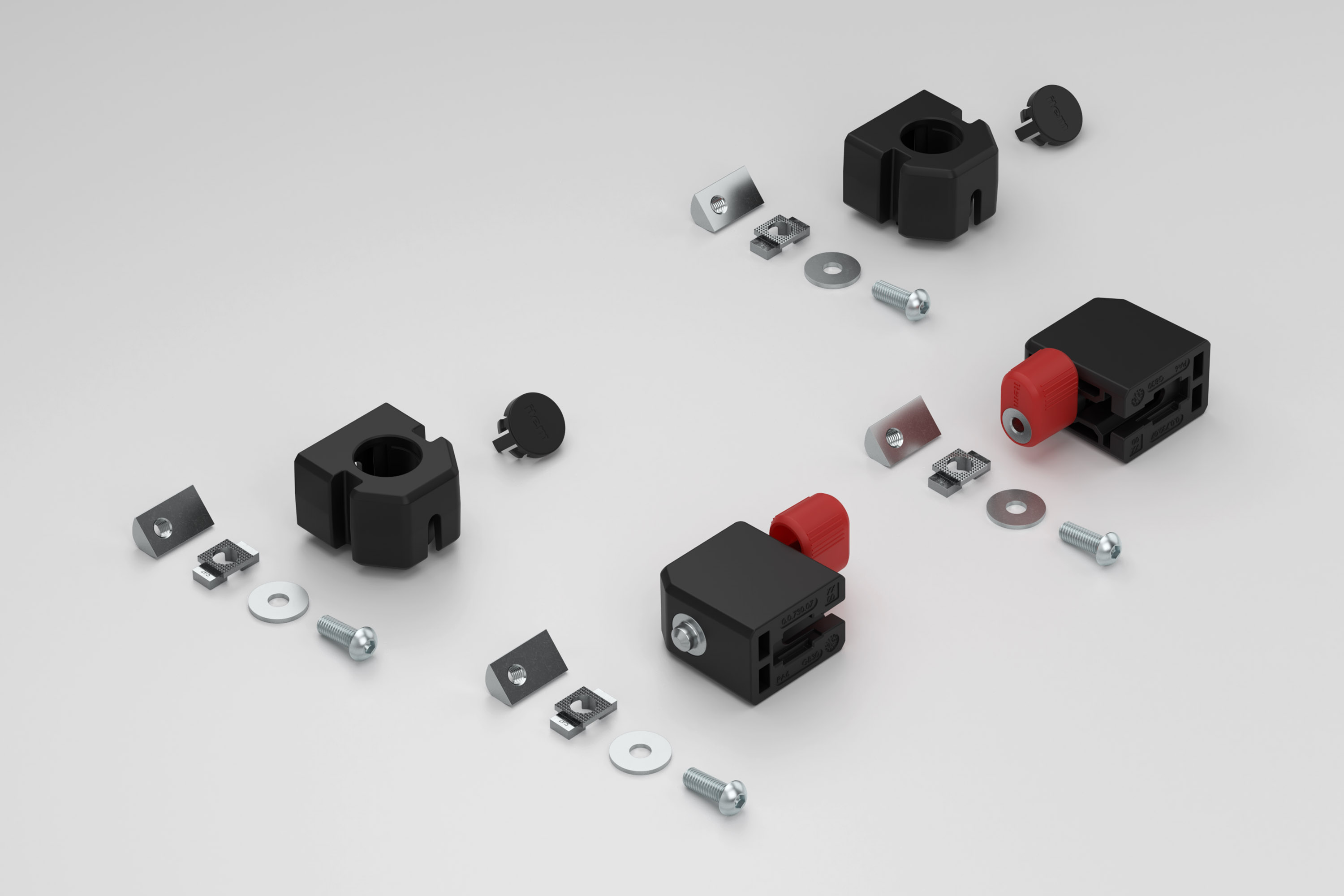

2 Quick Coupler 8, Release Units 40x28, PA-GB, black with stainless steel bolts
2 Quick Coupler 8, Receivers 40x28, PA-GB, black

Properties

Article number0.0.731.92
Lineline 8
ESD-safeNo
Weightm = 296 g
Delivery unit1 set

Description

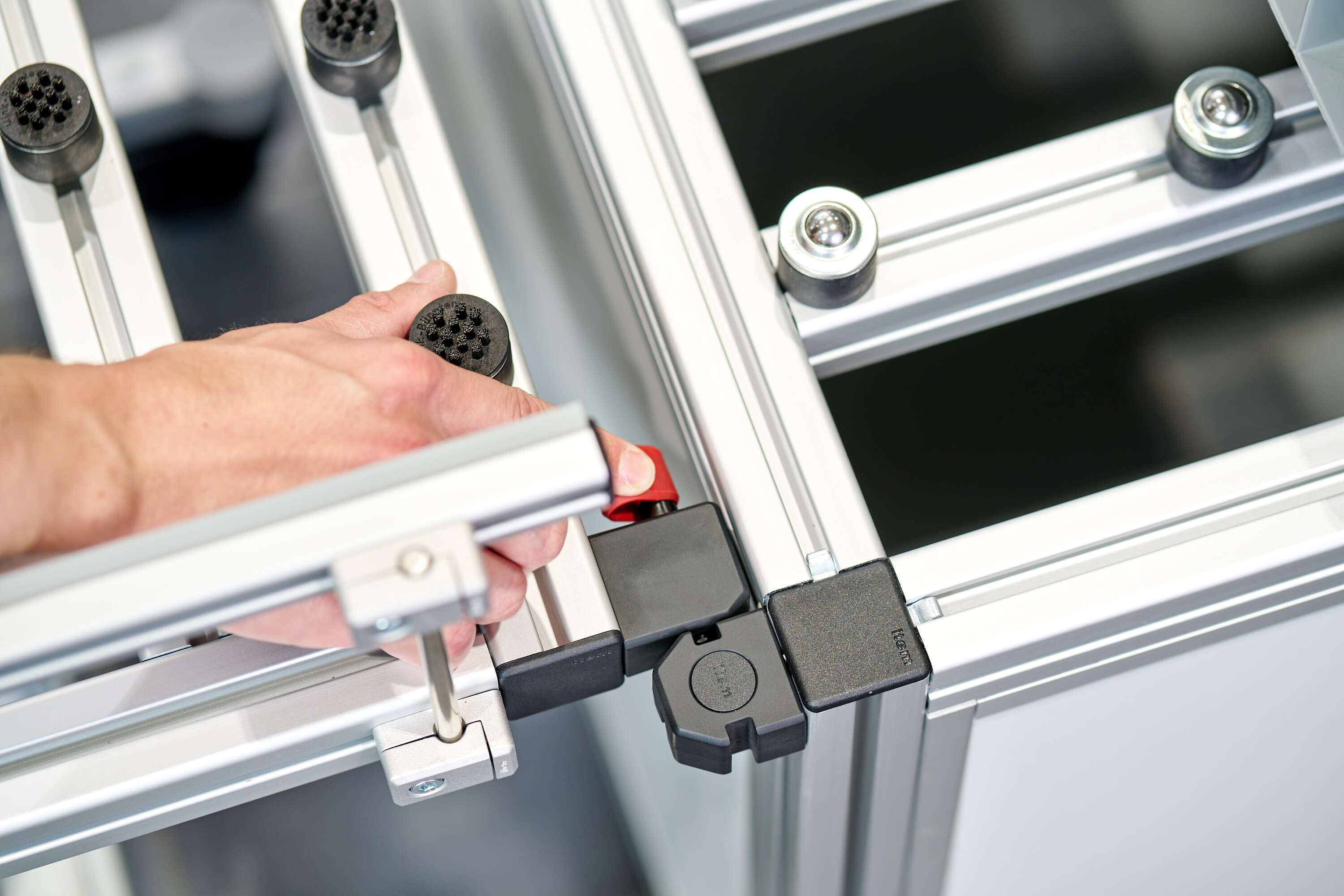

item Quick Coupler 8 ensures that a mobile solution is correctly positioned by temporarily connecting it to a profile frame or work bench. This connection is made when the Quick Coupler’s compact release unit engages with the receiver. To allow the mobile solution to move off again, the spring-loaded stainless steel pin of the release unit has to be disengaged via the manual lever or a Bowden cable.
Quick Coupler 8 contains two release units and two receivers. Quick Coupler 8, Release Unit 40x28 (0.0.730.05) and Quick Coupler 8, Receiver 40x28 (0.0.730.06) are also available separately so that one transport trolley can be utilised at several different positions, for example.
Quick Coupler 8 is the ideal connection solution for mobile applications in industry. It creates a dependable link with different mobile units, such as when transferring goods between workstations and mobile elements. This makes intralogistics processes more efficient and flexible.

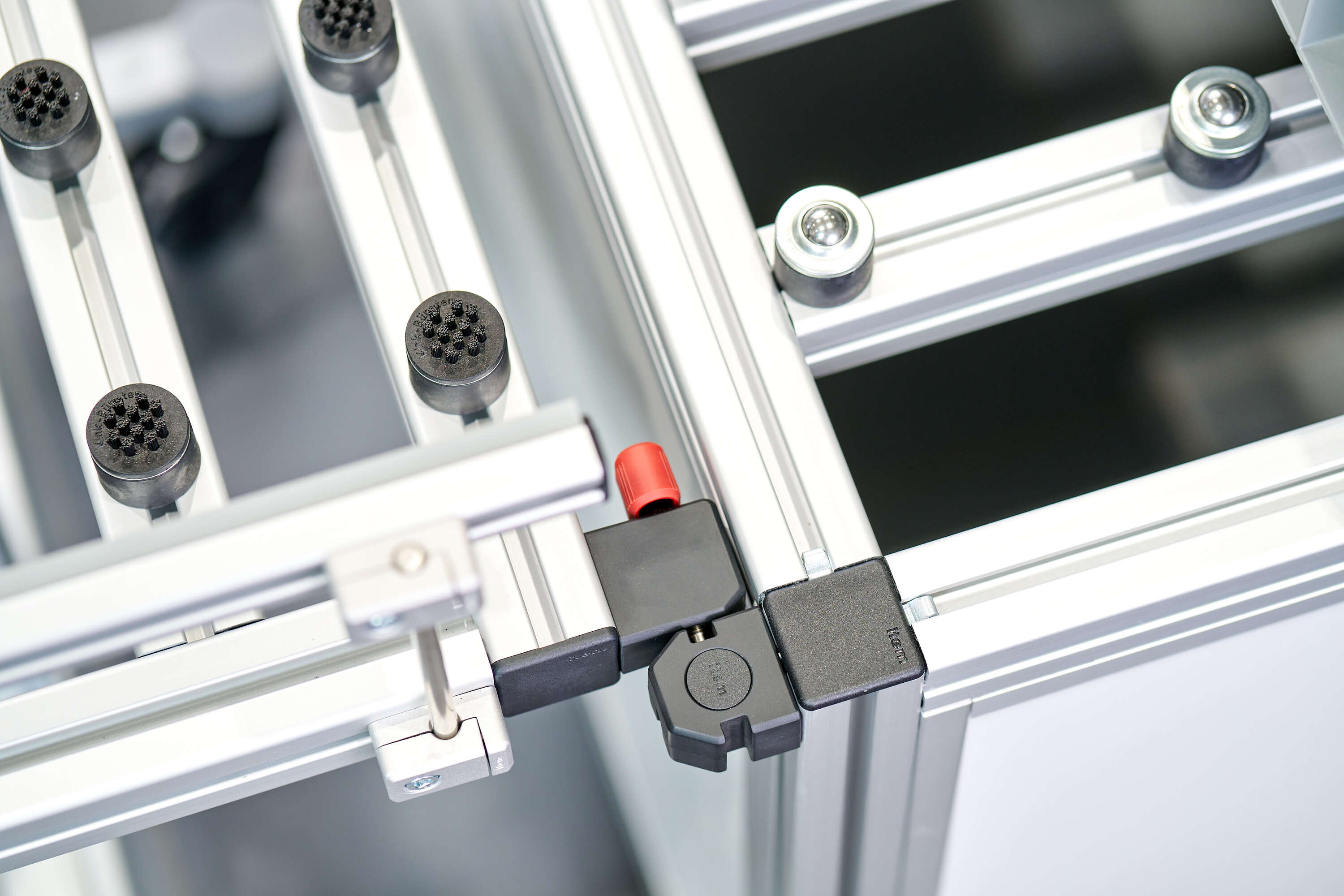

The engagement of the Quick Coupler’s release unit ensures that the mobile solution ends up in the right position. The trolley is also held in place and is unable to roll away due to this mechanical connection.
The Quick Coupler is disengaged by retracting the stainless steel pin. Pressing the red lever operates the spring-loaded pin of the release unit to break the connection and allow the mobile solution to be moved again.
The release unit can also be actuated via a Bowden cable to reliably disconnect the coupled systems. To ensure elements are correctly positioned, two release units and two receivers should be installed.
