Release Unit 6 Latch

0.0.725.31

Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
Components with this symbol meet the requirements of IEC 61340-5-1 and are therefore suitable for use in EPAs (electrostatic protected areas). By complying with the further stipulations of this standard you can use these products to create a safe environment for handling electronic components.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

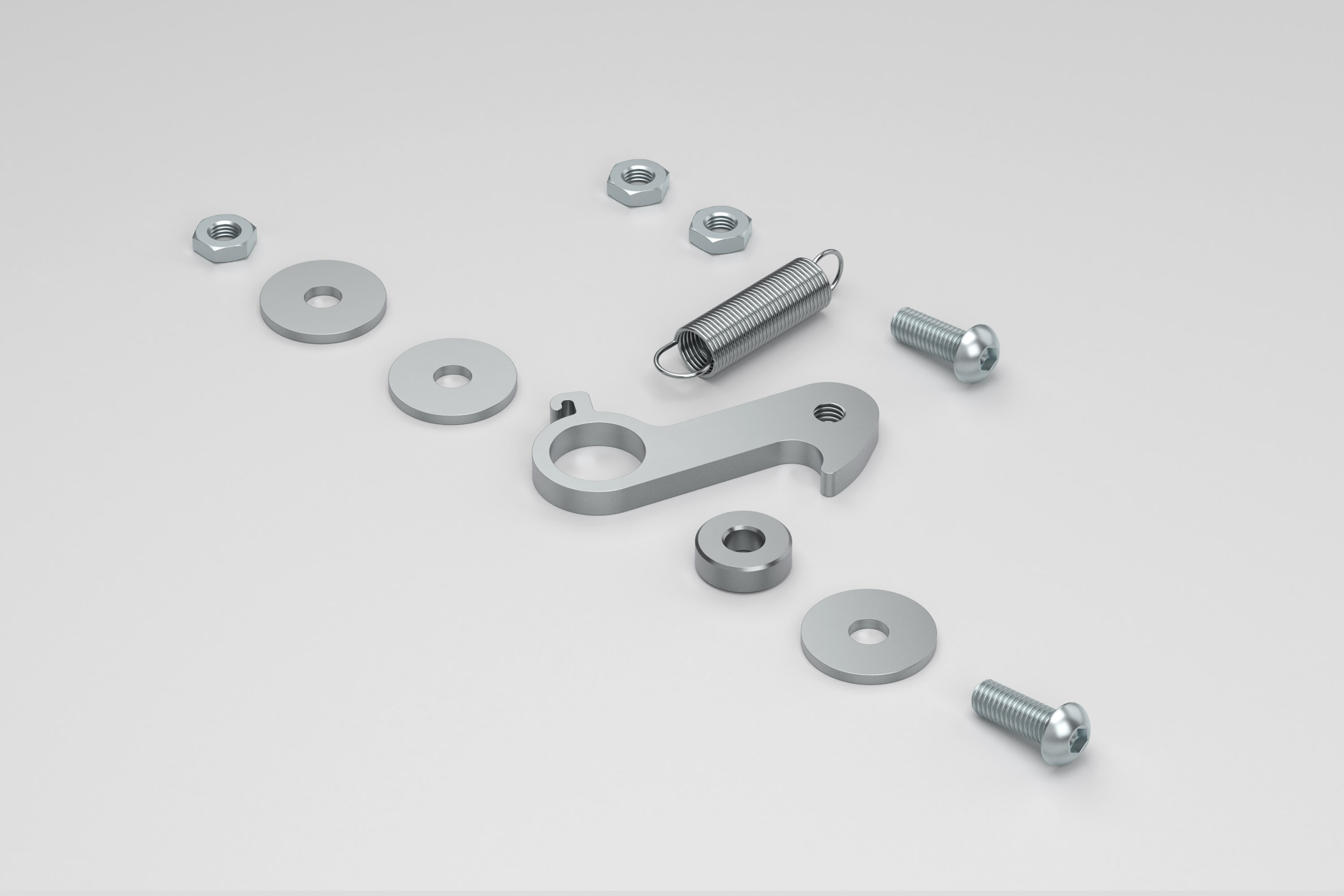

Scope of Delivery

1 latch D10, St, bright zinc-plated
1 extension spring 0.9x10x43, St, stainless
1 bush liner, shooter actuator D30, St, bright zinc-plated
1 Button-Head Screw ISO 7380 M6x18, St, bright zinc-plated
3 flat washers with round hole DIN 440 R M6, St, bright zinc-plated
1 Button-Head Screw ISO 7380 M6x20, St, bright zinc-plated
3 hexagon nuts ISO4035-M6, St, bright zinc-plated

Properties

Article number0.0.725.31
LineLine D30
ESD-safeYes
Weightm = 62 g
Delivery unit1 set

Description

Release Unit 6 Latch is used for extra security when transferring materials with the item Suspended Conveyor System.

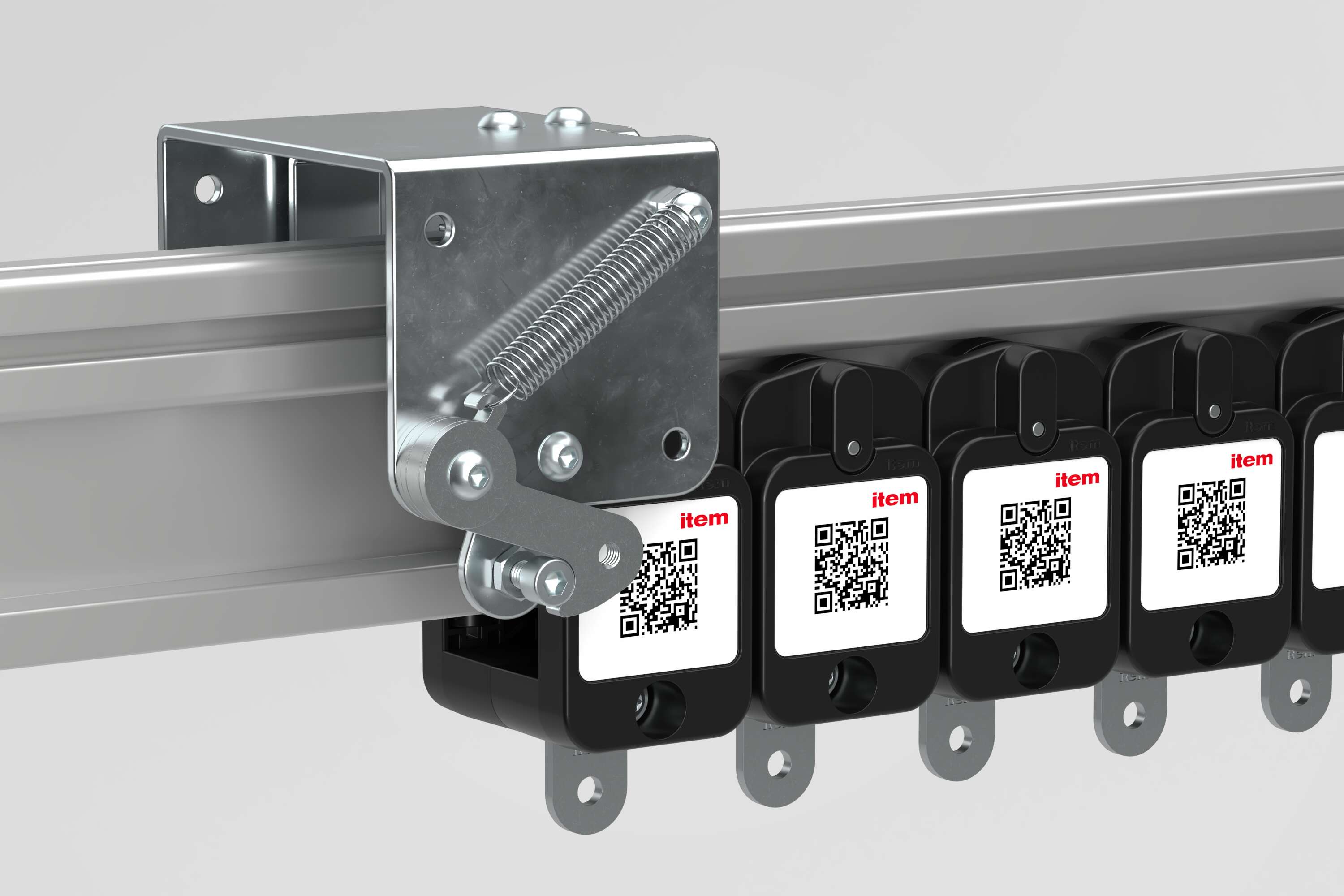

The latch is fitted to the side of the housing on Release Unit 6, Carriage D37-32 (0.0.723.66) or Separator 6, Carriage D37-32 (0.0.724.75). It prevents the release unit or separator from being actuated until the latch is released.
The latch can be disengaged via a Bowden cable or actuator roller. The reset spring automatically re-engages the latch.
When transferring materials automatically with a shooter, Release Unit 6 Latch makes the whole process even more reliable. The latch ensures that the track of the item Suspended Conveyor System can be controlled with perfect precision because two conditions need to be met before carriages are released.
Operating the latch via a Bowden cable provides a manual means of releasing carriages once a mobile solution and rack are correctly positioned. Using a Roller D39.5-25 (0.0.673.55) enables the automatic mechanical disengagement of the latch as soon as the shooter is correctly lined up.
The system will not fail even if the latch is unintentionally actuated because the release unit or separator is only triggered when it is activated separately.
