Round Bar D10 M10 -1500

0.0.728.94

Get CAD Data and Downloads

Technical Data

All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Properties

Article number0.0.728.94
ESD-safeNo
Weightm = 925 g
Delivery unit1 pce., length 1500 mm
MaterialSt, bright zinc-plated

Description

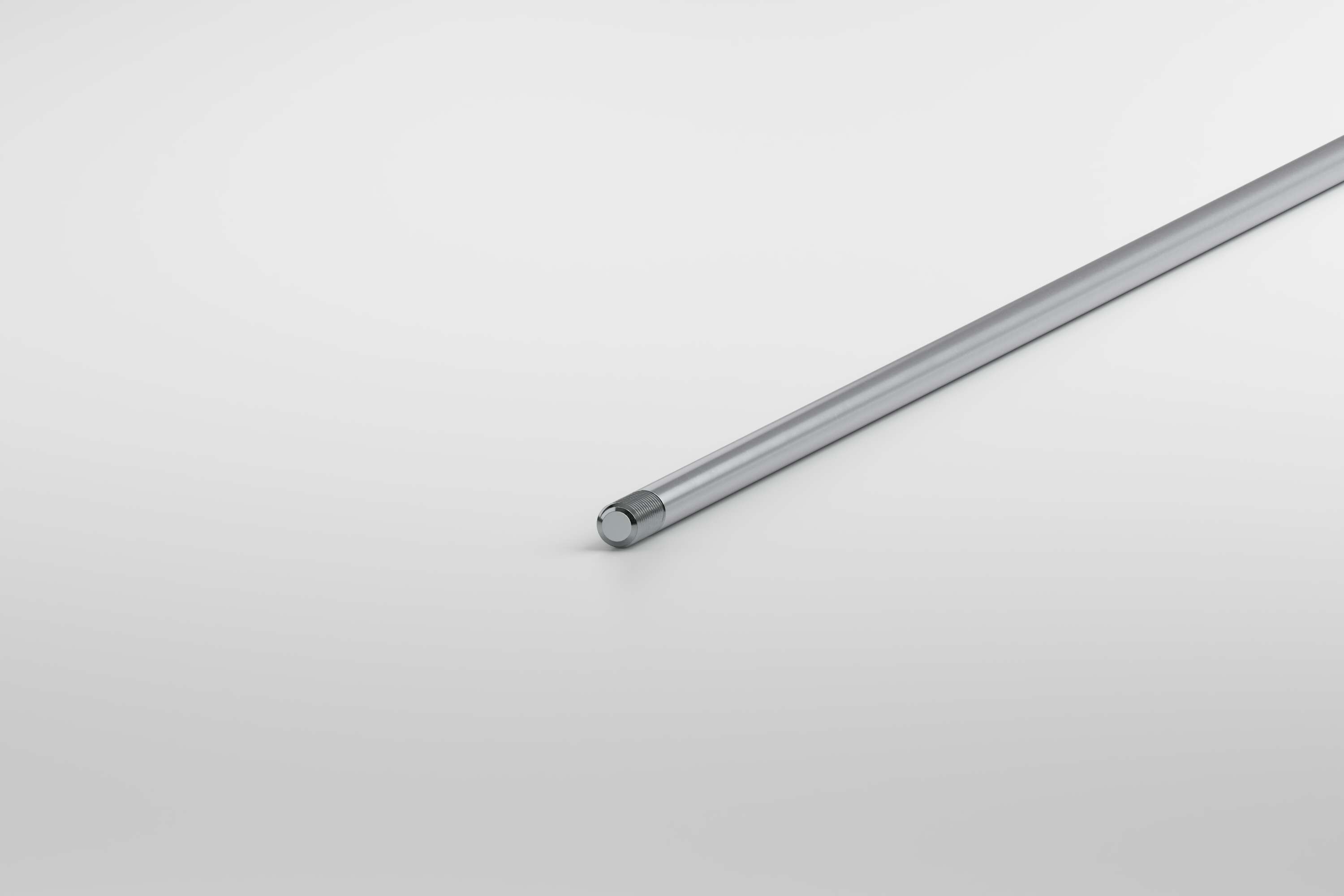

Round Bar D10 M10 -1500 is a torsion-resistant steel bar with an external M10 thread at one end. It is used with Flush Bolt 40 (0.0.728.27) to lock the inactive leaf of an item Double Door.

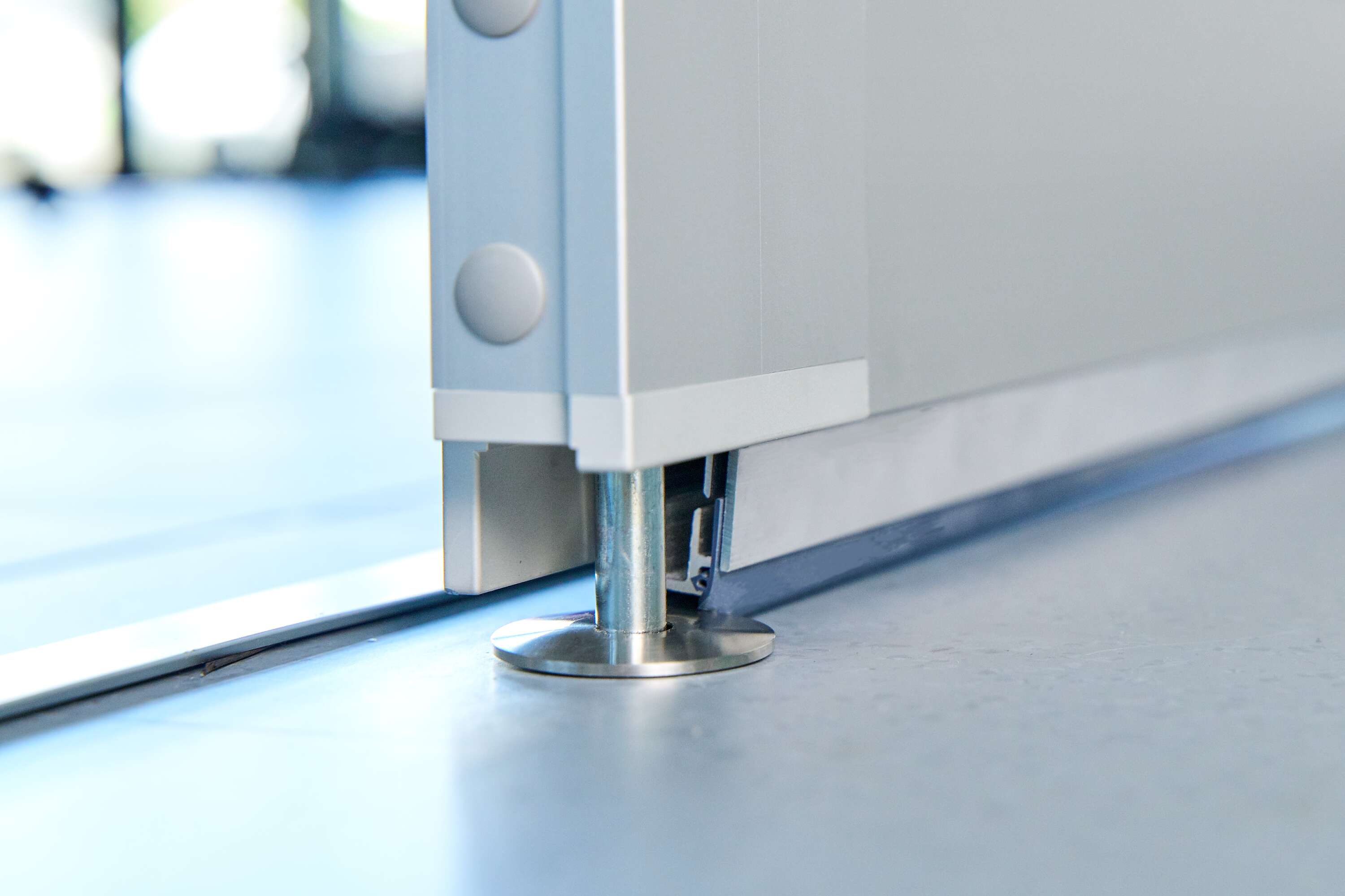

Two round bars are twisted into the flush bolt and run through the inside of Door Profile 8 80x40 (0.0.727.36).
A Double Access Door consists of an item Access Door 8 and a lockable inactive door leaf. Together, these elements create lockable access points that are large enough to allow the movement of particularly tall structures or wide objects.
The Double Access Door can also be opened and closed from both sides and features an all-round seal. The door can be integrated into a frame made of Line 8 profiles with ease.
item Double Access Door 8 is based on components that have been carefully coordinated to produce highly functional door solutions.

Downloads

CAD Data

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 5.1
23110301
eCl@ss 5.0
23110301
eCl@ss 6.0.1
23110301
eCl@ss 7.1
23110301
eCl@ss 8.0
23110301
eCl@ss 11.0
23110301
eCl@ss 4.0
23110301
eCl@ss 4.1
23110301
UNSPSC 7.0
31161618
UNSPSC 9.0
31161618
Customs tariff number
73269098
