Stacking Guide 8 St 80x40-30° (0.0.726.91)
Stacking Guide 8 St 80x40-30°
0.0.726.91
Show all
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
Components with this symbol meet the requirements of IEC 61340-5-1 and are therefore suitable for use in EPAs (electrostatic protected areas). By complying with the further stipulations of this standard you can use these products to create a safe environment for handling electronic components.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Scope of Delivery

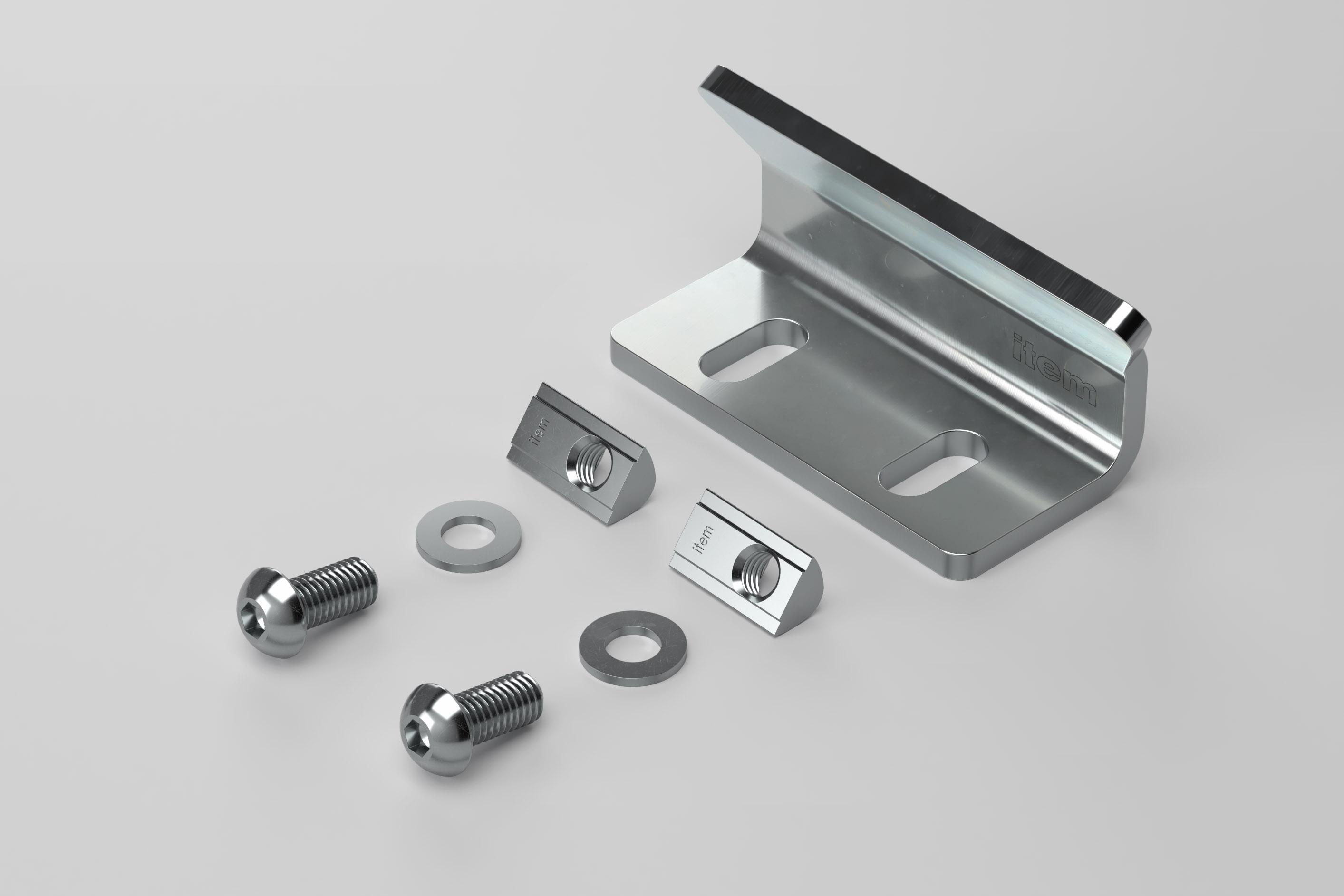

1 Sheet material, St, bright zinc-plated
2 Button-Head Screws ISO 7380-M8x18, St, bright zinc-plated
2 washers ISO 7089 - 8 - 200 HV, bright zinc-plated
2 T-Slot Nuts V 8 St M8, bright zinc-plated

Properties

Article number0.0.726.91
Lineline 8
ESD-safeYes
Weightm = 256 g
Delivery unit1 set

Description

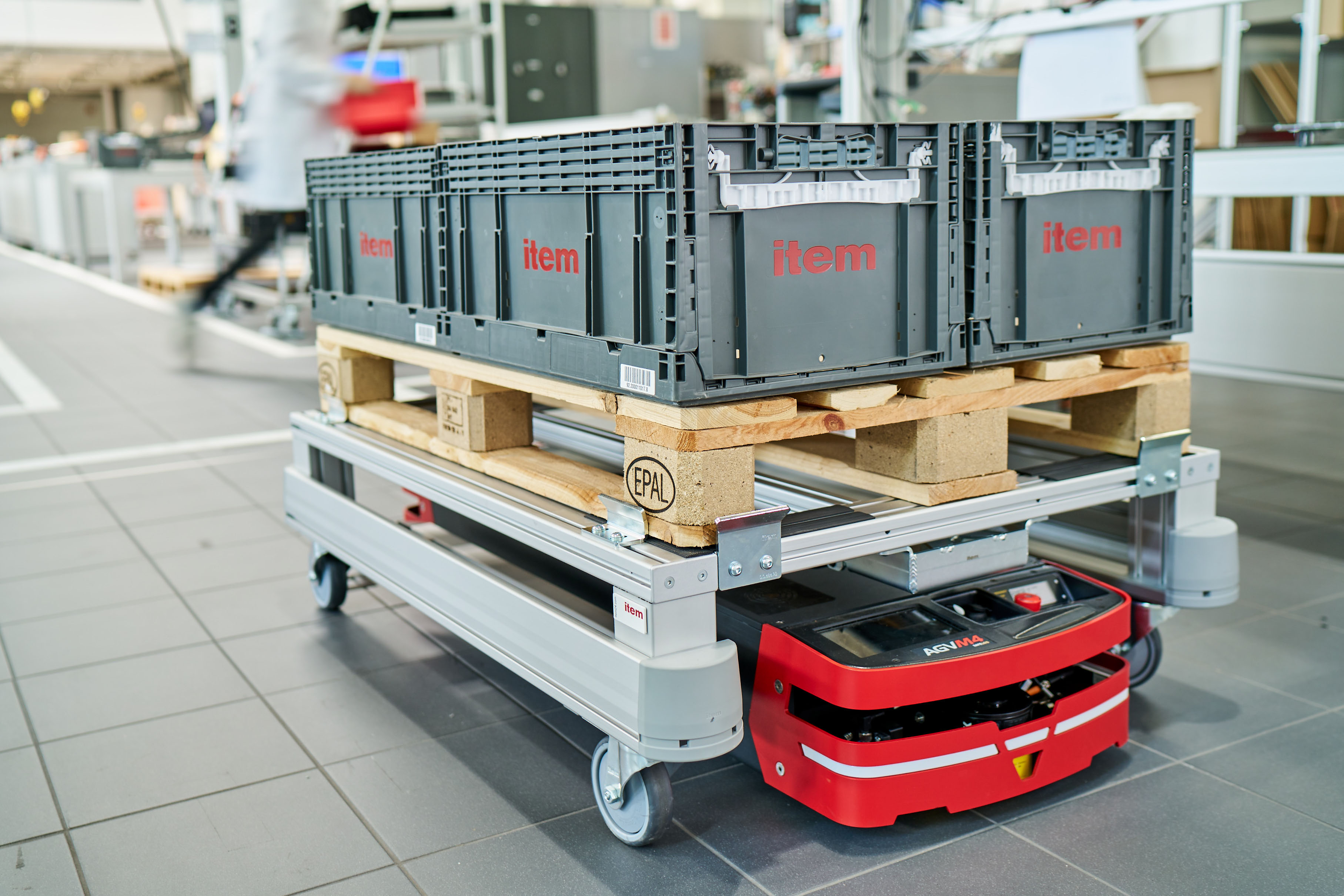

Stacking Guide 8 St 80x40-30° from item makes it easier to set down and transport containers or pallets on carriers. The robust centring aid ensures goods find the right position when being lowered into place and holds them securely.

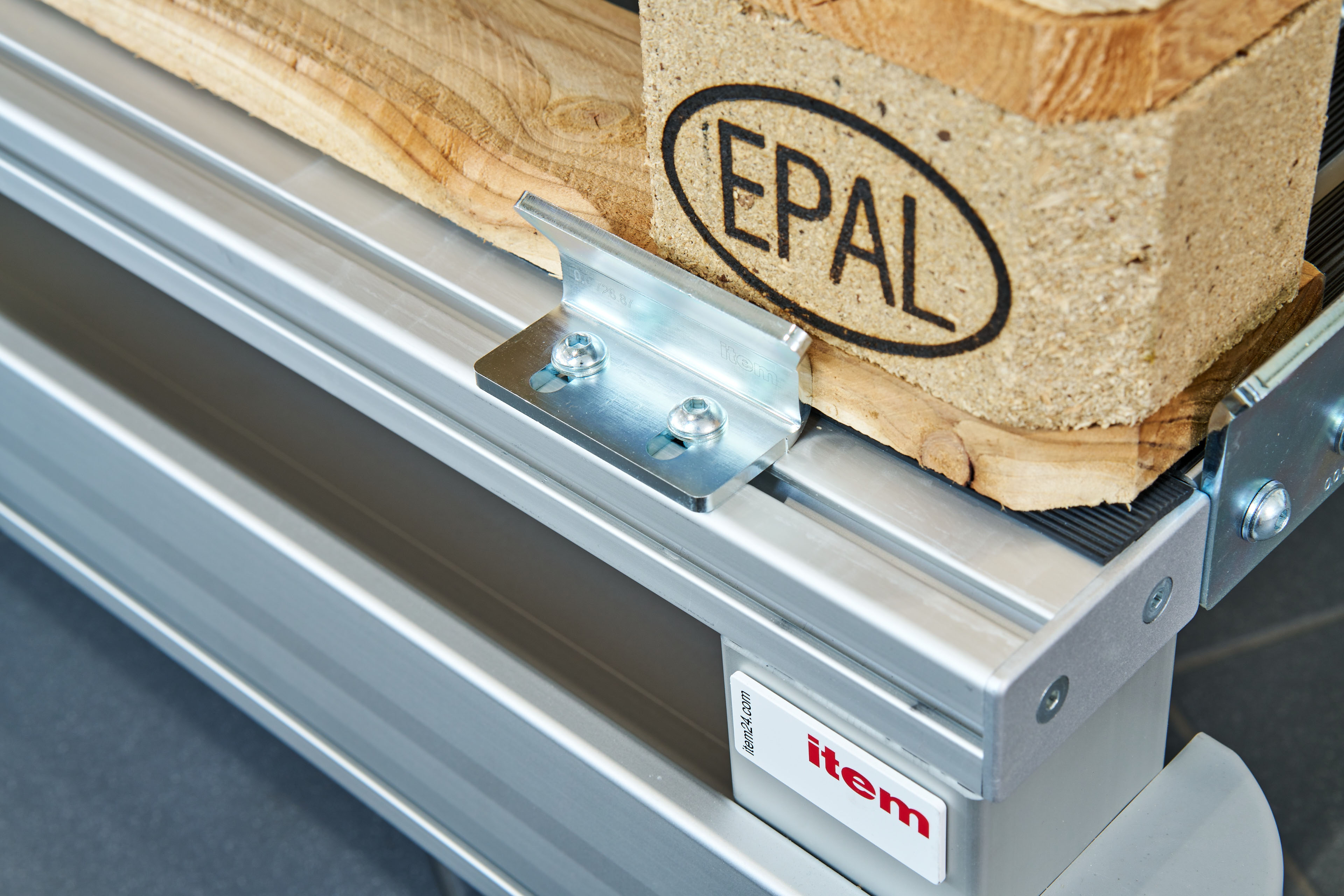

Stacking Guide 8 St 80x40-30° is fastened to the Line 8 groove on the top of the profile frame. This ensures the contour of the frame is unaffected. The integrated slots ensure it can be precisely aligned to suit the goods being moved.
Stacking Guide 8 St 80x40-30° can be fastened to a Profile 8 80x40, for example. The inside section of the profile functions as the storage surface for europallets and inherently stable packages. The Stacking Guide can also be used to guide goods along a groove.
item Stacking Guides are bent to a 30° angle and even out positioning errors as objects are set down. Different variants can be used together in applications.
