Stacking Unit D30

Selected variant
Stacking Unit D30 Bar T1 (0.0.707.16)
Stacking Unit D30 Bar T1
0.0.707.16
Show all
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
Components with this symbol meet the requirements of IEC 61340-5-1 and are therefore suitable for use in EPAs (electrostatic protected areas). By complying with the further stipulations of this standard you can use these products to create a safe environment for handling electronic components.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Scope of Delivery

1 Stacking Unit D30 Bar T1, St, bright zinc-plated
1 Bearing Set D30/D16-5 M6

Properties

Article number0.0.707.16
LineLine D30
ESD-safeYes
Weightm = 246,8 g
Delivery unit1 pce.
Status on deliveryPreassembled

Description

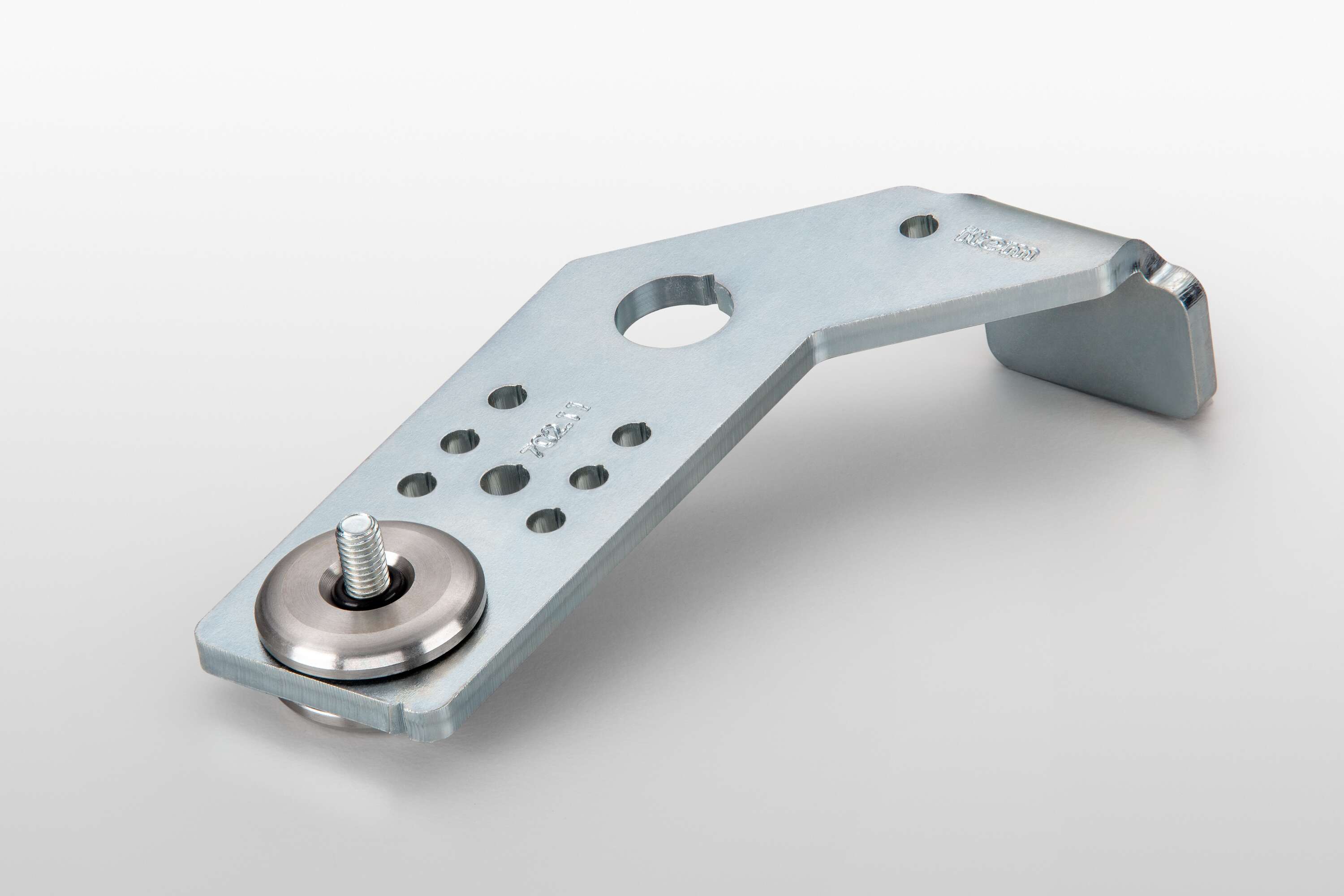

Efficient container management! Karakuri/LCA can help you significantly reduce the strain on your employees when stacking and unstacking small load carriers (SLCs). The rotating Stacking Unit D30 Bars T1 and T2 have a large contact surface, ensuring containers are held securely in place. When actuated, the Bars pivot to the side and release the SLCs for further handling.
Stacking Unit D30 Bar T1 and Stacking Unit D30 Bar T2 are functionally identical but mirror images of each other for use on opposite sides. Two of each product – Stacking Unit D30 Bars T1 and T2 – are needed to construct a stacker/destacker.
If two bearing points are needed on the stacking unit, the free hole can be extended with an additional Bearing Set D30/D16-5 M6 (0.0.702.10). The Bearing Set is used to fasten the Bar to a Line 6 groove (on Profile Tube 6 D30, for example). The Bearing Set features two axial needle bearings and one radial ball bearing for reduced friction and improved process reliability. Even when under load, the durable bearing ensures only a small amount of force is needed to release containers.
