Telescope Profile 8

Selected variant

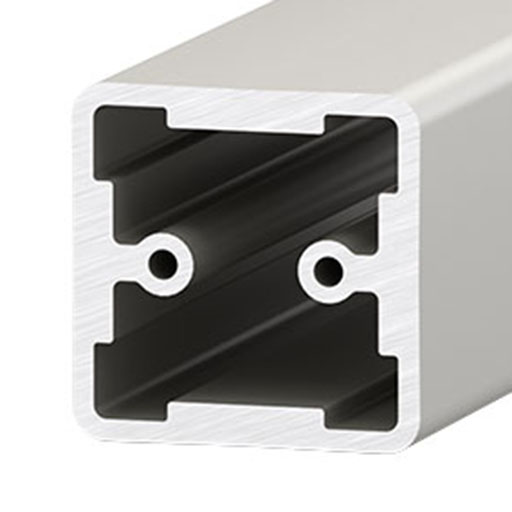

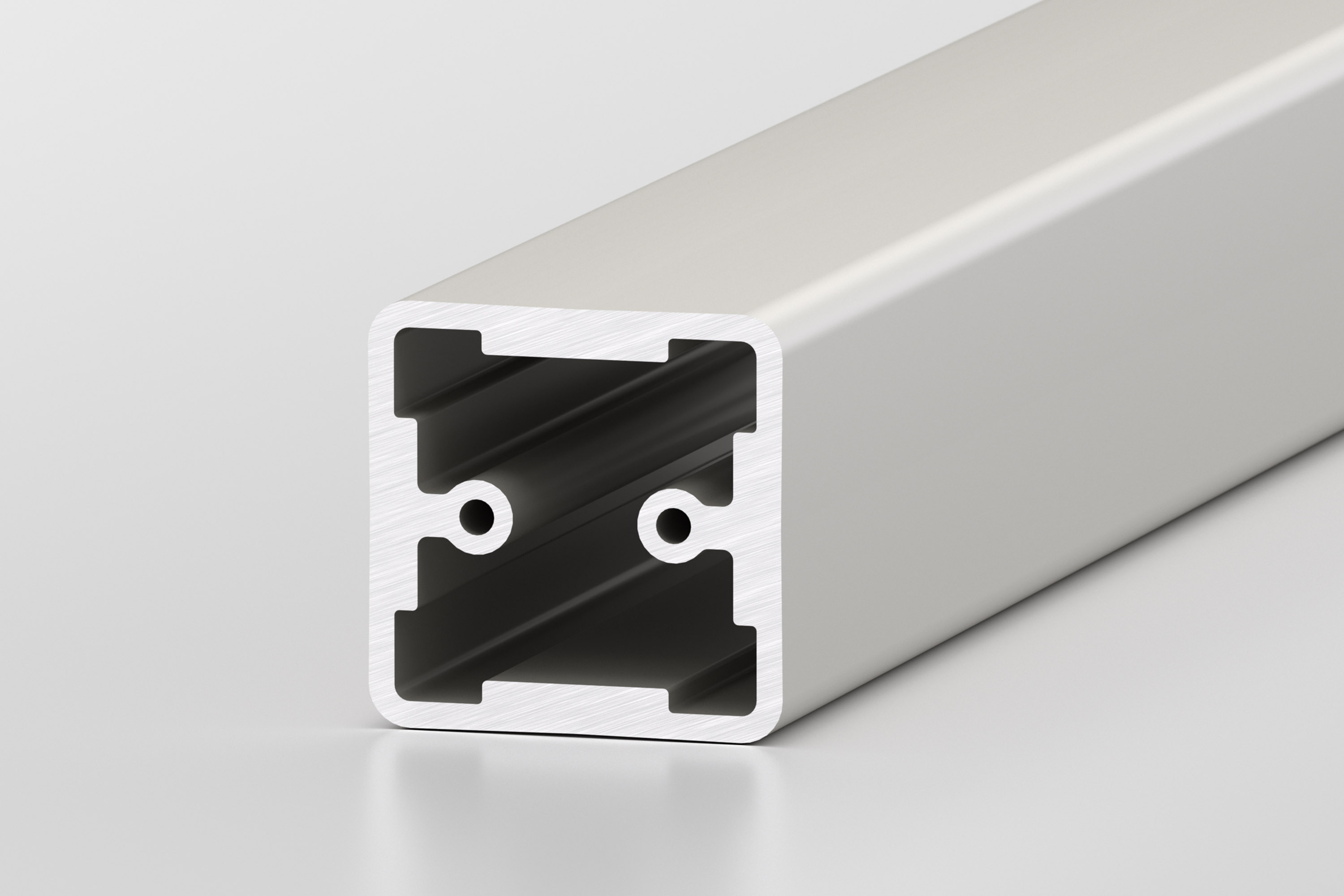

Telescope Profile 8 40x40, natural (0.0.452.22)
Telescope Profile 8 40x40, natural
0.0.452.22
Show all
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Properties

Article number0.0.452.22
Lineline 8
ESD-safeNo
Cross-sectional areaA = 5,92 cm2
Moment of Inertia, torsionalIt = 14,76 cm4
Moment of Inertia, x-axisIx = 10,52 cm4
Moment of Inertia, y-axisIy = 11,46 cm4
Weightm = 1,59 kg/m
Delivery unit1 pce., length 3000 mm
MaterialAl, anodized
Colournatural
Resistance Moment, x-axisWx = 5,26 cm3
Resistance Moment, y-axisWy = 5,73 cm3

Description

Outer profile for constructing telescope profiles of variable length for adjusting the height or inclination of fixtures and equipment.
A profile 6 30x30 must be used for the inner profile. The outer profile can be connected directly to a profile groove via its end face or using fastening elements (Hinges, heavy duty, etc.).
Line 6 components are suitable for connecting the inside profile.
The inner profile, which is guided by a sliding bearing in the telescope, is secured with the Telescope Securing Set.
Profile 6 30x30 must be 14 mm shorter than Telescope Profile 8 40x40 in order that it can be inserted completely in the assembled telescope, and the stroke thereby maximised.
Max. load in telescope direction: 500 N

Variants

Sort by

2 matching variants to "Piece"
Profilato telescopico 8 40x40, naturale

Profilato telescopico 8 40x40, naturale

0.0.452.22
Unità di consegna:  PezzoLunghezza:  3000 Dimensione Y:  40 mm

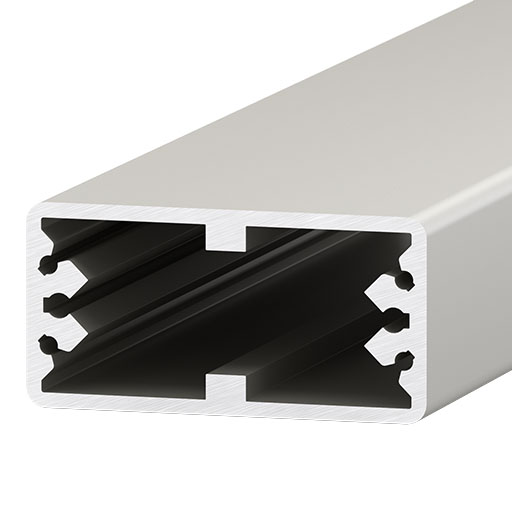

Profilato telescopico 8 80x40, naturale
