Machine frame with 3-axis handling - EX-01072

Technical Data

Properties

Delivery unit	1 set
Status on delivery	not preassembled

Description

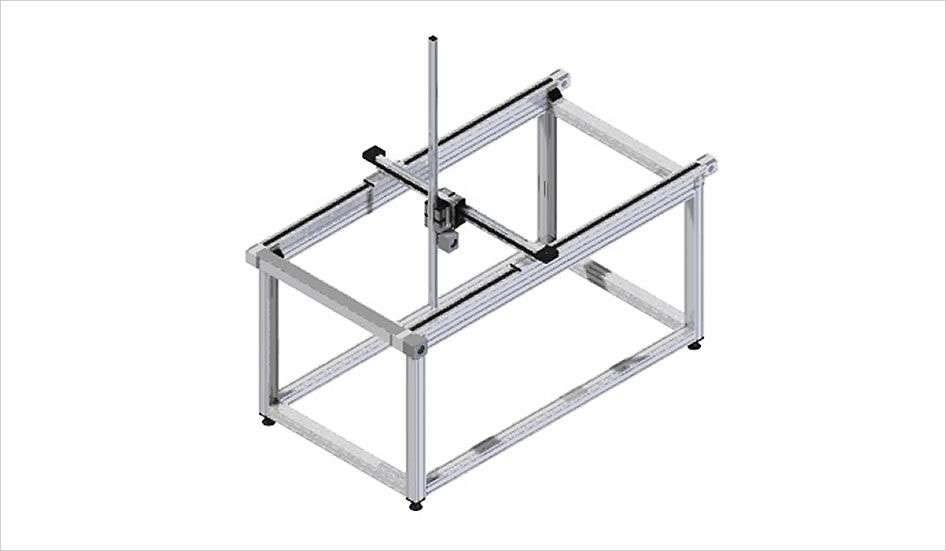

Machine frame with 3-axis handling - EX-01072 — This stable machine frame is held together by Angle Brackets and stands firm even when subjected to frequent and rapid movements in three spatial directions.
The high-precision Linear Unit KLE controls movement along the X axis, a roller guide 8 D10 with timing-belt drive moves the frame along the Y axis.

Downloads

Files

CAD-step (.zip) (.zip)

Machine frame with 3-axis handling - EX-01072
