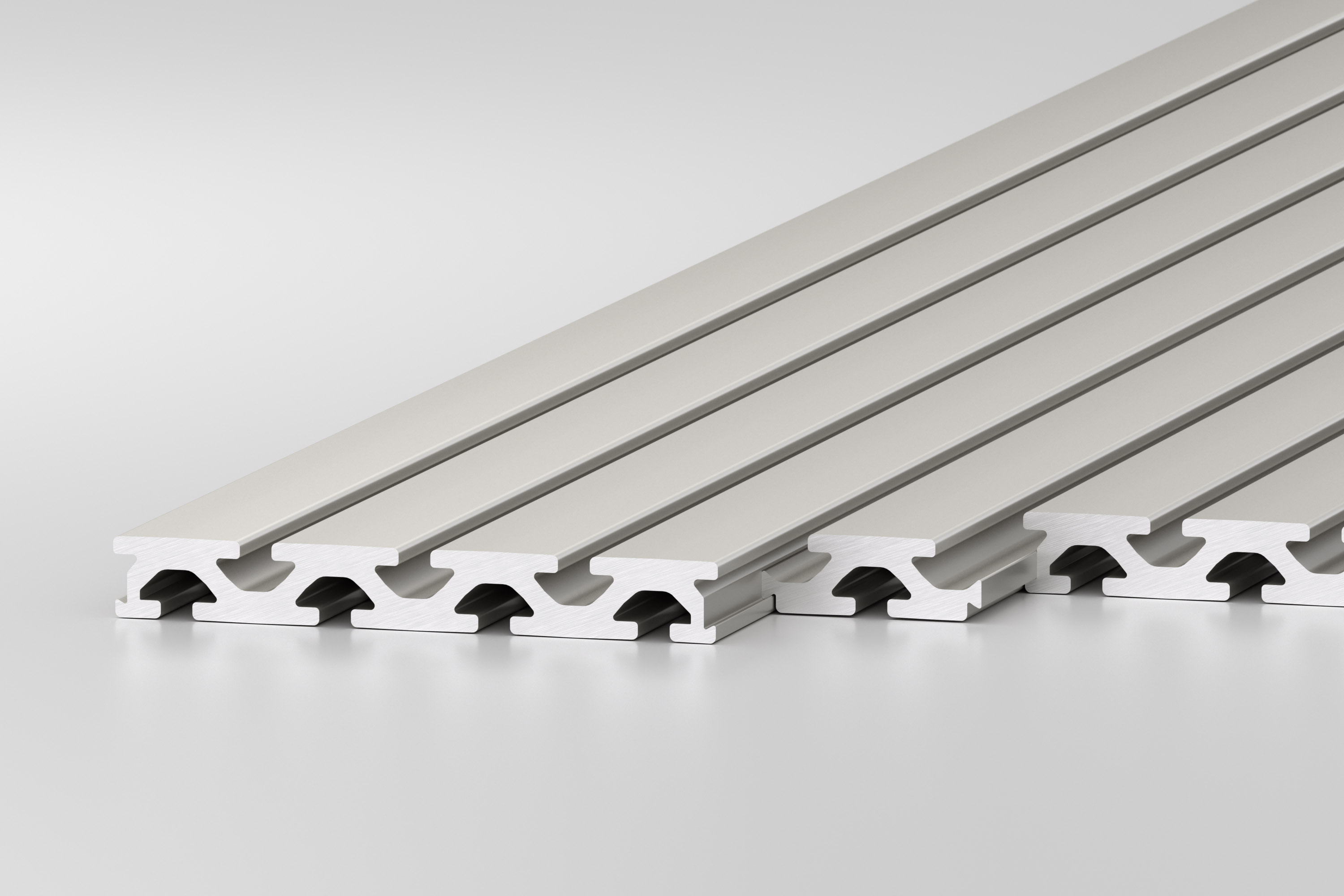

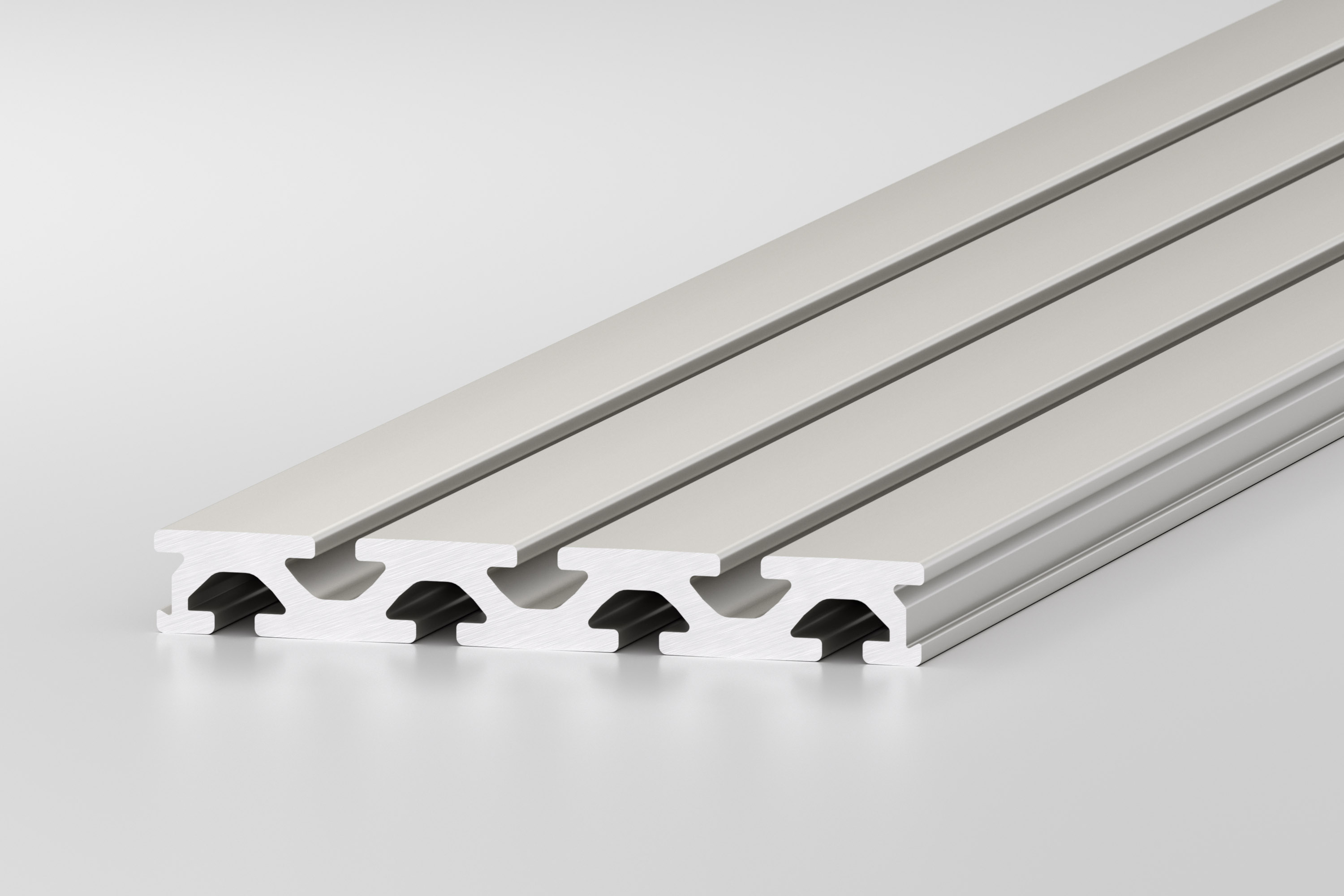

Bed Plate Profile 8 152x20, natural

0.0.465.79

More Product Information

Attributes

Line
line 8
Property
natural
ESD
ESD-safe = Yes
Cross-sectional area
A = 18.39 cm2
Moment of Inertia, torsional
It = 2.69 cm4
Moment of Inertia, x-axis
Ix = 7.39 cm4
Moment of Inertia, y-axis
Iy = 350.5 cm4
Weight, spec. Length
m = 4.97 kg/m
Delivery unit
cut-off max. 6000 mm
Material
Al, anodized
Resistance Moment, x-axis
Wx = 7.2 cm3
Resistance Moment, y-axis
Wy = 46.12 cm3

Details

Downloads

Technical documentation

Please log in to be able to download

Chemical resistance of aluminium

Please log in to be able to download

ESD Product Qualification

Please log in to be able to download

Deflection calculator

To determine the profile deflection around the Y-axis, please enter

The calculation already takes the deflection caused by the dead weight into account

Load 1

Deflection f1x
0 mm
Bending stress σ1x
0 N/mm²
Deflection f1y
0 mm
Bending stress σ1y
0 N/mm²

Load 2

Deflection f2x
0 mm
Bending stress σ2x
0 N/mm²
Deflection f2y
0 mm
Bending stress σ2y
0 N/mm²

Load 3

Deflection f3x
0 mm
Bending stress σ3x
0 N/mm²
Deflection f3y
0 mm
Bending stress σ3y
0 N/mm²

Applications

Classifications

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
35020106
35020106
35020190
35020190
23360101
23360101
23360101
23360101
UNSPSC 7.0
30102306
UNSPSC 9.0
30102306
customs tariff number
76042100
