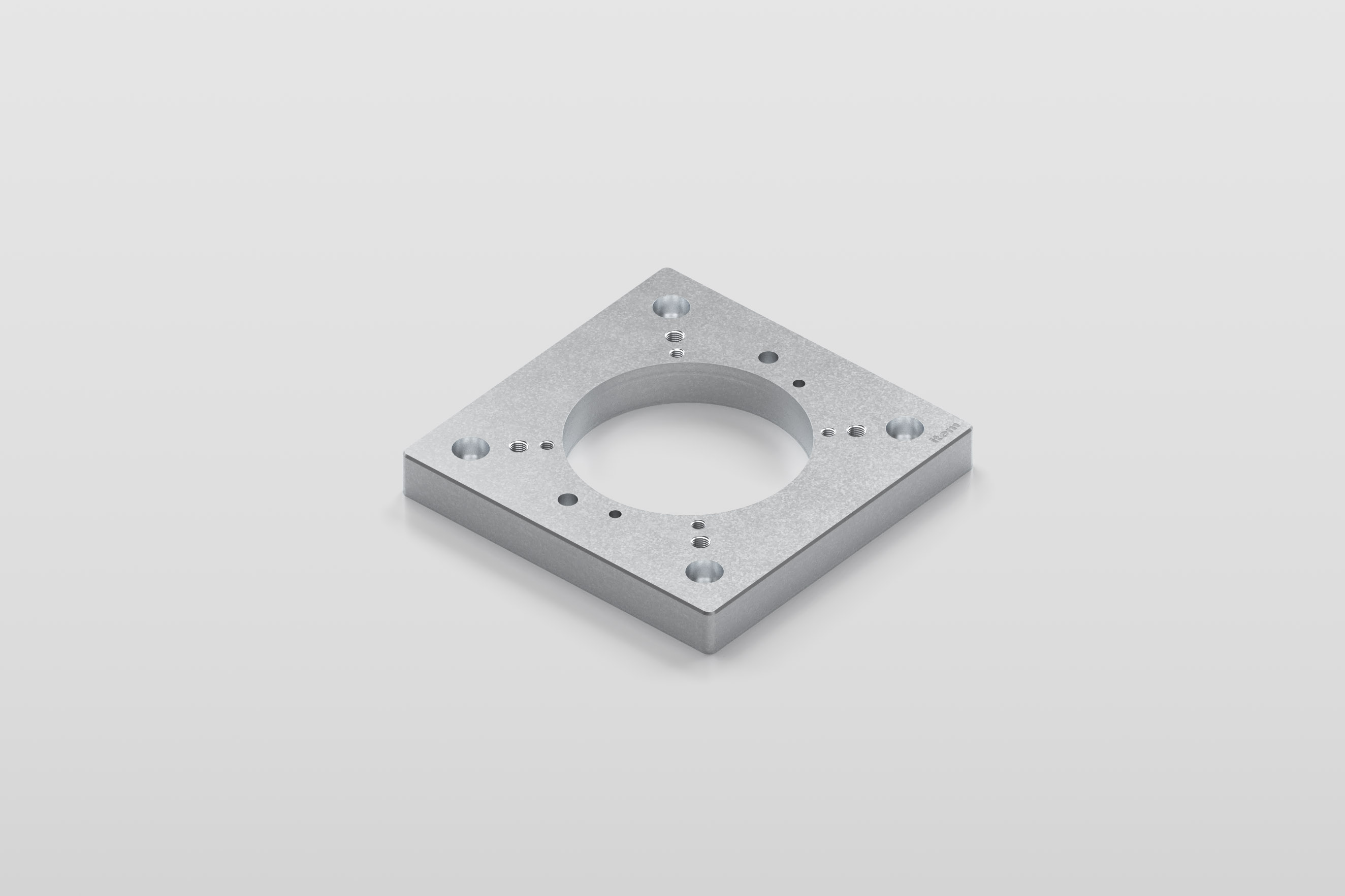

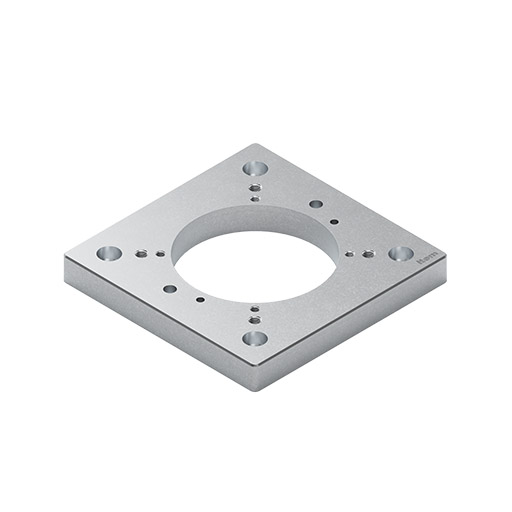

Robot Mounting Plate 8 160x160 (0.0.709.26)
Robot Mounting Plate 8 160x160
0.0.709.26
Show all
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
Components with this symbol meet the requirements of IEC 61340-5-1 and are therefore suitable for use in EPAs (electrostatic protected areas). By complying with the further stipulations of this standard you can use these products to create a safe environment for handling electronic components.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Properties

Lineline 8
ESD-safeYes
Weightm = 961 g
Delivery unit1 pce.
MaterialAl

Description

Robot Mounting Plate 8 160x160 is used to securely fasten robots from manufacturers Universal Robots and Fanuc to profiles and frames that have Line 8 grooves.
The pattern of holes has been designed for the UR3e, UR5e und UR7e  series from Universal Robots and the CRX-5iA from Fanuc. This high-strength aluminium plate is pre-drilled with holes to suit compatible models.
item supplies additional mounting plates for cobots and robots from different manufacturers.

Assembly Instructions

Variants

Sort by

Robot Mounting Plate 8 160x160

Robot Mounting Plate 8 160x160
Edge length X:  160Edge length Y:  160Height/depth Z:  20Manufacturer:  Fanuc / Universal Robots 160x160Robot model:  CRX-5iA, UR3e, UR5e

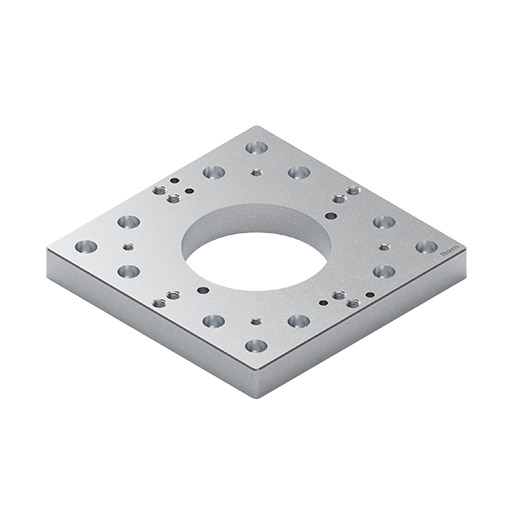

Robot Mounting Plate 8 200x200

Robot Mounting Plate 8 200x200
Edge length X:  200Edge length Y:  200Height/depth Z:  25Manufacturer:  Fanuc / Omron / Universal Robots 200x200Robot model:  CRX-10iA, CRX-10iA/L, CRX-20iA/L, TM5, TM12, TM14, TM16, UR10e, UR16e

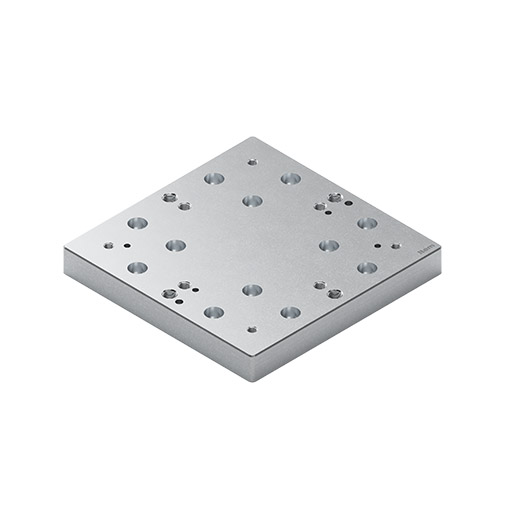

Robot Mounting Plate 8 200x200 T1

Robot Mounting Plate 8 200x200 T1
Edge length X:  200Edge length Y:  200Height/depth Z:  25Manufacturer:  Doosan Robotics / Kassow Robots 200x200Robot model:  A-Serie, M-Serie, KR810, KR1018, KR1205, KR1410, KR1805

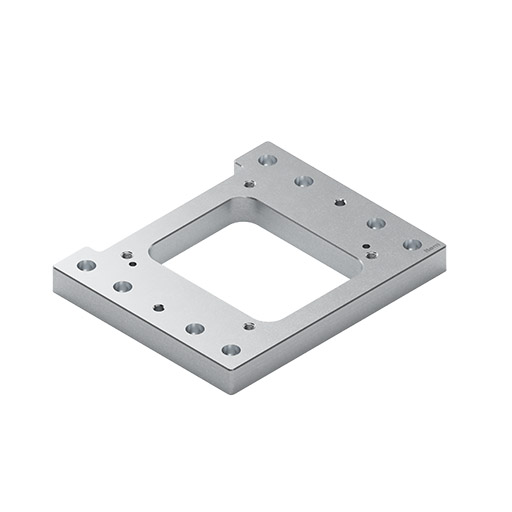

Robot Mounting Plate 8 240x200

Robot Mounting Plate 8 240x200
Edge length X:  240Edge length Y:  200Height/depth Z:  25Manufacturer:  ABB 240x200Robot model:  CRB 1100, CRB 15000-5, IRB 14050

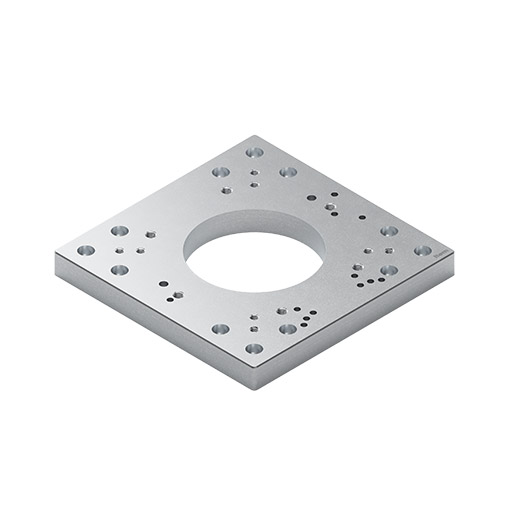

Robot Mounting Plate 8 240x240

Robot Mounting Plate 8 240x240
Edge length X:  240Edge length Y:  240Height/depth Z:  25Manufacturer:  Mitsubishi / Universal Robots 240x240Robot model:  RV-2, RV-4, RV-5, RV-8, UR8L, UR15, UR18

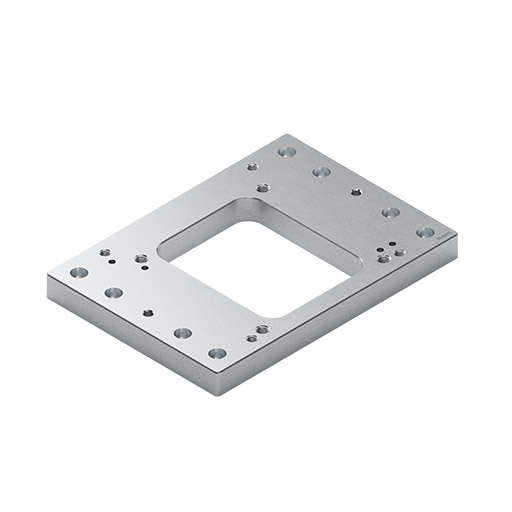

Robot Mounting Plate 8 280x200

Robot Mounting Plate 8 280x200
Edge length X:  280Edge length Y:  200Height/depth Z:  25Manufacturer:  ABB 280x200Robot model:  CRB 15000-10, CRB 15000-12, IRB 920

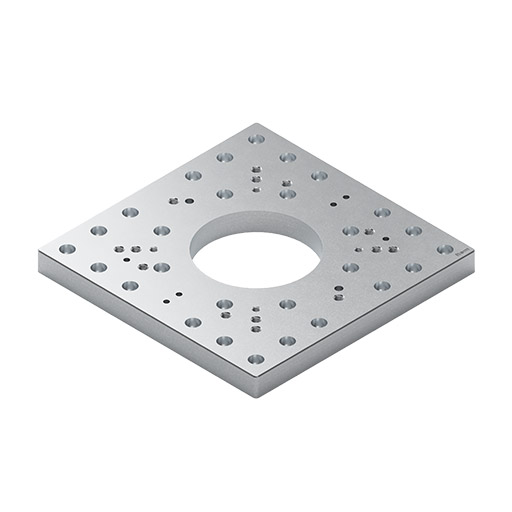

Robot Mounting Plate 8 280x280

Robot Mounting Plate 8 280x280
Edge length X:  280Edge length Y:  280Height/depth Z:  25Manufacturer:  KUKA / Universal Robots 280x280Robot model:  LBR iiwa-Serie, LBR iisy-Serie, UR20, UR30

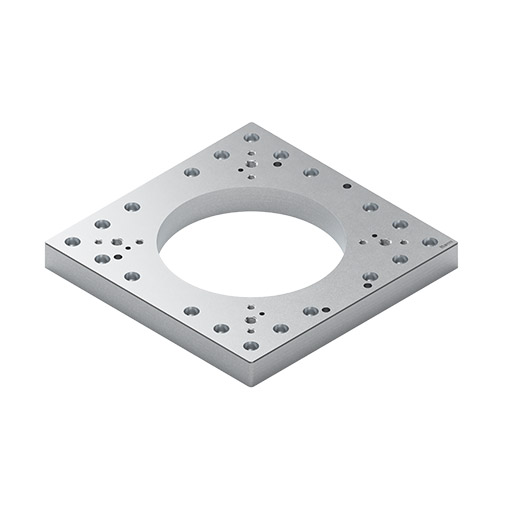

Robot Mounting Plate 8 280x280 T1

Robot Mounting Plate 8 280x280 T1
Edge length X:  280Edge length Y:  280Height/depth Z:  30Manufacturer:  Doosan / Fanuc / Mitsubishi 280x280Robot model:  H-Serie, P-Serie, CRX-25iA, CRX-30iA, RV-7

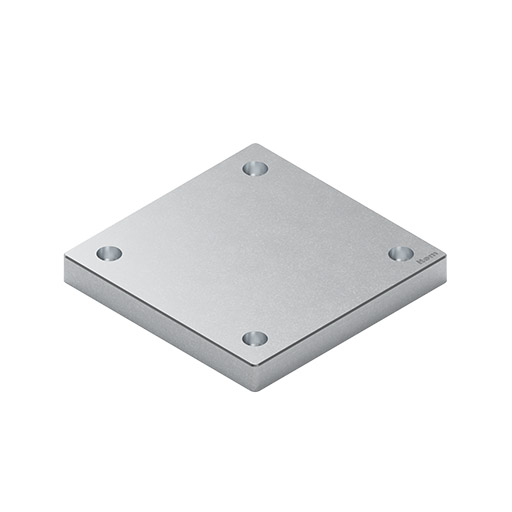

Universal Mounting Plate 8 160x160

Universal Mounting Plate 8 160x160
Edge length X:  160Edge length Y:  160Height/depth Z:  20Manufacturer:  Universal flange dimension 160x160Robot model:  -

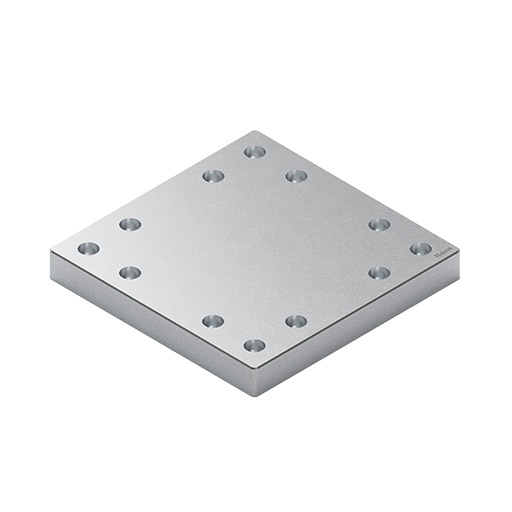

Universal Mounting Plate 8 200x200

Universal Mounting Plate 8 200x200
Edge length X:  200Edge length Y:  200Height/depth Z:  25Manufacturer:  Universal flange dimension 200x200Robot model:  -
