Hinge 8/8 40 Zn ESD, matt chrome-plated (0.0.728.19)
Hinge 8/8 40 Zn ESD, matt chrome-plated
0.0.728.19
Show all
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
Components with this symbol meet the requirements of IEC 61340-5-1 and are therefore suitable for use in EPAs (electrostatic protected areas). By complying with the further stipulations of this standard you can use these products to create a safe environment for handling electronic components.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Scope of Delivery

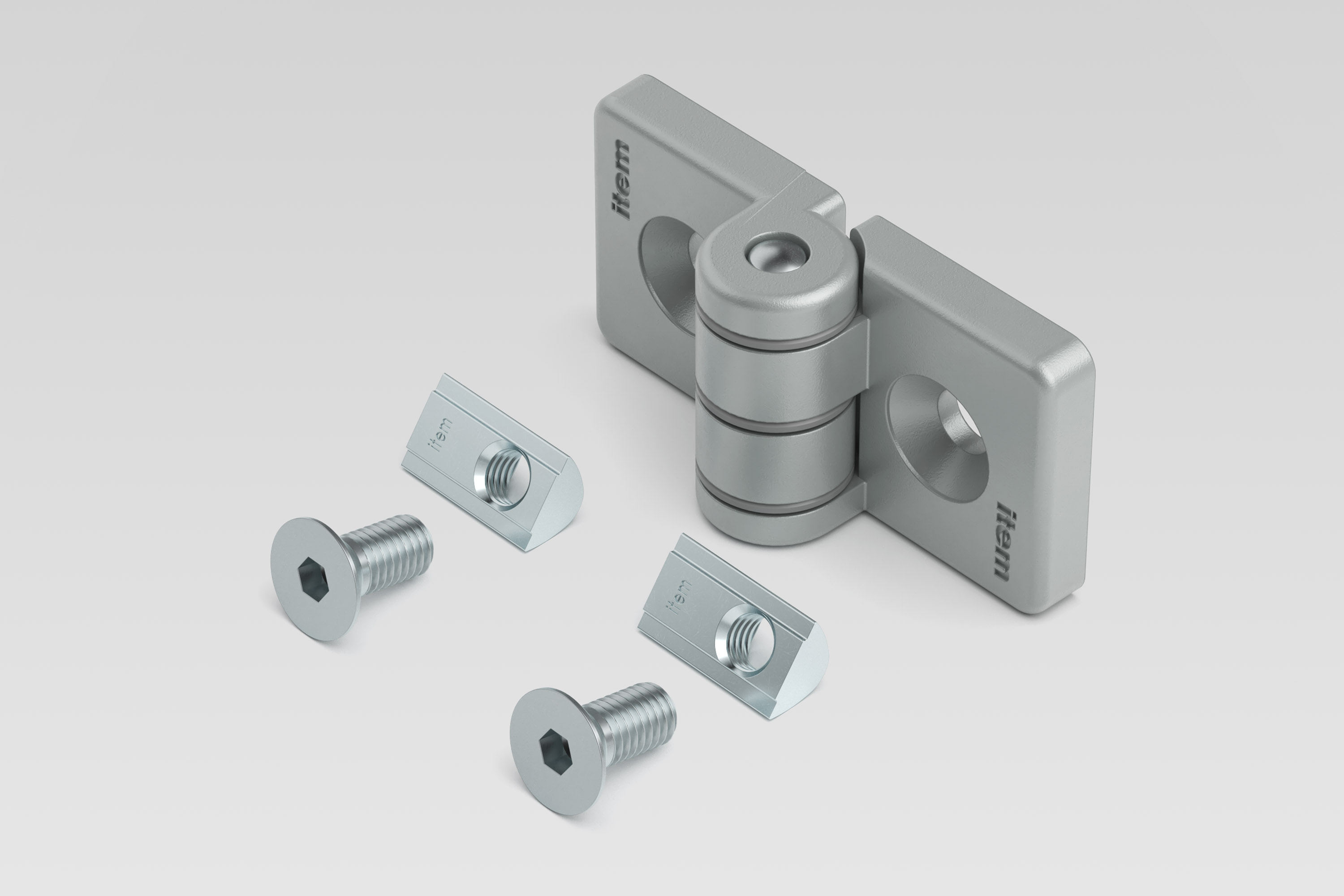

2 hinge halves 8 40 Zn, die-cast Al, chrome-plated
3 Hinge 8 40 Zn washers, PA6, grey
1 Hinge 8 40 Zn pin, St
2 Countersunk Screws DIN 7991 M8x18, bright zinc-plated
2 T-Slot Nuts V 8 St M8, bright zinc-plated

Properties

TorqueM = 20 Nm
Lineline 8
Propertymatt chrome-plated
ESD-safeYes
Weightm = 233 g
Delivery unit1 set
cleanroom suitabilityNo

Description

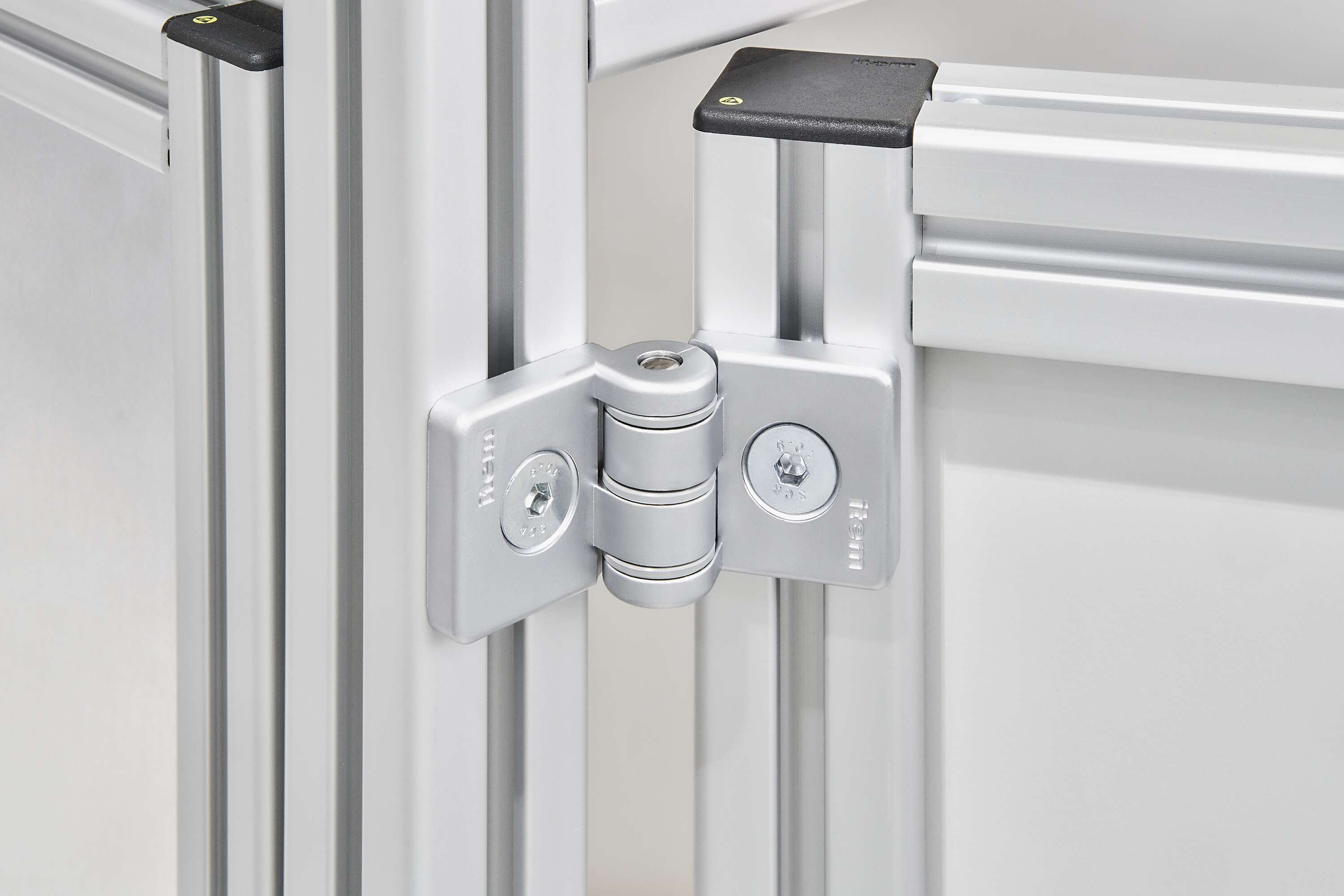

Hinges 8/8 40 Zn ESD from item are joints that allow rotation and connect together doors and surrounding frames made of Line 8 profiles. They can be fitted so that doors and hatches can be opened from the right or left side, they incorporate anti-torsion features and are ESD safe.
These robust hinges are quick to fit and cover a wide range of applications. They are equally suitable for machine doors as they are for fitting to simple hatches. They can be fastened to a groove or – after removing the anti-torsion features – directly to a panel element.
The anti-torsion features can be removed with a screwdriver. This means the product can be screwed to panel elements and other components that do not have a profile groove.

Assembly Instructions
