Swivel castor

Swivel castor

Selected variant

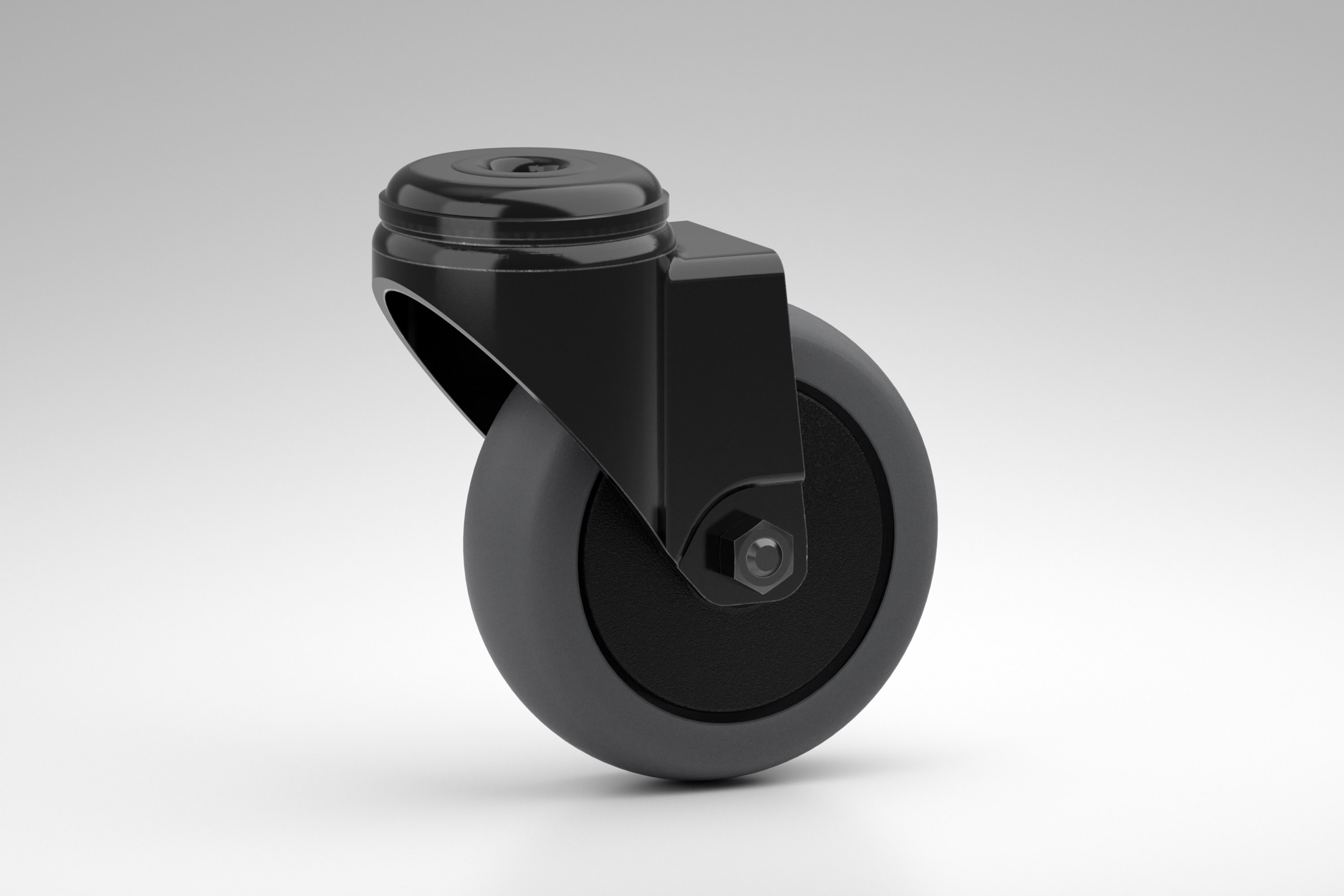

Castor D75 swivel (0.0.420.14)
Castor D75 swivel
0.0.420.14
Show all
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Scope of Delivery

Steel sheet casing bright zinc-plated, black
Swivelling axis with sealed ball bearing,
Wheel axle with sealed ball bearing,
Dust shield,
Tyre TPE, track-free, 80 Sh A, grey

Properties

Article number0.0.420.14
Lineline 5
Lineline 6
Lineline 8
ESD-safeNo
Weightm = 306 g
Delivery unit1 pce.
cleanroom suitabilityNo
Load-carrying capacity60 kg/Castor

Description

The castors can be secured in the end faces of all Profile Lines by means of a thread in the core bore (counter boring and tapping may be required) or by using Base Plates.
The castors can be fitted to the groove side of the profiles using appropriate Base Plates (thread lengths may need to be compensated by washers DIN 125). A combination with Floor-Fastening Plate 8 is also possible for specific applications.

Variants

Sort by

Castor D50 swivel, heavy-duty

Castor D50 swivel, heavy-duty

0.0.714.30
Load capacity (roll):  150 kgRoll diameter:  50 mmTread:  Polyurethane (PU)Material:  Steel (bright zinc-plated)Brake:  None
Castor D50 swivel with brake, heavy-duty

Castor D50 swivel with brake, heavy-duty

0.0.714.31
Load capacity (roll):  150 kgRoll diameter:  50 mmTread:  Polyurethane (PU)Material:  Steel (bright zinc-plated)Brake:  Single
Castor D75 swivel

Castor D75 swivel

0.0.420.14
Load capacity (roll):  60 kgRoll diameter:  75 mmTread:  Thermoplastic elastomer (TPE)Material:  Steel (bright zinc-plated)Brake:  None
Castor D75 swivel ESD

Castor D75 swivel ESD

0.0.420.15
Load capacity (roll):  60 kgRoll diameter:  75 mmTread:  Thermoplastic elastomer (TPE)Material:  Steel (bright zinc-plated)Brake:  None
Castor D75 swivel with double-brake

Castor D75 swivel with double-brake

0.0.420.16
Load capacity (roll):  60 kgRoll diameter:  75 mmTread:  Thermoplastic elastomer (TPE)Material:  Steel (bright zinc-plated)Brake:  Double
Castor D75 swivel with double-brake ESD

Castor D75 swivel with double-brake ESD

0.0.420.17
Load capacity (roll):  60 kgRoll diameter:  75 mmTread:  Thermoplastic elastomer (TPE)Material:  Steel (bright zinc-plated)Brake:  Double
Castor D80 swivel, stainless

Castor D80 swivel, stainless

1.0.001.08
Load capacity (roll):  90 kgRoll diameter:  80 mmTread:  Thermoplastic elastomer (TPE)Material:  Stainless steelBrake:  None
Castor D80 swivel, ESD, stainless

Castor D80 swivel, ESD, stainless

1.0.001.97
Load capacity (roll):  90 kgRoll diameter:  80 mmTread:  Thermoplastic elastomer (TPE)Material:  Stainless steelBrake:  None
Castor D80 swivel with double-brake, stainless

Castor D80 swivel with double-brake, stainless

1.0.001.09
Load capacity (roll):  90 kgRoll diameter:  80 mmTread:  Thermoplastic elastomer (TPE)Material:  Stainless steelBrake:  Double
Castor D80 swivel with double-brake, ESD, stainless

Castor D80 swivel with double-brake, ESD, stainless

1.0.001.98
Load capacity (roll):  90 kgRoll diameter:  80 mmTread:  Thermoplastic elastomer (TPE)Material:  Stainless steelBrake:  Double
Castor D100 swivel

Castor D100 swivel

0.0.602.38
Load capacity (roll):  80 kgRoll diameter:  100 mmTread:  Thermoplastic elastomer (TPE)Material:  Steel (bright zinc-plated)Brake:  None
Castor D100 swivel ESD

Castor D100 swivel ESD

0.0.602.39
Load capacity (roll):  80 kgRoll diameter:  100 mmTread:  Thermoplastic elastomer (TPE)Material:  Steel (bright zinc-plated)Brake:  None
Castor D100 swivel with double-brake

Castor D100 swivel with double-brake

0.0.602.40
Load capacity (roll):  80 kgRoll diameter:  100 mmTread:  Thermoplastic elastomer (TPE)Material:  Steel (bright zinc-plated)Brake:  Double
Castor D100 swivel with double-brake ESD

Castor D100 swivel with double-brake ESD

0.0.602.41
Load capacity (roll):  80 kgRoll diameter:  100 mmTread:  Thermoplastic elastomer (TPE)Material:  Steel (bright zinc-plated)Brake:  Double
Castor D100 swivel, heavy-duty

Castor D100 swivel, heavy-duty

0.0.722.85
Load capacity (roll):  150 kgRoll diameter:  100 mmTread:  Polyurethane (PU)Material:  Steel (bright zinc-plated)Brake:  None
Castor D100 swivel with double-brake, heavy-duty

Castor D100 swivel with double-brake, heavy-duty

0.0.723.53
Load capacity (roll):  150 kgRoll diameter:  100 mmTread:  Polyurethane (PU)Material:  Steel (bright zinc-plated)Brake:  Double
Castor D125 swivel

Castor D125 swivel

0.0.418.08
Load capacity (roll):  100 kgRoll diameter:  125 mmTread:  Thermoplastic elastomer (TPE)Material:  Steel (bright zinc-plated)Brake:  None
Castor D125 swivel ESD

Castor D125 swivel ESD

0.0.418.09
Load capacity (roll):  100 kgRoll diameter:  125 mmTread:  Thermoplastic elastomer (TPE)Material:  Steel (bright zinc-plated)Brake:  None
Castor D125 swivel with double-brake

Castor D125 swivel with double-brake

0.0.418.10
Load capacity (roll):  100 kgRoll diameter:  125 mmTread:  Thermoplastic elastomer (TPE)Material:  Steel (bright zinc-plated)Brake:  Double
Castor D125 swivel with double-brake ESD

Castor D125 swivel with double-brake ESD

0.0.418.11
Load capacity (roll):  100 kgRoll diameter:  125 mmTread:  Thermoplastic elastomer (TPE)Material:  Steel (bright zinc-plated)Brake:  Double

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 8.0
23370590
eCl@ss 4.0
22041431
eCl@ss 4.1
22041431
eCl@ss 5.0
23250319
eCl@ss 5.1
23250319
UNSPSC 9.0
31162701
eCl@ss 7.1
23370590
eCl@ss 11.0
23370590
eCl@ss 6.0.1
23370201
UNSPSC 7.0
31162701
Customs tariff number
83022000
