End Cap 8 40 H60 ESD, black

0.0.733.23

Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
Components with this symbol meet the requirements of IEC 61340-5-1 and are therefore suitable for use in EPAs (electrostatic protected areas). By complying with the further stipulations of this standard you can use these products to create a safe environment for handling electronic components.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

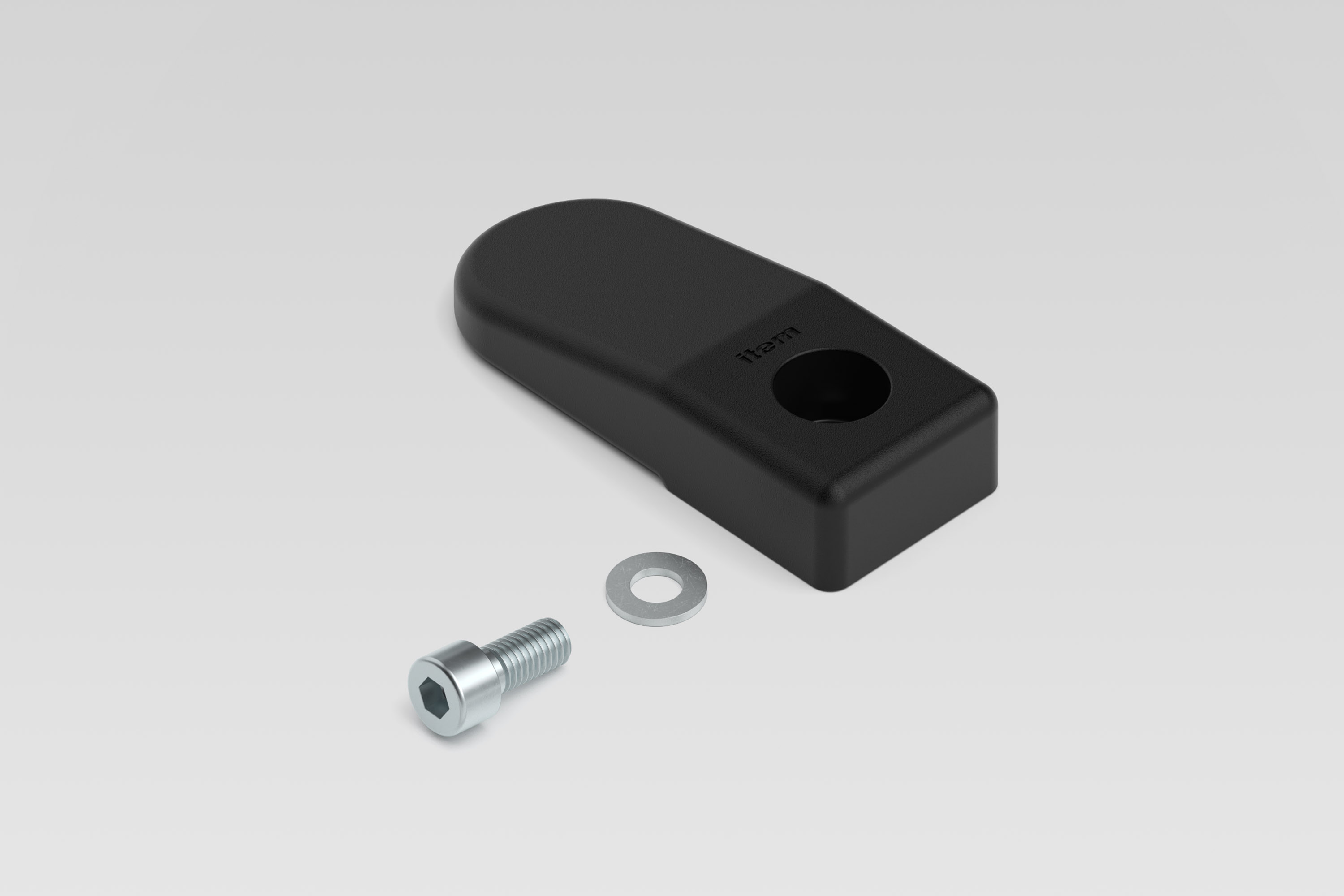

Scope of Delivery

1 End Cap 8 40 H60 ESD, PA-GF, black
1 Hexagon Socket Head Cap Screw DIN 912 M8x18, St
1 washer ISO 7089-8, St, bright zinc-plated

Properties

TorqueM = 15 Nm
Lineline 8
ESD-safeYes
Weightm = 60 g
Delivery unit1 set
Colourblack
cleanroom suitabilityNo

Description

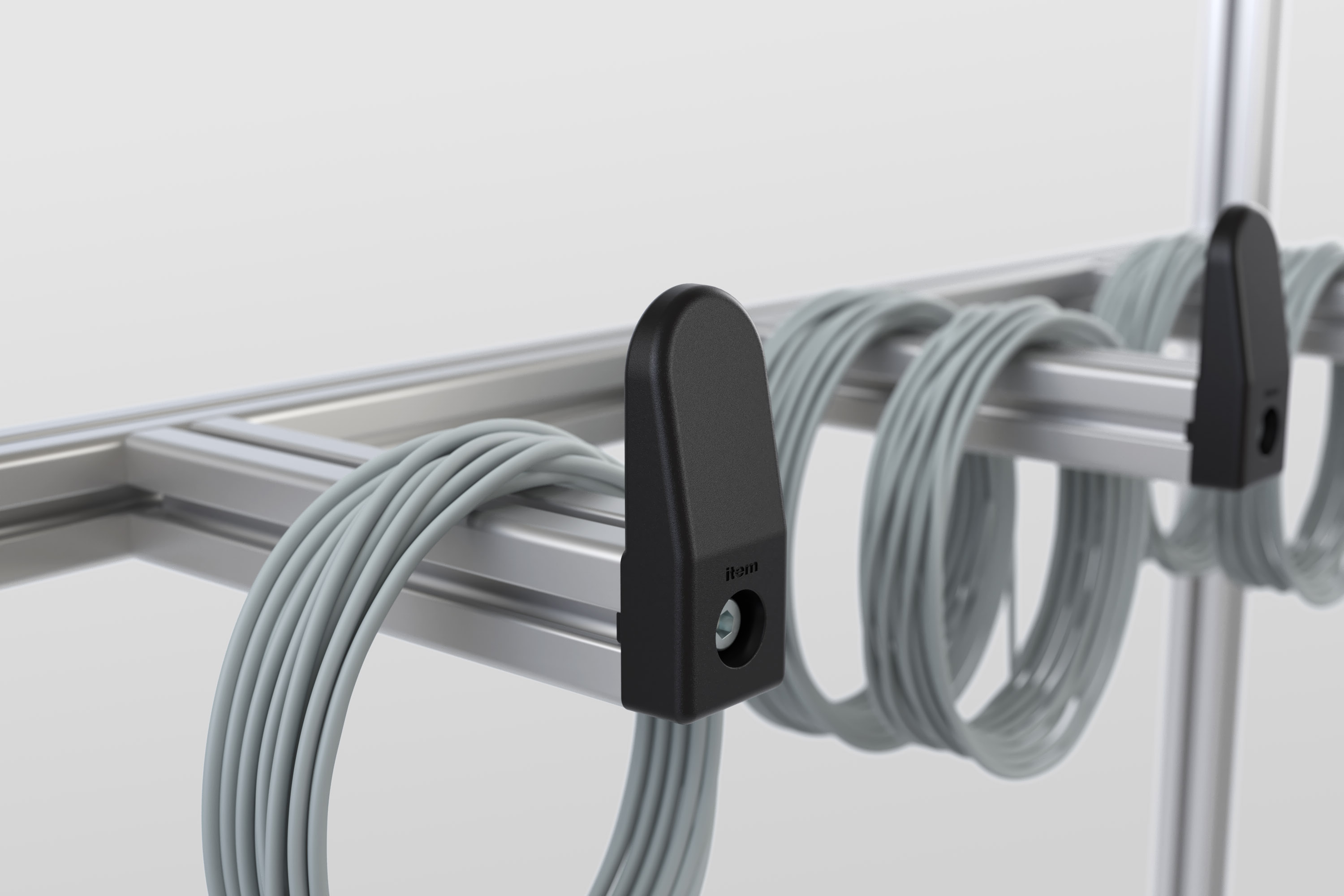

End Cap 8 40 H60 ESD is a raised end piece for Line 8 profiles. When a profile is being used to hang something on, or as part of a mobile cantilever rack, fitting the End Cap in place stops cable harnesses, etc. from slipping off. The rounded edges of the End Cap ensure product surfaces aren’t damaged when being taken down.
This non-scratch plastic fitting transforms a Profile 8 40x40 into a hook that can also be used as a way to hold in place products that are stored upright.

Assembly Instructions

End Cap 8 40 H60 ESD is screwed into the core bore of a Profile 8 40x40.

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 8.0
23369290
eCl@ss 11.0
23360292
eCl@ss 4.0
22041441
eCl@ss 4.1
22041441
eCl@ss 5.1
37070517
eCl@ss 5.0
37070517
UNSPSC 9.0
31141501
UNSPSC 26.0
31141501
eCl@ss 6.0.1
23369290
UNSPSC 7.0
31141501
eCl@ss 7.1
23369290
Customs tariff number
39269097
