Modular dimension
Each item product line is based primarily on square profiles with an external dimension of 20, 30, 40, 50 or 60 mm. Continuous grooves run along all four sides.
item profiles – the original aluminium system profiles
Fast assembly and maximum flexibility: Whether you call them aluminium or aluminum profiles, you can use item construction profiles made from this versatile metal to design robust factory equipment and entire systems for any production application in no time at all.
item aluminium profiles for industry and machinery
Screws instead of welding: Besides speeding up the process of designing robust factory equipment, aluminium profiles from item also make it possible to modify this equipment easily and flexibly later on. Over 4500 mutually compatible components and item profiles from various product lines create modular solutions for all kinds of processes.
- Profiles in popular sizes, such as 20x20 mm and 40x40 mm, as well as further modular dimensions
- Five product lines – 5, 6, 8, 10 and 12 – for any requirement
- Aluminium profiles for mechanical engineering and industrial applications – ideal for modular constructions
Aluminium construction profiles from item differ in terms of three key geometric features:
Groove dimension
The size and load-carrying capacity of the groove increase in line with the modular dimension. Most profile connections are anchored in the groove. The groove can also hold panel elements in place.
Bore diameter
The core bore offers a stable fastening point at the end faces of the aluminium profiles. This bore is a sound basis that can have a thread tapped directly into it.
item system profiles for any application
The item portfolio offers you a wide range of construction profiles made of aluminium and other materials, meaning you will find the perfect profile for any application. You can choose between particularly lightweight aluminium profiles and the relevant standard variant. Special profiles made from different materials are also available for specific requirements.
item aluminium profiles – economy, light and standard
In some product lines, our aluminium profiles are available in a range of variants. All lines in the item Building Kit System include the “standard” design. For example, the “standard” variant of the 40x40 Line 8 aluminium profile is suitable for high loads and universal use. Amongst other things, you can build supporting structures for mechanical and factory equipment engineering applications, materials handling technology and heavy-duty work benches.
Lines 6, 8 and 12 also offer a “light” variant, which features a lightweight design that doesn’t compromise on stability, while the “economy (E)” variant (Lines 6, 8 and 10) is a material-optimised solution. Both these variants are suitable for lightweight frames and covers, as well as mobile solutions such as transport trolleys.
item aluminium profiles – our product lines
item construction profiles are split into specific product lines that are geared towards different requirements. As a result, you are sure to find the perfect profiles for any challenge. Their end-to-end compatibility makes it easy to combine profiles from different lines.
Line 5 profiles – compact and lightweight
- Modular dimension of 20 mm
- Our most compact aluminium profiles
- Full functionality without being bulky
- For slender and stable applications where space is tight
Line 6 profiles – weight-optimised
- Modular dimension of 30 mm
- Economical use of materials, but big on performance
- High carrying capacity despite a low dead weight
- For streamlined and robust constructions
Line 8 profiles – the item standard
- Modular dimension of 40 mm – the standard for design engineers worldwide
- Huge selection of accessories and enhancements
- Robust and strong despite small dimensions
- For machines and systems of all sizes
Line 10 profiles – space-saving and strong
- Modular dimension of 50 mm
- Higher load-carrying capacity thanks to reinforced profile walls
- Extremely effective in guarding against pre-tension losses
- For constructions that need to support heavy loads in tight spaces

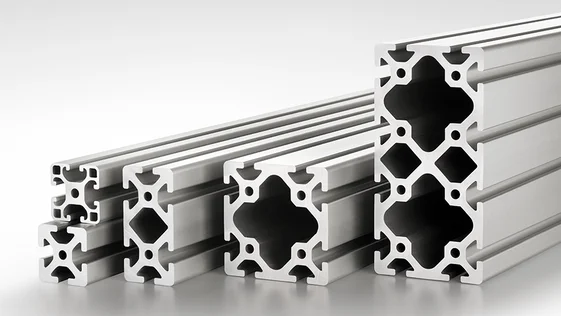

Line 12 profiles – our strongest
- Modular dimension of 60 mm
- The strongest profile line in the MB Building Kit System
- Maximum load-carrying capacity and tensile loading
- A stable basis for frames that are subject to particularly high loads

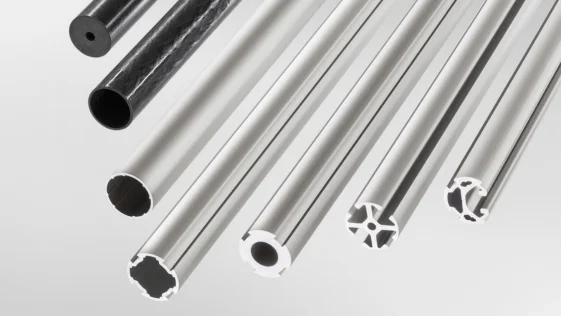

The Profile Tube System
- Basic diameter of 30 mm – optimised for lean production
- Rapid assembly and modifications possible at all times
- ESD safety for sensitive workpieces
- Ideal for load-bearing racks, trolleys, tables, manufacturing solutions and intralogistics solutions
It’s all in the name – helping you find the ideal aluminium profile for your application
The names of our profiles follow the same logic across the board – for rapid guidance and reliable selection.
item special profiles for unusual tasks
Line St 8 profiles from item combine the versatility of the item Building Kit System with the material properties of stainless steel.
- Steel profile that is fully compatible with Line 8
- Withstands corrosion and heat
- Resistant to acids, alkalis and chemicals
WFC profiles are made of an innovative, sustainable material with up to 75 percent wood fibres. This impressive material is manufactured by NOVO-TECH in line with the cradle-to-cradle principle.
- Fully compatible with all item components
- High strength combined with a low weight
- Weather-resistant, electrically insulating profiles that allow electromagnetic waves to pass through
Black KH profiles, with a wood fibre content of 70 percent, have similar properties and can be used for the same purposes.
Find out more about item aluminium profiles
item Building Kit System
The system behind our aluminium profiles
One modular system, infinite possibilities – with item products, you can design customised solutions for all kinds of applications. From ergonomic work benches to robot peripherals, discover what is possible.
Online Tools
3D engineering directly in your browser
Design your projects wherever and whenever you want. The item Engineeringtool supports online design engineering in a 3D environment. What’s more, all the associated project documentation and much more besides is just a click away.
Online Shop
Buy aluminium profiles in the item Online Shop
In our Online Shop, you will find our entire range of aluminium profiles, together with further components and preconfigured solutions. Use our profile deflection calculator to find the right solutions for your application.
