Swing door 8 32x18

Hinged side: *

Clear height H1: *

Clear width B1: *

Panel fasteners: *

Panel material: *

Panel colour: *

Hinge design: *

Stop type: *

Catch design: *

Handle design: *

Handle position: *

* Mandatory information

Get CAD Data and Downloads

Technical Data

Properties

Line	line 8
ESD-safe	No
Delivery unit	1 set
Status on delivery	not preassembled
cleanroom suitability	No

Description

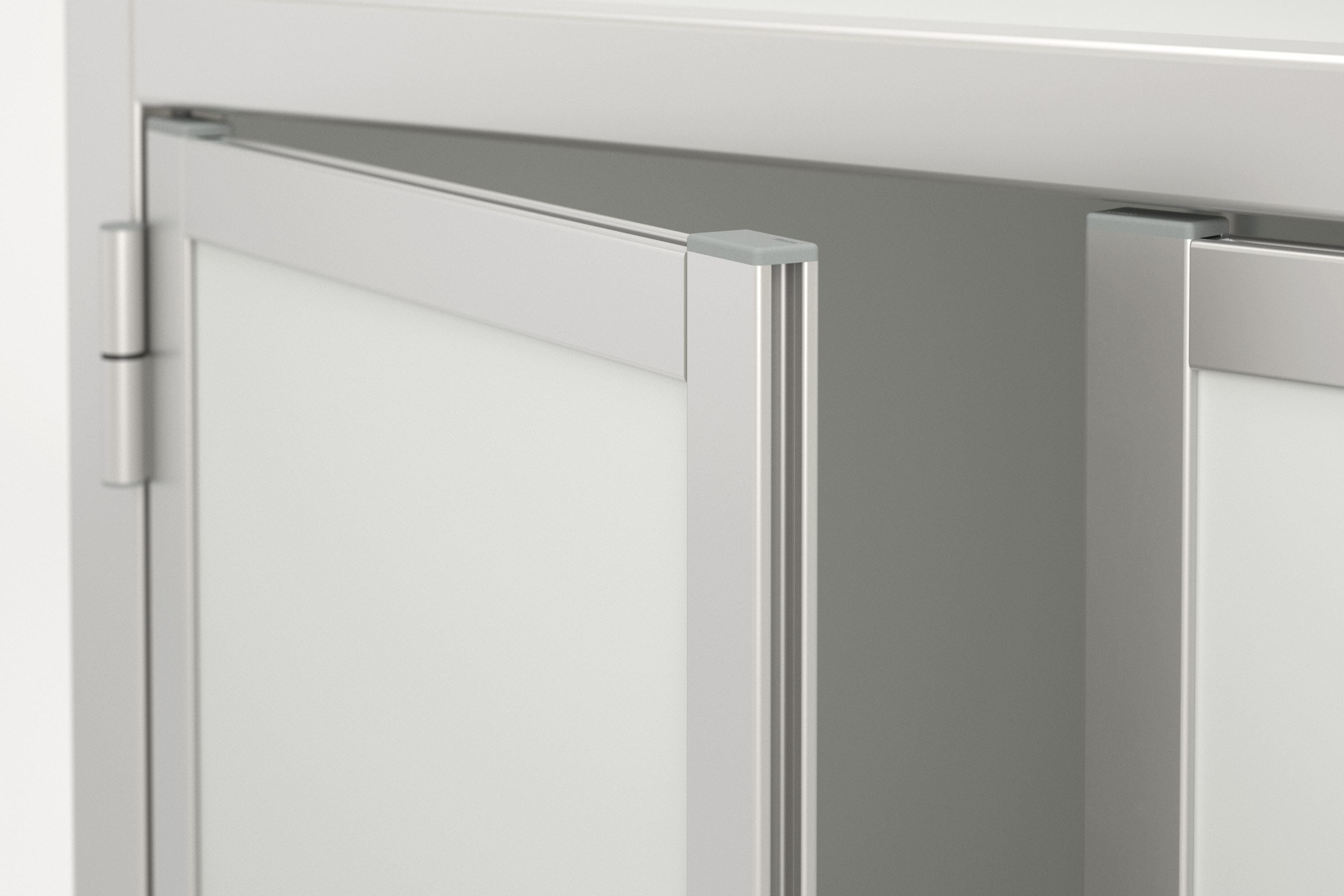

Swing door 8 32x18 — The especially slim item Swing Door 8 32x18 features closed grooves on the outer surfaces and, when using the relevant hinges, is easy to install in profile frames with Line 8 grooves. When working with item Clamp Profiles, you can create flat, lightweight aluminium doors that are ideal for cabinets and lightweight safety fixtures.
Dimensions, the opening side of the door and other configuration details are determined individually and the relevant components are delivered together.

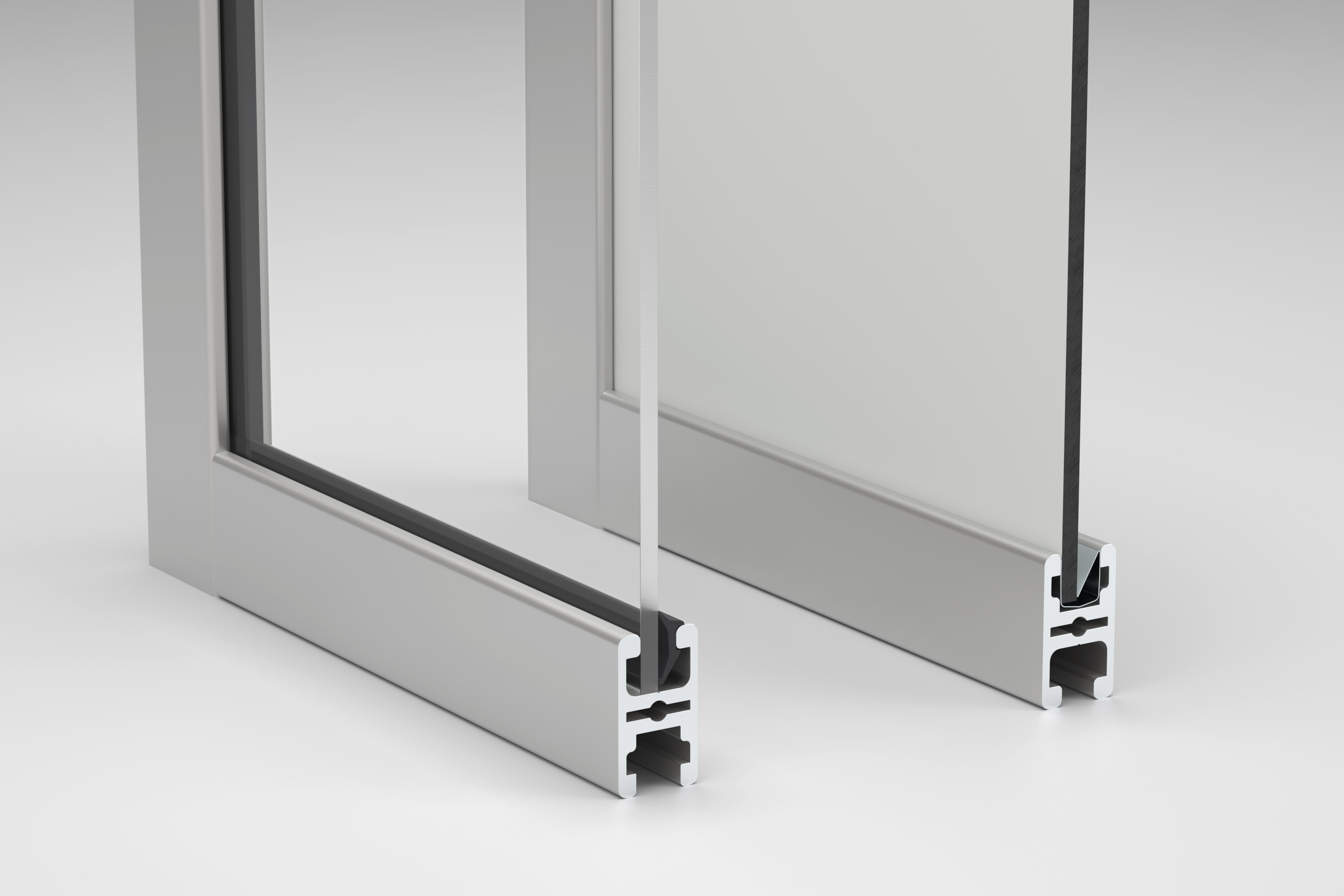

Swing door 8 32x18 — Panel infills are secured in place using Clamping Springs or Lip Seals. Clamping Springs offer a high level of resistance to stop panels from being pushed out of the groove. Elastic, all-round Lip Seals, meanwhile, provide a dust-tight closure around the panel.

Swing door 8 32x18 — As configurable assemblies, item swing doors help ensure that machine cabins and other industrial applications can be designed and built efficiently. Door frames and details such as panel infills, handle types and seals are automatically brought together to suit requirements.

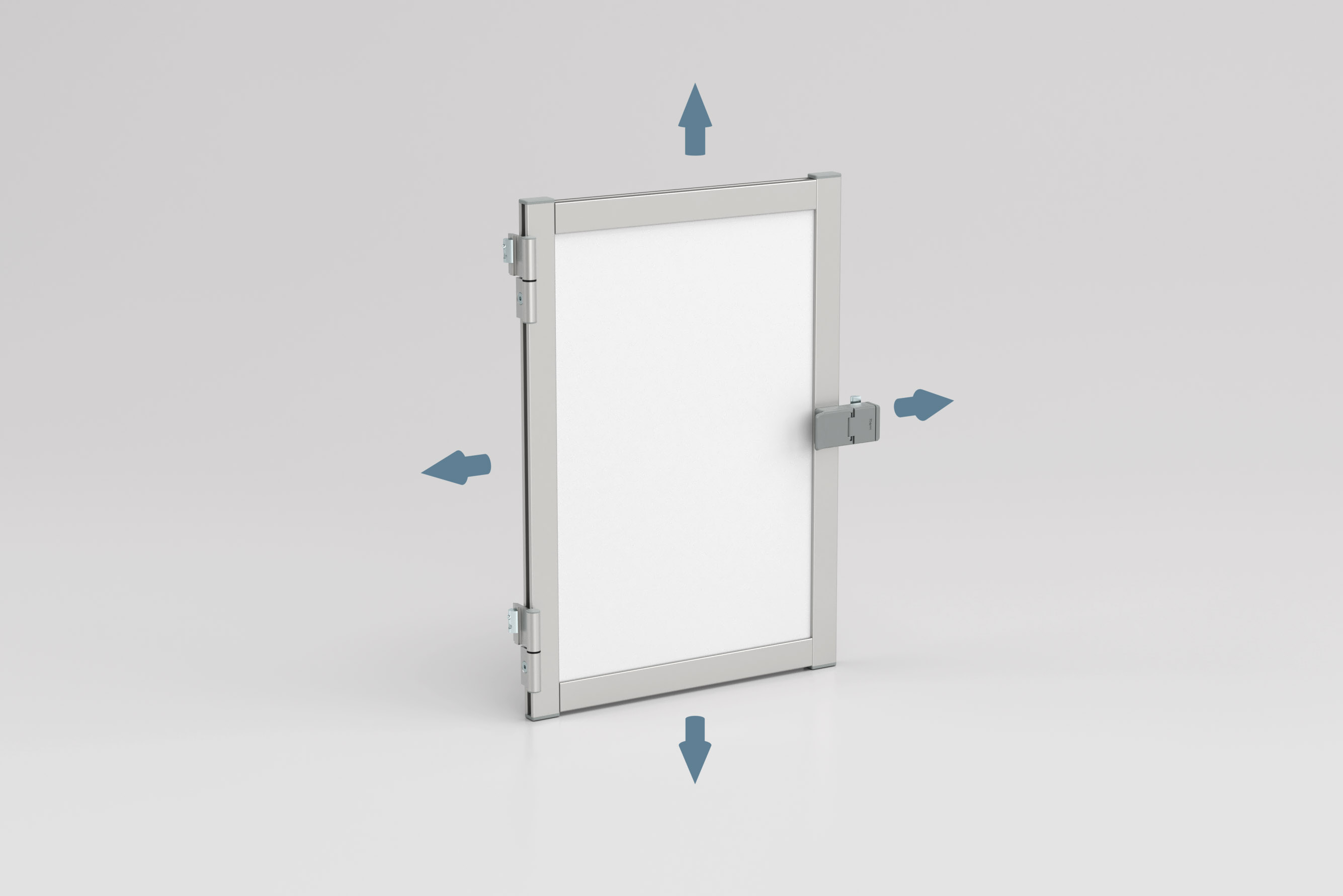

When you are working in the item Engineeringtool, the doors adapt independently to fit their installation space.

Assembly Instructions

Downloads

CAD Data

Files

Assembly instruction (.pdf)
