Cable Entry Protector

Cable Entry Protector

Selected variant
Cable Entry Protector Lid 60, black (0.0.719.18)
Cable Entry Protector Lid 60, black
0.0.719.18
Show all
Get CAD Data and Downloads

Technical Data

All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

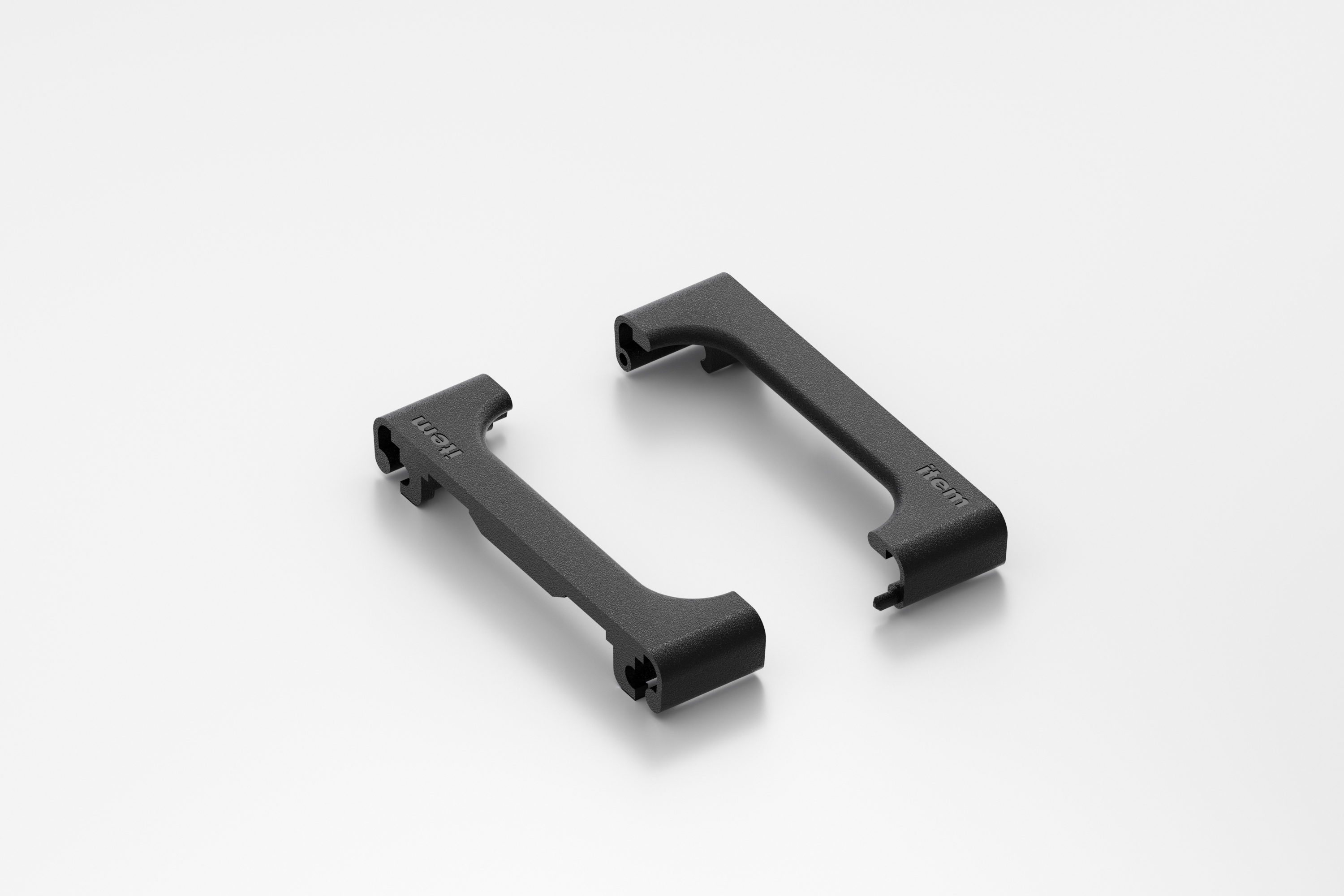

Scope of Delivery

2 halves

Properties

Article number0.0.719.18
ESD-safeNo
Weightm = 4,7 g
Delivery unit1 set
MaterialPA-GF
Colourblack

Description

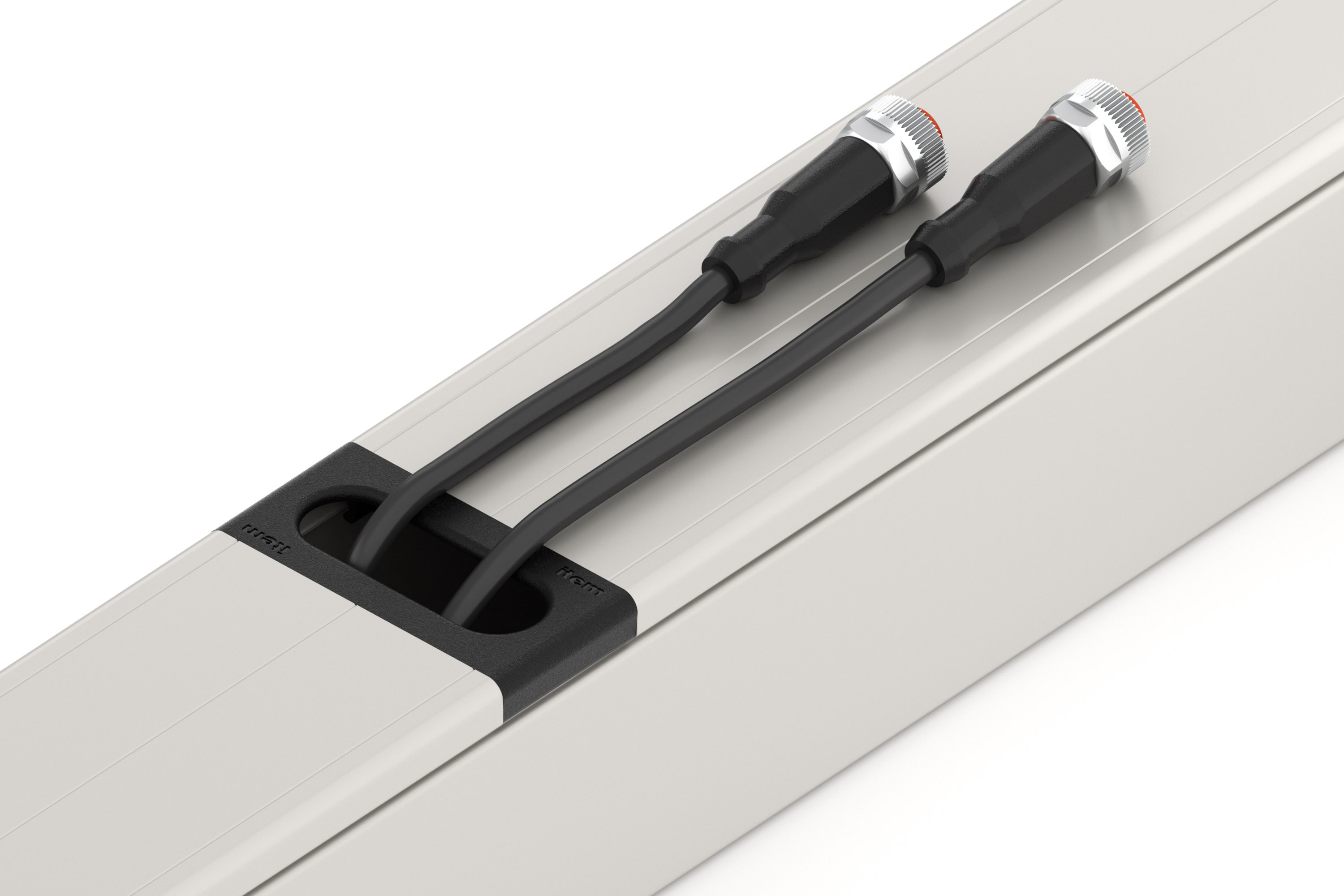

Cable Entry Protector, Lid 60 is used to create an opening in Lid Profile D60 E (7.0.002.87) at the point where cables and lines need to be routed in and/or out of a conduit. The Cable Entry Protector consists of two halves, meaning a wider section of the lid can be opened up to make it easier to feed through a cable with a plug on the end.
Each half of the Cable Entry Protector can also be installed individually, with its end face against a vertical profile. To ensure a flush connection in this scenario, the centring feature needs to be removed.

Assembly Instructions

The Cable Entry Protector stays in place with no need for screw fixings. The two halves are pressed onto the ends of the Lid Profiles and can then be moved with the sections of lid.

Variants

Sort by

Cable Entry Protector Wall 40, black

Cable Entry Protector Wall 40, black

0.0.479.74
Dimension X:  40 mmScope of application:  WallESD-safe:  XSealing Brush:  X
Cable Entry Protector Wall 80, black

Cable Entry Protector Wall 80, black

0.0.479.75
Dimension X:  80 mmScope of application:  WallESD-safe:  XSealing Brush:  X
Cable Entry Protector Lid 30, black

Cable Entry Protector Lid 30, black

0.0.719.98
Dimension X:  30 mmScope of application:  CoverESD-safe:  XSealing Brush:  X
Cable Entry Protector Lid 40, black

Cable Entry Protector Lid 40, black

0.0.479.76
Dimension X:  40 mmScope of application:  CoverESD-safe:  XSealing Brush:  X
Cable Entry Protector Lid 60, black

Cable Entry Protector Lid 60, black

0.0.719.18
Dimension X:  60 mmScope of application:  CoverESD-safe:  XSealing Brush:  X
Cable Entry Protector Lid 80, black

Cable Entry Protector Lid 80, black

0.0.479.77
Dimension X:  80 mmScope of application:  CoverESD-safe:  XSealing Brush:  X
Cable Entry Protector Wall 120-80, black

Cable Entry Protector Wall 120-80, black

0.0.642.93
Dimension X:  120 mmScope of application:  WallESD-safe:  XSealing Brush:  X
Cable Entry Protector Wall 160-80, black

Cable Entry Protector Wall 160-80, black

0.0.642.94
Dimension X:  160 mmScope of application:  WallESD-safe:  XSealing Brush:  X
Cable Entry Protector, Lid 160 with Sealing Brush, black

Cable Entry Protector, Lid 160 with Sealing Brush, black

0.0.665.12
Dimension X:  160 mmScope of application:  CoverESD-safe:  ✓Sealing Brush:  ✓

Downloads

CAD Data

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 8.0
23110902
eCl@ss 4.0
23110902
eCl@ss 4.1
23110902
eCl@ss 5.0
23110902
eCl@ss 5.1
23110902
eCl@ss 6.0.1
23110902
eCl@ss 7.1
23110902
eCl@ss 11.0
23110790
UNSPSC 9.0
31161706
UNSPSC 7.0
31161706
Customs tariff number
39269097
