T-Slot Nut F

T-Slot Nut F

Selected variant
T-Slot Nut F 8 St 2xM6-36, bright zinc-plated (0.0.723.10)
T-Slot Nut F 8 St 2xM6-36, bright zinc-plated
0.0.723.10
Show all
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
Components with this symbol meet the requirements of IEC 61340-5-1 and are therefore suitable for use in EPAs (electrostatic protected areas). By complying with the further stipulations of this standard you can use these products to create a safe environment for handling electronic components.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Properties

Article number0.0.723.10
Lineline 8
Propertybright zinc-plated
ESD-safeYes
ThreadM6
Weightm = 15 g
Force perm.Fper. = 3.500 N
Delivery unit1 pce.
MaterialSt
TorqueM = 3 Nm

Description

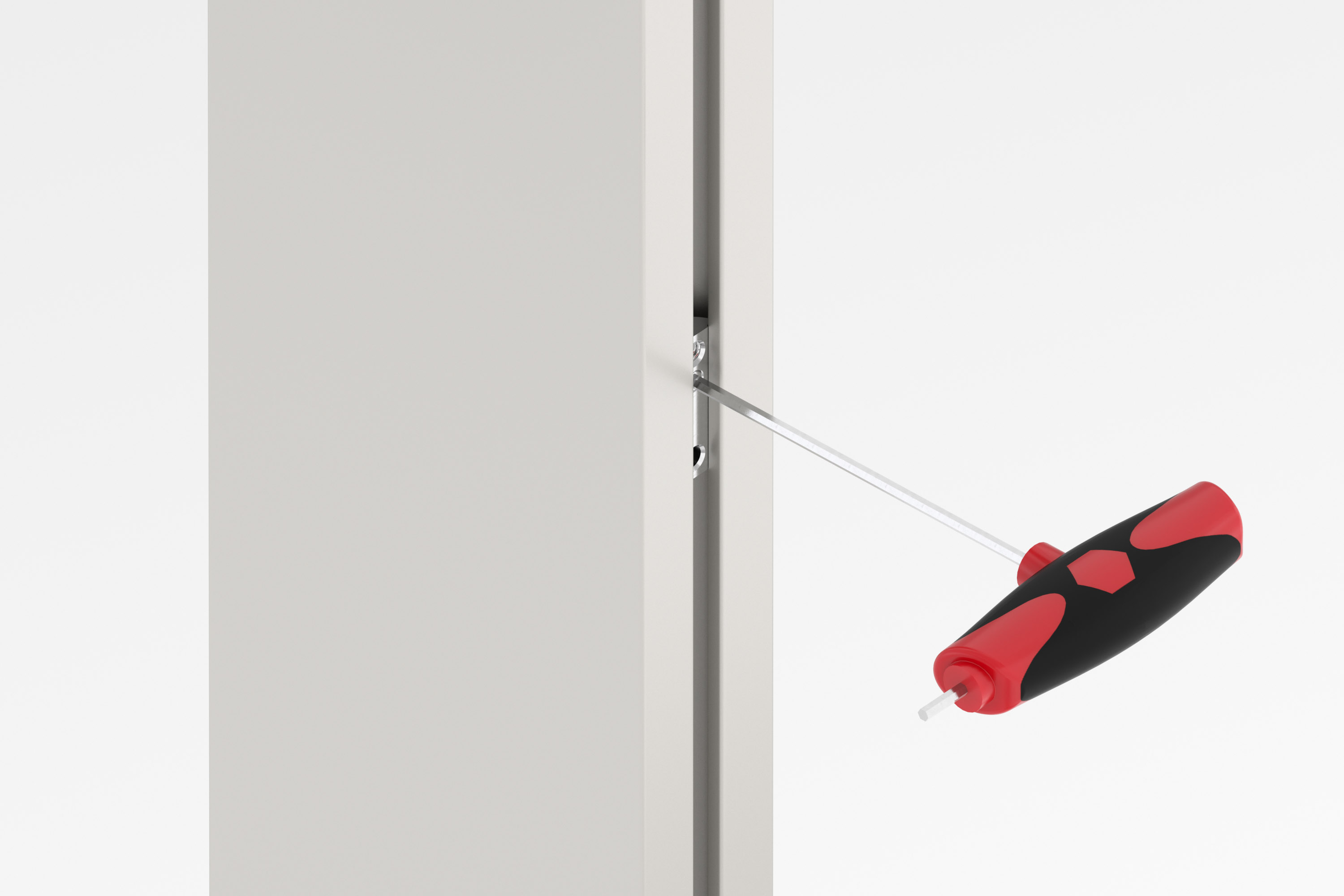

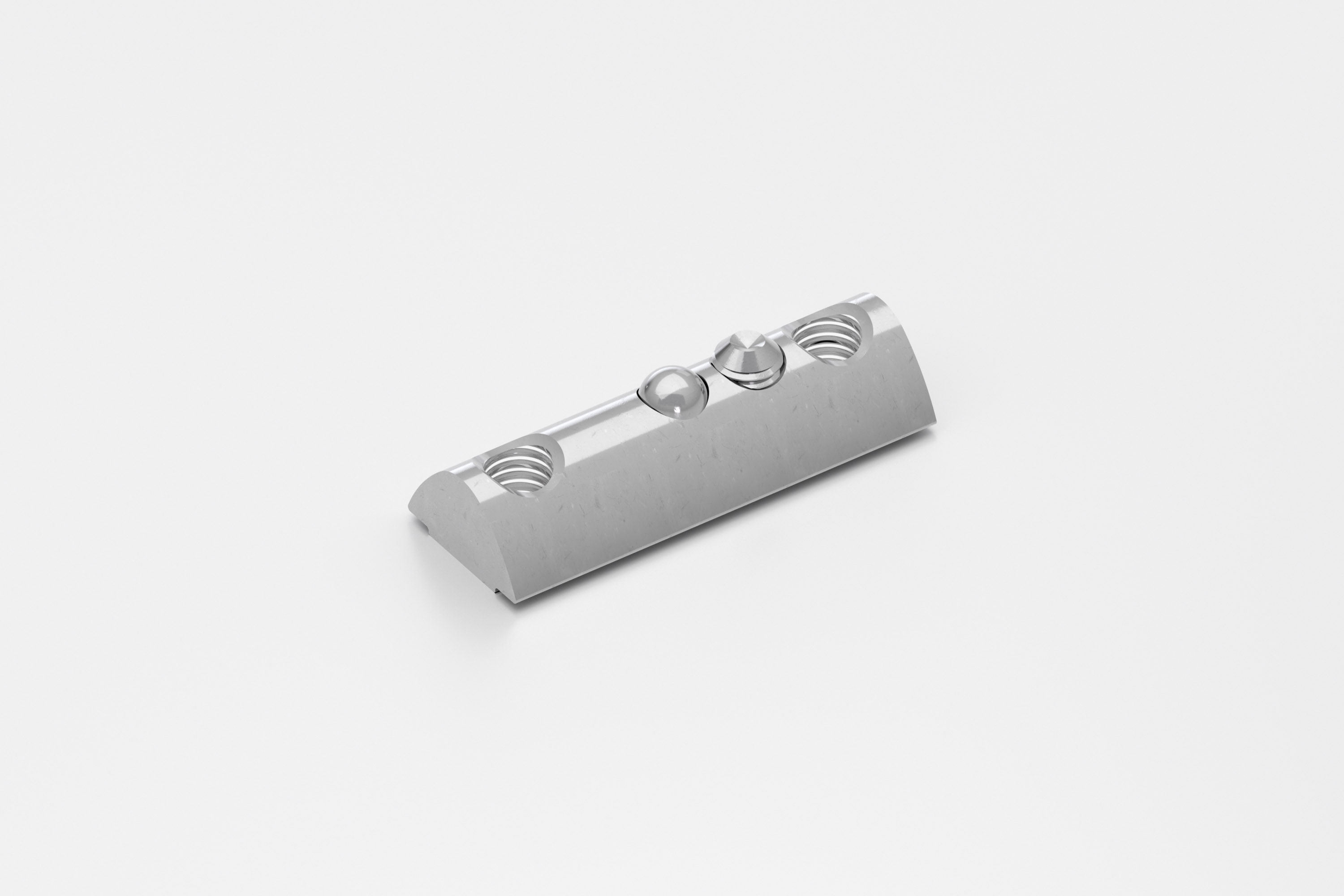

T-Slot Nut F 8 St 2xM6-36, bright zinc-plated with anti-torsion device is a universal fastening element from item that has two M6 threads. Tightening the integrated grub screw creates an ESD-safe connection between the T-Slot Nut and profile.
Made of bright zinc-plated steel, the T-Slot Nut can be rolled into place at any point in a Line 8 profile groove, where it will be held in position by the spring-mounted thrust piece.
The spacing of the threads ensures that two item Automatic Fasteners installed in a Profile 8 40x40 can be fastened to the T-Slot Nut.
When screwed into place, the grub screw of an item T-Slot Nut F breaks through the electrically insulating anodized surface covering of the aluminium profile. This makes T-Slot Nuts F suitable for ESD-safe attachments to be used inside an EPA (Electrostatic Protected Area).
In the case of larger constructions – for example, for use in a cleanroom – they can create an ESD-safe profile connection without the need for any additional elements.

Assembly Instructions

Variants

Sort by

Nutenstein F 6 St M4, verzinkt

Nutenstein F 6 St M4, verzinkt

0.0.613.23
Baureihe:  6Bauform:  einfachGewinde:  M4Nutensteinbreite:  10.6Gewindelänge:  7
Nutenstein F 6 St M5, verzinkt

Nutenstein F 6 St M5, verzinkt

0.0.613.22
Baureihe:  6Bauform:  einfachGewinde:  M5Nutensteinbreite:  10.6Gewindelänge:  7
Nutenstein F 6 St M6, verzinkt

Nutenstein F 6 St M6, verzinkt

0.0.613.21
Baureihe:  6Bauform:  einfachGewinde:  M6Nutensteinbreite:  10.6Gewindelänge:  7
Nutenstein F 8 St M5, verzinkt

Nutenstein F 8 St M5, verzinkt

0.0.613.20
Baureihe:  8Bauform:  einfachGewinde:  M5Nutensteinbreite:  13.3Gewindelänge:  7.5
Nutenstein F 8 St M6, verzinkt

Nutenstein F 8 St M6, verzinkt

0.0.613.19
Baureihe:  8Bauform:  einfachGewinde:  M6Nutensteinbreite:  13.3Gewindelänge:  7.5
Nutenstein F 8 St M8, verzinkt

Nutenstein F 8 St M8, verzinkt

0.0.613.18
Baureihe:  8Bauform:  einfachGewinde:  M8Nutensteinbreite:  13.3Gewindelänge:  7.5
Nutenstein F 8 St 2xM6-36, verzinkt

Nutenstein F 8 St 2xM6-36, verzinkt

0.0.723.10
Baureihe:  8Bauform:  doppeltGewinde:  M6Nutensteinbreite:  13.4Gewindelänge:  7.5

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 8.0
23110890
UNSPSC 9.0
31161708
eCl@ss 4.0
23110806
eCl@ss 4.1
23110806
eCl@ss 5.0
23110806
eCl@ss 5.1
23110806
eCl@ss 6.0.1
23110890
UNSPSC 7.0
31161708
eCl@ss 7.1
23110890
eCl@ss 11.0
23360290
Customs tariff number
73181900
