Hinge Leaf 8

Hinge Leaf 8

Selected variant
Hinge Leaf 8 40x40 (0.0.483.60)
Hinge Leaf 8 40x40
0.0.483.60
Show all
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.
This component is suitable for use in cleanroom applications. It has either been certified to ISO 14644-1 (particle emissions), ISO 14644-15 (outgassing) or another regulation pertaining to cleanroom technology, or it is identical to articles that have been certified. Alternatively, the component can be specially accredited for use in clean production due to its function or design.

Scope of Delivery

Hinge Leaf, Al, anodized, natural
Locating lug, Al, anodized, natural
Button-Head Screw ISO 7380-M8x18, St, bright zinc-pl.
Washer DIN 433-8.4, St, bright zinc-plated
T-Slot Nut V 8 St M8, St, bright zinc-plated
Caps, PA-GF, grey

Properties

Article number0.0.483.60
Lineline 8
ESD-safeNo
Weightm = 68 g
Delivery unit1 set
cleanroom suitabilityYes

Description

Modular Hinge System for high-strength aluminium hinges. Suitable for heavy doors, lids and swivel-type devices.
Hinge Leaves of various heights and widths support heavy-duty hinges of virtually any length which the user can adapt to the specific situation. Hinges with an opening angle of up to 270° can be achieved using a suitable combination of sets.
A hinge consists of at least two Hinge Leaves and a suitable Hinge Pin. The Hinge Leaves and Pin are available in different lengths. When selecting these components, the minimum depth which the pin is inserted into the eye of the Hinge Leaf must always be taken into account.
Defined sets always contain all components necessary for a complete Hinge Leaf or Hinge Pin.
The use of slots and stepped locating lugs for screwing the Hinge Leaves facilitates the process of aligning the doors in the surrounding door frame. The locating lugs also serve as an anti-torsion device in the groove, thus preventing the hinges from becoming displaced under load.
Fastening is also possible to the end face of the profile. The slots are sealed with the enclosed Caps after installation has been completed, as are the drill holes of the hinge eyes.
The required hinge can be assembled easily from the following sets:
a = Hinge Leaf 8 40x40
b = Hinge Pin D8x51
The required hinge can be assembled easily from the following sets:
a = Hinge Leaf 8 40x40
b = Hinge Pin D8x51
c = Hinge Pin D8x76
d = Hinge Leaf 8 80x40
e = Hinge Leaf 80x80
f = Hinge Pin D8x116
Example of a hinge opening around 270°.
The combination of Hinge Leaf 8 80x80 and two Hinge Leaves 8 40x40 (using a Hinge Pin D8x116) can be used to construct a hinge with a 270° angle of swing. This may be required, first and foremost, when constructing wide-opening doors in machine panelling.

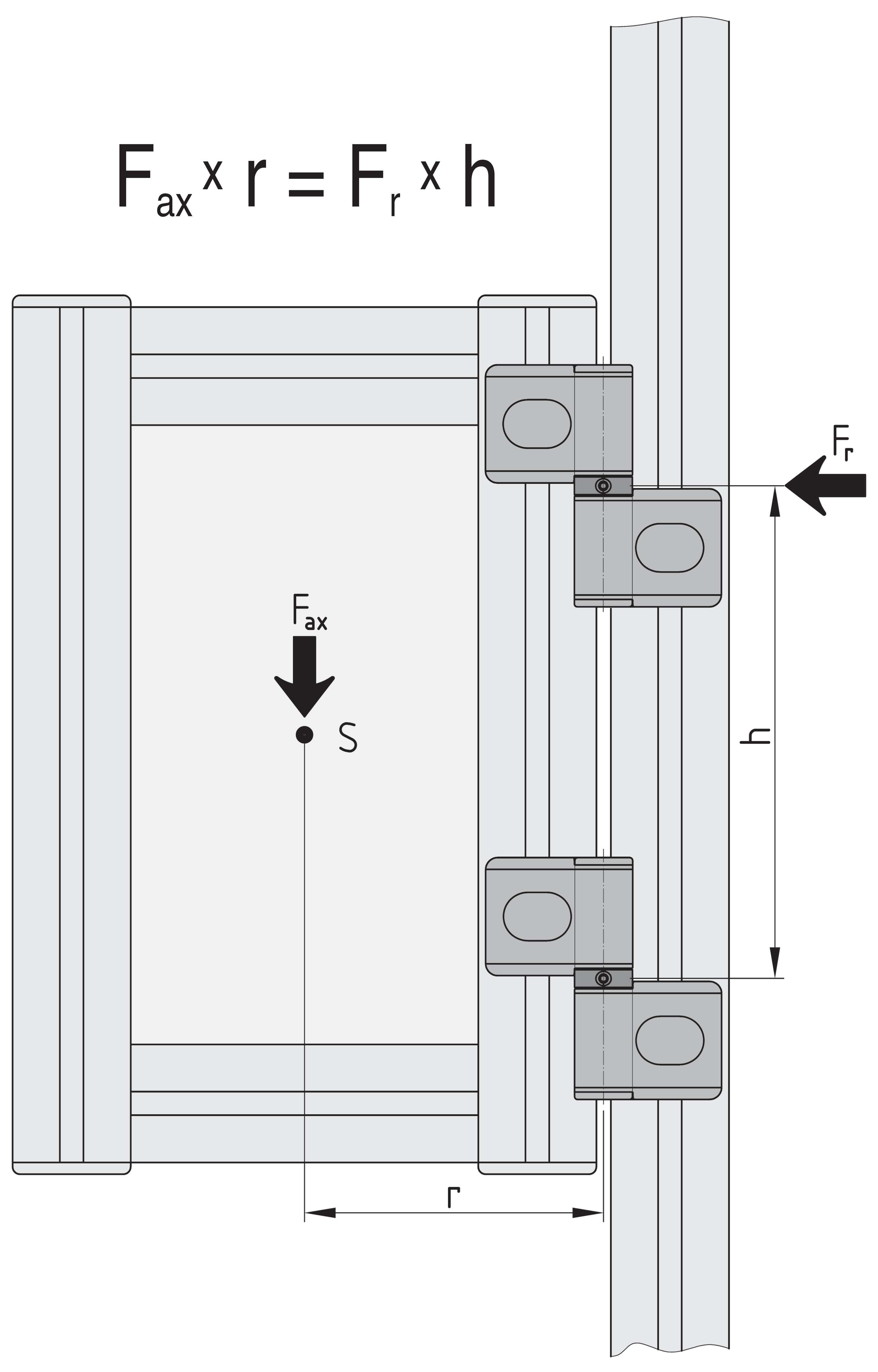

The data apply for at least two hinges per door - one hinge assumed to be supporting.

Variants

Sort by

Scharnierlappen 8 40x40

Scharnierlappen 8 40x40

0.0.483.60
Maß X:  40Maß Y:  40
Scharnierlappen 8 80x40

Scharnierlappen 8 80x40

0.0.483.59
Maß X:  80Maß Y:  40
Scharnierlappen 8 80x80

Scharnierlappen 8 80x80

0.0.485.22
Maß X:  80Maß Y:  80
