Bottle and Cup Holder

Selected variant
Cup Holder 8 D60, grey (0.0.734.96)
Cup Holder 8 D60, grey
0.0.734.96
Show all
* Mandatory information
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Scope of Delivery

1 wire, St, stainless
1 wire mount, PA-GF
1 Hexagon Socket Head Cap Screw DIN 912 M6x20, St, bright zinc-plated
1 washer DIN 433-6.4, St, bright zinc-plated
1 Automatic T-Slot Nut V 8 St M6, St, bright zinc-plated

Properties

Lineline 8
ESD-safeNo
Weightm = 55 g
Delivery unit1 set
Max. load-carrying capacityM = 2,5 kg
Colourgrey
cleanroom suitabilityNo

Description

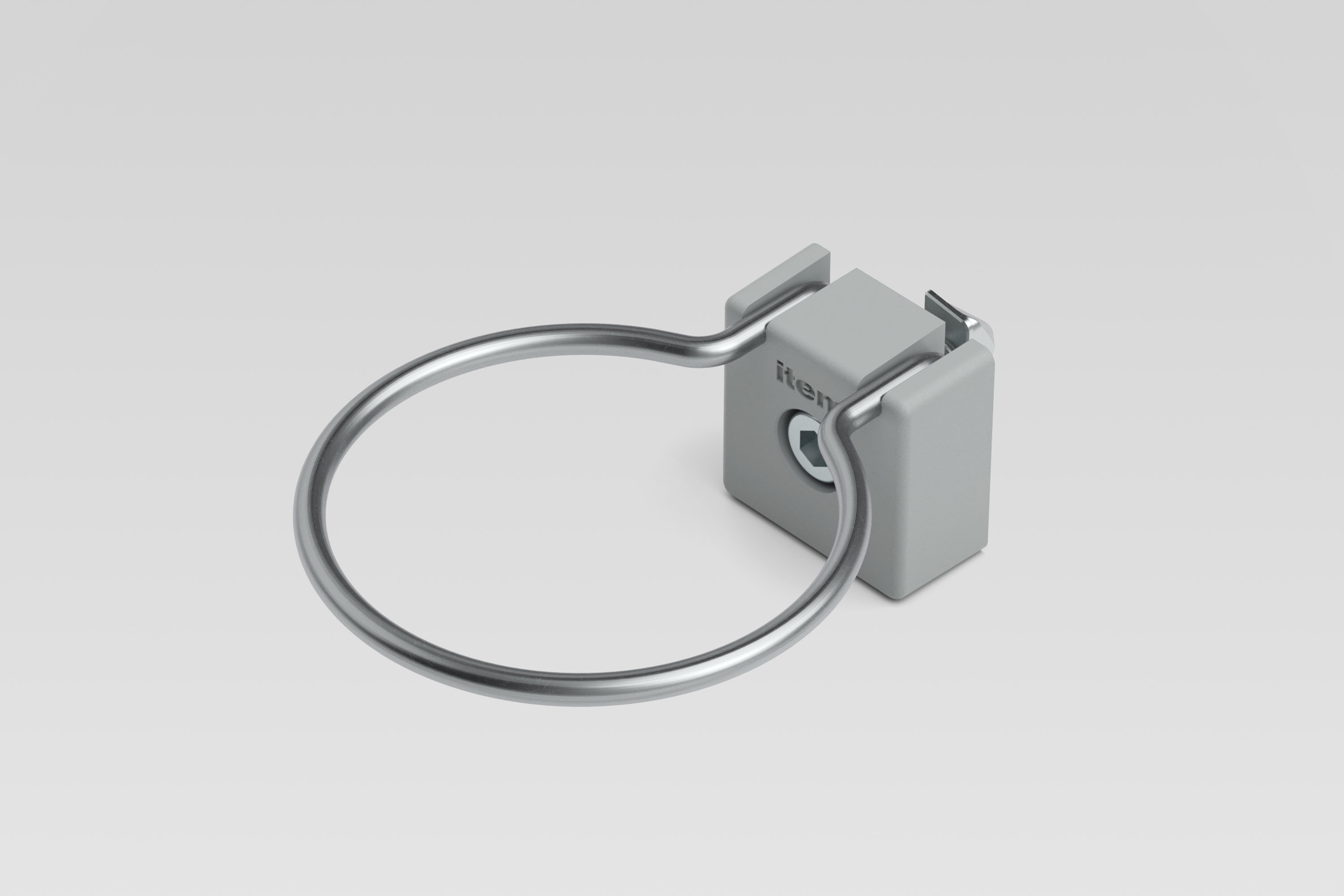

Cup Holder 8 D60, grey keeps a cup close to hand in a secure fixing. Its solid ring of stainless steel wire is shaped to hold the cups that are typically used in vending machines.

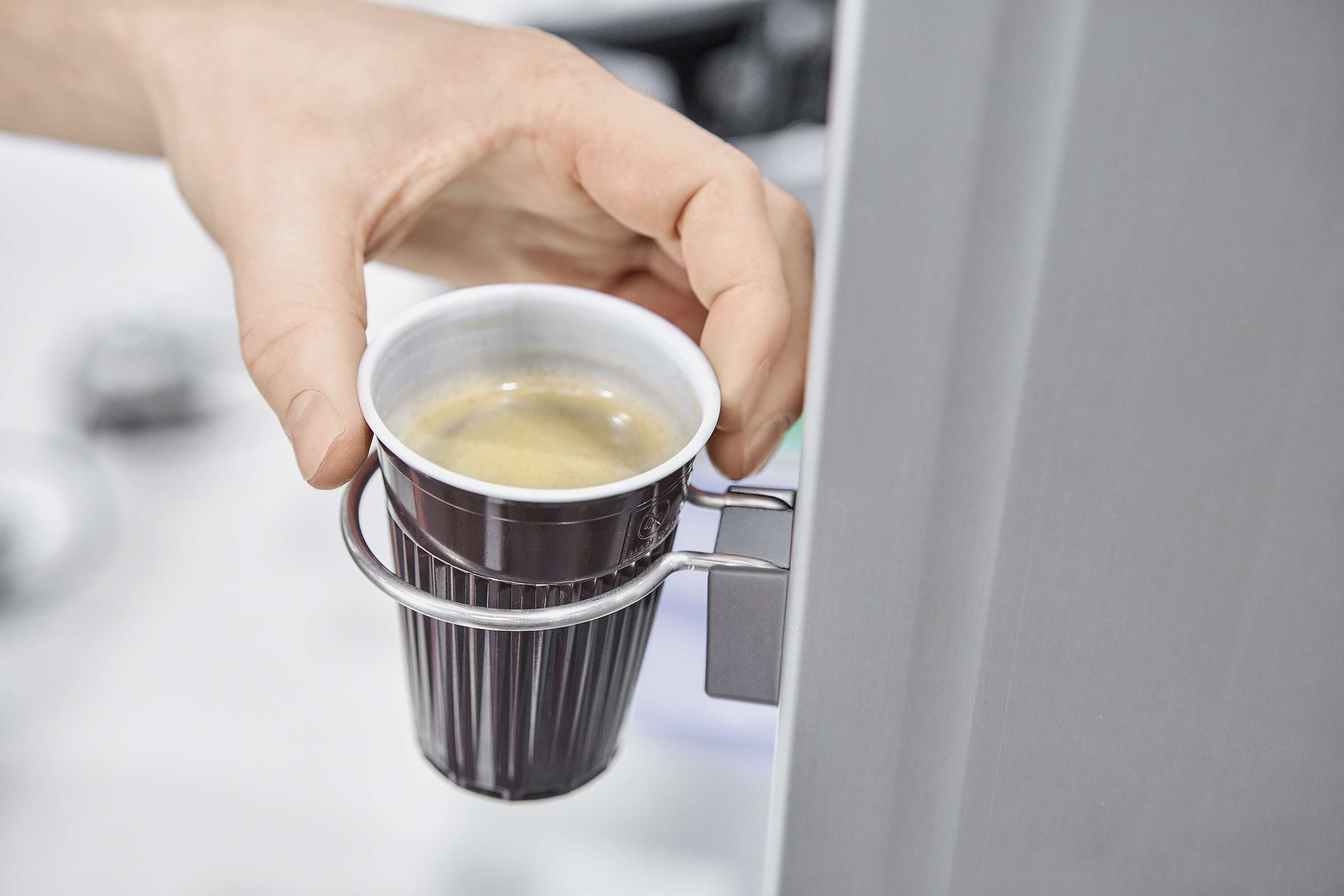

This holder is ideal as a safe place for setting down coffee, tea and other hot drinks at the work bench.

Assembly Instructions

Thanks to the self-aligning T-Slot Nut, the holder can be quickly aligned and fitted to a Line 8 groove.

Variants

Sort by

Bottle Holder 8, grey similar to RAL 7042

Bottle Holder 8, grey similar to RAL 7042
Diameter:  100Design:  BottleColour:  Grey Grey
Bottle Holder 8, black similar to RAL 9005

Bottle Holder 8, black similar to RAL 9005
Diameter:  100Design:  BottleColour:  Black Black
Cup Holder 8, grey similar to RAL 7042

Cup Holder 8, grey similar to RAL 7042
Diameter:  84Design:  CupColour:  Grey Grey
Cup Holder 8, black similar to RAL 9005

Cup Holder 8, black similar to RAL 9005
Diameter:  84Design:  CupColour:  Black Black
Cup Holder 8 D60, grey

Cup Holder 8 D60, grey
Diameter:  62Design:  ContainerColour:  Grey Grey
Cup Holder 8 D60, black

Cup Holder 8 D60, black
Diameter:  62Design:  ContainerColour:  Black Black

Downloads

CAD Data

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 8.0
21100290
eCl@ss 11.0
21100290
UNSPSC 9.0
56111905
UNSPSC 26.0
56111905
UNSPSC 7.0
56111905
eCl@ss 6.0.1
21100290
eCl@ss 5.1
21100201
eCl@ss 4.0
21100201
eCl@ss 4.1
21100201
eCl@ss 5.0
21100201
eCl@ss 7.1
21100290
Customs tariff number
83025000
