LED Machine Light Fitting E 11W 40x10x250

0.0.735.62

Get CAD Data and Downloads

Technical Data

All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

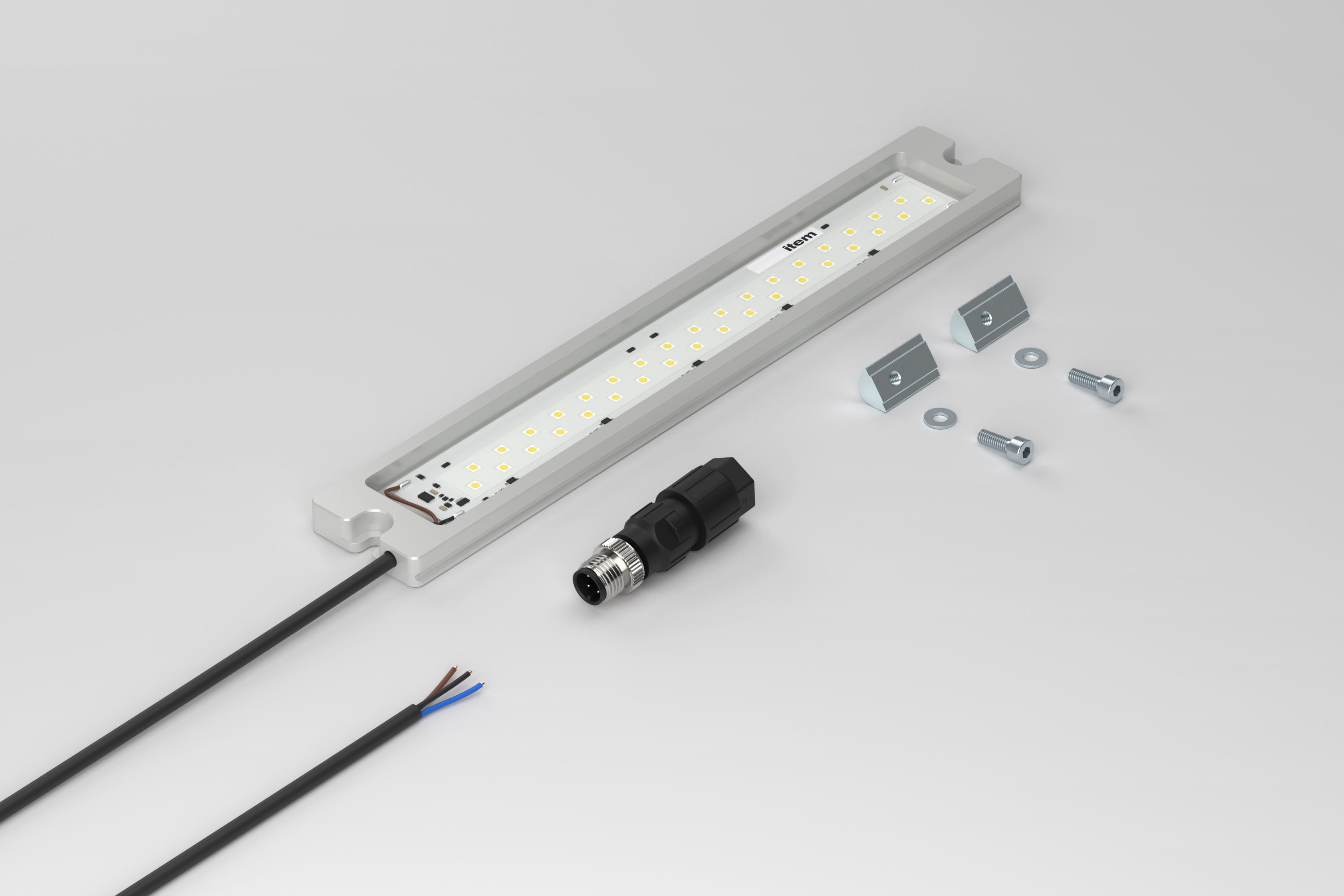

Scope of Delivery

1 LED Machine Light Fitting E 11W 40x10x250
1 fastening set
1 Connector M12 4P Male, A-coded

Properties

Operating voltage24 V DC
ESD-safeNo
color temperature6000 K
Weightm = 106 g
Ambient temperature (during operation)0 °C … +40 °C
Protection classIP 67
Power10.8 W
Delivery unit1 set
MaterialAl, anodized, natural
Current consumption450 mA

Description

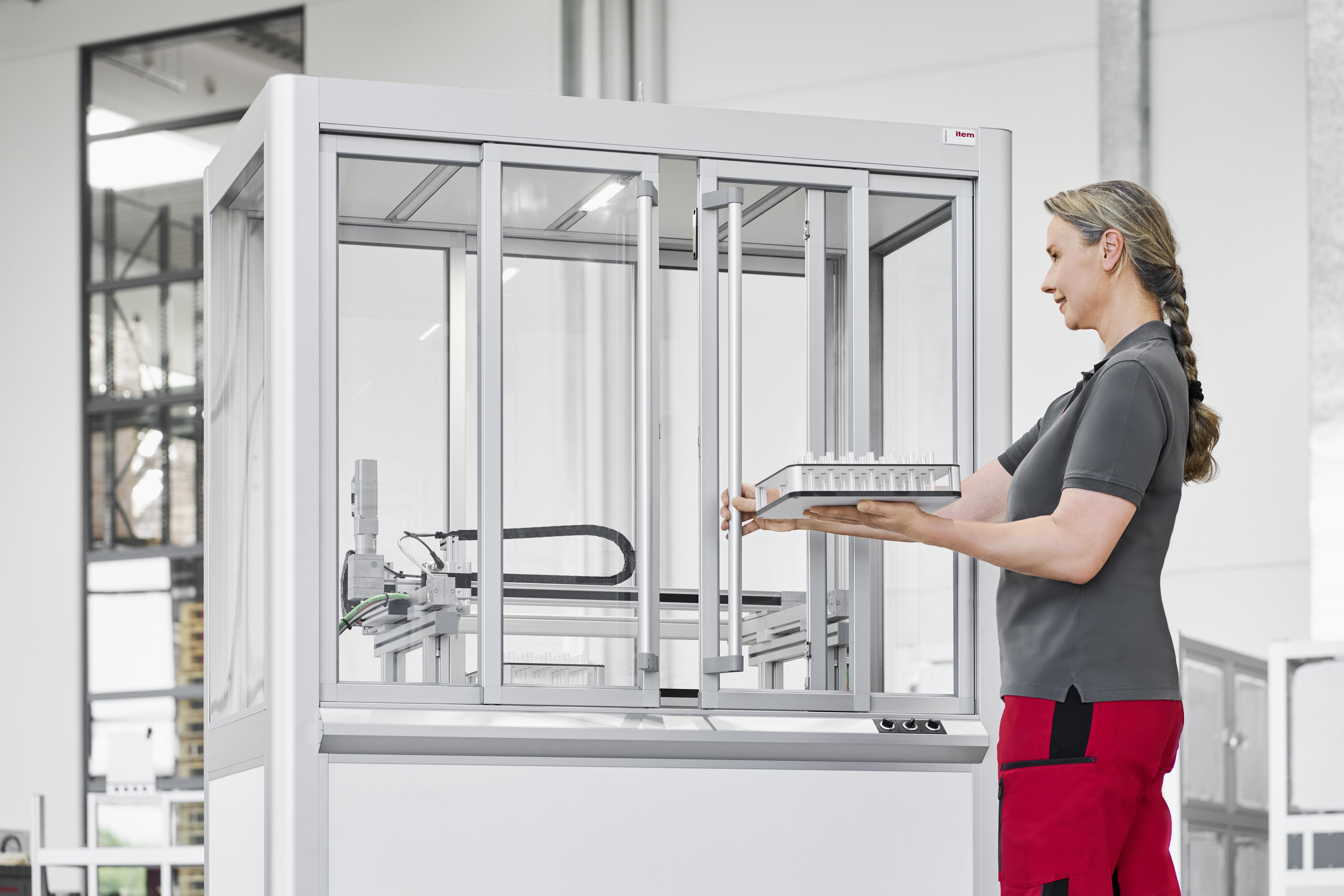

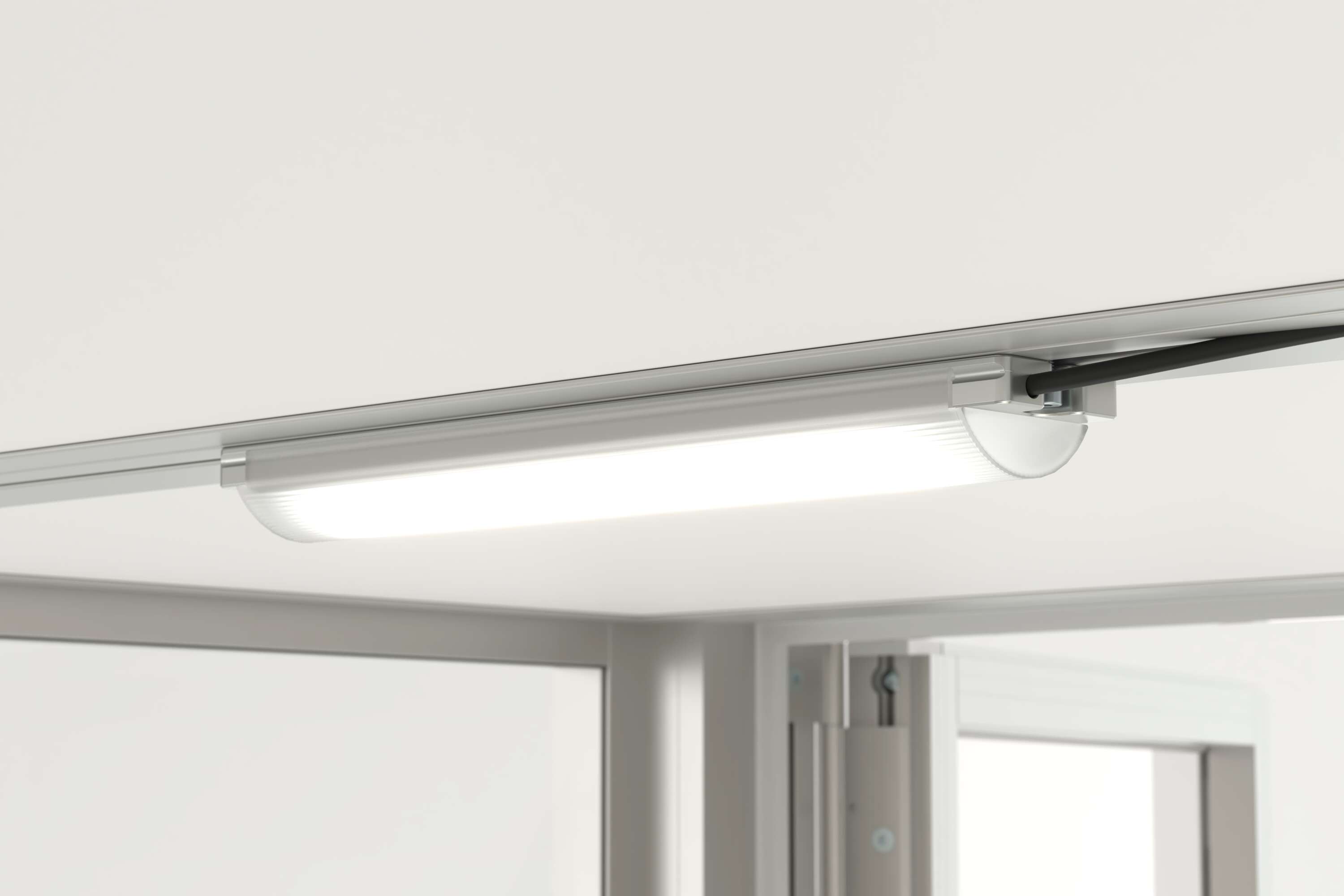

LED Machine Light Fitting E 11W 40x10x250 is a flat, energy-saving LED light for machine cabins and industrial systems. Measuring just 10 mm high, the light fitting fastens to a Line 8 groove.
This economical and space-saving Machine Light Fitting uses the latest-generation LED technology to achieve clear energy savings. It can be fitted with a Diffusor for additional anti-glare protection.
Any 24-volt power source can be used to power the light fitting. The three-core connection cable is extremely easy to connect, either directly or using the supplied M12 Connector.
item supplies special accessories with M12 connections for designing switchable light fittings. Selector switches (0.0.730.75), T-shaped splitters (0.0.724.12) and power supply units (0.0.720.39) can be used to create custom solutions with ease.
Several LED Machine Light Fittings in various sizes can also be used and switched together to light up large areas and spaces with lots of corners and angles.

Assembly Instructions

When connecting the light fitting for continuous operation, the black wire (trigger) must be connected to the brown wire (L+). This is done by means of a jumper wire either directly in the end connector or at the power source.

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 8.0
27110303
eCl@ss 11.0
27110345
eCl@ss 6.0.1
27110303
eCl@ss 5.0
27110303
eCl@ss 4.0
27110303
eCl@ss 4.1
27110303
eCl@ss 5.1
27110303
eCl@ss 7.1
27110303
UNSPSC 9.0
56111901
UNSPSC 26.0
56111901
UNSPSC 7.0
56111901
Customs tariff number
85395200
