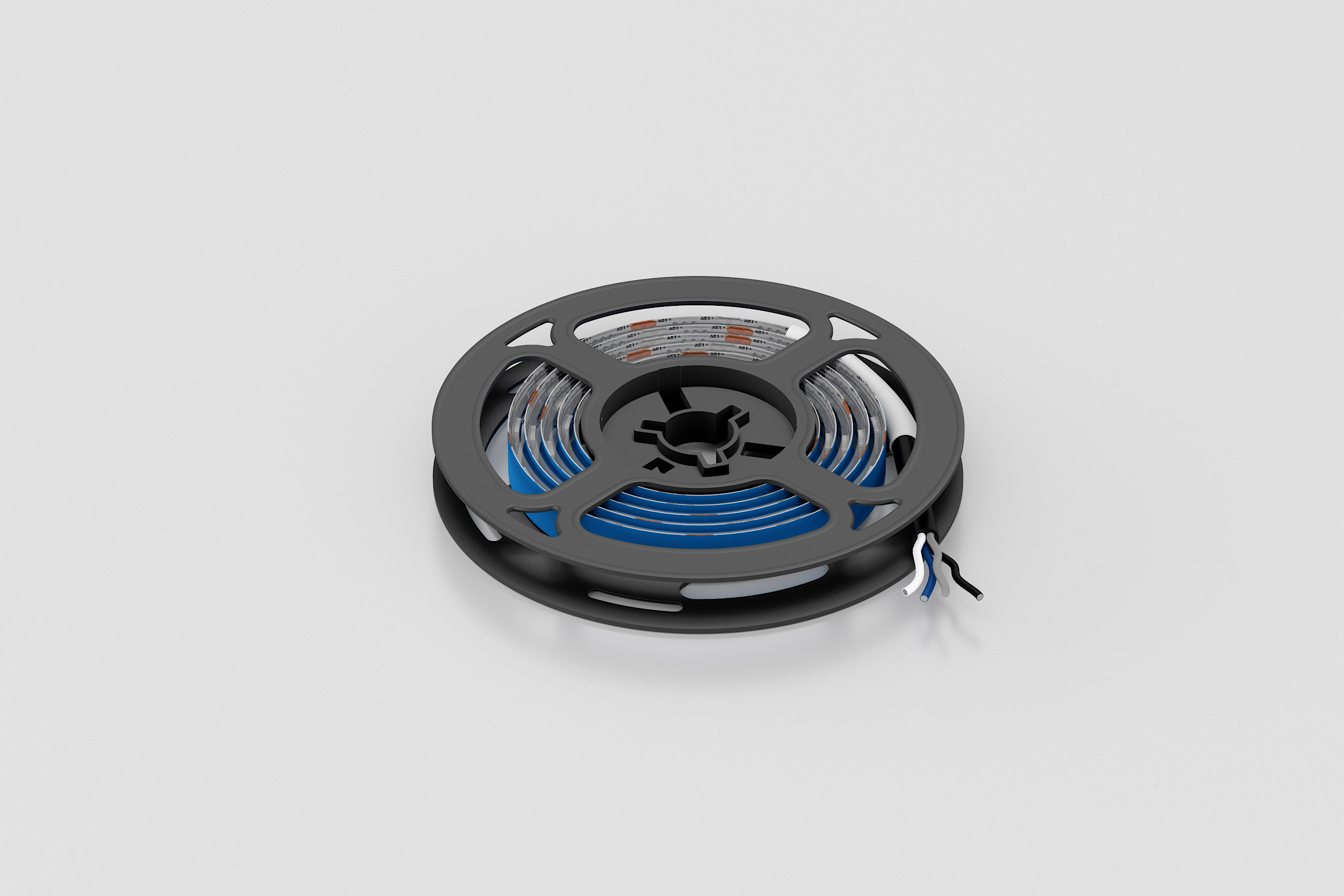

LED Strip W 24V, 1m, white

0.0.724.21

Get CAD Data and Downloads

Technical Data

All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Properties

Operating voltage24 V DC
dimmableYes
ESD-safeNo
color temperature6000 K
Weightm = 60 g
Ambient temperature (during operation)-10 °C … +45 °C
Protection classIP 53
Lifetime50,000 h
LED power14,4 W/m
luminous flux1300 lm
Delivery unit1 pce., length 1000 mm
Colourwhite

Description

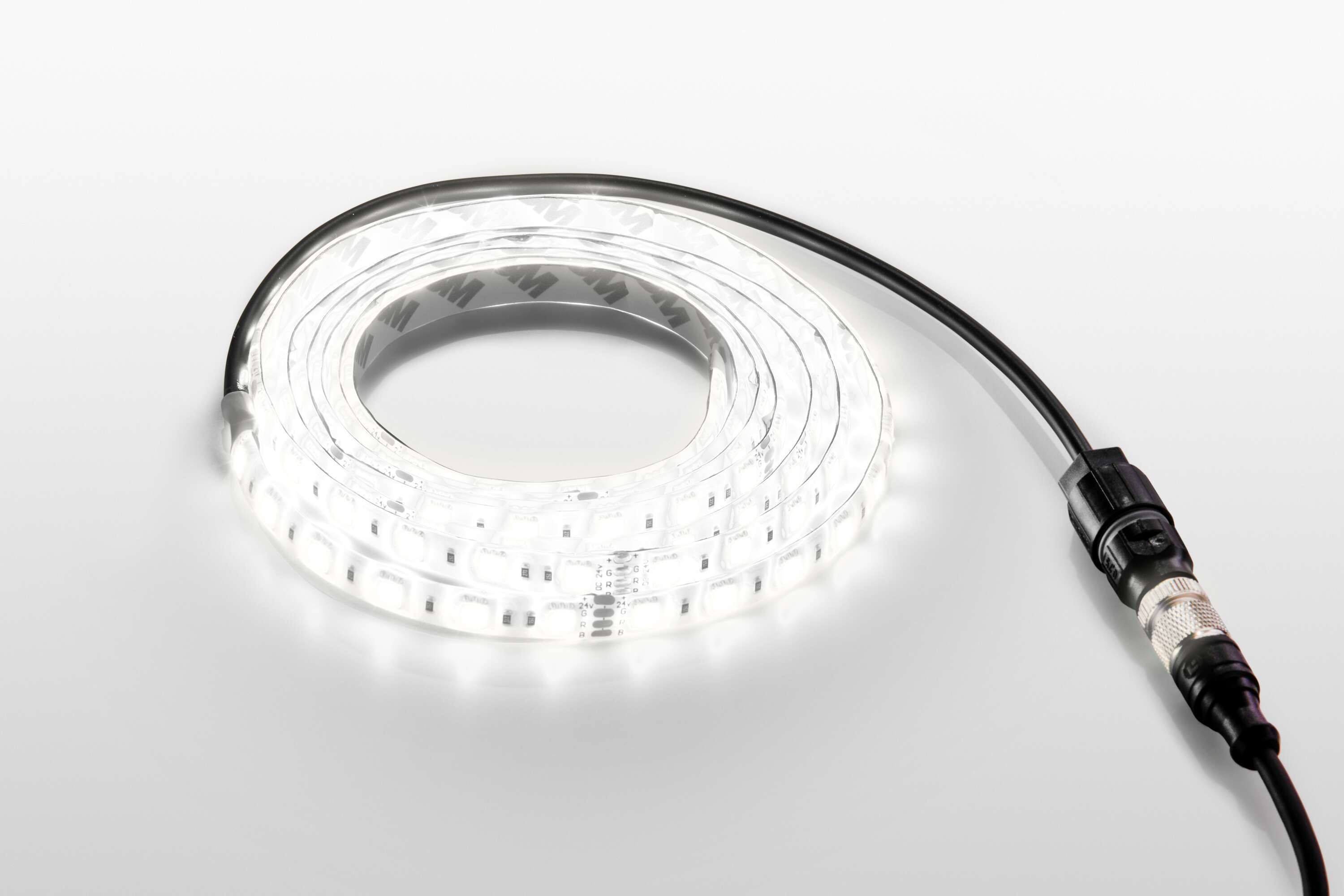

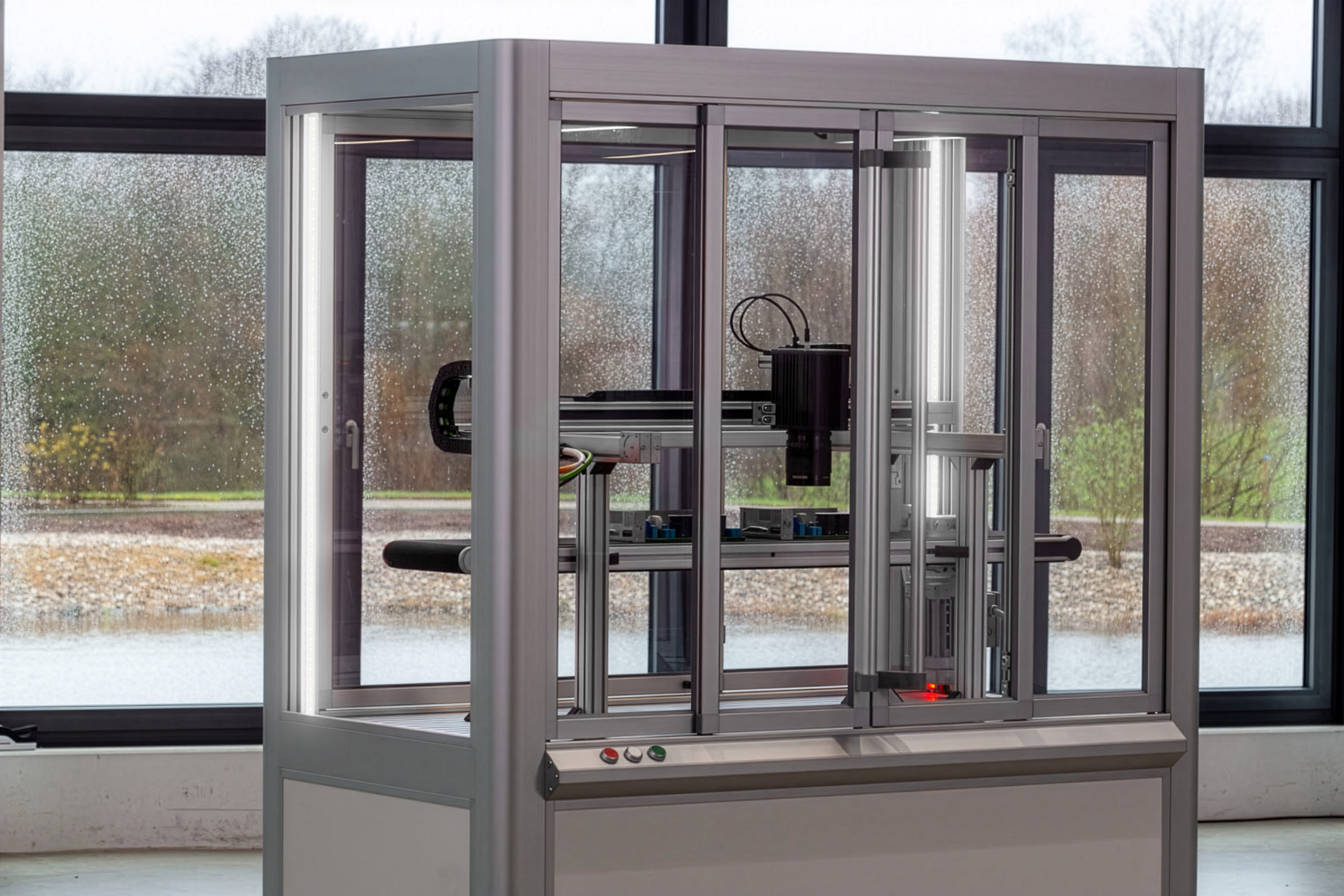

LED Strip W 24V, 1m is a flexible LED strip that provides an even band of white light. The 1-metre-long light strip is a compact lighting solution that can be integrated directly into machine cabins and racks. Providing an even, energy-efficient cold white light, it is ideal for backlighting areas and for inspection applications.
The four-core connection cable has open cable ends so it can be connected to a 24-volt power source or Connector M12 4P (0.0.718.00).

Assembly Instructions

The LED strip can be shortened in sections of 100 mm and is installed in a Line 8 groove using LED Casing Profile 8 (0.0.718.15) and LED Casing Profile 8 14x5, Cap (0.0.719.68).

Downloads

CAD Data

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 8.0
27110303
eCl@ss 11.0
27110345
eCl@ss 6.0.1
27110303
eCl@ss 5.0
27110303
eCl@ss 4.0
27110303
eCl@ss 4.1
27110303
eCl@ss 5.1
27110303
eCl@ss 7.1
27110303
UNSPSC 9.0
56111901
UNSPSC 26.0
56111901
UNSPSC 7.0
56111901
Customs tariff number
85395100
