Lifting Column TCP/IP 24V

Lifting Column TCP/IP 24V

Selected variant
Lifting Column TCP/IP 24V Plug-And-Play Set (0.0.724.86)
Lifting Column TCP/IP 24V Plug-And-Play Set
0.0.724.86
Show all
Get CAD Data and Downloads

Technical Data

All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Scope of Delivery

1 Lifting Column TCP/IP 24V
1 Power Supply Unit 100-240V for Lifting Column TCP/IP 24V
1 Cable Guide for Lifting Column TCP/IP
1 Lifting Column Mounting Plate 8 240x200 St
1 Lifting Column Adapter Plate 8 200x200
1 Ethernet Cable, S/FTP, 5m
1 Earthing Terminal 8
1 Service Cable Set Lifting Column TCP/IP 24V
6 T-Slot Nuts 8 St M8, bright zinc-plated
6 Hexagon Socket Head Cap Screws DIN 912 M8x20, St, bright zinc-plated
4 Countersunk Screws ISO 10642 M10x45, St, stainless
4 Countersunk Screws ISO 10642 M10x80, St, stainless

Properties

Article number0.0.724.86
ESD-safeNo
Weightm = 44.73 kg
Protection classIP44
Interfaces I/O Link, Modbus TCP/IP
Supply voltage100-240 V AC
Positioning accuracy≥ 1.5 mm
Delivery unit1 set
Maximum travelling speedVmax = 100 mm/s
Stroke max.Hmax = 900 mm
Max. load-carrying capacityF = 1000 N
Current consumption2,2...5,4 A

Description

Lifting Column TCP/IP 24V can electrically adjust the height of heavy loads. It is torsion resistant and withstands high moment loads during operation. The Lifting Column can also accommodate traction loads.
The Lifting Column has an integrated control system and is prepared for connection to a cobot. Thanks to its TCP/IP interface, the Lifting Column can be actuated directly as a vertical axis in the robot’s programming.
The Plug-And-Play Set contains all the components required to use the Lifting Column with a cobot. It consists of Lifting Column TCP/IP 24V, a power supply unit, the Mounting and Adapter Plates, an Ethernet cable, a cable chain and the corresponding fastening materials.

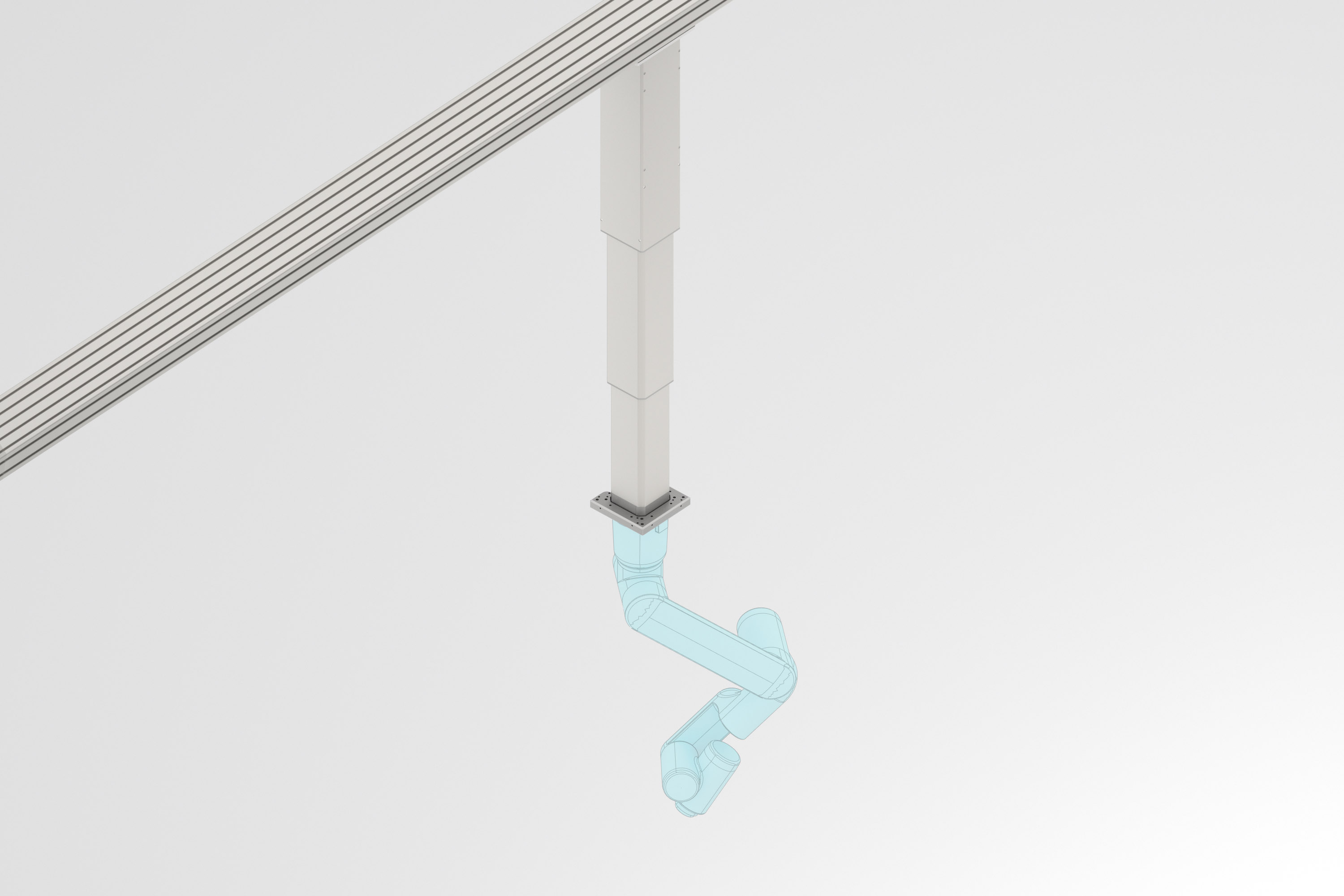

The high-performance Lifting Column TCP/IP 24V can also be installed upside down in a suspended arrangement, allowing a cobot to process or reach for workpieces from above, for example. Lifting Column Mounting Plate 8 240x200 St is used to make the connection with the profile frame.

Variants

Sort by

One variant matches "Plug-And-Play Set"
Lifting Column TCP/IP 24V Plug-And-Play Set

Lifting Column TCP/IP 24V Plug-And-Play Set

0.0.724.86
Design:  Plug-And-Play Set
One more variant in this product family
Lifting Column TCP/IP 24V Integrator Set

Lifting Column TCP/IP 24V Integrator Set

0.0.724.90
Design:  Integrator Set

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 5.0
27380801
eCl@ss 6.0.1
27380890
eCl@ss 5.1
27380801
UNSPSC 7.0
24101612
UNSPSC 9.0
24101612
eCl@ss 7.1
27380890
eCl@ss 8.0
27380890
eCl@ss 11.0
27380892
Customs tariff number
84289090
