Lifting Door 8 Compact, electric

* Mandatory information
Get CAD Data and Downloads

Technical Data

Properties

Lineline 8
ESD-safeNo
Delivery unit1 set
Status on deliveryPreassembled
cleanroom suitabilityNo

Description

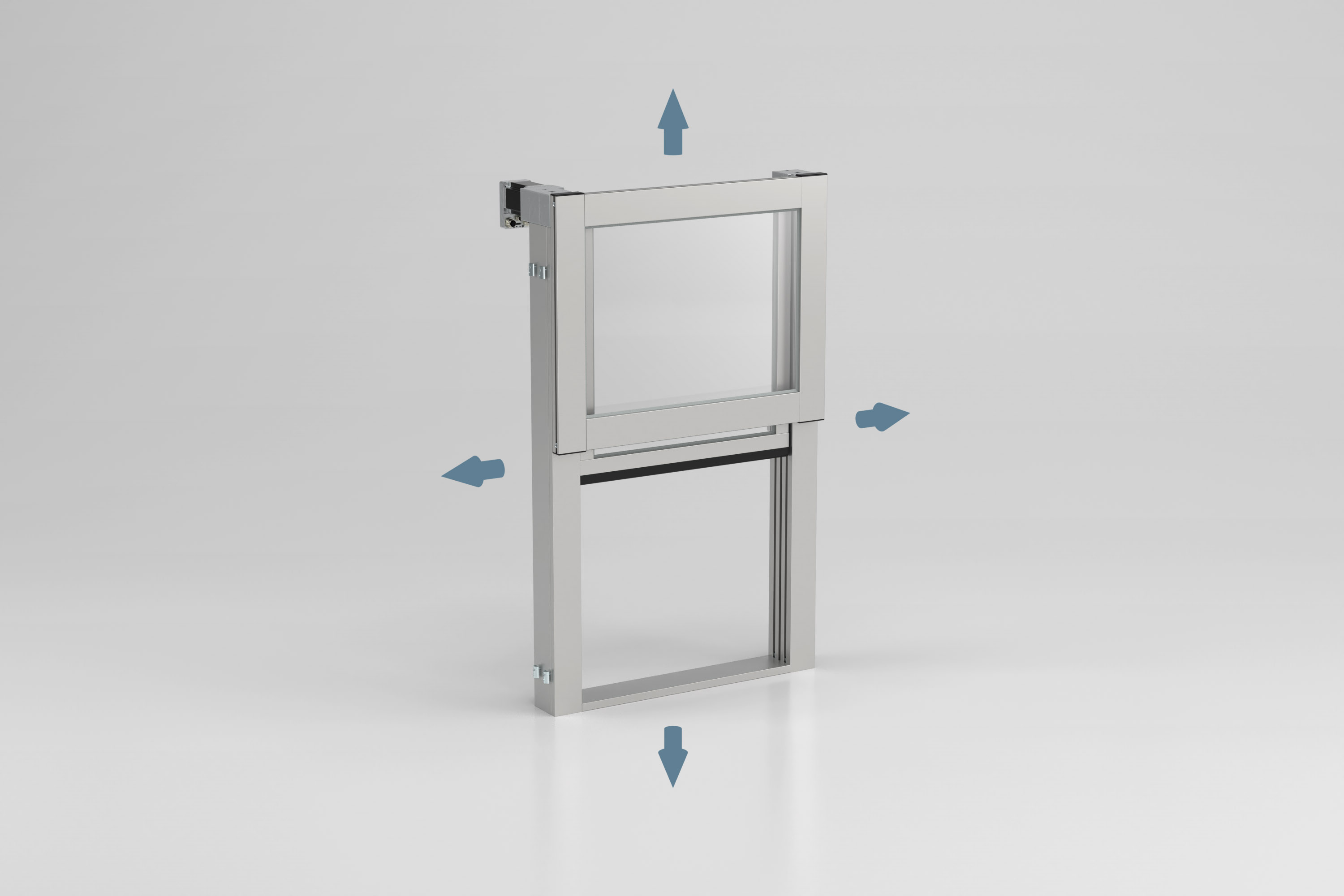

Safe, custom-configured and the perfect fit – you can easily configure Lifting Door 8 Compact, electric from item online to suit your requirements. This space-saving electrically powered lifting door offers a simple means of gaining access to machine cabins, guards, enclosures and inspection points while also keeping staff and equipment safely protected.
Use the configurable assembly as a quick and simple solution for calculating the vertical travel and opening width of your lifting door. The configurator will pull together all the parts you need, including your chosen panel element. Fall arresters and counterweights on both sides and a panel at the top for protection against jamming are all included as standard. Lifting Door 8 Compact, electric is supplied preassembled. Selected motors need to be fitted by the customer.

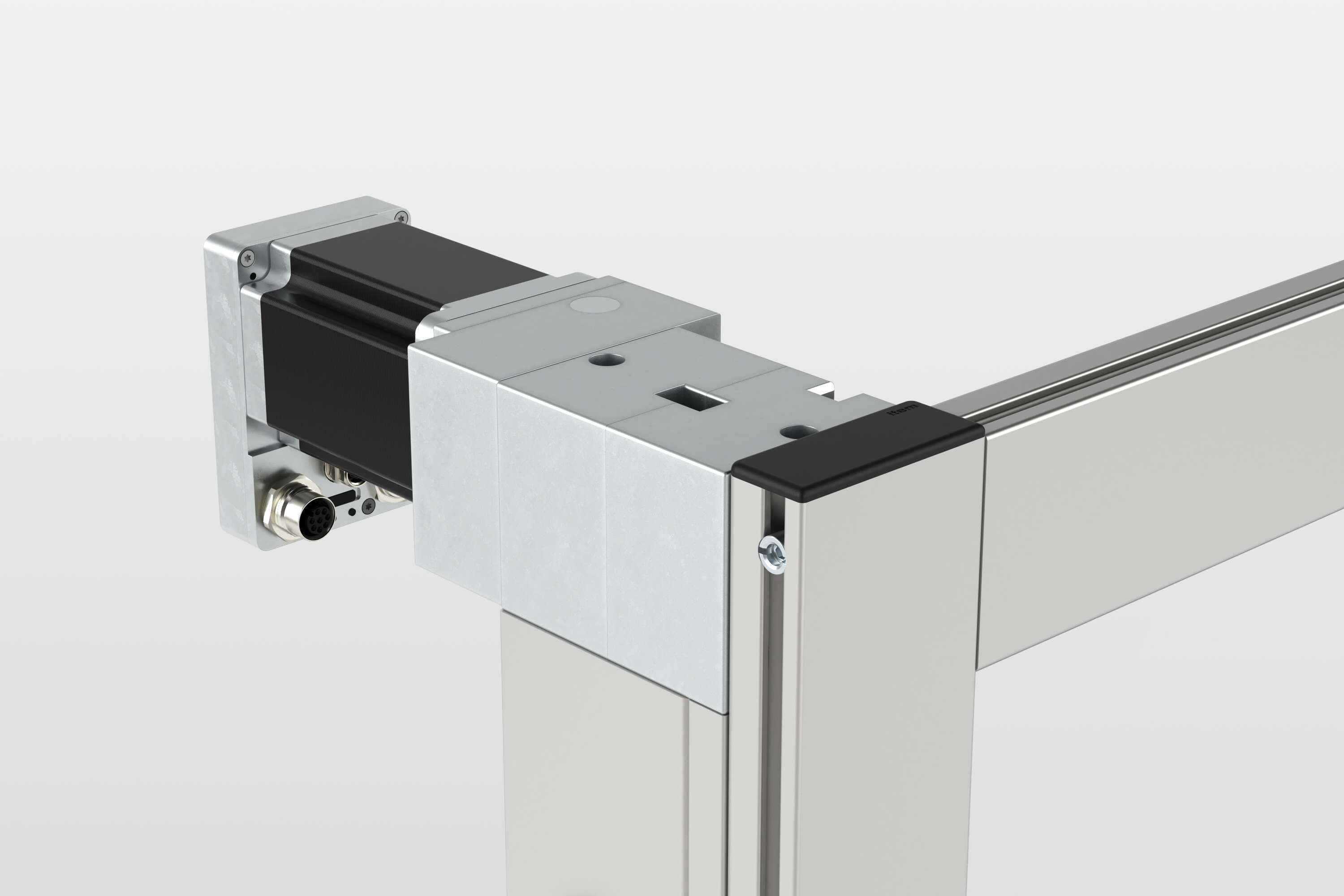

A universal Drive Set is available for connecting the motor, as is a plug-and-play version that makes it easy to use Integrated Motor ST NEMA24 (0.0.703.45) with the corresponding StarterKit (0.0.733.25). item MotionSoftStepper (0.0.714.39) software simplifies parametrisation and programming work.

Note: An electrically powered lifting door must be incorporated into the safety circuit for the overall system as appropriate to its intended use.
