Lifting Door 8 Compact, Guide Profile 80x60, natural

0.0.736.04

* Mandatory information
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
Components with this symbol meet the requirements of IEC 61340-5-1 and are therefore suitable for use in EPAs (electrostatic protected areas). By complying with the further stipulations of this standard you can use these products to create a safe environment for handling electronic components.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Properties

Lineline 8
ESD-safeYes
Weightm = 2.758 kg/m
Delivery unitcut-off max. 6000 mm
MaterialAl, anodized
Colournatural

Description

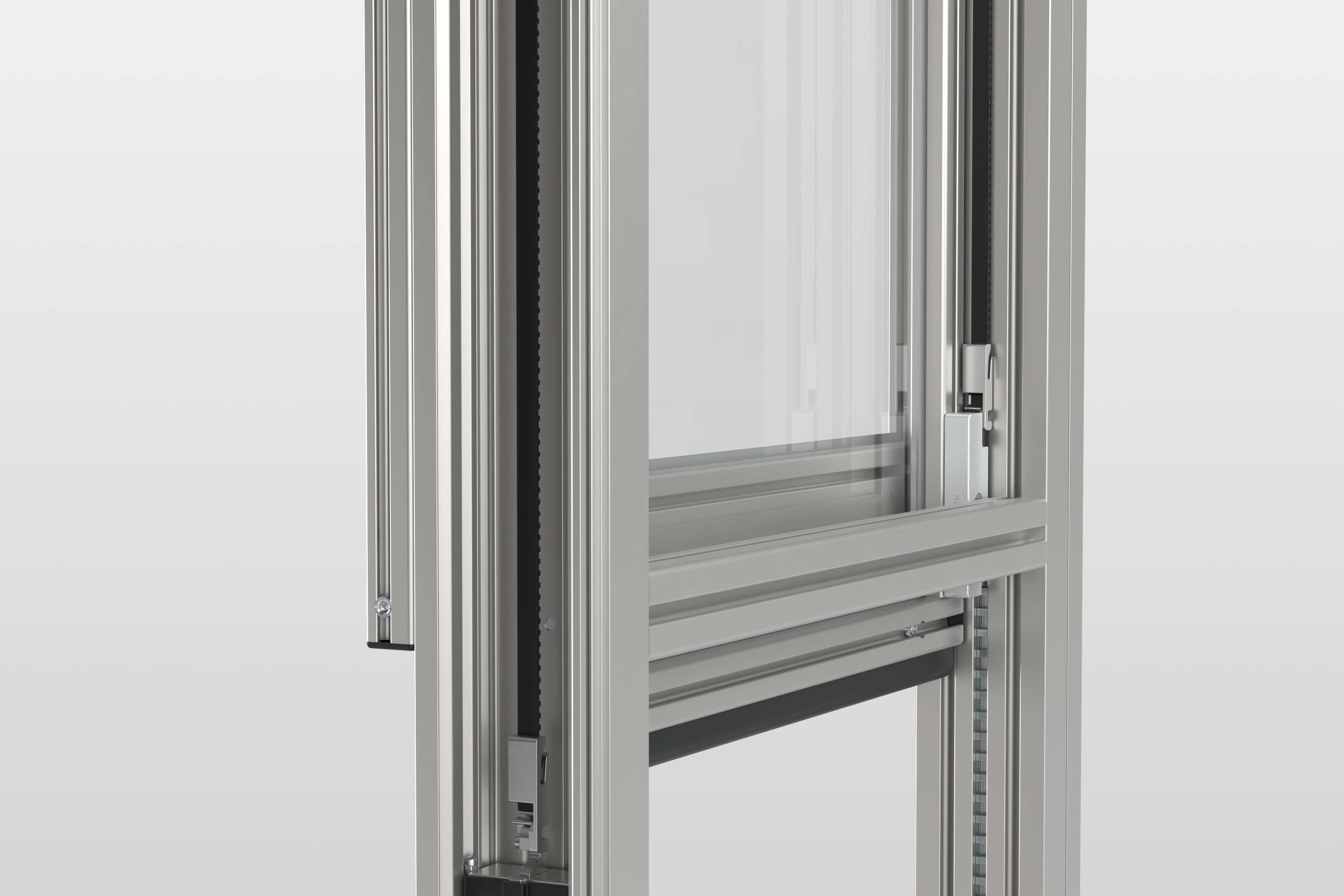

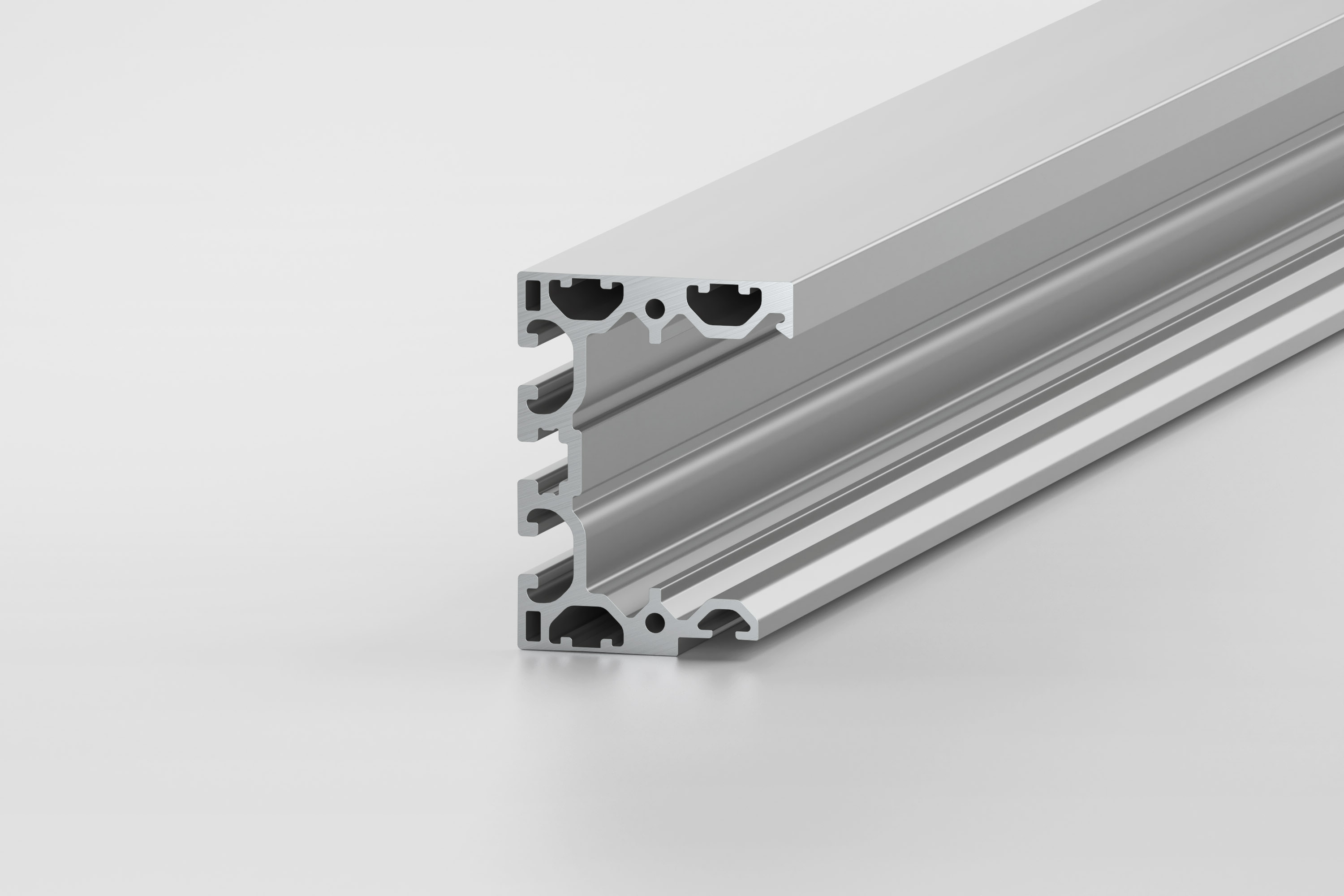

Lifting Door 8 Compact, Guide Profile 80x60 is a special profile for building space-saving lifting doors. This torsion-resistant aluminium profile forms the vertical side jambs. The counterweights of the lifting door run inside it.
Line 8 grooves on the sides and rear can be used to integrate sensors and other technical safety elements. The clip-in geometry at the side ensures that a preassembled lifting door can be pushed into a machine cabin. Lifting Door 8 Compact, Adapter Profile 80 (0.0.736.05) provides a secure hold.
Space-saving item Lifting Door 8 Compact offers a simple means of gaining access to machine cabins, guards, enclosures and inspection points while also keeping staff and equipment safely protected.

The modular lifting door solution can be used as a manual door or can be operated by an electric motor such as Integrated Motor ST NEMA24 (0.0.703.45).

Thanks to the space-saving design of its frame, Lifting Door 8 Compact is also ideal for use in small openings and hatches. To make installation easy, the lifting door is supplied preassembled and can be inserted directly into its opening as a single module.
Creating your own lifting door is easy when using our configurable assembly or the item Engineeringtool. You can specify precisely the size and design that you need.
