Lifting Door 8 Compact, Timing-Belt Drive R10

0.0.736.61

Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

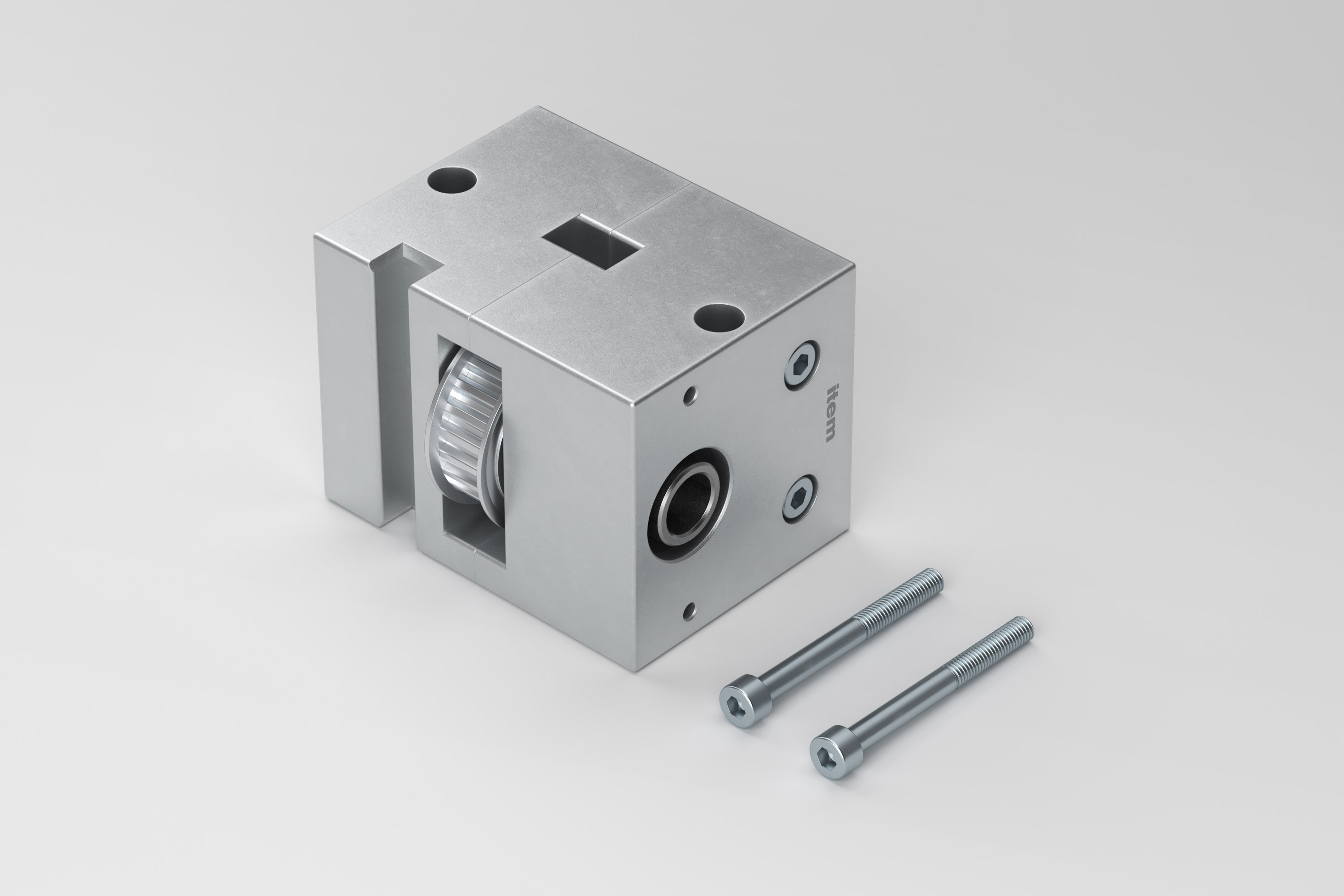

Scope of Delivery

1 timing-belt drive, Al, natural
2 Hexagon Socket Head Cap Screws DIN 912 M5x50, St, bright zinc-plated

Technical note

Belt length inside reverse unit: 117 mm

Properties

Lineline 8
ESD-safeNo
Weightm = 697 g
Delivery unit1 set

Description

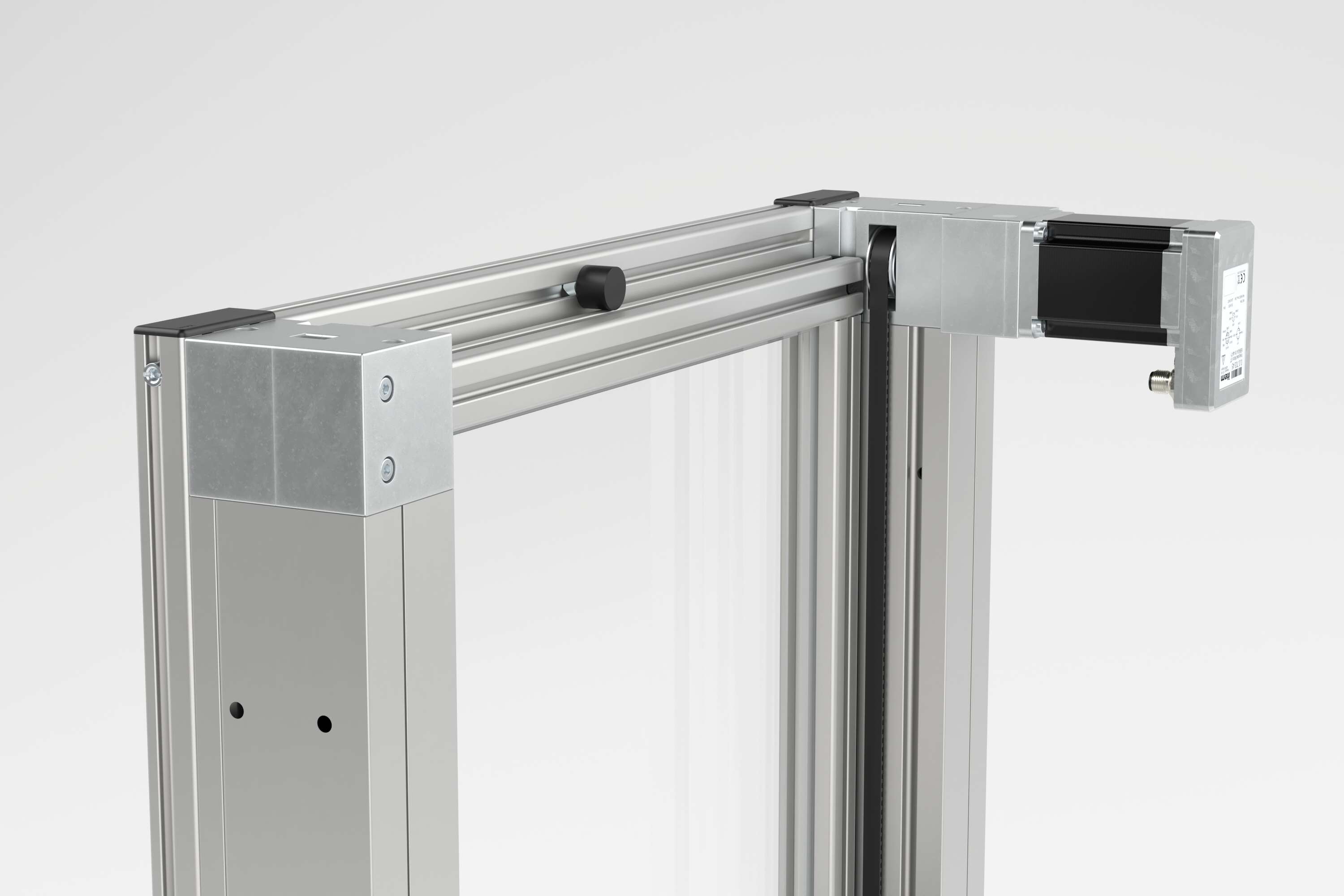

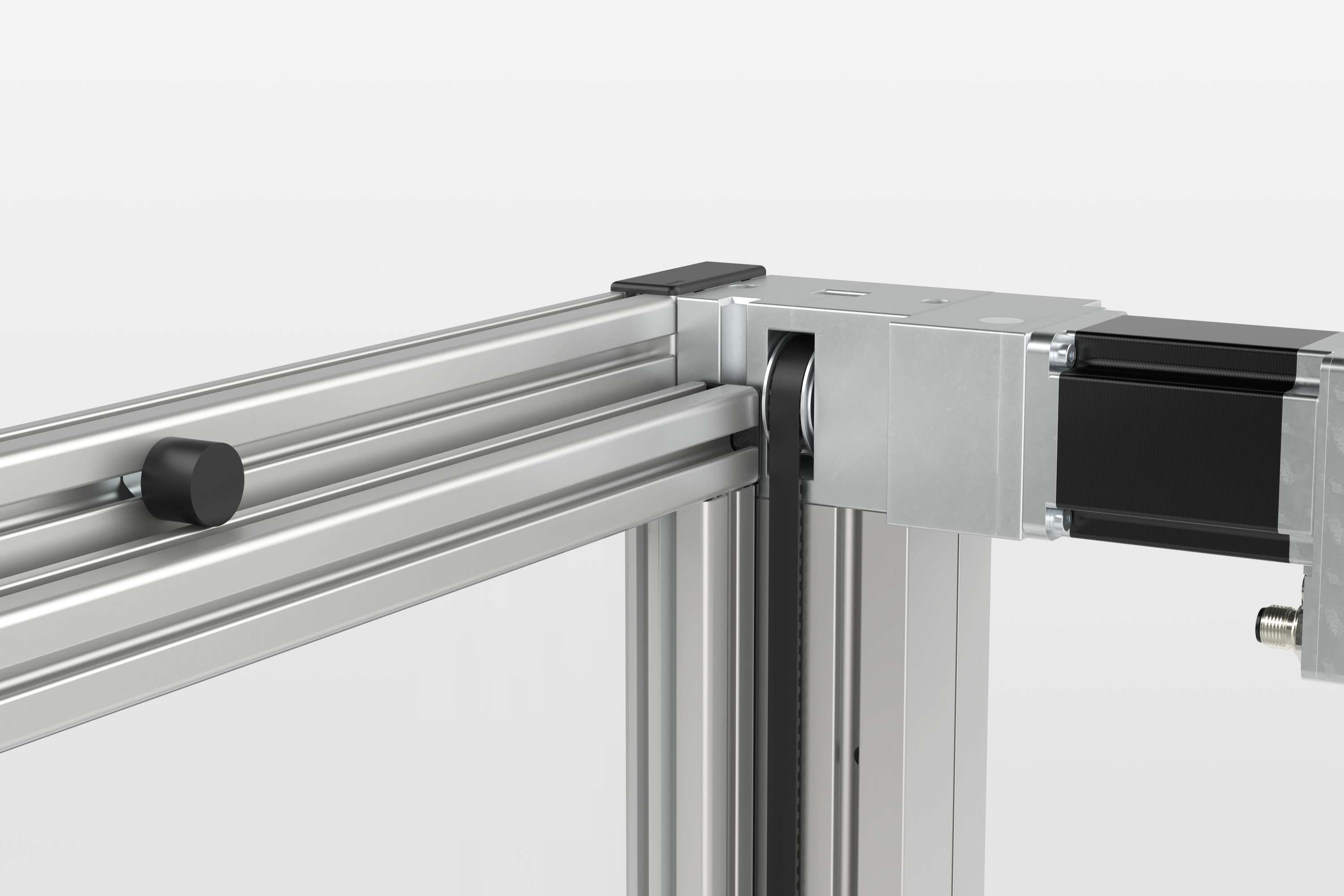

Lifting Door 8 Compact, Timing-Belt Drive R10 is a motor-driven 180° reverse unit for a timing belt. Timing Belt R10 T5 connects the door to a counterweight that runs inside Lifting Door 8 Compact, Guide Profile 80x60 (0.0.736.03).
The drive is responsible for quiet operation, precise power transmission and defined, play-free belt guidance.
Timing-Belt Drive R10 is used on one side of an electrically operated Lifting Door 8 Compact. Lifting Door 8 Compact, Timing-Belt Reverse Unit R10 (0.0.736.62) is used on the other guide profile.
It is important to use the correct drive set for the motor.
Space-saving item Lifting Door 8 Compact offers a simple means of gaining access to machine cabins, guards, enclosures and inspection points while also keeping staff and equipment safely protected.

The modular lifting door solution can be used as a manual door or can be operated by an electric motor such as Integrated Motor ST NEMA24 (0.0.703.45).

Thanks to the space-saving design of its frame, Lifting Door 8 Compact is also ideal for use in small openings and hatches. To make installation easy, the lifting door is supplied preassembled and can be inserted directly into its opening as a single module.

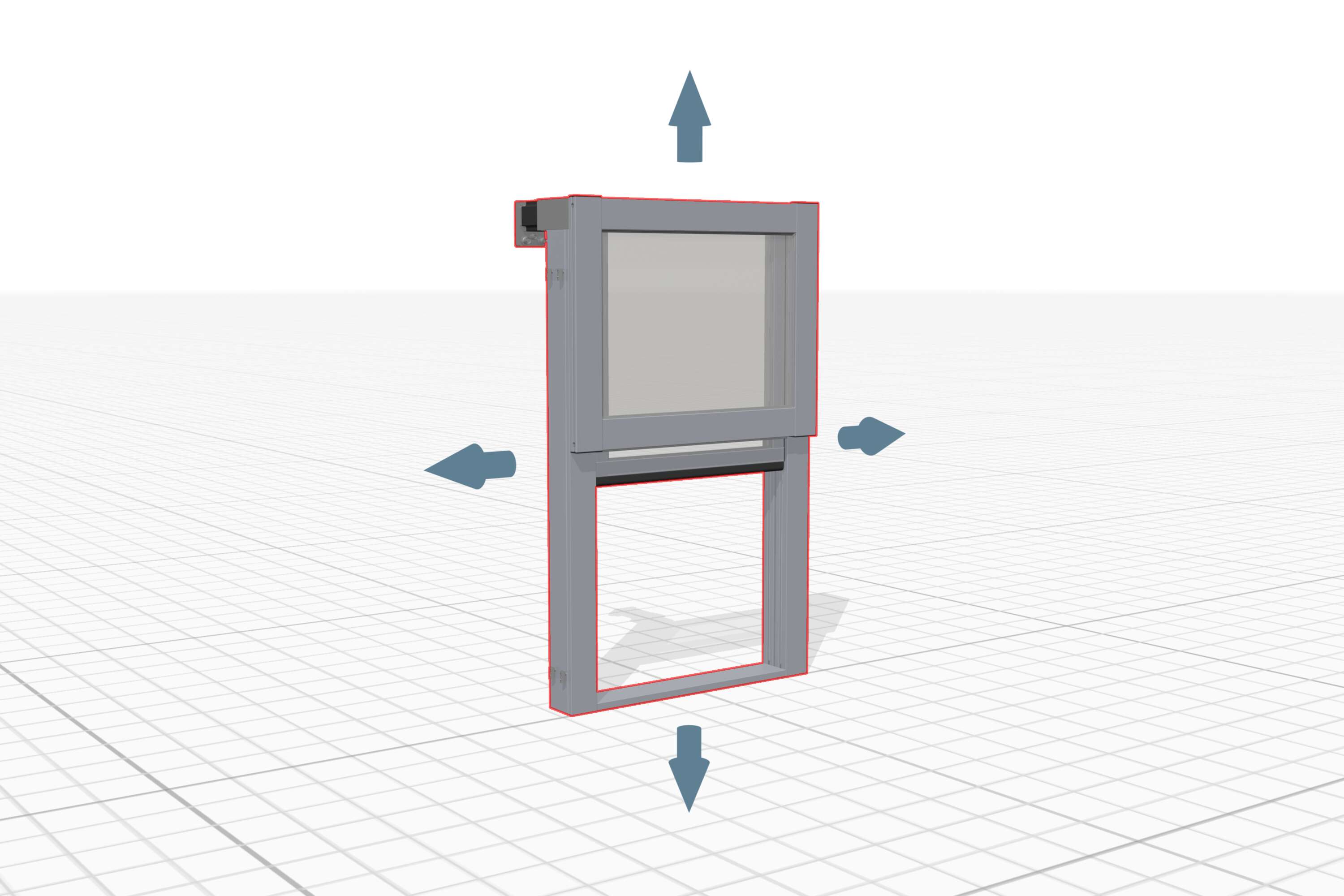

Creating your own lifting door is easy when using our configurable assembly or the item Engineeringtool. You can specify precisely the size and design that you need.

Assembly Instructions

Downloads

CAD Data

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 8.0
23170208
eCl@ss 6.0.1
23170210
eCl@ss 11.0
23170208
eCl@ss 7.1
23170208
eCl@ss 5.0
23170210
eCl@ss 5.1
23170210
eCl@ss 4.0
23170301
eCl@ss 4.1
23170301
UNSPSC 9.0
26111504
UNSPSC 26.0
26111504
UNSPSC 7.0
26111504
Customs tariff number
73269098
