Motor ST NEMA24 StarterKit

0.0.733.25

Get CAD Data and Downloads

Technical Data

All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Scope of Delivery

1 DC-DC Converter 48V/24V
1 Power Supply 48V 4.6A with connecting cable
1 Connector M12 4P Male, A-coded
1 Selector Switch M22 1NO 1NC M12, Male Connector, A-coded
1 Sensor/Actuator Connection Cable 5m M12 4P, Female Connector, A-coded

Properties

Output voltage48/24 V DC
Output current1A/24 V DC + 4A/48 V DC
Input voltage58...264 V AC
Input current4A/115 V AC + 2A/230 V AC
ESD-safeNo
Nominal frequencyfn = 50/60 Hz
Weightm = 2.542 kg
Ambient temperature (during operation)+10 °C … +40 °C
Power220 W
Delivery unit1 set
cleanroom suitabilityNo

Description

Motor ST NEMA24 StarterKit contains all the electrical components needed to connect up Integrated Motor ST NEMA24 -310-48-T1 (0.0.703.45).

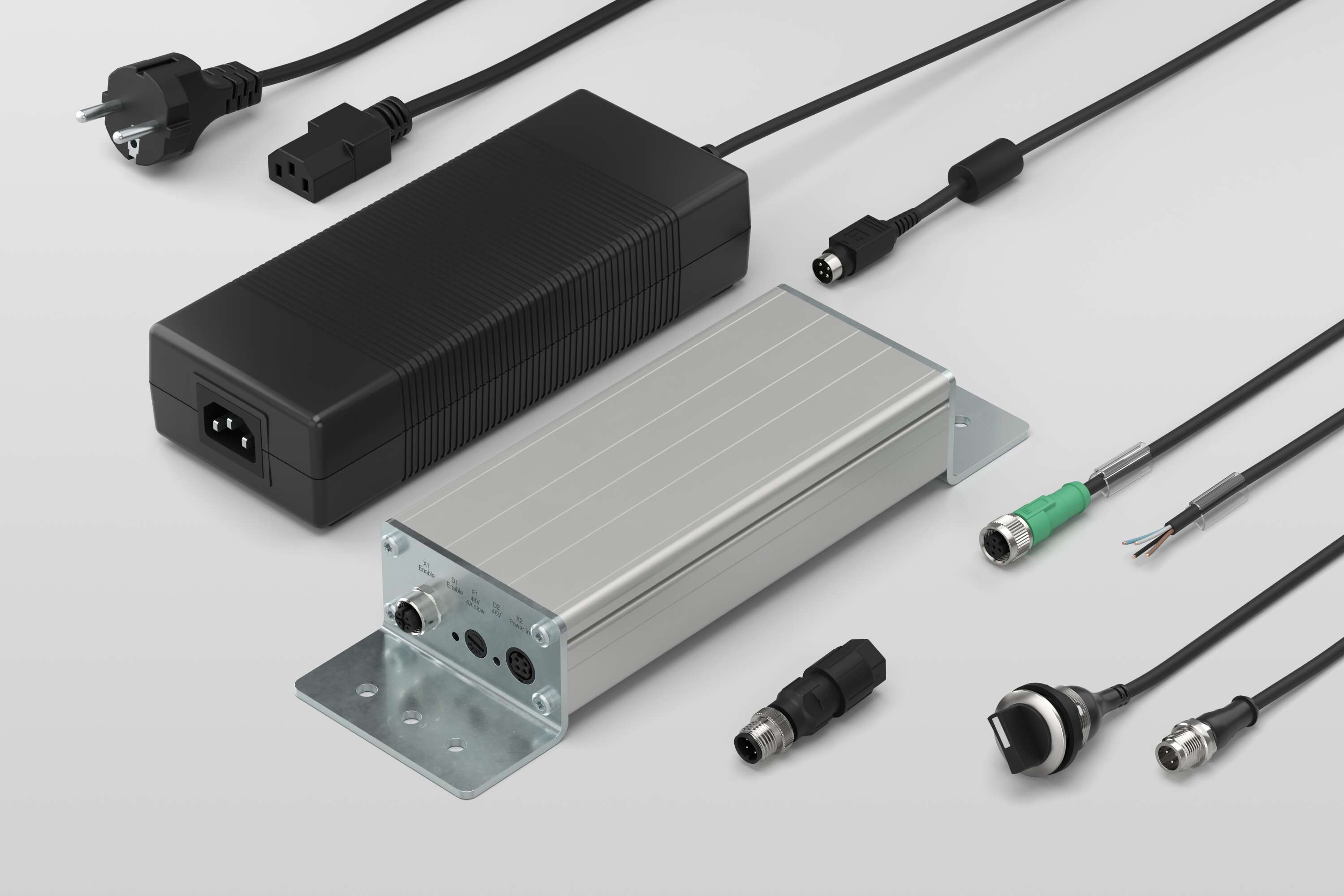

The StarterKit comprises the following components:
* Power Supply 48V 4.6A (resistant to feedback voltage)
* DC-DC Converter 48V/24V for supplying power to the 24 V controller and 48 V stepper motor
* An enable switch for safely starting up and shutting down the motor
* All necessary cables

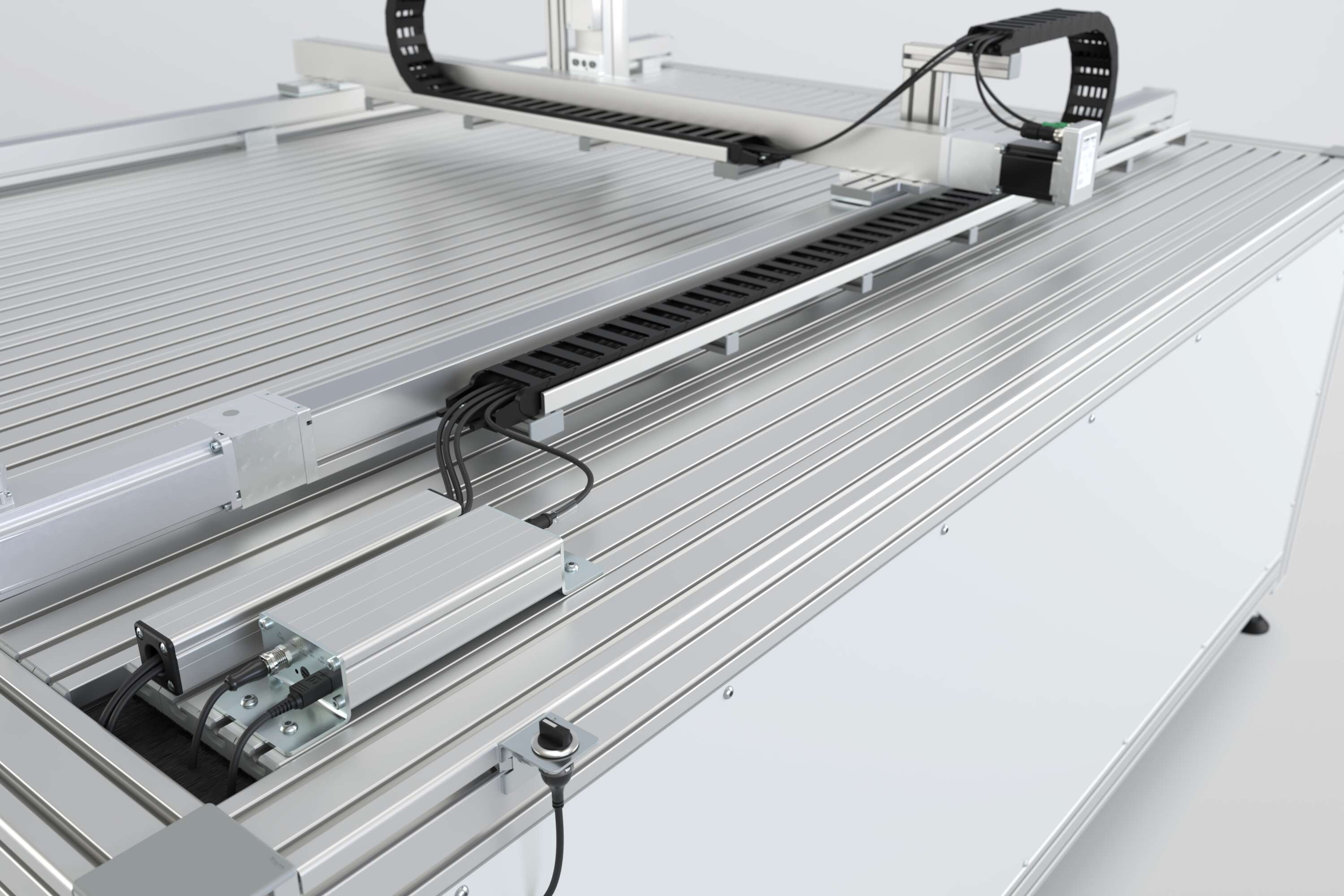

The StarterKit is a plug-and-play solution for safeguarding the electrical connection of Integrated Motor ST NEMA24 and its controller. The safely encased components can be fastened to profile grooves or stowed in a cable conduit. As a result, they don’t need a separate enclosure and don’t have to be wired up by an electrician.
The stepper motor and integrated controller use different operating voltages – 48 V and 24 V respectively. As the StarterSet includes DC-DC Converter 48V/24V, all you need to start using the intelligent stepper motor is the power supply unit, which is also included.
Motor ST NEMA24 StarterKit is resistant to feedback voltage caused by manual movement of the motor. The supplied enable switch also provides added safety for users because it is only after this is actuated that power is fed to the stepper motor.
