To ensure process accuracy, the system can be fixed to the floor using foot clamps D80. Profile sections at the access points for the pallets can be used to adapt optional sensors to secure the operating space.
Additional components can be attached via the grooves of the robust Profiles 8 80x80. The central column supports clean cable management.

- Height, width and depth of the application can be individually adjusted in the item Engineeringtool
- High rigidity thanks to a frame made of Profiles 8 80x80
- Free space in the robot column supports safe cable management
- Lateral supports for connecting sensors to secure the workspace
- Various conveyor belt types and dimensions can be integrated

Note: Depending on the scaling of the solution, operating mode and robot model, the stability and design must be checked.","sources":[{"type":"jpg","width":3000,"height":2000,"url":"https://cdn.item24.com/product-assets/PIC_ANW_PRD_SPE_9400261_%23SALL_%23AINO_%23V1.jpg"},{"type":"webp","width":2000,"height":1333,"url":"https://cdn.item24.com/product-assets/PIC_ANW_PRD_SPE_9400261_%23SALL_%23AWEBP2000_%23V1.webp"},{"type":"webp","width":500,"height":333,"url":"https://cdn.item24.com/product-assets/PIC_ANW_PRD_SPE_9400261_%23SALL_%23AWEBP500_%23V1.webp"},{"type":"webp","width":250,"height":167,"url":"https://cdn.item24.com/product-assets/PIC_ANW_PRD_SPE_9400261_%23SALL_%23AWEBP250_%23V1.webp"}]}],"videos":[],"playlist":[],"engineeringDrawing":null},"projectId":"72a08a9bfc7546d7bc234b3d8cc07e2c","texts":{"description":null,"delivery":null,"descriptionShort":null,"technicalNote":null},"title":"Palletizing unit with conveyor belt for ABB cobots","slug":"palletizing-unit-with-conveyor-belt-for-abb-cobots-a1002045907"}

Delivery unit	1 set
Status on delivery	not preassembled

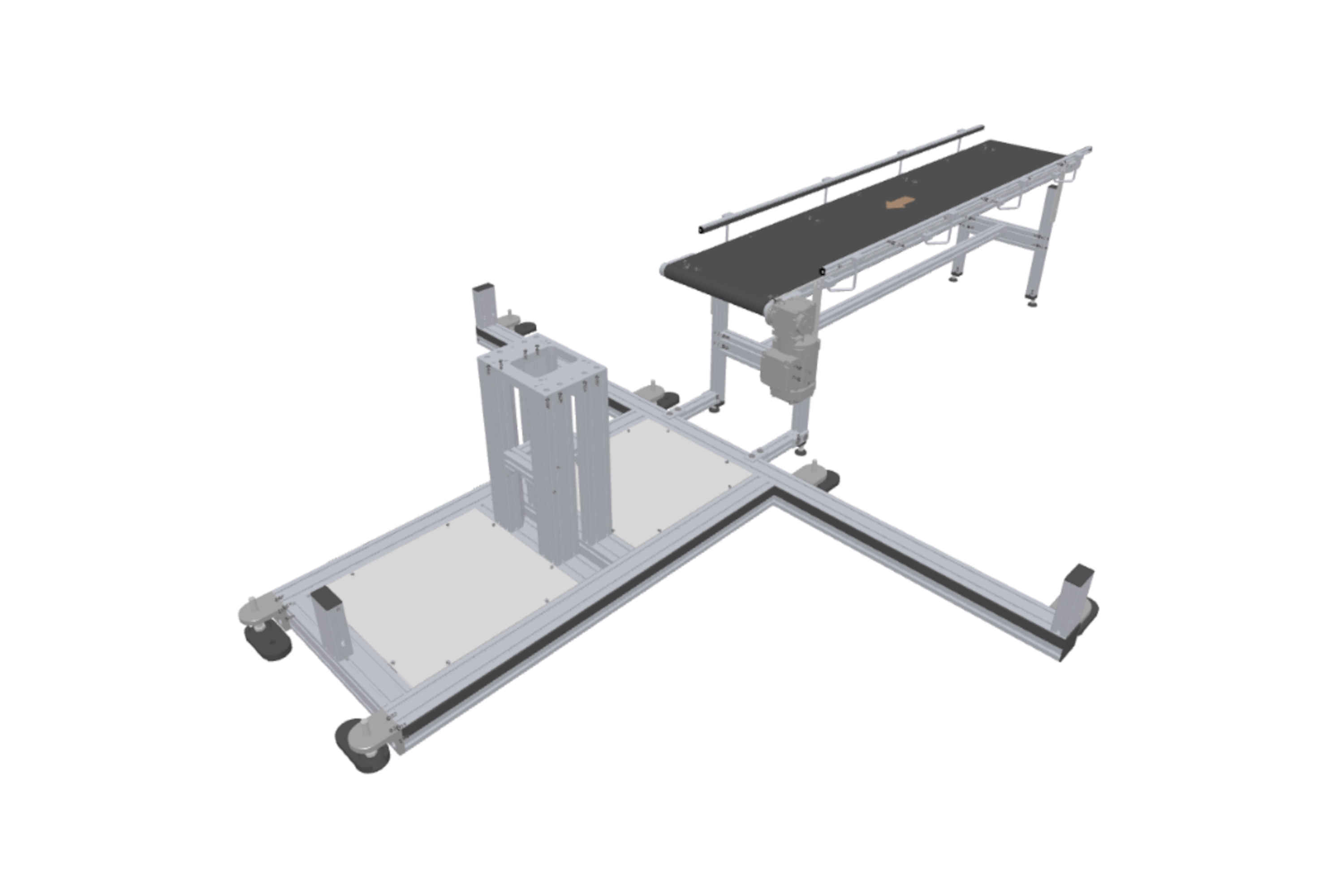

Palletizing unit with conveyor belt for ABB cobots

Technical Data

Properties

Description

Downloads

Project documentation

CAD Data

Palletizing unit with conveyor belt for ABB cobots
