Profile 8 80x32 light, natural

0.0.494.96

Selected variant
Profile 8 80x32 light, natural (0.0.494.96)
Profile 8 80x32 light, natural
0.0.494.96
* Mandatory information
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
Components with this symbol meet the requirements of IEC 61340-5-1 and are therefore suitable for use in EPAs (electrostatic protected areas). By complying with the further stipulations of this standard you can use these products to create a safe environment for handling electronic components.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Properties

Lineline 8
ESD-safeYes
Cross-sectional areaA = 9.36 cm2
Moment of Inertia, torsionalIt = 8.59 cm4
Moment of Inertia, x-axisIx = 9.74 cm4
Moment of Inertia, y-axisIy = 56.7 cm4
Weightm = 2.34 kg/m
MaterialAl, anodized
Permissible groove extraction forceF = 2500 N
Colournatural
Resistance Moment, x-axisWx = 5.89 cm3
Resistance Moment, y-axisWy = 14.17 cm3

Description

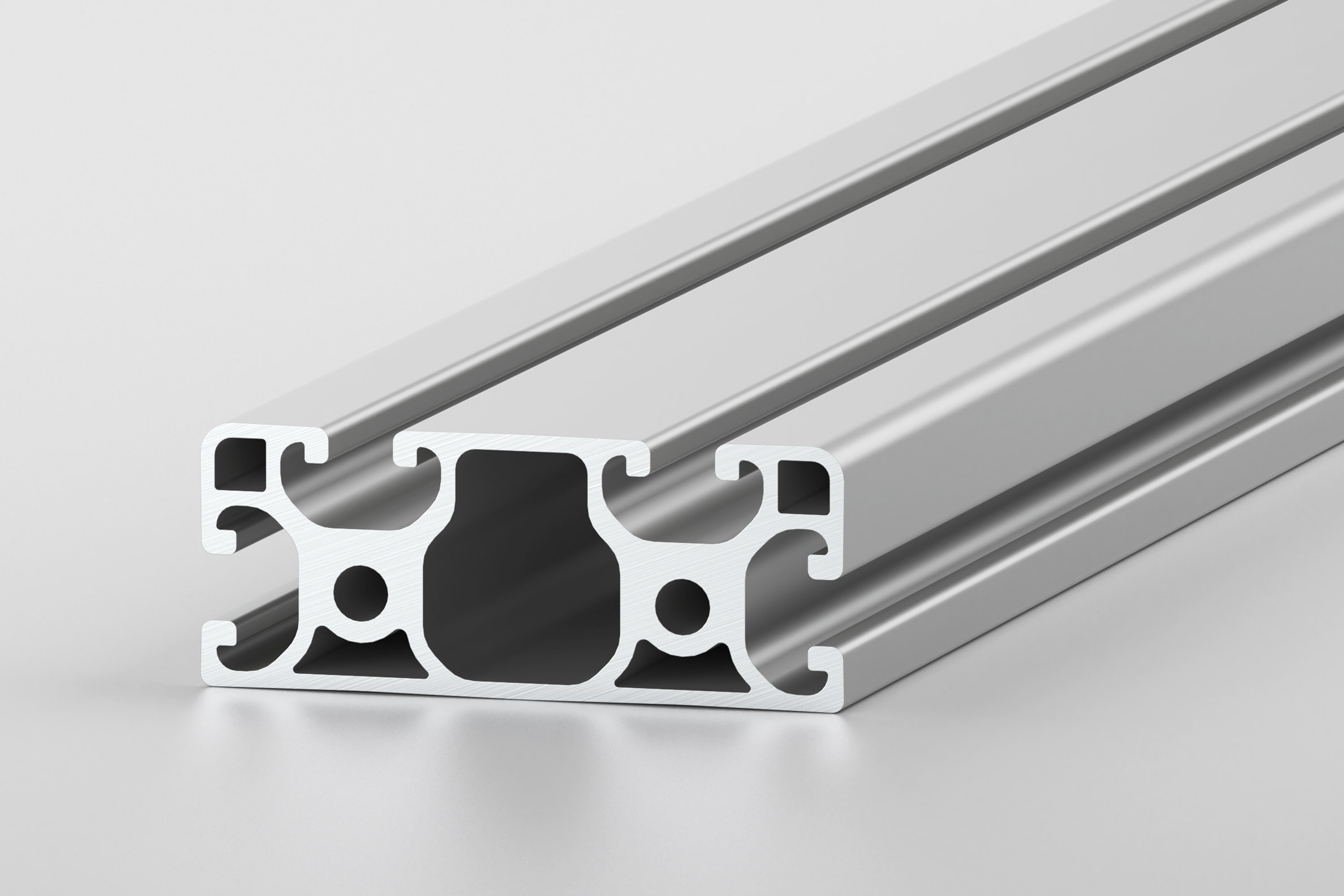

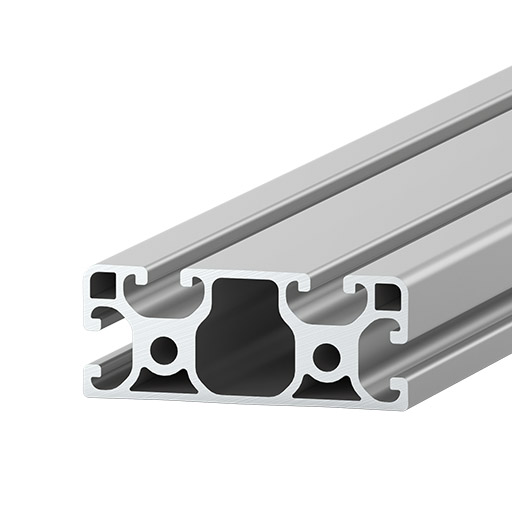

Profiles 8 40x32 and 80x32 light are particularly suitable for use as frames and struts in table, shelving and cabinet constructions. They are then used to connect profiles of modular dimension 40 mm.
When used in conjunction with profiles with modular dimensions, this results in a recess of 8 mm. This enables e.g. a panel element (up to 8 mm thick) to be run over and alongside 32 mm wide profiles in one continuous length. The profile on the inside can be used as a high-strength support (e.g. for a shelf) and reinforces the entire construction.
When fitting the profiles with the smooth outer face towards the observer, the construction has a particularly light feel to it without actually losing anything in terms of stability. The other three sides of the profile have Profile 8 light grooves which enable the use of Line 8 fastening elements and accessories.
It is also possible to bond panel elements to the smooth side of the profiles to minimize noise transmission.
