Release Unit DIN/DOUT 24V

0.0.733.57

Get CAD Data and Downloads

Technical Data

All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Scope of Delivery

1 Release Unit DIN/DOUT 24V
2 T-Slot Nuts 6 St M6
2 Hexagon Socket Head Cap Screws DIN 912 M6x60, St
2 Caps 6 D11, white, PC

Properties

ESD-safeNo
Weightm = 540 g
Delivery unit1 set
cleanroom suitabilityNo

Description

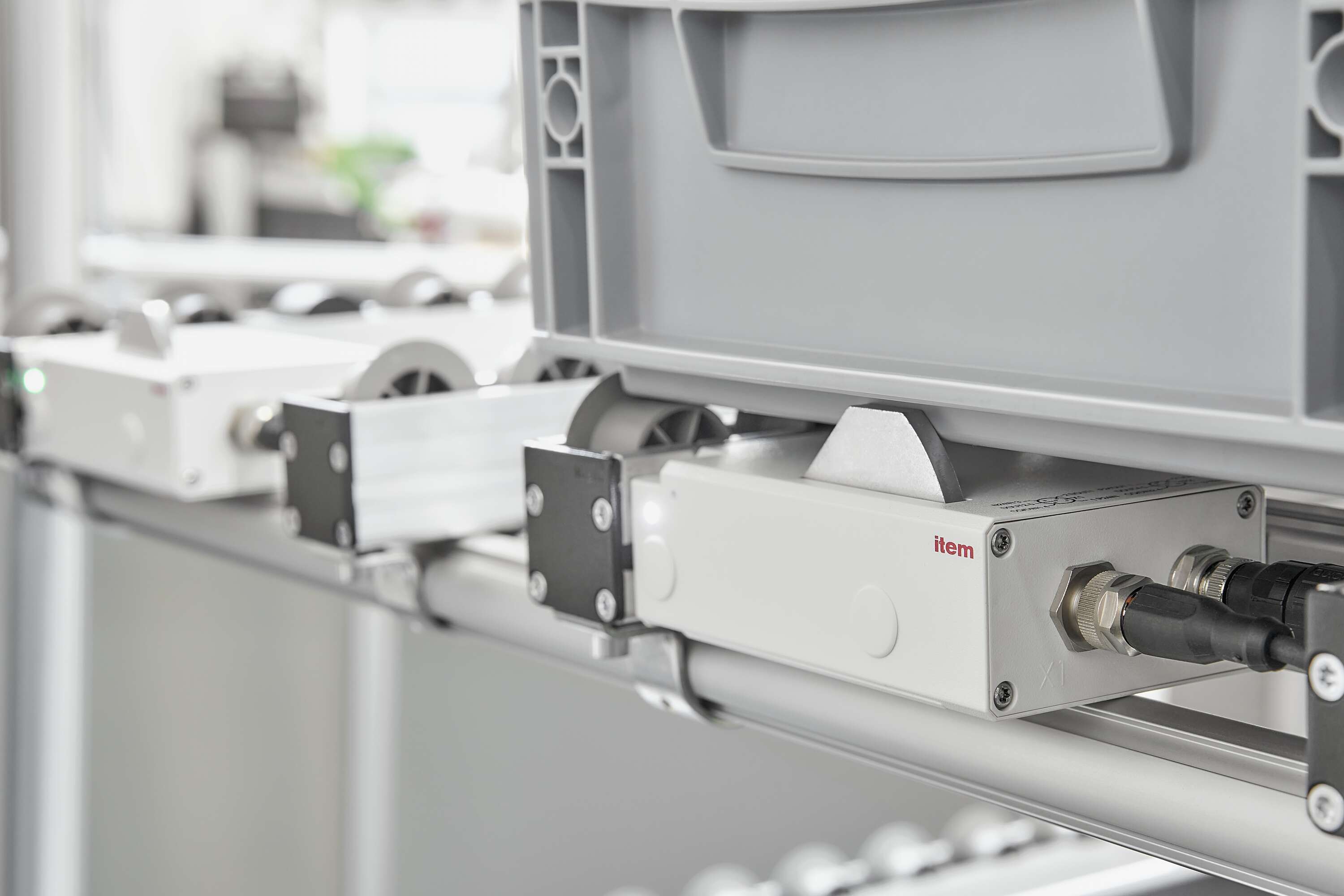

item Release Unit DIN/DOUT 24V is an electromechanical solution for smart material flow control. An electrically operated bar stops containers and other small load carriers (SLCs) on a roller conveyor and releases them for onward movement on demand.
Integrated control logic takes care of release and separation processes in material supply operations independently. An integrated optical sensor monitors the handover of materials and identifies whether the release process has been executed correctly.

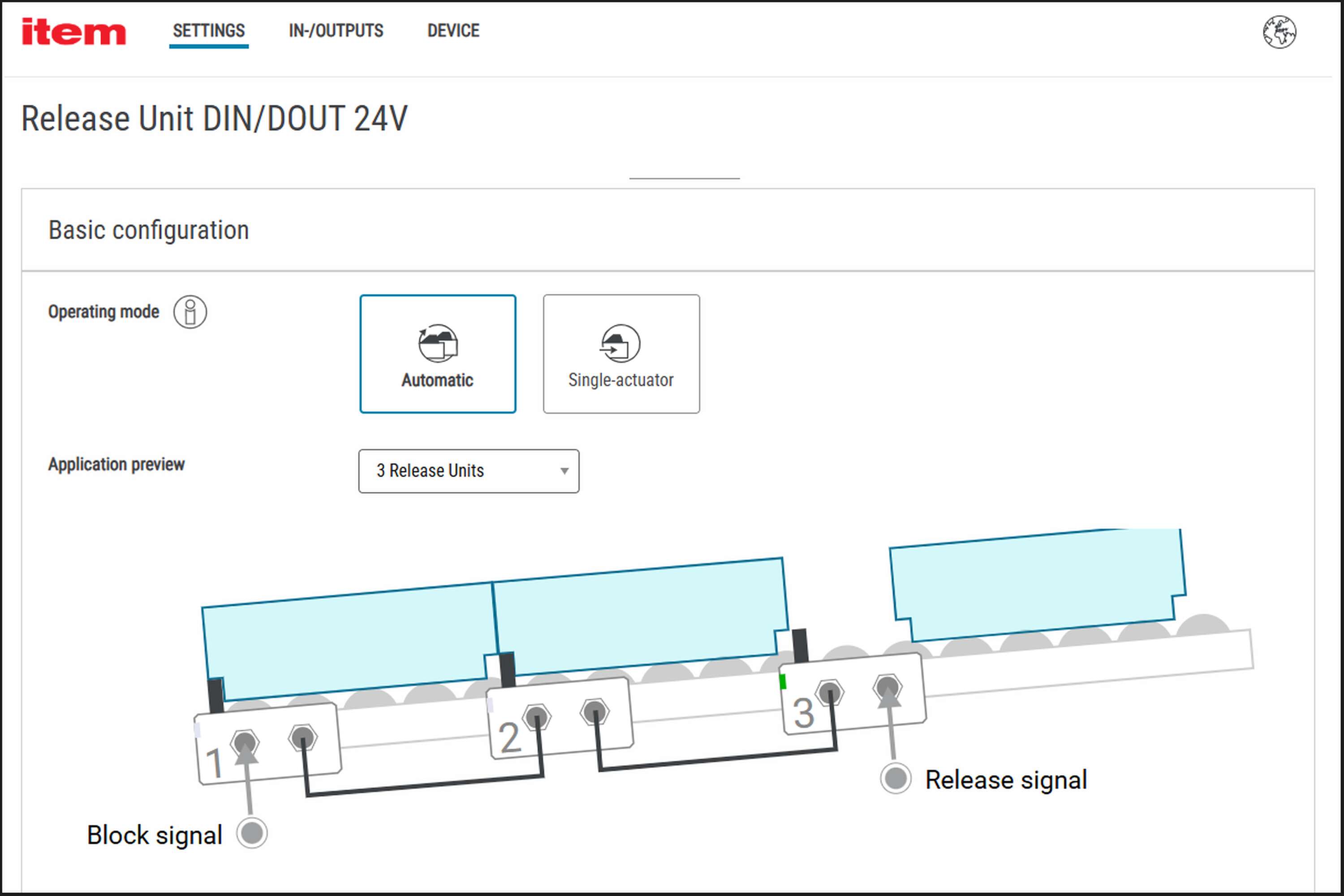

To set the parameters of Release Unit DIN/DOUT 24V, all you need is a WLAN-capable device so that you can run its web interface. Besides allowing you to adjust settings for input and output signals, this interface also provides a graphical overview of your process.
There are two pre-defined operating modes to choose from:

Automatic: Up to three Release Units can be connected together in a logical chain. As plug-and-play solutions, the Release Units recognise each other and control the separation process independently via their integrated logic.

Single-actuator: An overarching controller (PLC) uses the Release Unit as a direct actuator.
Up to three Release Units DIN/DOUT 24V can be connected in a chain and used together in “Automatic” operating mode to complete a range of tasks:

One Release Unit: Holding SLCs in a queue and releasing them via a digital signal

Two Release Units: Additional separation and selective release

Three Release Units: Additional reduction of back pressure

Assembly Instructions

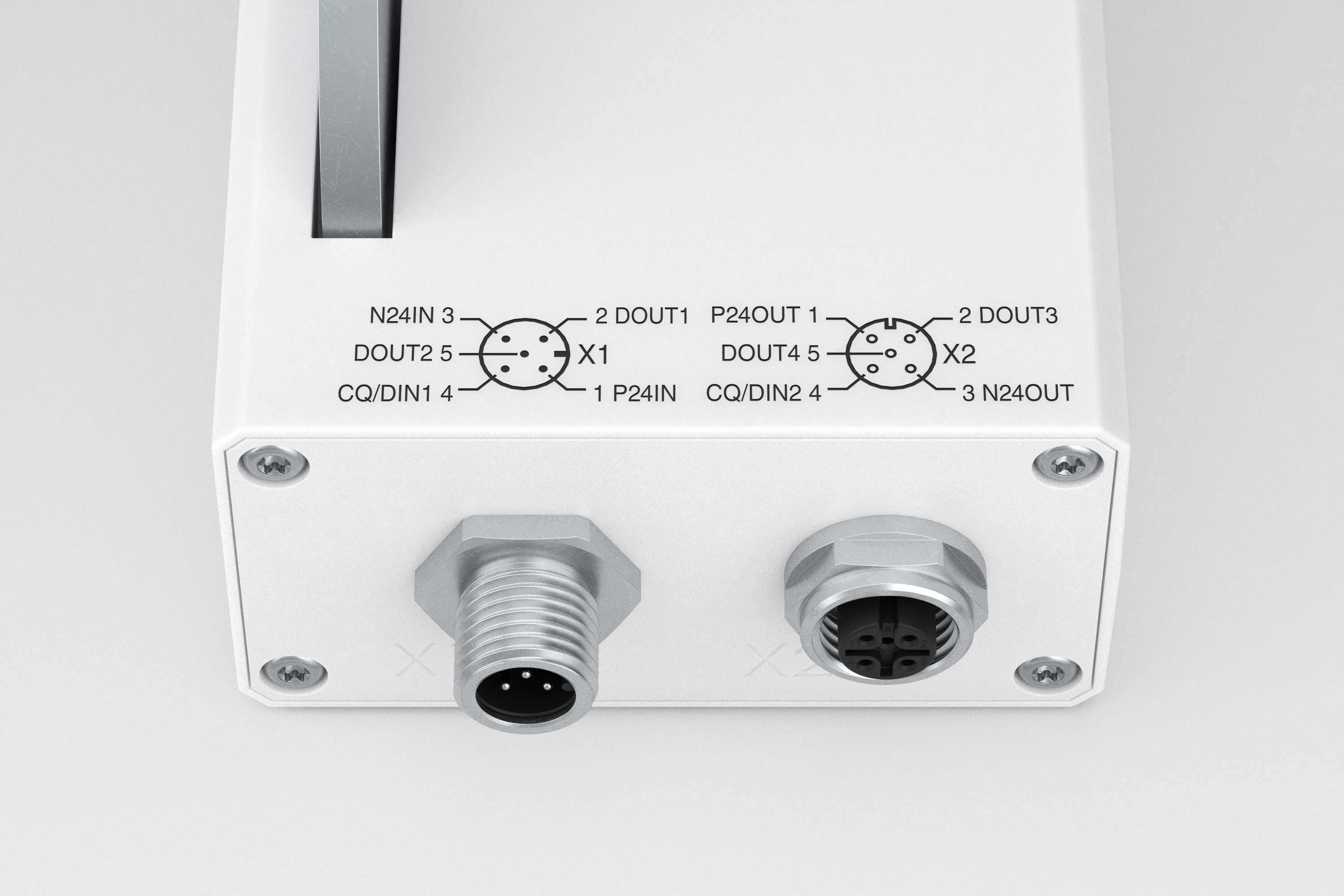

Release Unit DIN/DOUT 24V features two M12 connections for secure signal processing and power supply. Each M12 connection offers one digital input and two digital outputs.

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 8.0
36120490
eCl@ss 11.0
36120490
eCl@ss 7.1
36120490
eCl@ss 6.0.1
36120490
eCl@ss 4.0
36121505
eCl@ss 4.1
36121505
UNSPSC 9.0
24101709
UNSPSC 26.0
24101709
eCl@ss 5.0
36129190
eCl@ss 5.1
36129190
UNSPSC 7.0
24101709
Customs tariff number
84879090
