Sensor Holder D20 D8

0.0.735.11

Get CAD Data and Downloads

Technical Data

Components with this symbol meet the requirements of IEC 61340-5-1 and are therefore suitable for use in EPAs (electrostatic protected areas). By complying with the further stipulations of this standard you can use these products to create a safe environment for handling electronic components.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Scope of Delivery

2 sensor holder halves D20 D8, Al, barrel-finished
1 Hexagon Socket Head Cap Screw DIN 912 M6x16, St, bright zinc-plated
1 hexagon nut DIN 934 M6-I8I, St, bright zinc-plated

Properties

TorqueM = 10 Nm
ESD-safeYes
Weightm = 53 g
Delivery unit1 set

Description

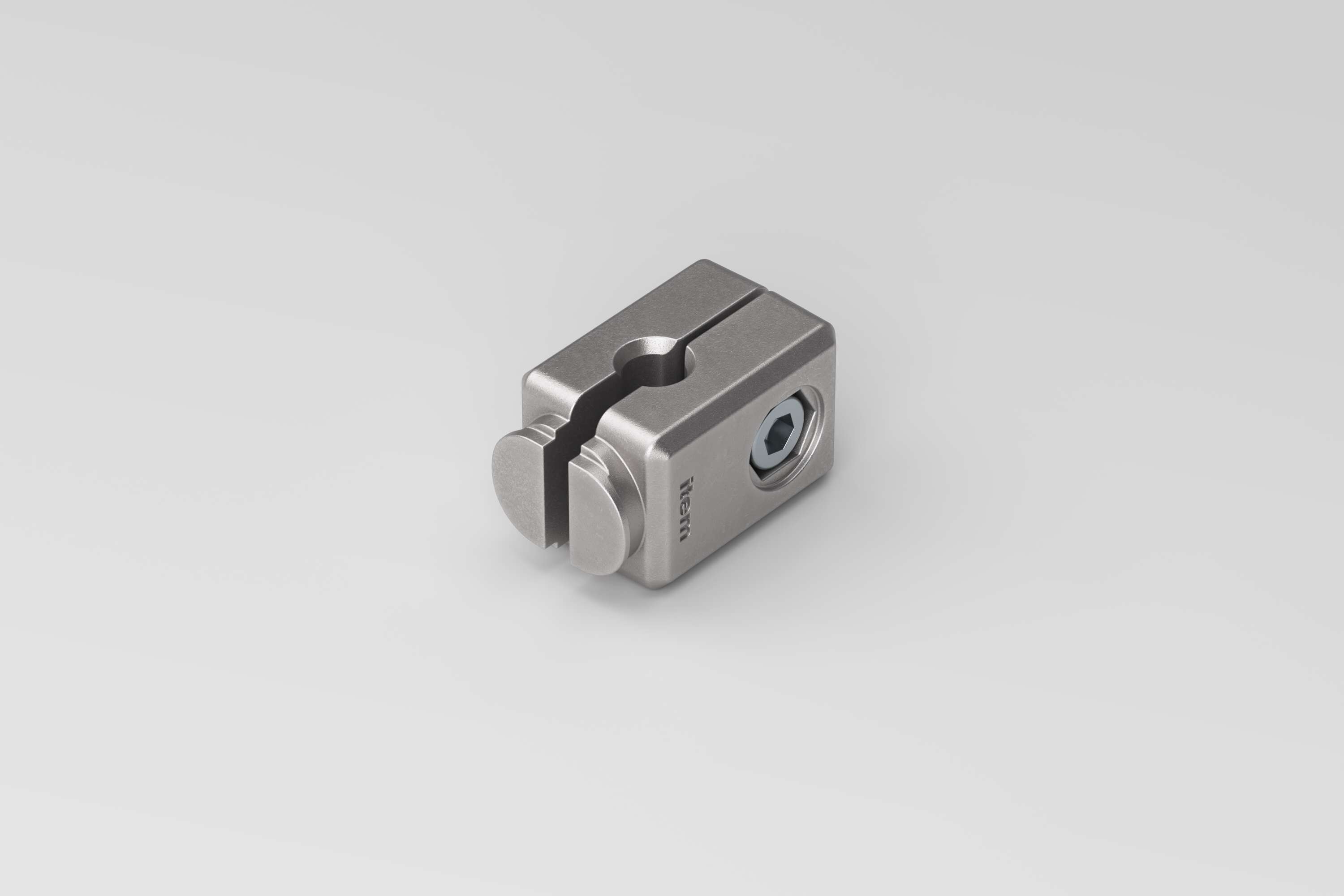

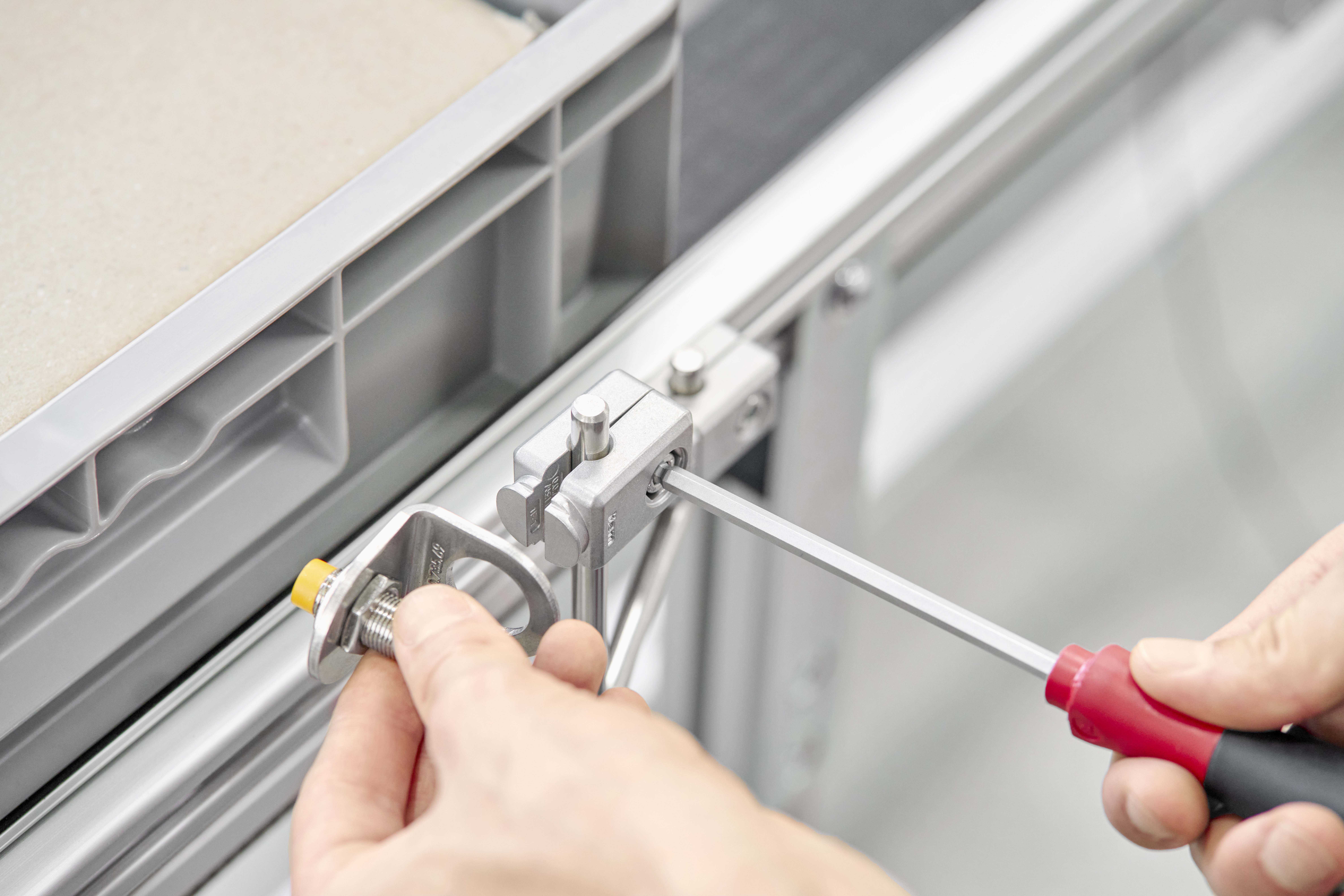

Sensor Holder D20 D8 features a clamping contour with a diameter of 20 mm that offers multiple ways to fasten sensors in place using mounting brackets. For instance, it can be used to fit proximity sensors to a conveyor belt, roller conveyor or machine cabin.
A Bracket J D8 (0.0.718.47 / 0.0.719.21) or Rod D8-150 (0.0.732.03) can be used to position a sensor at the desired height and with the correct clearance. These mounting rods can also be fastened to a Line 6 or 8 profile groove using Railing Holder 8 D8 (0.0.718.49).
Sensor Holders from item are versatile aluminium fixings used to secure optical measurement sensors in place. They give users a means of installing proximity switches, photoelectric sensors and similar devices precisely where they are needed and in the necessary orientation.

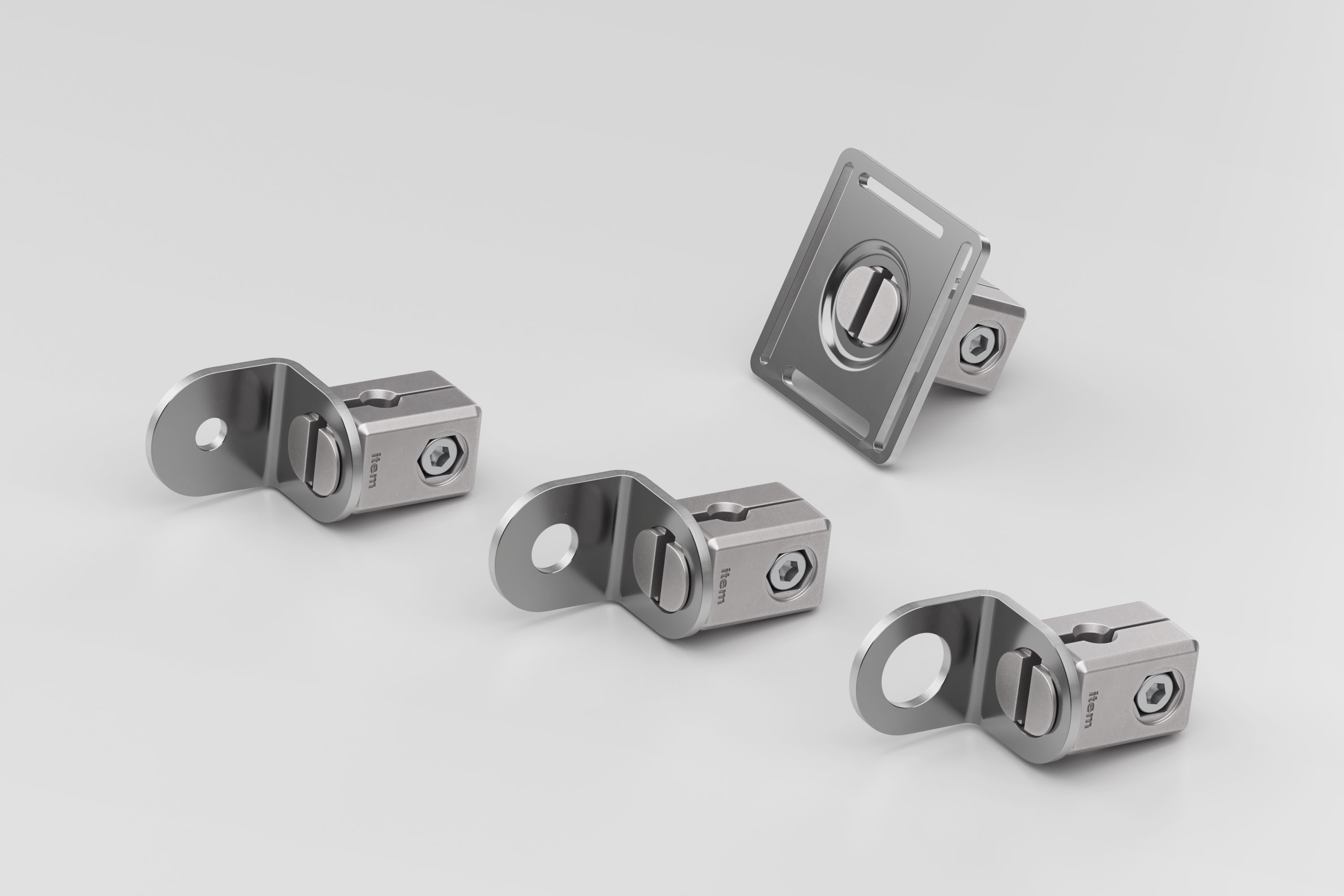

Various versions based on Sensor Holder D20 D8 are available with mounting brackets and holding plates to accommodate sensors in a range of sizes from different manufacturers.

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 8.0
27220501
UNSPSC 9.0
39121705
UNSPSC 26.0
39121705
UNSPSC 7.0
39121509
eCl@ss 4.0
27220501
eCl@ss 4.1
27220501
eCl@ss 5.0
27220501
eCl@ss 5.1
27220501
eCl@ss 6.0.1
23309213
eCl@ss 7.1
27220501
eCl@ss 11.0
27220501
Customs tariff number
76169990
