Telescopic Rail Interlock Locking Set 8

0.0.733.33

This product will be available soon.
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

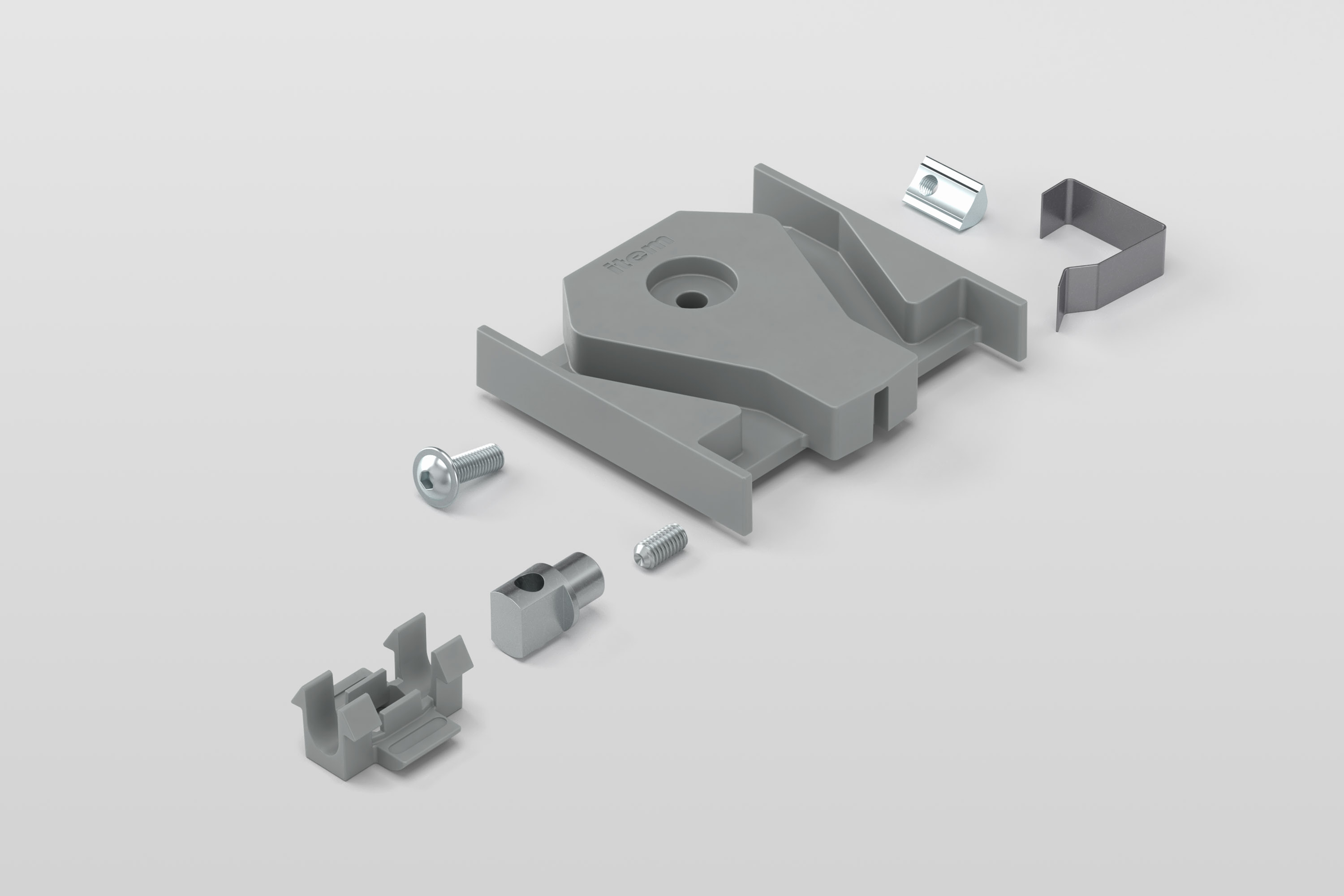

Scope of Delivery

1 leaf spring, St
1 locking element, PA
1 grub screw DIN 916 M4x8-45H, St
1 fastening pin, St
1 clip, PA
1 T-Slot Nut 5 St M4, bright zinc-plated
1 button flange head screw ISO 7380 M4x12, St

Properties

Lineline 8
ESD-safeNo
Weightm = 33 g
Delivery unit1 set
cleanroom suitabilityNo

Description

Telescopic Rail Interlock Locking Set 8 supports a reliable interlocking mechanism that prevents telescopic solutions from being operated. As soon as one drawer is opened, this mechanism holds in place all the other telescopic rails that are connected together in the system.
The interlock system prevents more than one pull-out from being opened at the same time. It is only when the open drawer has been pushed all the way back in that the other pull-outs are released. This safeguards the unit against tipping.
The locking element is fastened to the Line 5 groove of a Frame Profile from the item Drawer System, either on the right or left of the drawer. When working with trays or drawers that have a Line 8 groove, Telescopic Rail Interlock Fastening Set 8 (0.0.735.21) is required.
The locking clip, which consists of a plastic clip and a fastening pin, is fitted to Guide Bar D4 (0.0.733.18) at a specific height. This means that drawers and pull-outs of all sizes can be combined in custom arrangements.
Telescopic Rail Interlock Locking Set 8 is suitable for use with soft-close telescopic rails from item.
How the item interlock system works:

When one drawer is pulled out, the locking element slides the locking clip up. The Guide Bar moves all the other locking clips at the same time, which locks all the other pull-outs in place until the opened drawer has been pushed all the way in again.
The Guide Bar runs in a free vertical Line 8 groove on the profile frame.
The modular item Drawer System is the ideal solution for building drawers and pull-outs for industrial applications. Carefully coordinated components enable you to tailor your solutions to any application scenario in all dimensions. The item interlock system boosts stability because it makes sure only one drawer can be opened at a time.

Downloads

CAD Data

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
UNSPSC 7.0
56111903
UNSPSC 9.0
56111903
UNSPSC 26.0
56111903
eCl@ss 8.0
21100290
eCl@ss 11.0
21100291
eCl@ss 6.0.1
21100290
eCl@ss 5.1
21100201
eCl@ss 4.0
21100201
eCl@ss 4.1
21100201
eCl@ss 5.0
21100201
eCl@ss 7.1
21100290
Customs tariff number
83024200
