Tool Holder 8 D24-80 ESD, black similar to RAL 9005

0.0.733.22

Get CAD Data and Downloads

Technical Data

Work Bench System
item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
Components with this symbol meet the requirements of IEC 61340-5-1 and are therefore suitable for use in EPAs (electrostatic protected areas). By complying with the further stipulations of this standard you can use these products to create a safe environment for handling electronic components.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Scope of Delivery

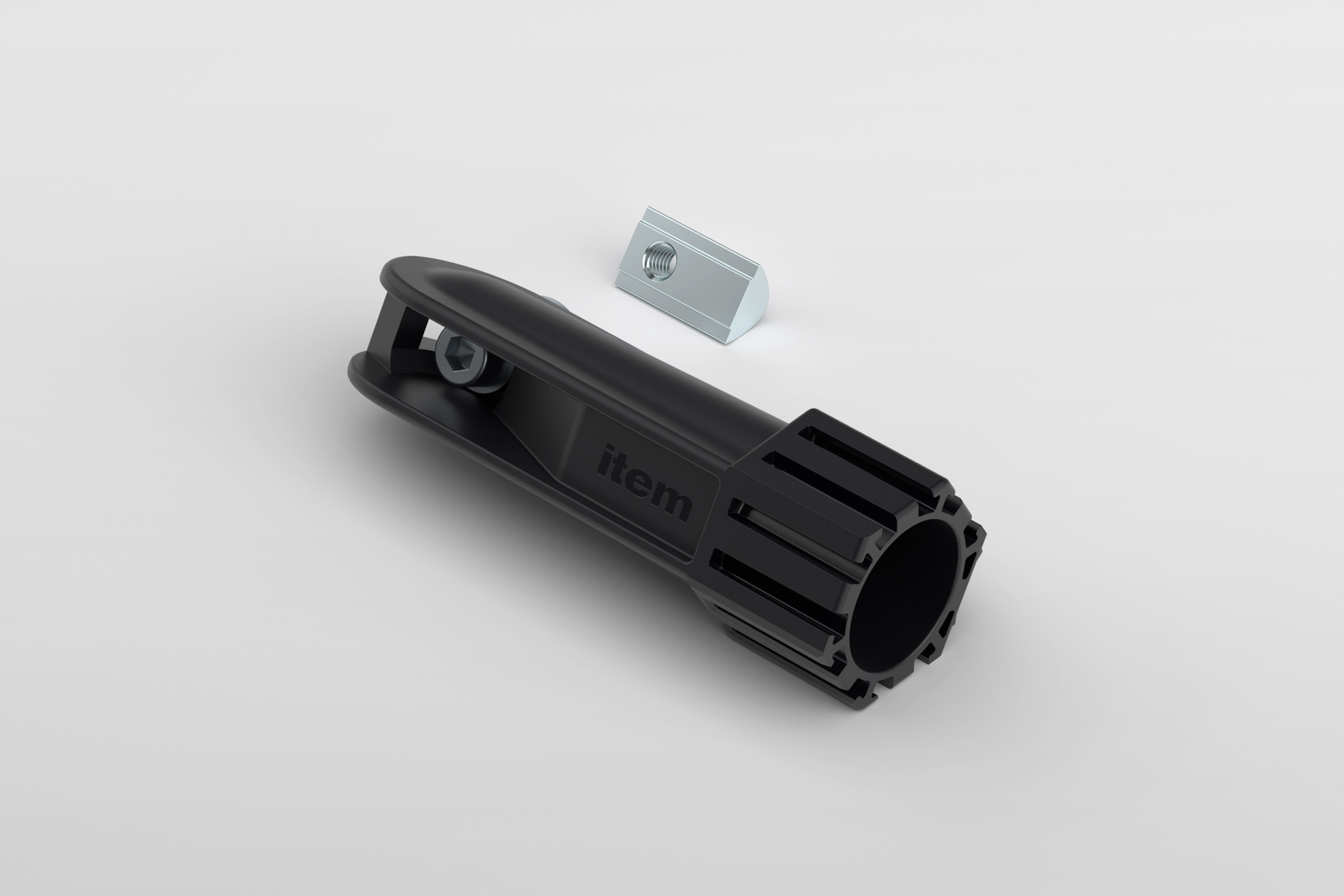

1 Tool Holder 8 D24-80
1 T-Slot Nut V 8 St M6
1 washer ISO 7093-1 - 6, bright zinc-plated
1 spherical washer DIN 6319 - A4, stainless steel
1 washer DIN 1441-C 7-12
1 Hexagon Socket Head Cap Screw DIN 912 M6x22

Properties

TorqueM = 6 Nm
LineWork Bench System
Lineline 8
ESD-safeYes
Weightm = 36 g
Delivery unit1 set
Colourblack similar to RAL 9005

Description

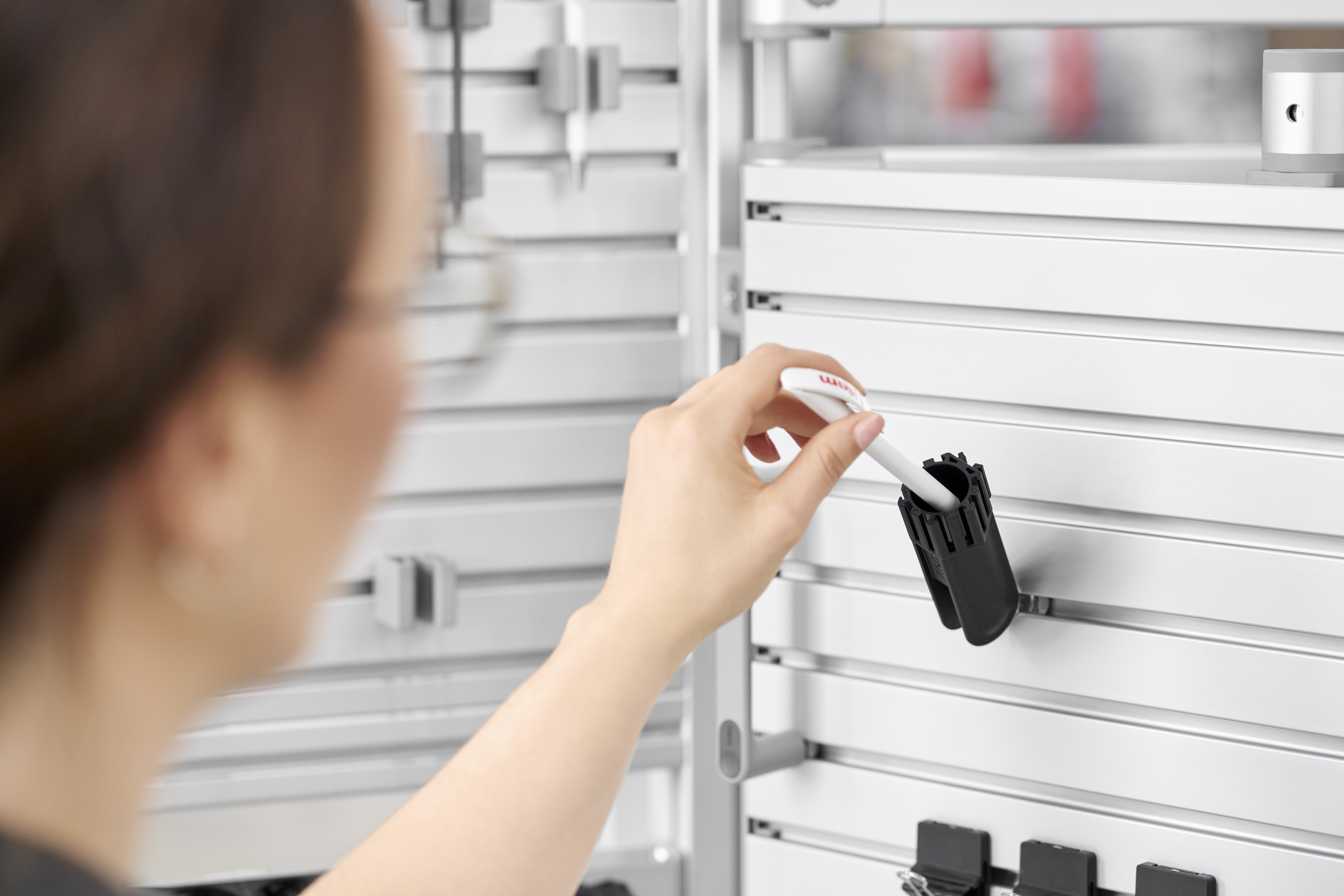

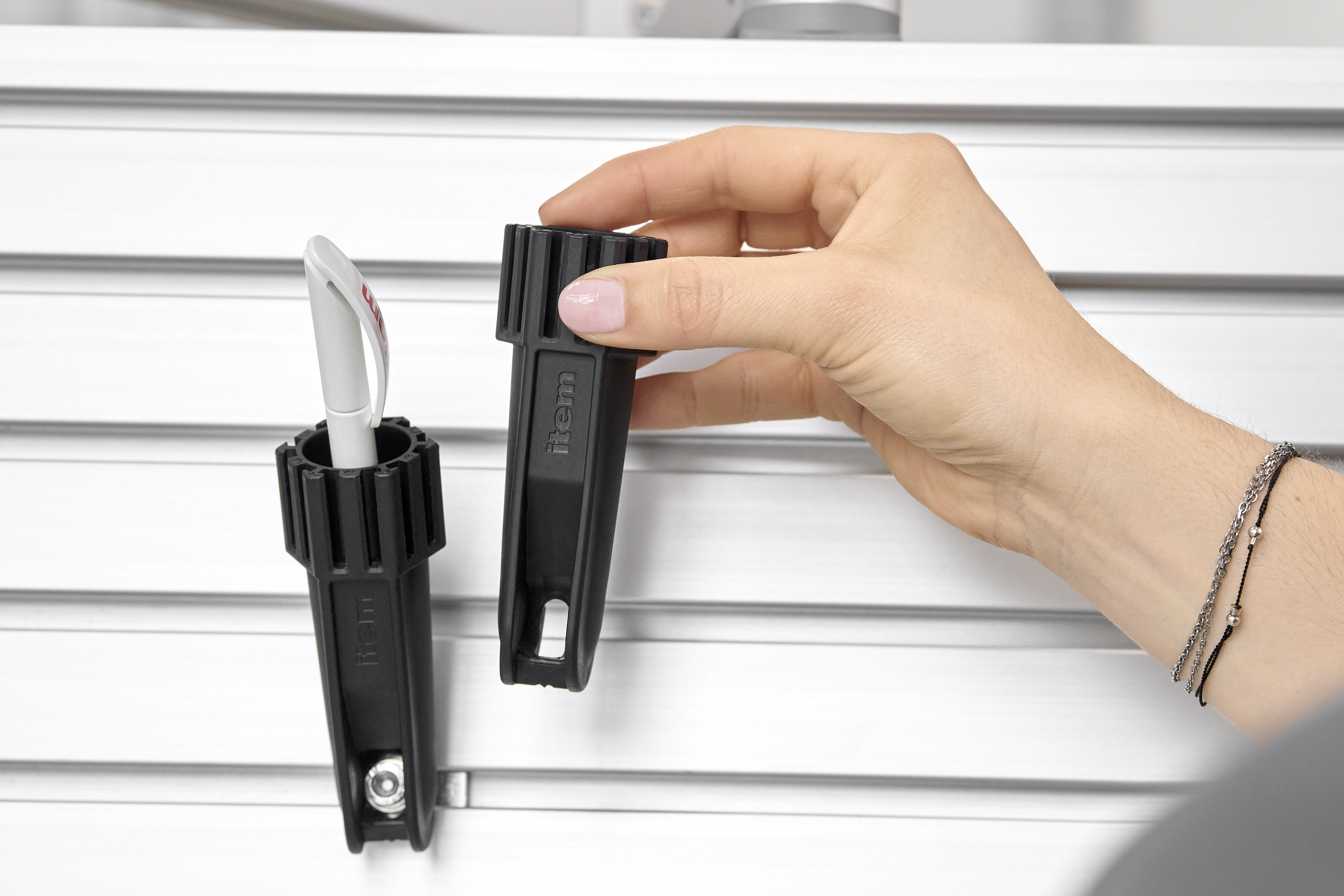

Tool Holder 8 D24-80 ESD from item is designed to be attached to a Line 8 groove on a Groove Plate, tool wall or work bench. It can be extended with additional holders that simply slot on with no need for screw fixings.
The system stays compact and can be tilted and twisted to any angle for exceptional convenience when removing its contents.

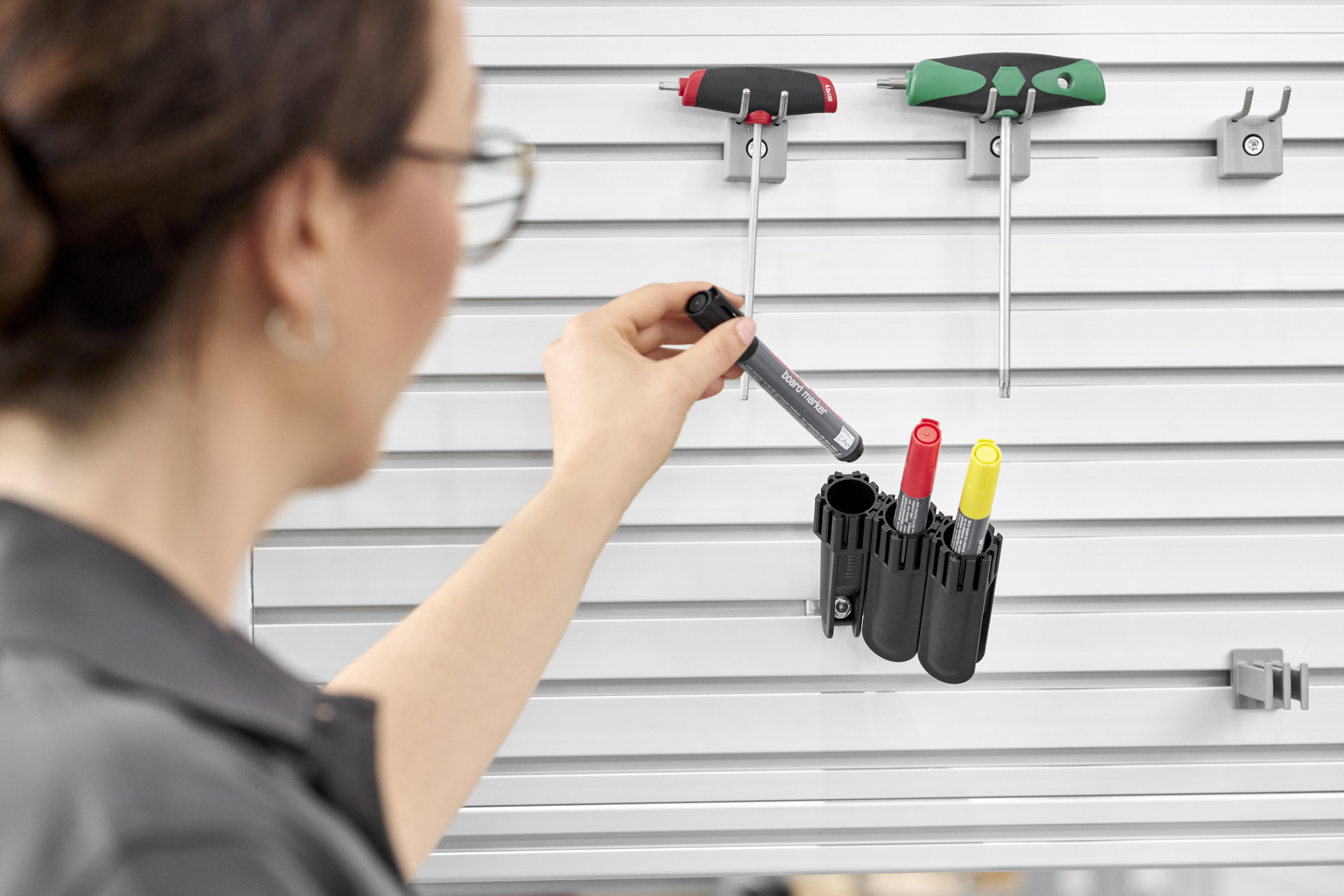

Thanks to its design principles based on a honeycomb structure, this holder offers a versatile means of storing lightweight accessories neatly and separately instead of all together in one large holder. As a result, Tool Holder 8 D24-80 ESD supports the 5S method, helps users find things faster and contributes to ergonomic processes in production.
