Transverse-Fastening Set 8 with Clamp Lever, left, white aluminium, similar to RAL 9006

0.0.731.65

Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

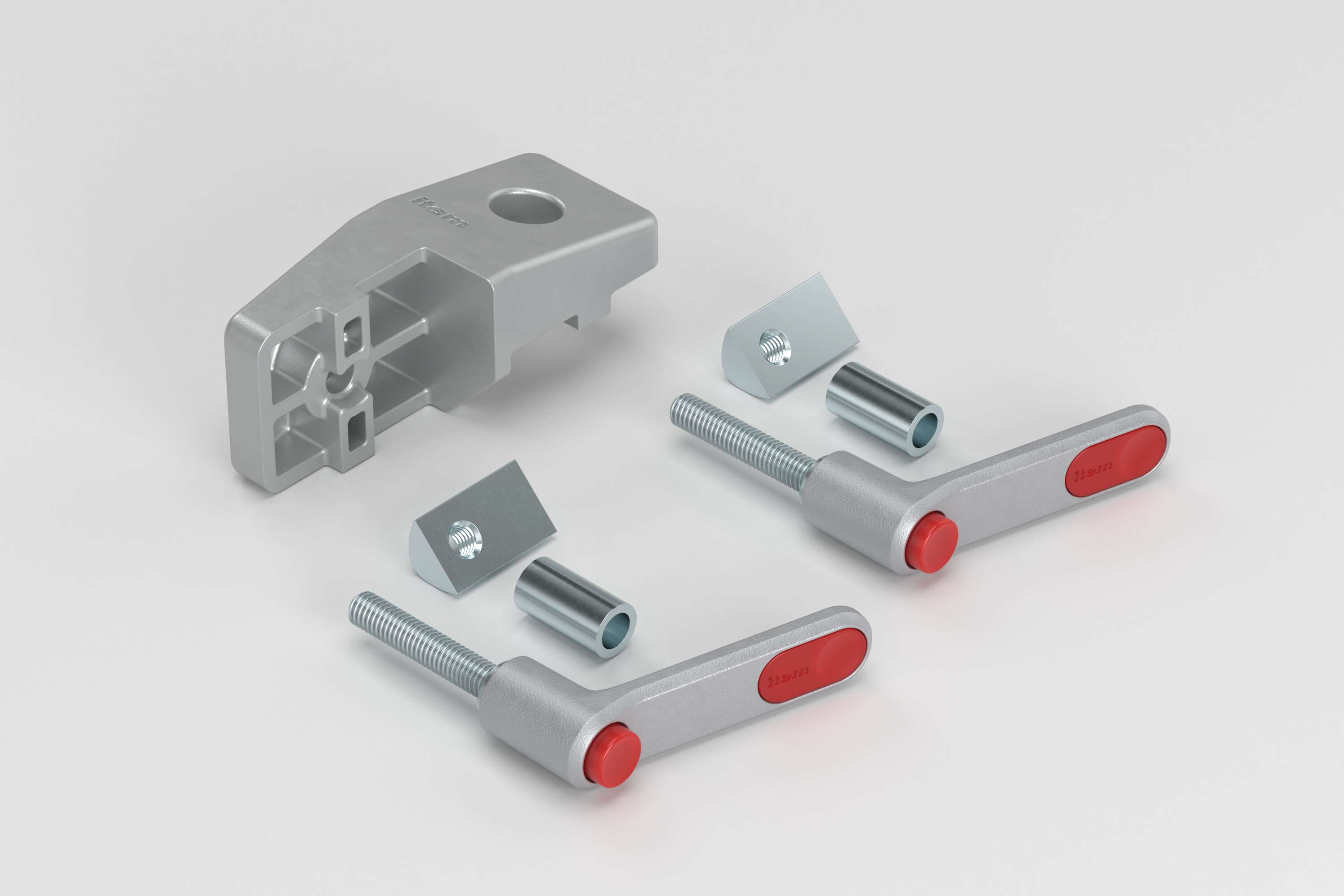

Scope of Delivery

1 Transverse Fastener 8, left, GD-Al
2 T-Slot Nuts 8 St M6, bright zinc-plated
2 Clamp Levers Pi 50 M6x32, St
2 spacer sleeves D9.5/6.4-18, St

Properties

TorqueM = 7 Nm
Lineline 8
ESD-safeNo
Weightm = 175 g
Delivery unit1 set
Colourwhite aluminium, similar to RAL 9006
cleanroom suitabilityNo

Description

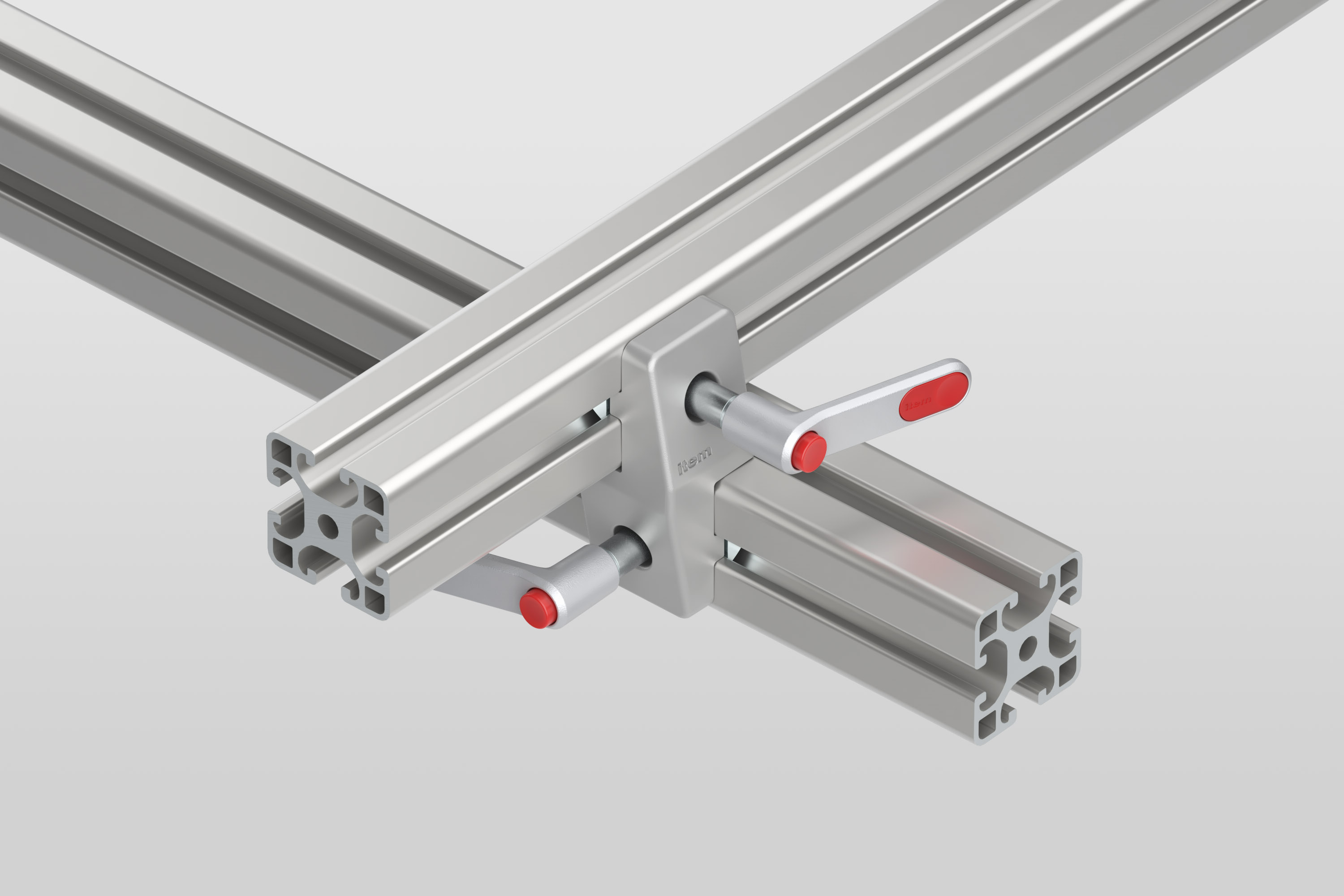

Transverse-Fastening Set 8 with Clamp Lever, left from item connects two Line 8 profiles at a 90° angle to each other to create a connection that is highly resistant to displacement, traction and torsion.
For rapid installation, the Transverse Fastener is screwed to the profile groove using the two clamp levers – no machining required – to create a doubly torsion-resistant connection. The “right” and “left” versions give you the option to choose which profile grooves to use.
Transverse Fasteners 8 from item make it easier to precisely align profiles that cross each other. The screws or clamp levers can be loosened separately, allowing you to align one profile while leaving the other firmly connected. The fasteners keep the two profiles apart so they don’t come into contact with each other while being adjusted and therefore won’t get scratched.
Transverse Fasteners 8 are available in mirror-image “right” and “left” designs. Starting from a horizontal profile, the fastening arm that is fixed to the crossing profile is located on either the right or left side.
Thanks to this mirror-image geometry, two Transverse Fasteners 8 can be installed next to each other on a Profile 8 40x40 to further increase load-carrying capacity.

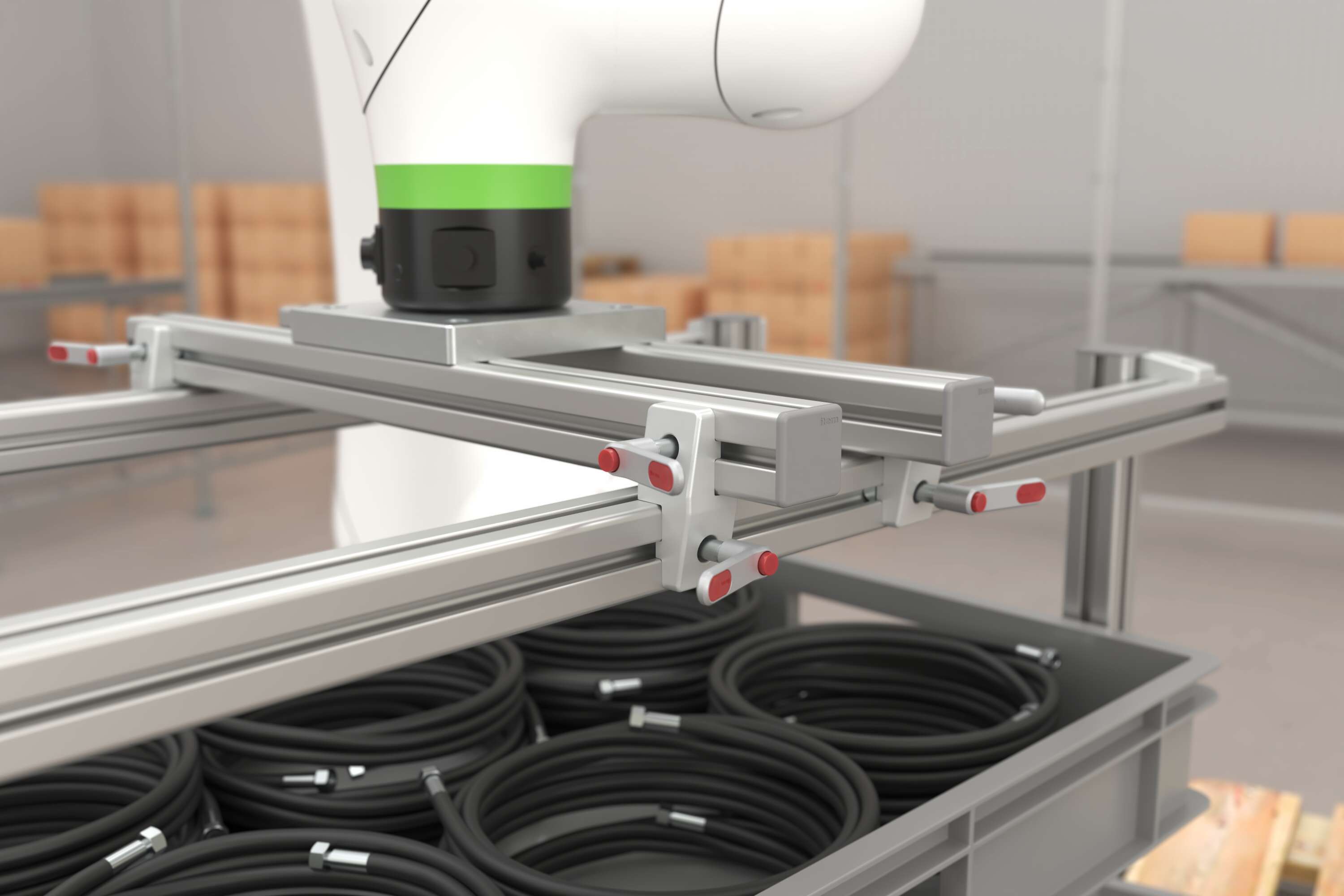

Transverse-Fastening Sets 8 are ideal for applications where adjustments need to be made on a frequent basis, for instance when bespoke end-of-arm tooling is being used with workpieces that are changed often.
Transverse Fastening Sets are also available with screws and clamp levers. Clamp levers provide a particularly fast and tool-free means of adjusting struts in frames.

Downloads

CAD Data

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
UNSPSC 9.0
31161601
UNSPSC 7.0
31161601
UNSPSC 26.0
31161601
eCl@ss 8.0
23360290
eCl@ss 11.0
23360290
eCl@ss 4.1
22041424
eCl@ss 5.1
23250311
eCl@ss 6.0.1
23250311
eCl@ss 5.0
23250311
eCl@ss 4.0
22041424
eCl@ss 7.1
23360290
Customs tariff number
76169910
