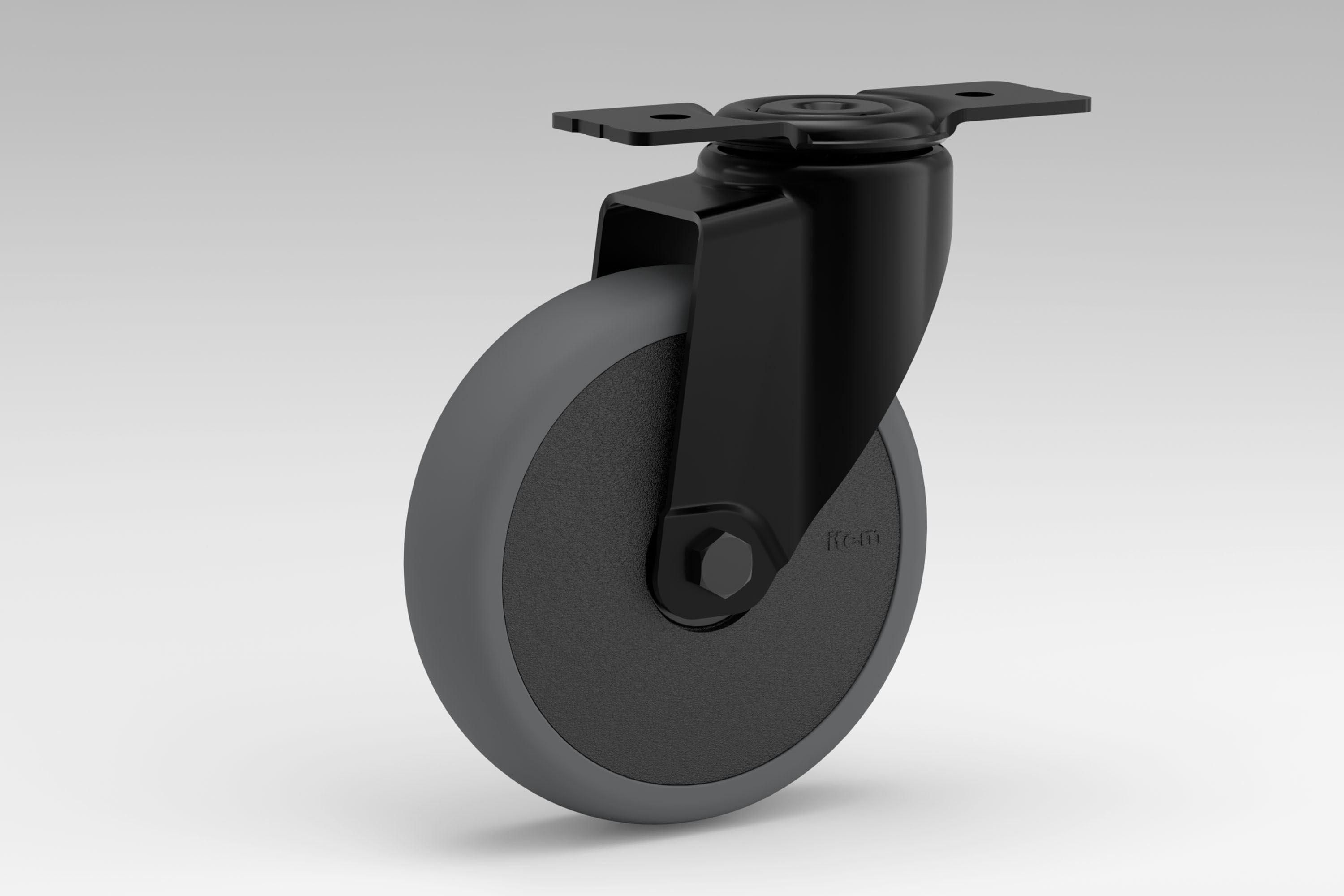

Swivel castor 120x40


Selected variant
Castor D125 swivel 120x40 (0.0.633.46)
Castor D125 swivel 120x40
0.0.633.46
Show all

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Scope of Delivery

1 Steel sheet casing bright zinc-plated, black
1 Swivelling axis with sealed ball bearing
1 Wheel axis with sealed ball bearing
1 Dust shield
1 Tyre TPE, track-free, 80 Sh A, grey

Properties

Article number0.0.633.46
Lineline 10
Lineline 12
Lineline 8
ESD-safeNo
Weightm = 704 g
Delivery unit1 pce.
Load-carrying capacity100 kg/Castor

Description

This version of Castor D125 swivel incorporates a connecting plate as standard. These swivel castors can be secured in place without the need for additional base plates or transport plates. The three holes in the modular dimension of 40 mm make it easy to screw the castors to the core bore of Profiles 8 or various profile grooves (particularly recommended for frames built using Line 8 and 10 profiles).
The swivel castor with connecting plate is the same height as a swivel castor with fixing holes. As a result, it can be combined with fixed castors of the same castor size.
All the designs are also available in antistatic/electrostatically dissipative versions for ESD applications.
Carrying capacity 100 kg/castor

Variants

Sort by

Load capacity (roll):  80 kgRoll diameter:  100 mmBrake:  NoneESD-safe:  X
Load capacity (roll):  80 kgRoll diameter:  100 mmBrake:  NoneESD-safe:
Load capacity (roll):  80 kgRoll diameter:  100 mmBrake:  DoubleESD-safe:  X
Load capacity (roll):  80 kgRoll diameter:  100 mmBrake:  DoubleESD-safe:
Load capacity (roll):  100 kgRoll diameter:  125 mmBrake:  NoneESD-safe:  X
Load capacity (roll):  100 kgRoll diameter:  125 mmBrake:  NoneESD-safe:
Load capacity (roll):  100 kgRoll diameter:  125 mmBrake:  DoubleESD-safe:  X
Load capacity (roll):  100 kgRoll diameter:  125 mmBrake:  DoubleESD-safe:

Downloads

CAD Data

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 8.0
23370590
eCl@ss 11.0
23370590
eCl@ss 7.1
23370590
eCl@ss 6.0.1
23370201
eCl@ss 4.0
22041431
eCl@ss 4.1
22041431
eCl@ss 5.0
23250319
eCl@ss 5.1
23250319
UNSPSC 9.0
31162701
UNSPSC 7.0
31162701
Customs tariff number
83022000
