Double Profile Tube

Selected variant
Double Profile Tube 8 D30-32.5, natural (0.0.728.08)
Double Profile Tube 8 D30-32.5, natural
0.0.728.08
Show all
* Mandatory information
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
Components with this symbol meet the requirements of IEC 61340-5-1 and are therefore suitable for use in EPAs (electrostatic protected areas). By complying with the further stipulations of this standard you can use these products to create a safe environment for handling electronic components.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Properties

Article number0.0.728.08
LineLine D30
Lineline 8
ESD-safeYes
Cross-sectional areaA = 4,51 cm2
Moment of Inertia, x-axisIx = 15,15 cm4
Moment of Inertia, y-axisIy = 3,12 cm4
Weightm = 1,22 kg/m
Delivery unitcut-off max. 6000 mm
MaterialAl, anodized
Colournatural
Resistance Moment, x-axisWx = 5,67 cm3
Resistance Moment, y-axisWy = 2,36 cm3

Description

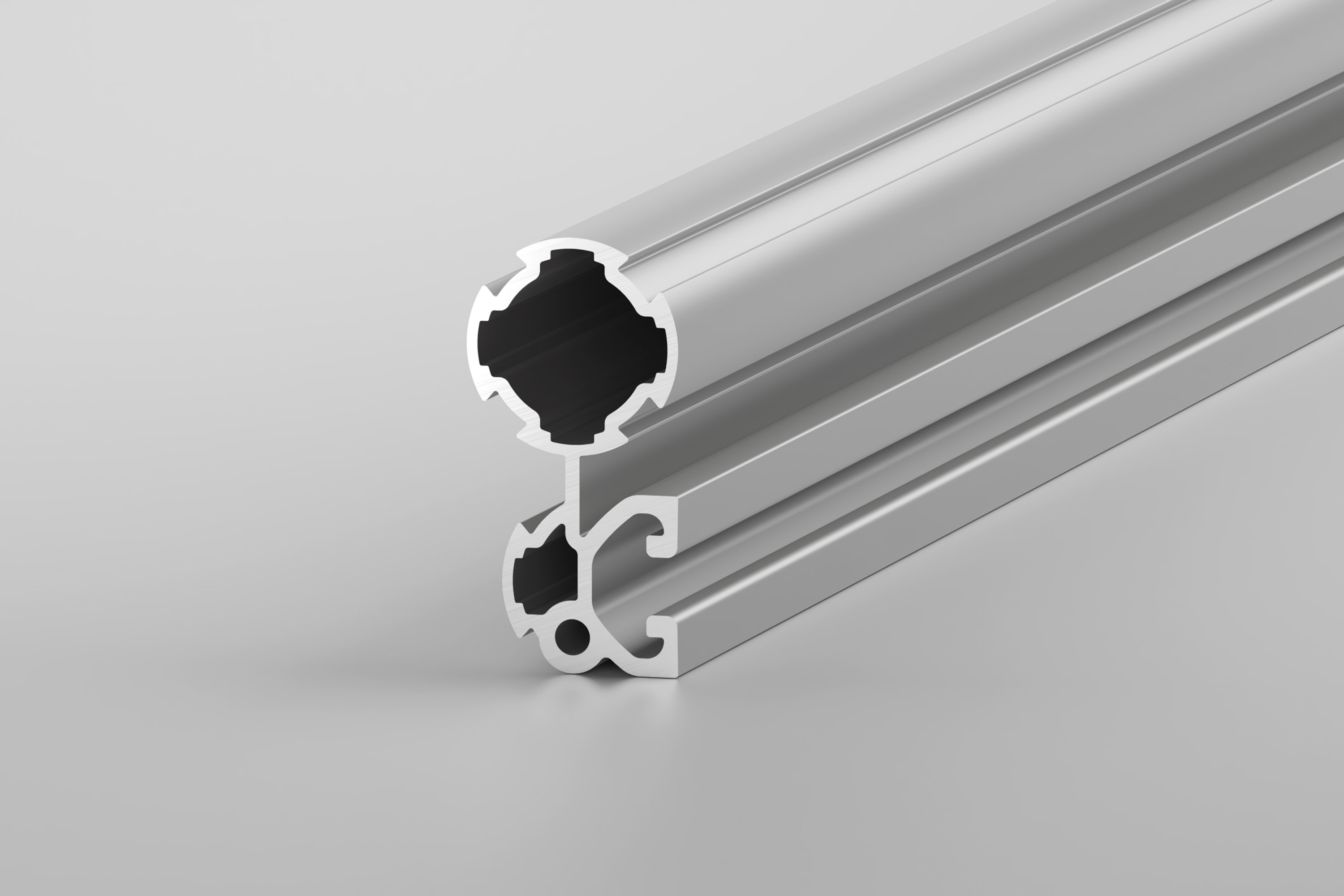

Double Profile Tube 8 D30-32.5 consists of a Profile Tube D30 and a Profile 8 D30 that are joined by a continuous aluminium web to create a high-strength double profile.
This rigid double profile allows you to create wider spans between two vertical profiles while keeping deflection lower than when using two Profile Tubes that aren’t joined together. It also doesn’t take up any additional installation space in terms of depth.
The Double Profile Tube has one Line 8 groove and four profile flanks from the Lean Production Building Kit System. This makes it easier to construct hybrid applications with elements from both product lines.

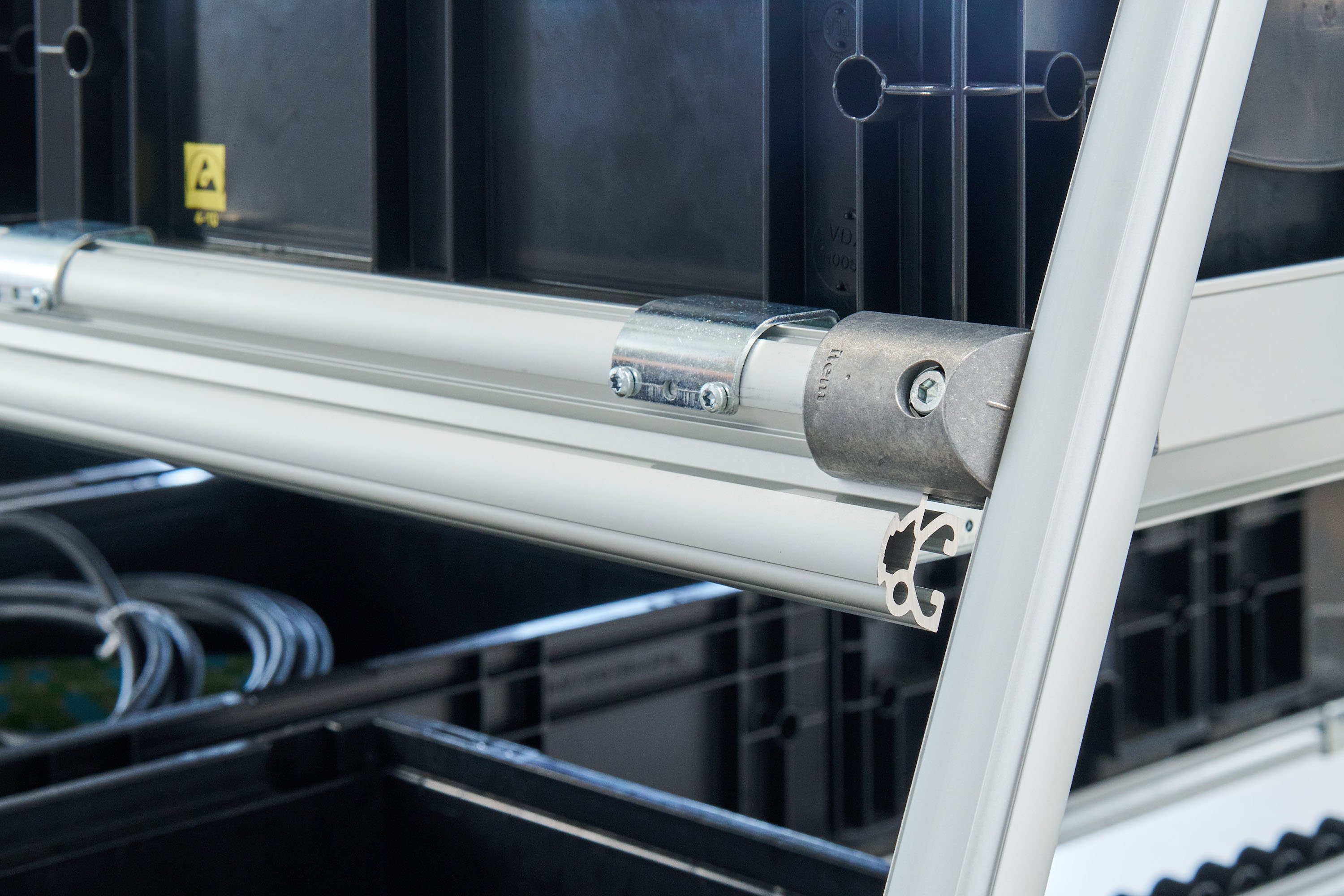

Double Profile Tube 8 D30-32.5 is suitable for use as a horizontal beam in racks. It can be installed with either the Line 8 groove or the D30 profile contour facing out. This means you can utilise the entire accessories portfolio of both product lines and everything from cable conduits to magnetic holders.

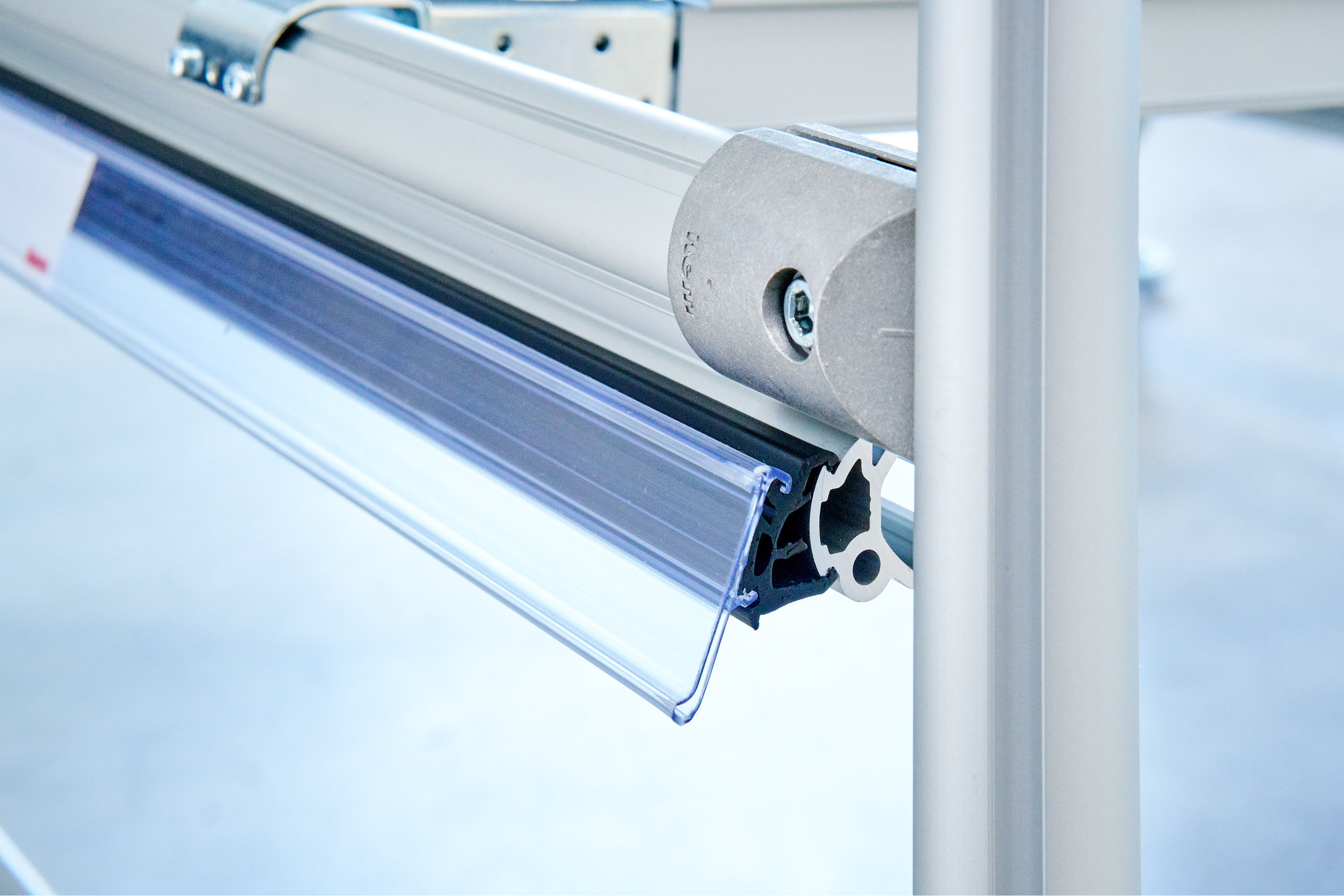

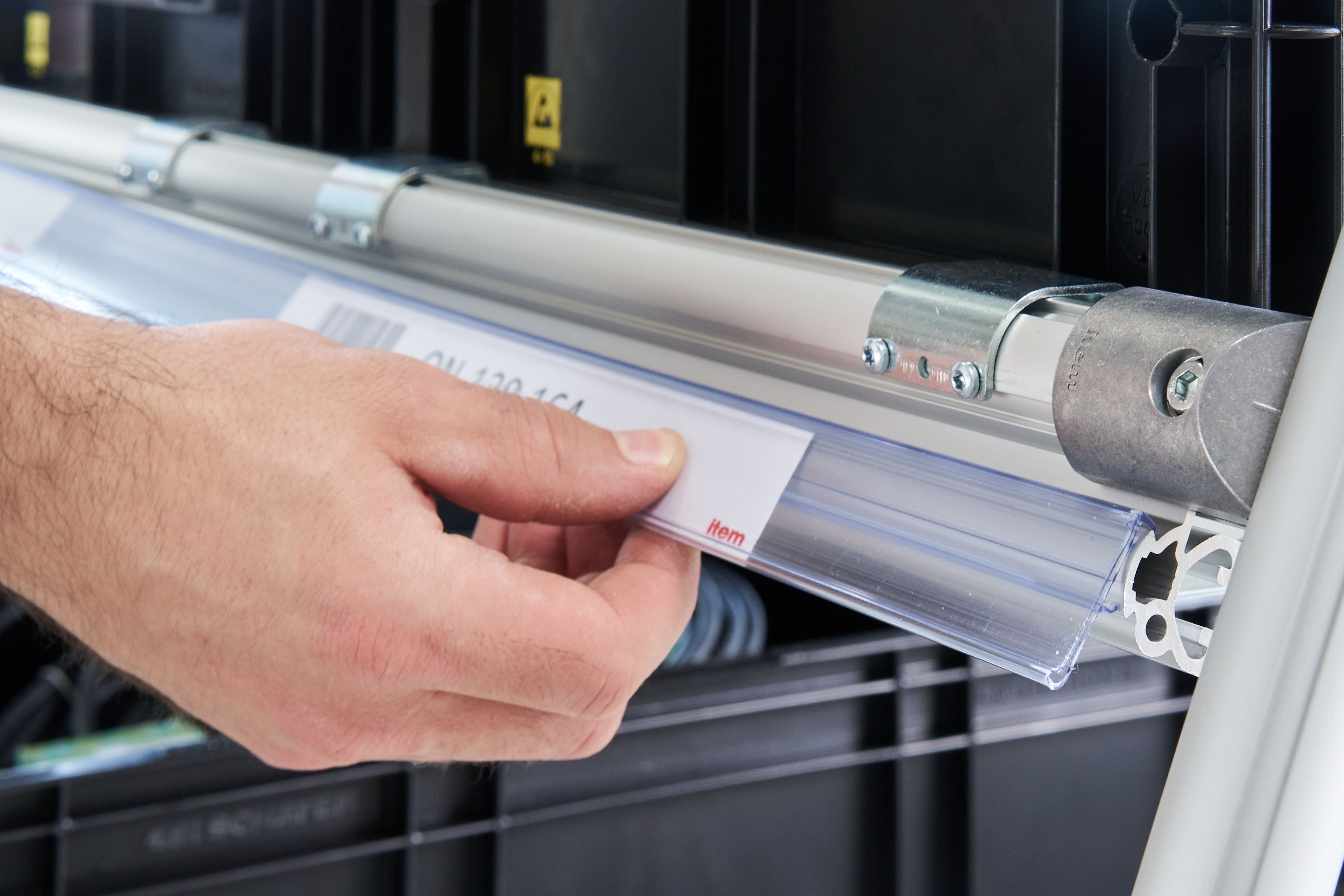

For example, Label Profile D30 e (0.0.690.26) can be attached to the profile flank so that roller conveyors or storage places can be clearly identified. To ensure excellent readability, Fastening Profile D30 0-20° e ESD (0.0.691.79) ensures that labels are displayed at an angle of up to 20°.

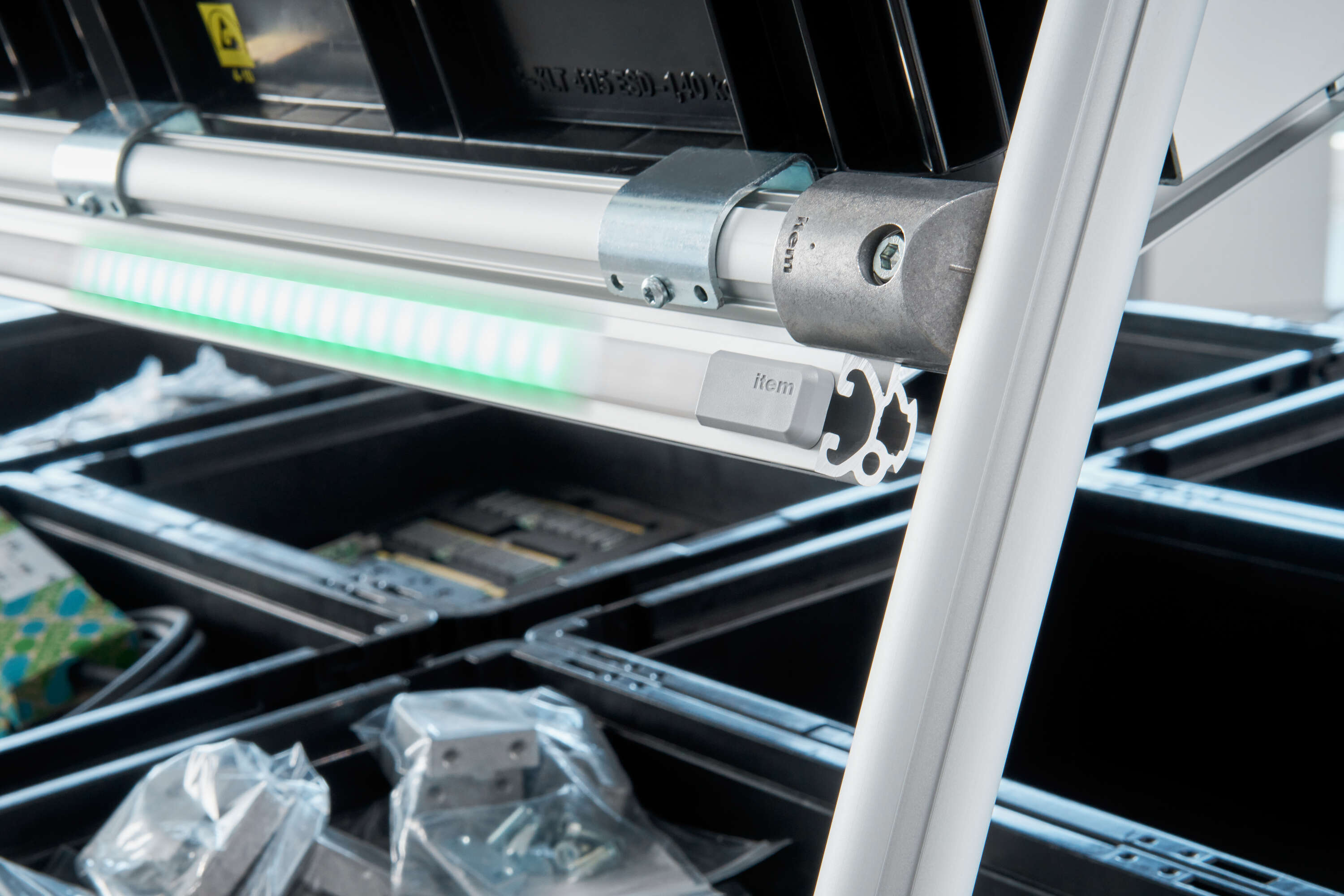

The Line 8 groove of the double profile means that LED Strips or sensors can be installed where needed on a frame made of Profile Tubes D30, without having to fit adapters.
Depending on how the Double Profile Tubes are oriented in your frame, you will have to use either Fastener D30 T1 (0.0.687.84) or Fastener D30 T2 (0.0.728.51). On Fastener D30 T1, the notch for the connecting web is located between the two halves of the fastener, while the notch on Fastener D30 T2 is located in one of the fastener halves.
When the web is parallel to the Profile Tube D30 to which the double profile is being fastened, use Fastener D30 T1. When the web is at a right angle to the Profile Tube D30, use Fastener D30 T2.

Assembly Instructions

Variants

Sort by

Double Profile Tube D30-60, natural

Double Profile Tube D30-60, natural

0.0.682.60
Delivery unit:  Cut-offLength:  20 ... 6000Second line:  None
Double Profile Tube D30-60, natural

Double Profile Tube D30-60, natural

0.0.681.55
Delivery unit:  PieceLength:  6000 Second line:  None
Double Profile Tube 8 D30-32.5, natural

Double Profile Tube 8 D30-32.5, natural

0.0.728.08
Delivery unit:  Cut-offLength:  20 ... 6000Second line:  8
Double Profile Tube 8 D30-32.5, natural

Double Profile Tube 8 D30-32.5, natural

0.0.728.09
Delivery unit:  PieceLength:  3000 Second line:  8
Double Profile Tube 8 D30-32.5, natural

Double Profile Tube 8 D30-32.5, natural

0.0.728.07
Delivery unit:  PieceLength:  6000 Second line:  8

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 8.0
23360101
eCl@ss 7.1
23360101
eCl@ss 11.0
23360101
eCl@ss 4.1
35020106
eCl@ss 5.0
35020190
eCl@ss 5.1
35020190
eCl@ss 6.0.1
23360101
eCl@ss 4.0
35020106
UNSPSC 9.0
30102306
UNSPSC 7.0
30102306
Customs tariff number
76042100
