Drive Pulley Set M

Selected variant
Drive Pulley Set, Timing Belt Conveyor 8 40 M -80 (0.0.726.00)
Drive Pulley Set, Timing Belt Conveyor 8 40 M -80
0.0.726.00
Show all
Get CAD Data and Downloads

Technical Data

Components with this symbol meet the requirements of IEC 61340-5-1 and are therefore suitable for use in EPAs (electrostatic protected areas). By complying with the further stipulations of this standard you can use these products to create a safe environment for handling electronic components.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Scope of Delivery

1 single-part Drive Pulley, Timing Belt Conveyor 8 40-80, Al, St
2 Return Pulleys 8 40 D50-80, Al, St, NBR
2 covers 8 40 M -80, St, stainless
2 Profiles 6 30x30 cut-off l=90 mm, Al, anodized

Properties

Article number0.0.726.00
LineConveyors
ESD-safeYes
Weightm = 1,98 kg
Delivery unit1 set

Description

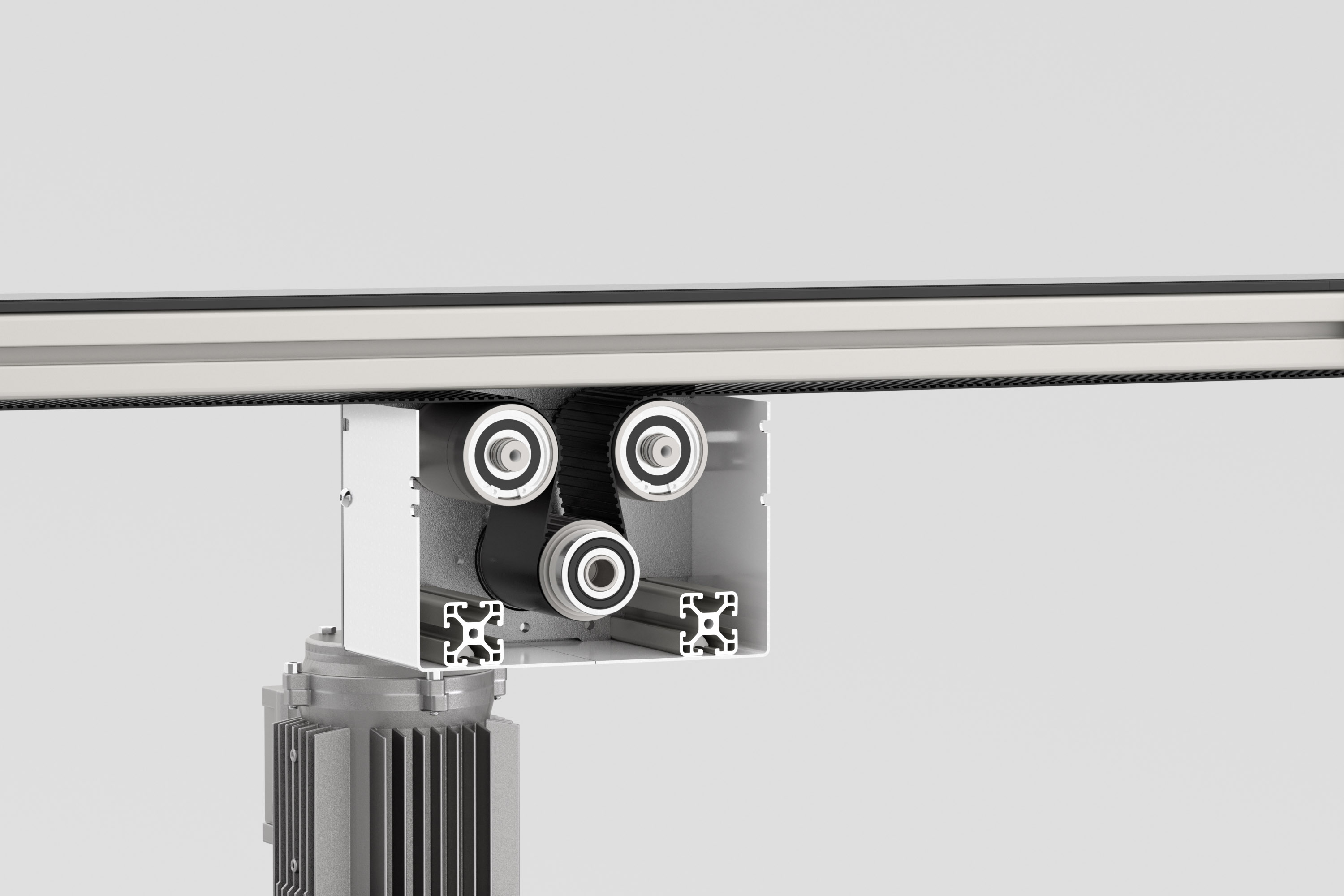

Drive Pulley Set, Timing Belt Conveyor 8 40 M -80 comprises the width-dependent drive components for a Timing Belt Conveyor that is in the modular width of 80 mm and has an item centre drive.

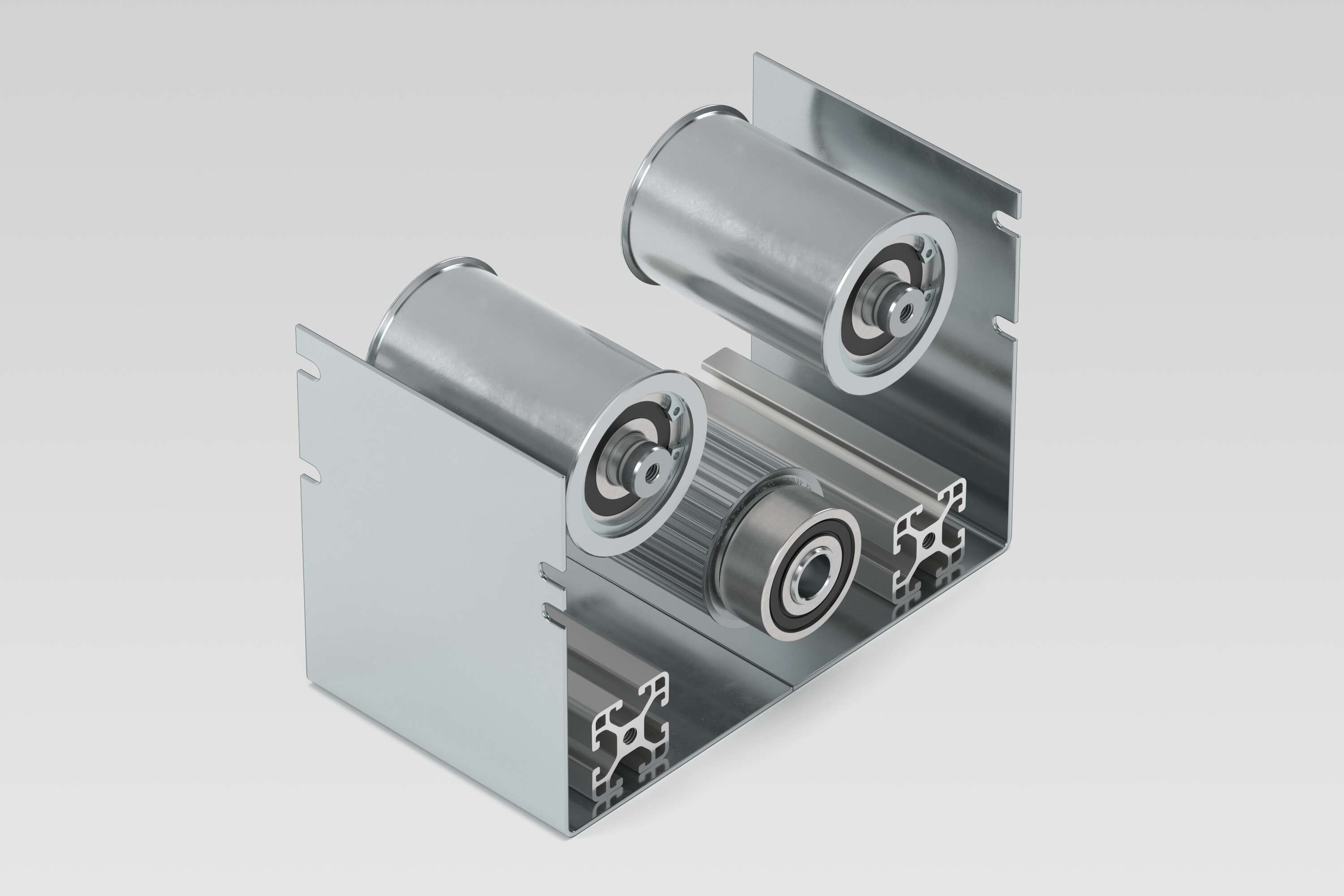

The set comprises the Drive Pulley with T5 tooth shape, two Return Pulleys, two covers 8 40 M and two profile cut-offs for extra rigidity. Drive Unit Set 8 40 M (0.0.725.72) acts as a bearing and fixing for the components. The necessary fixings are included with the Drive Unit Set.
Cover 8 M is made of stainless steel and provides reliable protection against entanglement by safely covering over entrapment points on the pulleys.
The recommended Timing Belt width is 72 mm.

Variants

Sort by

Antriebsrollensatz Gurtförderer 8 40 M -40

Antriebsrollensatz Gurtförderer 8 40 M -40

0.0.725.91
Fördertyp:  GurtfördererGesamtbreite:  40 mm
Antriebsrollensatz Gurtförderer 8 40 M -80

Antriebsrollensatz Gurtförderer 8 40 M -80

0.0.725.92
Fördertyp:  GurtfördererGesamtbreite:  80 mm
Antriebsrollensatz Gurtförderer 8 40 M -120

Antriebsrollensatz Gurtförderer 8 40 M -120

0.0.725.93
Fördertyp:  GurtfördererGesamtbreite:  120 mm
Antriebsrollensatz Gurtförderer 8 40 M -160

Antriebsrollensatz Gurtförderer 8 40 M -160

0.0.725.94
Fördertyp:  GurtfördererGesamtbreite:  160 mm
Antriebsrollensatz Gurtförderer 8 40 M -200

Antriebsrollensatz Gurtförderer 8 40 M -200

0.0.725.95
Fördertyp:  GurtfördererGesamtbreite:  200 mm
Antriebsrollensatz Gurtförderer 8 40 M -240

Antriebsrollensatz Gurtförderer 8 40 M -240

0.0.725.96
Fördertyp:  GurtfördererGesamtbreite:  240 mm
Antriebsrollensatz Gurtförderer 8 40 M -320

Antriebsrollensatz Gurtförderer 8 40 M -320

0.0.725.97
Fördertyp:  GurtfördererGesamtbreite:  320 mm
Antriebsrollensatz Gurtförderer 8 40 M -400

Antriebsrollensatz Gurtförderer 8 40 M -400

0.0.725.98
Fördertyp:  GurtfördererGesamtbreite:  400 mm
Antriebsrollensatz Zahnriemenförderer 8 40 M -40

Antriebsrollensatz Zahnriemenförderer 8 40 M -40

0.0.725.99
Fördertyp:  ZahnriemenfördererGesamtbreite:  40 mm
Antriebsrollensatz Zahnriemenförderer 8 40 M -80

Antriebsrollensatz Zahnriemenförderer 8 40 M -80

0.0.726.00
Fördertyp:  ZahnriemenfördererGesamtbreite:  80 mm

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 4.0
36121401
eCl@ss 4.1
36121401
eCl@ss 5.0
36120402
eCl@ss 5.1
36120402
eCl@ss 6.0.1
36120402
eCl@ss 7.1
36120402
eCl@ss 8.0
36120402
eCl@ss 11.0
36120402
UNSPSC 7.0
26111506
UNSPSC 9.0
26111506
Customs tariff number
84879090
