Corner Fastening Set

Selected variant
Fastening Set 8 40x40x40, black (0.0.416.08)
Fastening Set 8 40x40x40, black
0.0.416.08
Show all
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Scope of Delivery

1 Fastener 8 40x40, Die-cast zinc, black
1 Fastener Cap 8 40x40x40
3 Button-Head Screws ISO 7380-M8x20, St, bright zinc-pl.

Properties

Article number0.0.416.08
Lineline 8
ESD-safeNo
Weightm = 136 g
Delivery unit1 set
Colourblack

Description

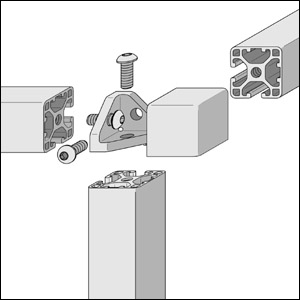

Fastening Sets can be used to construct a corner unit with three profiles or one corner angle with two profiles, ensuring a continuous profile geometry.
Fastening Sets are ideal for constructing attractive display cases, tables, cover hoods etc.
The profiles must be provided with threads in the core bores.
