GST18-5 Connector (0.0.732.14)
GST18-5 Connector
0.0.732.14
Show all
Get CAD Data and Downloads

Technical Data

All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Properties

Article number0.0.732.14
ESD-safeNo
Weightm = 31 g
Delivery unit1 pce.

Description

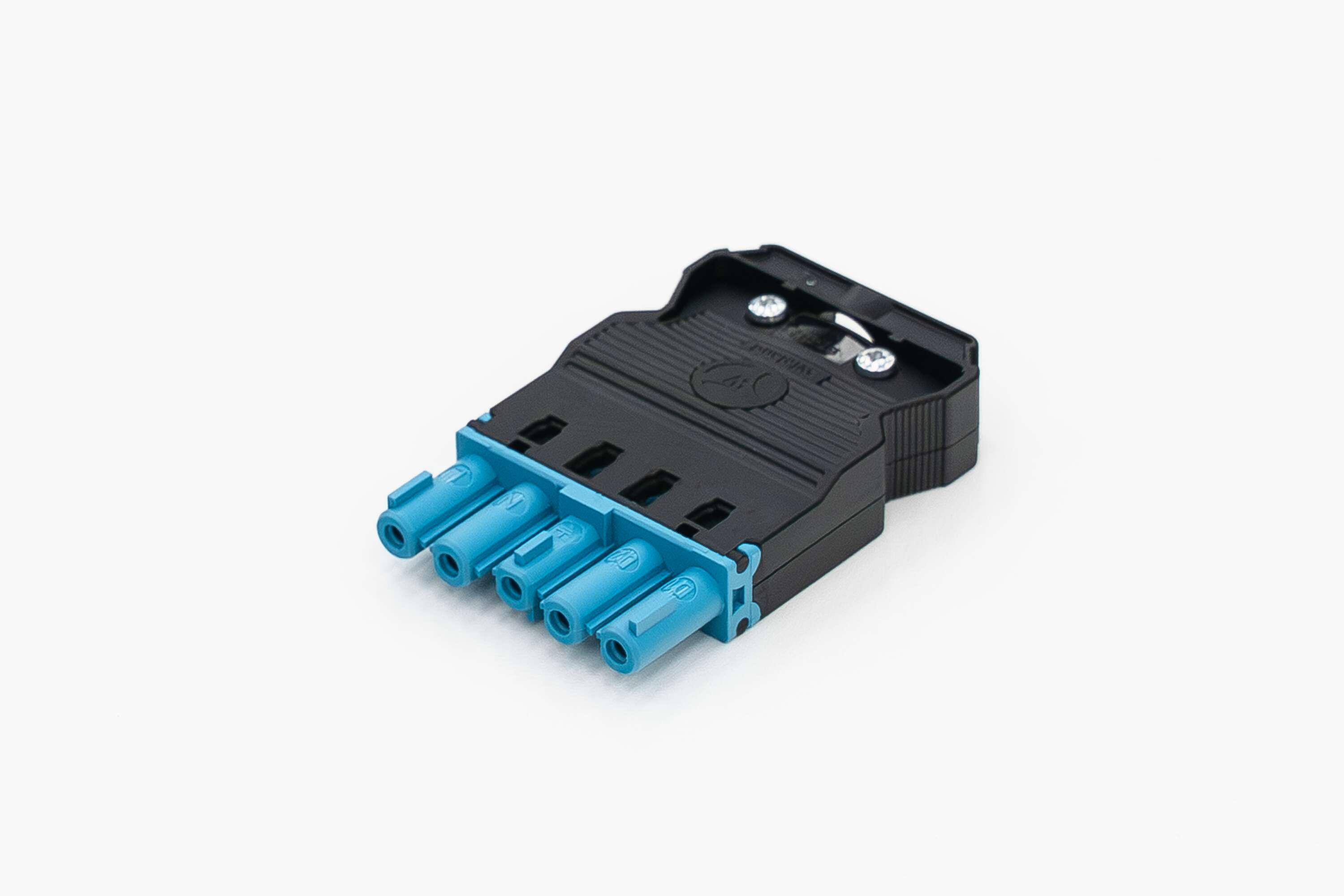

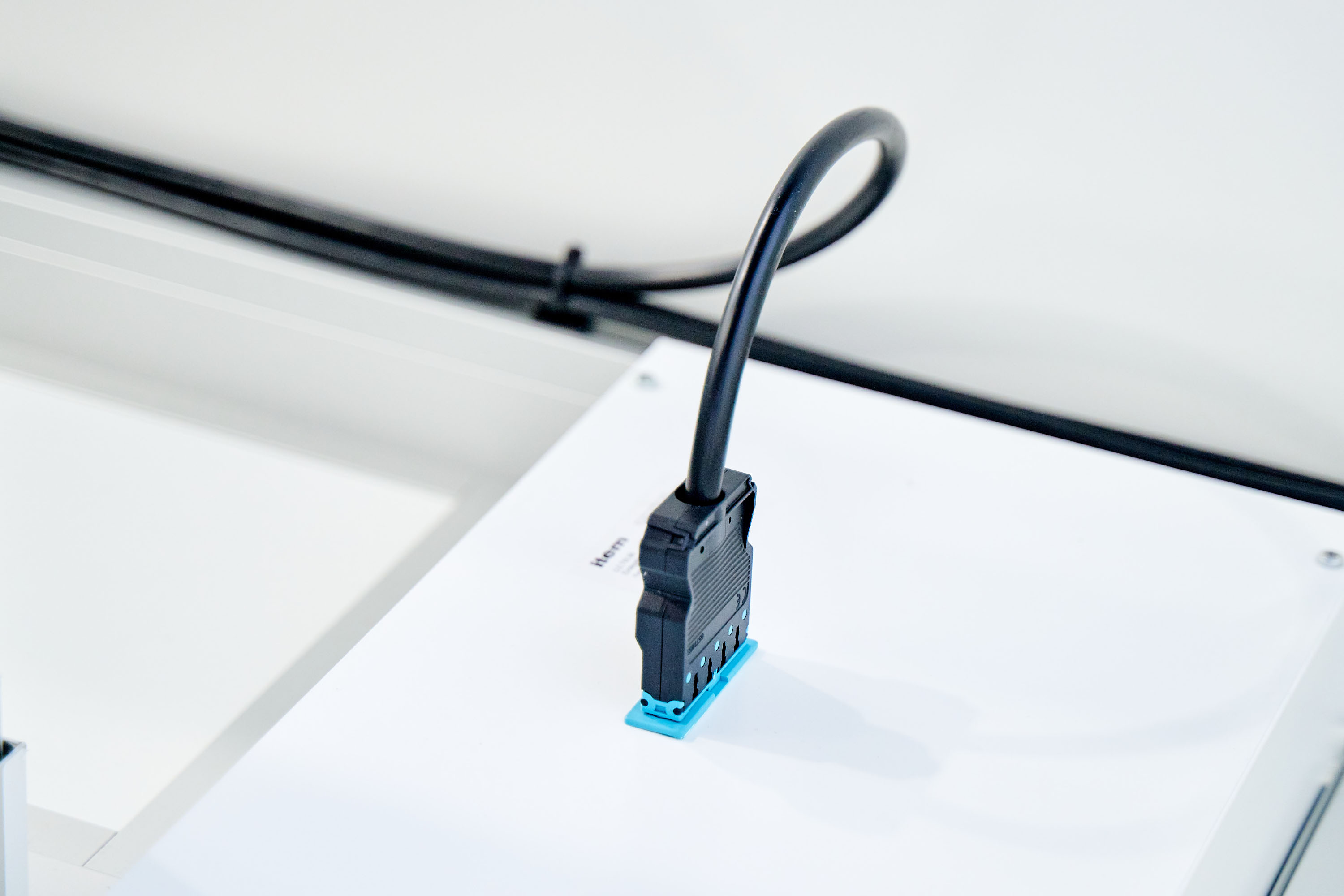

GST18-5 Connector is a 5-pin female connector with neutral and protective earth conductors. The female connector can be used, for example, to control an LED light fitting with a GST18-5 male connector and connect it to the power grid.
The screw fixing with integrated strain relief for the cable ensures installation can be carried out quickly and securely. In the GST18-5 system, the male and female connectors are automatically joined in the correct orientation.

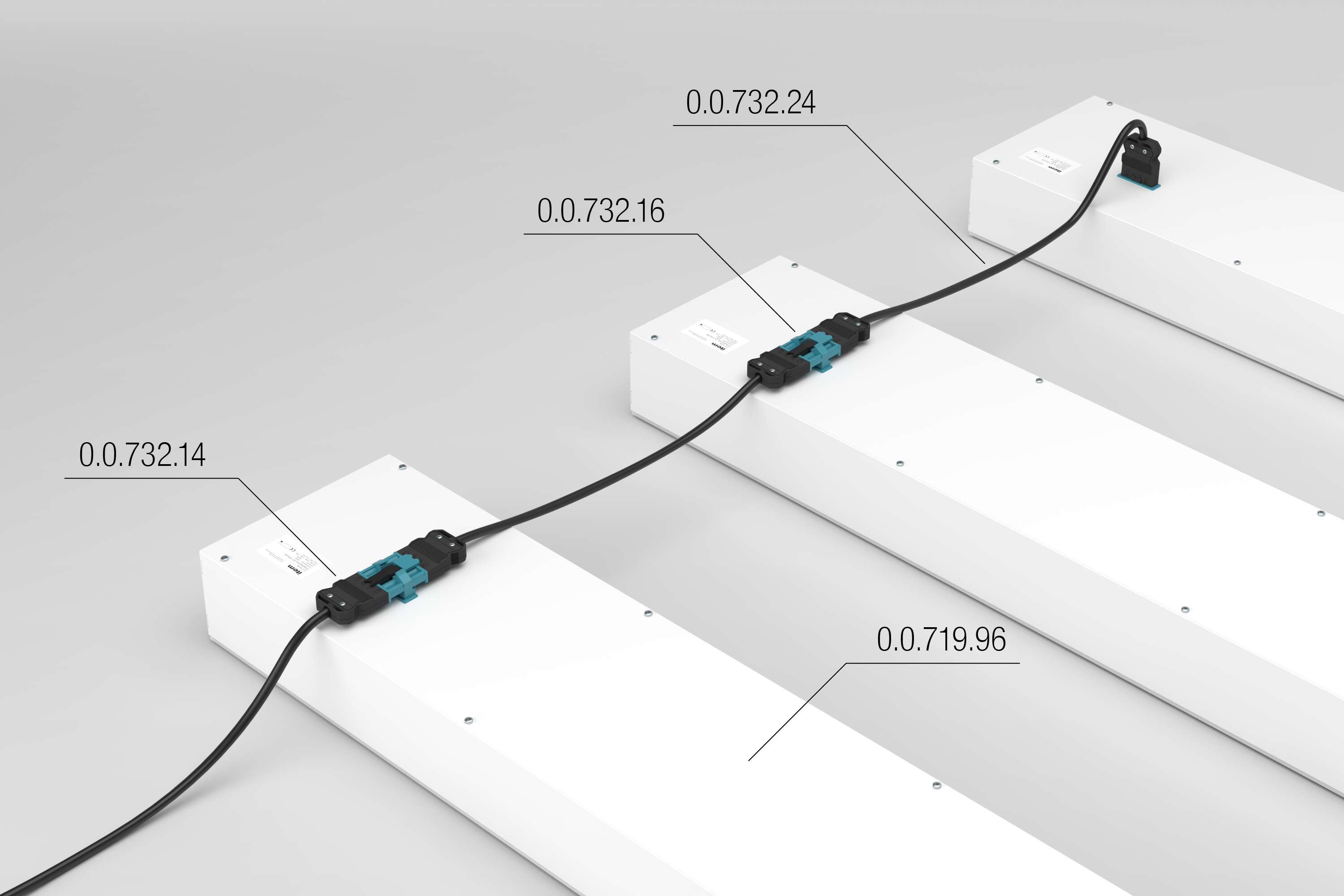

The GST18-5 system can be used to link a power supply and operating element to several devices via a cascading connection. To create a parallel connection between all the LED light fittings in a ceiling, connect the power cable and pushbutton to a GST18-5 Connector (0.0.732.14).

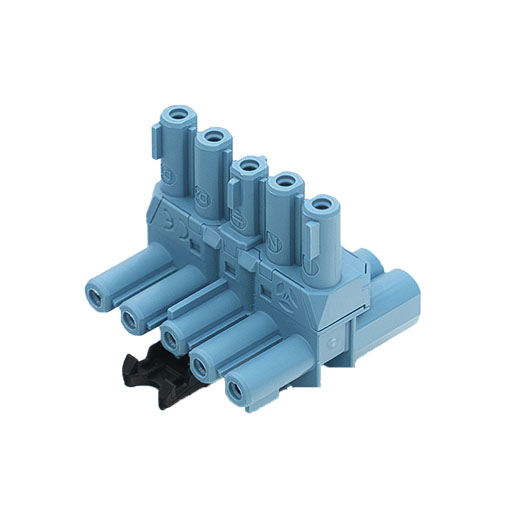

Use GST18-5 Extension Cable, Socket/Plug, 3m (0.0.732.24) and GST18-5 T-Splitter (0.0.732.16) to supply power to the first LED unit and to the device connection of the next light fitting.

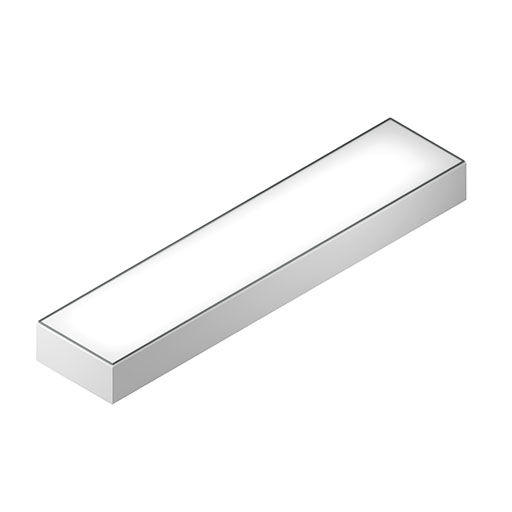

Up to 30 Drop-In Light Fittings LED 1200x300 (0.0.716.96) can be switched in parallel.

Assembly Instructions

Variants

Sort by

Socket, Spring-Force Connected, black

Socket, Spring-Force Connected, black

0.0.417.44
Application:  Female connector
Adapter, Socket / Plug, black

Adapter, Socket / Plug, black

0.0.417.45
Application:  Adapter
Plug, Spring-Force Connected, black

Plug, Spring-Force Connected, black

0.0.417.59
Application:  Male connector
GST18-5 Connector

GST18-5 Connector

0.0.732.14
Application:  Female connector

Downloads

CAD Data

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 11.0
27110392
eCl@ss 8.0
27110303
eCl@ss 6.0.1
27110303
eCl@ss 5.0
27110303
eCl@ss 4.0
27110303
eCl@ss 4.1
27110303
eCl@ss 5.1
27110303
UNSPSC 9.0
56111901
eCl@ss 7.1
27110303
UNSPSC 7.0
56111901
Customs tariff number
85366990
