Tool Holder

Selected variant
Tool Holder 8, black similar to RAL 9005 (0.0.474.50)
Tool Holder 8, black similar to RAL 9005
0.0.474.50
Show all
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
Work Bench System
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Scope of Delivery

10 loops, PA-GF
10 compression springs, St
2 Hammerhead Nuts 8 M6, St, bright zinc-plated
2 grub screws DIN 916 M6x12, St, bright zinc-plated

Properties

Article number0.0.474.50
LineWork Bench System
Lineline 8
ESD-safeNo
Weightm = 57 g
Delivery unit1 set
Colourblack similar to RAL 9005

Description

Tool Holder 8 can be fitted at any point in the groove of Profiles 8. Its spring-loaded elements made of flexible plastic enclose any inserted tools and pencils and hold them securely. The Tool Holder can be extended at will by simply adding further elements. The clamping force of the Tool Holder can also be varied by choosing the appropriate pre-tensioning.
Installation sequence:
1. Insert loop into groove
2. Turn 90°
3. Insert spring into groove
4. Use Hammerhead Nut 8 M6 and grub screw DIN 916 M6x12 to secure Tool Holder in groove

Variants

Sort by

Tool Holder 8, grey similar to RAL 7042

Tool Holder 8, grey similar to RAL 7042

0.0.691.59
Design:  Multipurpose holderHolder for::  UniversalColour:  Grey GreyDiameter:  30ESD-safe:  X
Tool Holder 8, black similar to RAL 9005

Tool Holder 8, black similar to RAL 9005

0.0.474.50
Design:  Multipurpose holderHolder for::  UniversalColour:  Black BlackDiameter:  30ESD-safe:  X
Spanner Holder 8, grey similar to RAL 7042

Spanner Holder 8, grey similar to RAL 7042

0.0.684.55
Design:  SpannerHolder for::  SpannerColour:  Grey GreyDiameter:  0ESD-safe:  X
Spanner Holder 8, black similar to RAL 9005

Spanner Holder 8, black similar to RAL 9005

0.0.683.64
Design:  SpannerHolder for::  SpannerColour:  Black BlackDiameter:  0ESD-safe:  X
Pen Holder 8, grey similar to RAL 7042

Pen Holder 8, grey similar to RAL 7042

0.0.683.27
Design:  PenHolder for::  PenColour:  Grey GreyDiameter:  0ESD-safe:  X
Pen Holder 8, black similar to RAL 9005

Pen Holder 8, black similar to RAL 9005

0.0.684.42
Design:  PenHolder for::  PenColour:  Black BlackDiameter:  0ESD-safe:  X
Screwdriver Holder 8 D12,5-D25, grey similar to RAL 7042

Screwdriver Holder 8 D12,5-D25, grey similar to RAL 7042

0.0.683.26
Design:  Screwdriver, smallHolder for::  Screwdriver, smallColour:  Grey GreyDiameter:  12.5ESD-safe:  X
Screwdriver Holder 8 D12,5-D25, black similar to RAL 9005

Screwdriver Holder 8 D12,5-D25, black similar to RAL 9005

0.0.684.41
Design:  Screwdriver, smallHolder for::  Screwdriver, smallColour:  Black BlackDiameter:  12.5ESD-safe:  X
Screwdriver Holder 8 D20-D44, grey similar to RAL 7042

Screwdriver Holder 8 D20-D44, grey similar to RAL 7042

0.0.690.24
Design:  Screwdriver, largeHolder for::  Screwdriver, largeColour:  Grey GreyDiameter:  20ESD-safe:  X
Screwdriver Holder 8 D20-D44, black similar to RAL 9005

Screwdriver Holder 8 D20-D44, black similar to RAL 9005

0.0.689.42
Design:  Screwdriver, largeHolder for::  Screwdriver, largeColour:  Black BlackDiameter:  20ESD-safe:  X
Cordless Driver Holder 8, grey similar to RAL 7042

Cordless Driver Holder 8, grey similar to RAL 7042

0.0.690.11
Design:  Cordless driverHolder for::  Cordless driverColour:  Grey GreyDiameter:  44ESD-safe:  X
Cordless Driver Holder 8, black similar to RAL 9005

Cordless Driver Holder 8, black similar to RAL 9005

0.0.689.62
Design:  Cordless driverHolder for::  Cordless driverColour:  Black BlackDiameter:  44ESD-safe:  X
Pliers Holder 8 60x30, grey similar to RAL 7042

Pliers Holder 8 60x30, grey similar to RAL 7042

0.0.683.93
Design:  PliersHolder for::  PliersColour:  Grey GreyDiameter:  0ESD-safe:  X
Pliers Holder 8 60x30, black similar to RAL 9005

Pliers Holder 8 60x30, black similar to RAL 9005

0.0.683.94
Design:  PliersHolder for::  PliersColour:  Black BlackDiameter:  0ESD-safe:  X
Tool Holder D120 ESD, black similar to RAL 9005

Tool Holder D120 ESD, black similar to RAL 9005

0.0.706.94
Design:  Tool HolderHolder for::  UniversalColour:  Black BlackDiameter:  120ESD-safe:  ✓

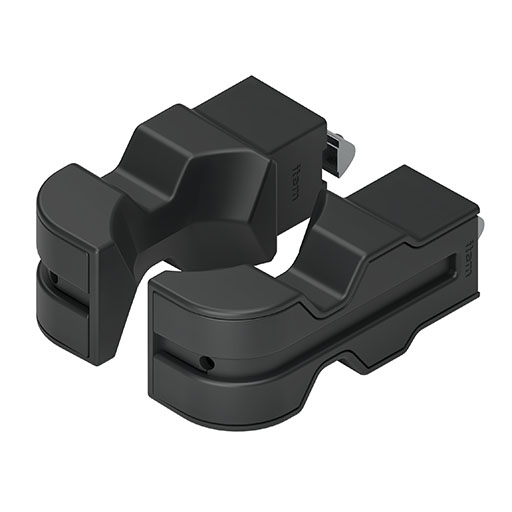

Universal Tool Holder 8 HD, black similar to RAL 9005

Universal Tool Holder 8 HD, black similar to RAL 9005

0.0.728.62
Design:  Universal HolderHolder for::  UniversalColour:  Black BlackDiameter:  0ESD-safe:  X

Downloads

CAD Data

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 8.0
15030201
eCl@ss 11.0
15030201
eCl@ss 4.0
21020901
eCl@ss 4.1
21029801
eCl@ss 5.0
21029890
eCl@ss 5.1
21029890
eCl@ss 6.0.1
21029890
UNSPSC 9.0
56111902
eCl@ss 7.1
15030201
UNSPSC 7.0
56111902
Customs tariff number
39269097
