Multiblock 8 Zn ESD (0.0.720.63)
Multiblock 8 Zn ESD
0.0.720.63
Show all
Get CAD Data and Downloads

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.
Components with this symbol meet the requirements of IEC 61340-5-1 and are therefore suitable for use in EPAs (electrostatic protected areas). By complying with the further stipulations of this standard you can use these products to create a safe environment for handling electronic components.
All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Scope of Delivery

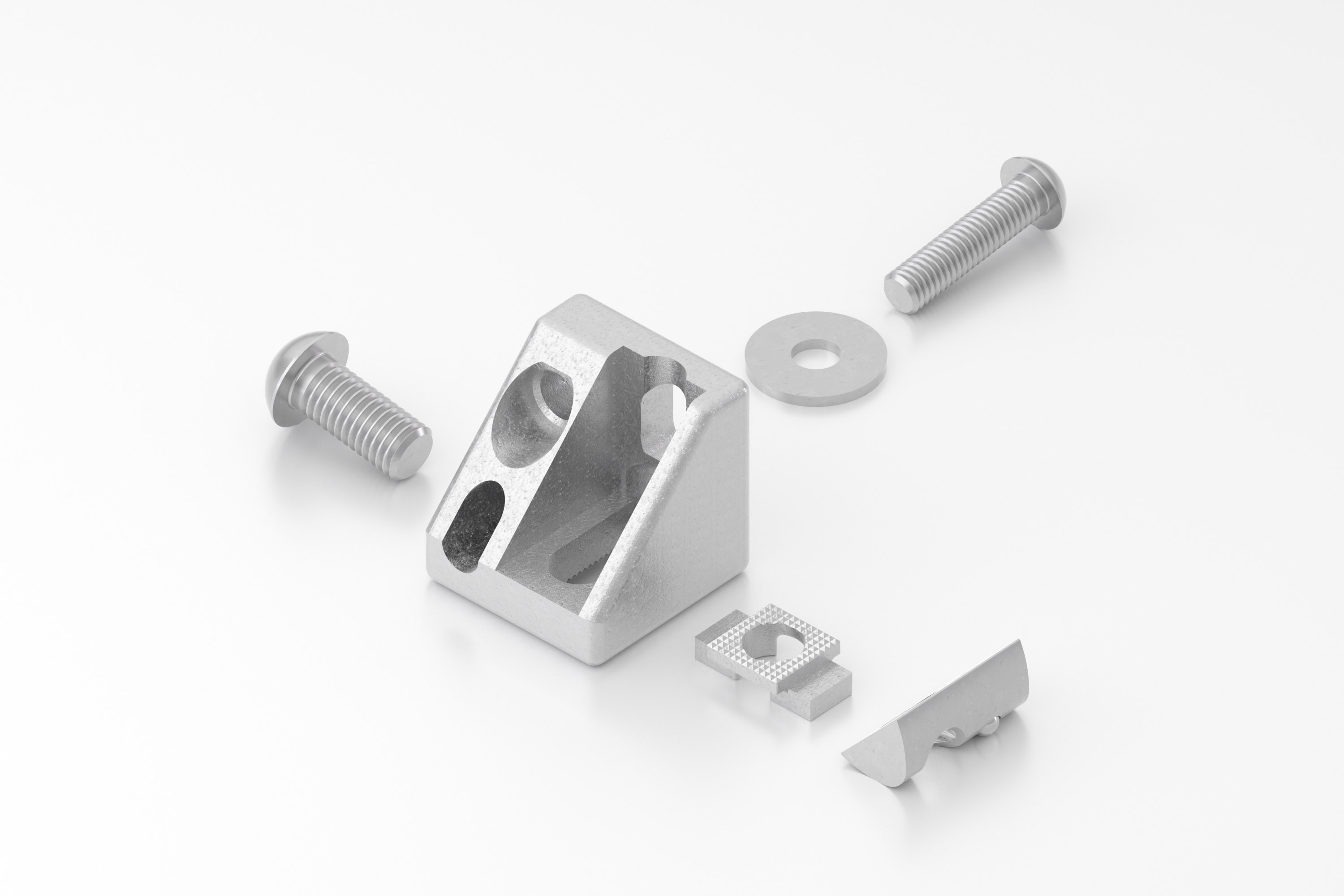

1 Multiblock 8 Zn, basic unit ESD, die-cast zinc, bright zinc-plated
1 Multiblock 8 Zn, locating lug ESD, die-cast zinc, bright zinc-plated
1 square nut DIN 557-M6-5, St, bright zinc-plated
1 leaf spring, St, stainless
1 T-Slot Nut 8 St M8, bright zinc-plated
1 Button-Head Screw ISO 7380 M6x25, bright zinc-plated
1 Button-Head Screw ISO 7380 M8x18, bright zinc-plated
1 washer ISO 7093-1-6-200 HV, bright zinc-plated

Properties

Article number0.0.720.63
Lineline 8
ESD-safeYes
Weightm = 93 g
Delivery unit1 set

Description

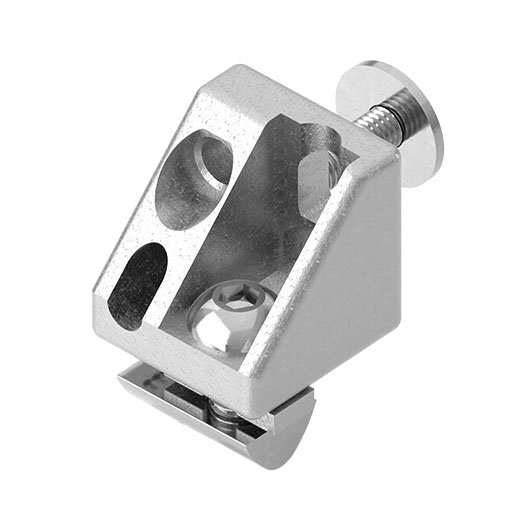

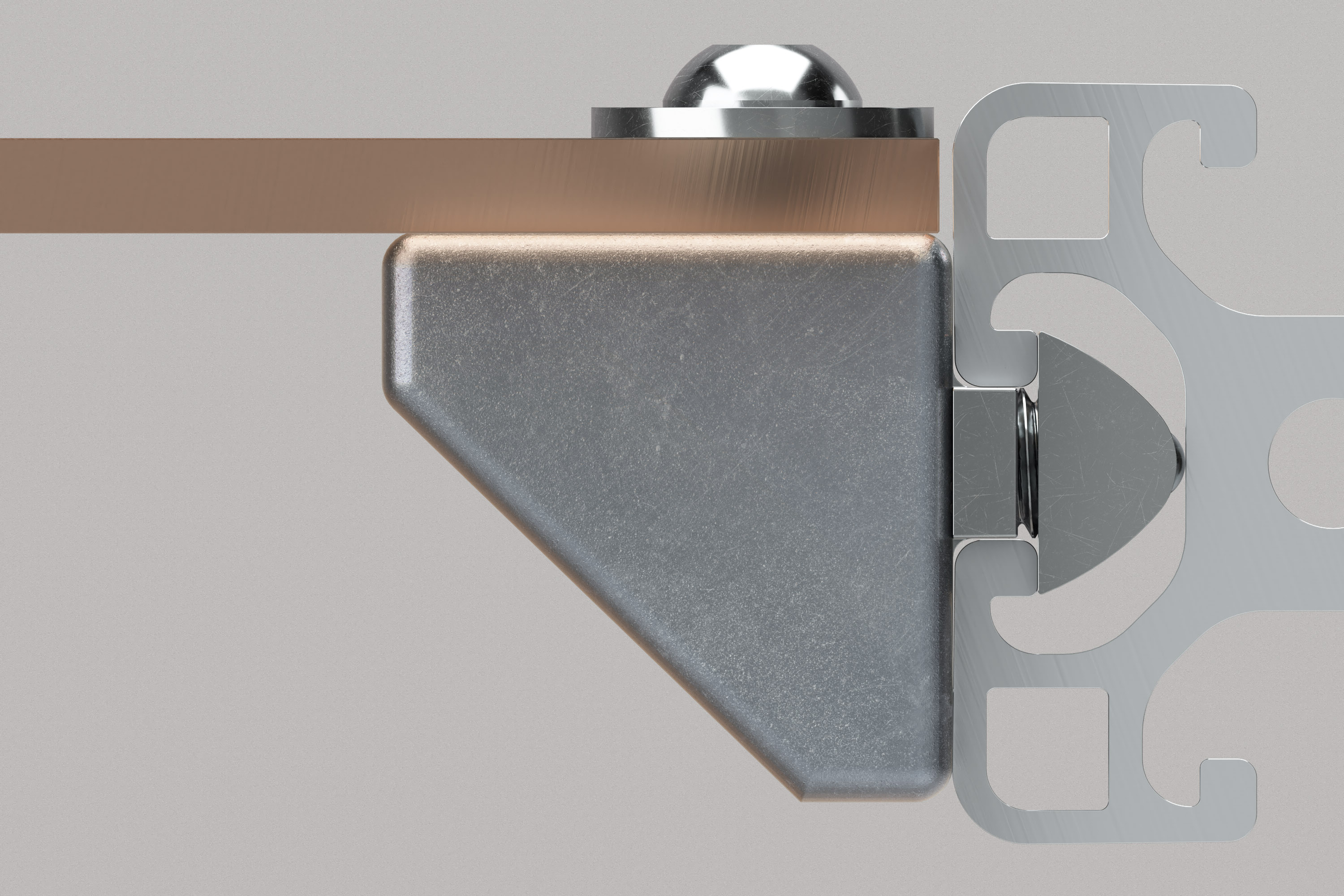

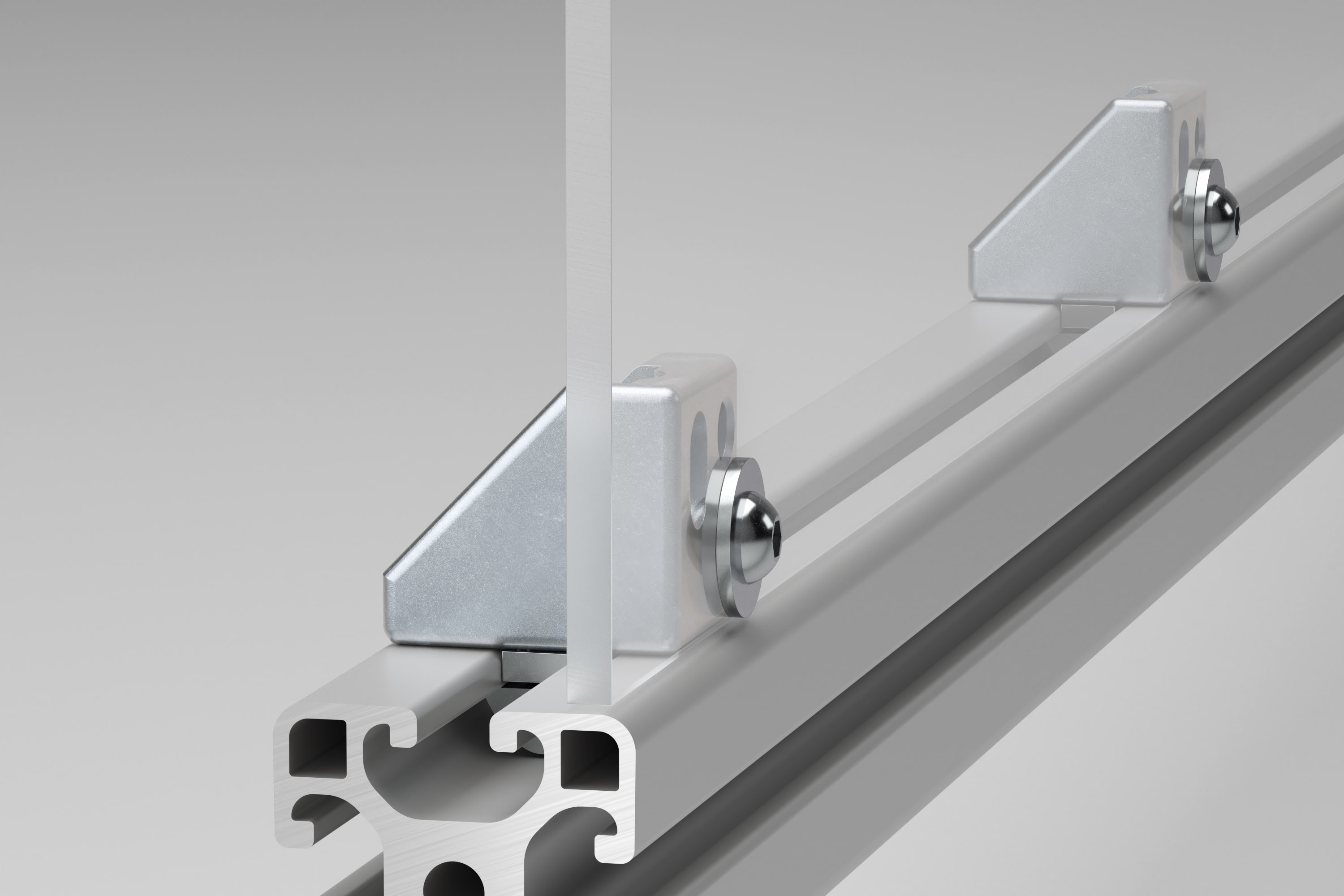

Multiblock 8 Zn ESD is used as an ESD-safe means of fastening panel elements to profile grooves, especially when heavy loads need to be carried. The Multiblock, which is adjustable in millimetre increments, ensures panels of different thicknesses can be fitted flush.
The Multiblock incorporates either a through bore or a square nut that is secured against falling out by a leaf spring.
To ensure electrostatic dissipation, ESD-safe panel elements must always be fastened to Multiblock 8 Zn ESD using a screw that rests on the surface. Countersunk screws are not suitable.
Important: For constructions in electrostatic protected areas, resistance measurements must always be carried out and documented to provide proof of ESD safety. item offers this as a service for turnkey solutions.
To fasten a panel element from above using an M8 screw, an M8 thread must be tapped into the core bore of the Multiblock.

Assembly Instructions

Variants

Sort by

Multiblock 8 PA, grey

Multiblock 8 PA, grey

0.0.630.28
Line:  8Material:  Plastic (PA)Colour:  Grey GreyFastening technology:  ScrewsTenon type:  -
Multiblock 8 PA, black

Multiblock 8 PA, black

0.0.026.72
Line:  8Material:  Plastic (PA)Colour:  Black BlackFastening technology:  ScrewsTenon type:  -
Multiblock 8 PA 0/5 mm, grey

Multiblock 8 PA 0/5 mm, grey

0.0.712.87
Line:  8Material:  Plastic (PA)Colour:  Grey GreyFastening technology:  ScrewsTenon type:  -
Multiblock 5 PA, grey

Multiblock 5 PA, grey

0.0.641.58
Line:  5Material:  Plastic (PA)Colour:  Grey GreyFastening technology:  ScrewsTenon type:  -
Multiblock 5 PA, black

Multiblock 5 PA, black

0.0.370.71
Line:  5Material:  Plastic (PA)Colour:  Black BlackFastening technology:  ScrewsTenon type:  -
Multiblock 6 PA, grey

Multiblock 6 PA, grey

0.0.635.68
Line:  6Material:  Plastic (PA)Colour:  Grey GreyFastening technology:  ScrewsTenon type:  -
Multiblock 6 PA, black

Multiblock 6 PA, black

0.0.419.58
Line:  6Material:  Plastic (PA)Colour:  Black BlackFastening technology:  ScrewsTenon type:  -
Multiblock 10 PA, grey

Multiblock 10 PA, grey

0.0.635.09
Line:  10Material:  Plastic (PA)Colour:  Grey GreyFastening technology:  ScrewsTenon type:  -
Multiblock X 8 PA 5/10 mm, grey

Multiblock X 8 PA 5/10 mm, grey

0.0.603.15
Line:  XMaterial:  Plastic (PA)Colour:  Grey GreyFastening technology:  ScrewsTenon type:  -
Multiblock X 8 PA 0/12 mm, grey

Multiblock X 8 PA 0/12 mm, grey

0.0.603.14
Line:  XMaterial:  Plastic (PA)Colour:  Grey GreyFastening technology:  ScrewsTenon type:  -
Clamp-Multiblock 8 PA, grey

Clamp-Multiblock 8 PA, grey

0.0.641.45
Line:  8Material:  Plastic (PA)Colour:  Grey GreyFastening technology:  ClampsTenon type:  -
Clamp-Multiblock 8 PA, black

Clamp-Multiblock 8 PA, black

0.0.196.63
Line:  8Material:  Plastic (PA)Colour:  Black BlackFastening technology:  ClampsTenon type:  -
Clamp-Multiblock 6 PA, grey

Clamp-Multiblock 6 PA, grey

0.0.636.22
Line:  6Material:  Plastic (PA)Colour:  Grey GreyFastening technology:  ClampsTenon type:  -
Clamp-Multiblock 6 PA, black

Clamp-Multiblock 6 PA, black

0.0.439.66
Line:  6Material:  Plastic (PA)Colour:  Black BlackFastening technology:  ClampsTenon type:  -
Clamp-Multiblock 5 PA, grey

Clamp-Multiblock 5 PA, grey

0.0.641.59
Line:  5Material:  Plastic (PA)Colour:  Grey GreyFastening technology:  ClampsTenon type:  -
Clamp-Multiblock 5 PA, black

Clamp-Multiblock 5 PA, black

0.0.437.24
Line:  5Material:  Plastic (PA)Colour:  Black BlackFastening technology:  ClampsTenon type:  -
Multiblock 8 Zn

Multiblock 8 Zn

0.0.373.23
Line:  8Material:  Die-cast zincColour:  Black BlackFastening technology:  ScrewsTenon type:  -
Multiblock 8 Zn ESD

Multiblock 8 Zn ESD

0.0.720.63
Line:  8Material:  Die-cast zincColour:  Bright zinc-plated Bright zinc-platedFastening technology:  ScrewsTenon type:  -
Multiblock 6 Zn

Multiblock 6 Zn

0.0.439.85
Line:  6Material:  Die-cast zincColour:  Black BlackFastening technology:  ScrewsTenon type:  -
Quick Multiblock 8 with Non-Removable Pin, grey

Quick Multiblock 8 with Non-Removable Pin, grey

0.0.625.90
Line:  8Material:  Plastic (PA)Colour:  Grey GreyFastening technology:  Snap inTenon type:  One-way tenon
Quick Multiblock 8 with Non-Removable Pin, black

Quick Multiblock 8 with Non-Removable Pin, black

0.0.625.91
Line:  8Material:  Plastic (PA)Colour:  Black BlackFastening technology:  Snap inTenon type:  One-way tenon
Quick Multiblock 8 with Slotted Pin Zn, grey

Quick Multiblock 8 with Slotted Pin Zn, grey

0.0.603.42
Line:  8Material:  Plastic (PA)Colour:  Grey GreyFastening technology:  Snap inTenon type:  Slotted tenon
Quick Multiblock 8 with Securing Pin Zn, grey

Quick Multiblock 8 with Securing Pin Zn, grey

0.0.603.41
Line:  8Material:  Plastic (PA)Colour:  Grey GreyFastening technology:  Snap inTenon type:  Toggle tenon
Quick Multiblock 8 with Securing Pin PA, grey

Quick Multiblock 8 with Securing Pin PA, grey

0.0.604.10
Line:  8Material:  Plastic (PA)Colour:  Grey GreyFastening technology:  Snap inTenon type:  Toggle pin PA
