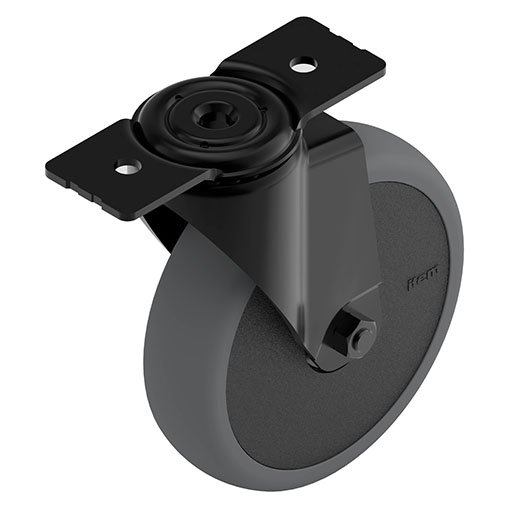

Swivel castor 120x40

Swivel castor 120x40


Show all 8 variants
On request

Technical Data

item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.item products are based on different modular dimensions and their associated system grooves.Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.The profiles in Line X feature a Line 8 system groove but have a particularly flat surface withminimum curve radii that make them ideal for building sealed constructions.Components with this symbol meet the requirements of IEC 61340-5-1 and are therefore suitable for use in EPAs (electrostatic protected areas). By complying with the further stipulations of this standard you can use these products to create a safe environment for handling electronic components.All substances are registered according to the REACH regulation.REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that usershave accurate information on the type and properties of operating materials, lubricants, etc.that they might come into contact with.Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.These include batteries, etc.

Scope of Delivery

Steel sheet casing bright, zinc-plated, black
Swivelling axis with sealed ball bearing
Wheel axle with sealed ball bearing
Dust shield
Tyre TPE, track-free, 90 Sh A, grey

Properties

Article number 0.0.633.45
Line line 10
Line line 12
Line line 8
ESD-safe Yes
Weight m = 773 g
Delivery unit 1 pce.
Tragfähigkeit (Rolle) Load-carrying capacity = 80 kg/Castor

Description

Carrying capacity 80 kg/castor
Bei den item Lenkrollen D100 120x40 (Rollendurchmesser 100 mm) ist die schmale Anschraubplatte mit zwei Bohrungen in das Metallgehäuse integriert. Dadurch lassen sie sich ohne zusätzliche Fußplatte an Profilnuten oder in der Kernbohrung von Profilen befestigen.

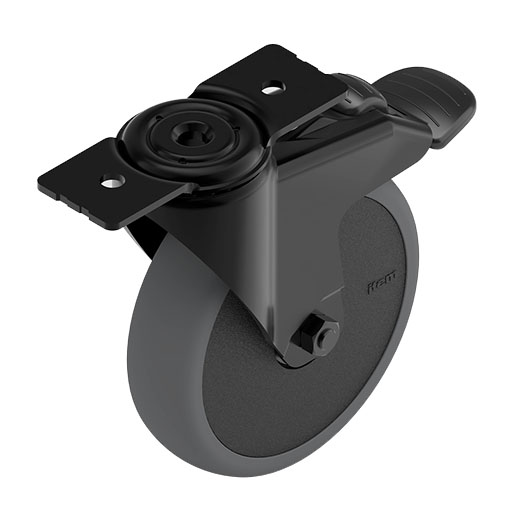

Es sind Lenkrollen und Lenkrollen mit Doppelfeststeller lieferbar. Drehachse und Radachse sind jeweils kugelgelagert.
Hinweis: Die Bockrolle D100 (0.0.603.26) besitzt das identische Höhenmaß und eine schmale Anschraubplatte mit Verdrehsicherung.

Variants

Sort by

Tragfähigkeit (Rolle):  80 kg Rollendurchmesser:  100 mm Feststeller:  ohne ESD-sicher:  X
Tragfähigkeit (Rolle):  80 kg Rollendurchmesser:  100 mm Feststeller:  ohne ESD-sicher:
Tragfähigkeit (Rolle):  80 kg Rollendurchmesser:  100 mm Feststeller:  doppelt ESD-sicher:  X
Tragfähigkeit (Rolle):  80 kg Rollendurchmesser:  100 mm Feststeller:  doppelt ESD-sicher:
Tragfähigkeit (Rolle):  100 kg Rollendurchmesser:  125 mm Feststeller:  ohne ESD-sicher:  X
Tragfähigkeit (Rolle):  100 kg Rollendurchmesser:  125 mm Feststeller:  ohne ESD-sicher:
Tragfähigkeit (Rolle):  100 kg Rollendurchmesser:  125 mm Feststeller:  doppelt ESD-sicher:  X
Tragfähigkeit (Rolle):  100 kg Rollendurchmesser:  125 mm Feststeller:  doppelt ESD-sicher:

Classification

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 8.0
23370590
eCl@ss 11.0
23370590
eCl@ss 7.1
23370590
eCl@ss 6.0.1
23370201
eCl@ss 4.0
22041431
eCl@ss 4.1
22041431
eCl@ss 5.0
23250319
eCl@ss 5.1
23250319
UNSPSC 9.0
31162701
UNSPSC 7.0
31162701
Customs tariff number
83022000
